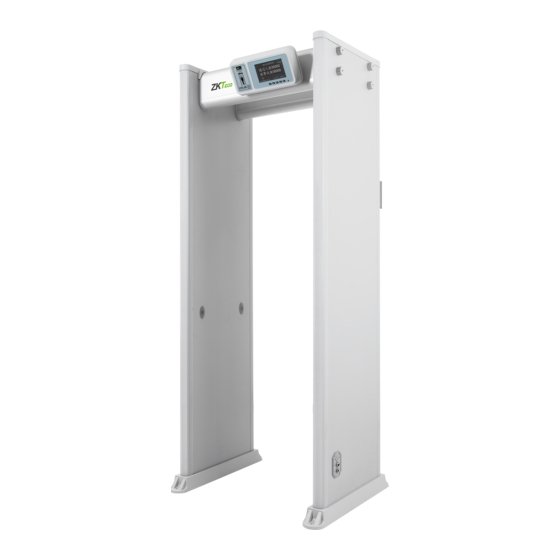

Walk through metal detector
Hide thumbs Also See for ZK-D4330:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
User Manual
Walk Through Metal Detector: ZK-D4330
Version: 1.0
Date: June. 2017
Contents 1

Advertisement

Table of Contents
loading

Related Manuals for ZKTeco ZK-D4330

Summary of Contents for ZKTeco ZK-D4330

  • Page 1 User Manual Walk Through Metal Detector: ZK-D4330 Version: 1.0 Date: June. 2017 Contents 1...

  • Page 3: Table Of Contents

    Contents Notes ................................1 Product Specification ........................2 Installation Environment ....................... 3 Performance and Features......................5 Parts................................7 Installation .............................. 8 Panel Description ..........................10 Remote Control Description ....................11 Detection Zones ..........................12 Operation ..............................13 Detection Adjustment ........................20 Brief Maintenance ...........................22 Technical Parameters ........................23 Factory Settings ..........................24 Packing List ............................25...

  • Page 5: Notes

    Notes PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE OPERATION: -term outdoor work, please use canopy to protect it against rain. Install the device steadily on a smooth ground without vibration. Violent shaking may cause false alarms. Passengers should pass the device one by one after the preset standby duration or alarm duration elapses.

  • Page 6: Product Specification

    When the passengers pass through the device, if they carried metals more than preset parameters value, the device would immediately alarm and display alarm location for security guards to identify people with the prohibited metal articles timely. 2 ZK-D4330 User Manual...

  • Page 7: Installation Environment

    Installation Environment 1. Stationary Metallic Items When installing walk through metal detector, it should stay away from the stationary or fixed bulk metal items 30cm; otherwise it will affect the sensitivity, causing false alarm. Metal items such as: aluminum alloy/ stainless steel doors and windows etc.
  • Page 8 When installing the devices side by side, the distance between two walk through metal detectors cannot be less than 30cm and the device work frequency must be different. Specific distance parameters according to the actual environment and the selection of the work frequency to adjust. 4 ZK-D4330 User Manual...

  • Page 9: Performance And Features

    Performance and Features  Accurate Positioning: The device supports single zone, six zones, 11 zones, and 33 zones overlapping network detection modes, bilateral transmit and receive, can be accurately positioned to detect objects, intuitive display of the target location.  Micro Processor Technology: the scanning electromagnetic wave generated by the microcomputer control circuit, the scanning rate can be precisely controlled.
  • Page 10  Optional items: waterproof cover and Universal wheel, the waterproof cover can keep the device away from rain and dust, and the pulley makes the equipment move more easily. 6 ZK-D4330 User Manual...

  • Page 11: Parts

    Parts 1. (Optional) Transparent rainproof canopy 2. Front beam 3. Rear beam 4. Host 5. Alarm zone LED 6. Infrared sensors 7. Waterproof foot cover 8. Power interface, power button, and reserved linkage interface Parts 7...

  • Page 12: Installation

    1. Remove the package of the host, beams, and door panels. 2. Put the door panels on the ground as above picture shown, and use bolts to connect the door panels to the beams. The bolts must be tightened. 8 ZK-D4330 User Manual...
  • Page 13 3. Use screws to connect the host to the adjustable metal bracket. The screws must be tightened. 4. Open the cover under the front beam, and insert the probe cable of the host into the hole on the beam. 5. Use bolts to connect the host to the beam and tighten the bolts. 6.

  • Page 14: Panel Description

    3. Up button: selects a menu item or increases a value. 4. Down button: selects a menu item or decreases a value. 5. OK button: enters a menu item. 6. Power button: powers on or off the device. 7. Infrared remote signal receive terminal. 10 ZK-D4330 User Manual...

  • Page 15: Remote Control Description

    Remote Control Description 1. RESET: power key 2. PROG: key for entering the menu 3. ESC: exit key 4. UP: up key for selecting a menu item or increasing a value 5. ENTER: OK key 6. LEFT: left key for selecting a menu item 7.

  • Page 16: Detection Zones

    After connected power supply, the metal detector starts to work. When there is no person or object passes the device, the infrared sensors can effectively stop alarming to avoid false alarm. And accurate count passengers and alarm times. 12 ZK-D4330 User Manual...

  • Page 17: Operation

    Operation 1. Connect the power supply. After 5 seconds into the working status, the LCD is shown in the following figure. PASS CNT 0 0 0 0 0 ALARM CNT 0 0 0 0 0 2. Press the OK button to access the interface for entering the password (default: 100000).
  • Page 18 Press the up or down button to select Zone and press the OK button. Select XXZone and press the OK button. Then, press the up or down button to adjust the zone sensitivity level. A larger value indicates a higher sensitivity level. 14 ZK-D4330 User Manual...
  • Page 19 Zone Sensitivity 06Zone: 000 12Zone: 000 05Zone: 000 11Zone: 000 04Zone: 000 10Zone: 000 03Zone: 000 09Zone: 000 02Zone: 000 08Zone: 000 01Zone: 000 07Zone: 000 5. On the program setting interface, press the up or down button to select Alarm and press the OK button. The alarm setting interface is displayed.
  • Page 20 7. On the program setting interface, press the up or down button to select Language and press the OK button. Then, press the up or down button to select a language, and press the OK button. Language Setting 简体中文 ENGLISH Others 16 ZK-D4330 User Manual...
  • Page 21 8. On the program setting interface, press the up or down button to select Time and press the OK button. The time setting interface is displayed. Time Setting 2017-08-08 10:00 9. On the program setting interface, press the up or down button to select Password and press the OK button.
  • Page 22 13. On the program setting interface, press the up or down button to select System and press the OK button. The system setting interface is displayed. System Setting Working channel: 00 Detect speed: 100 Power condition: ON 18 ZK-D4330 User Manual...
  • Page 23 Press the up or down button to select Working channel and press the OK button. Then, press the up or down button to select one from 100 operating frequency bands and press the OK button. 14. On the program setting interface, press the up or down button to select Display and press the OK button.

  • Page 24: Detection Adjustment

    Note: If you want to decrease the sensitivity in a certain zone, only have to adjust the sensitivity of relative zone. After finished the above adjustment, the metal which smaller than the sample will not alarm, but the metal objects bigger than the sample can be detected accurately. 20 ZK-D4330 User Manual...
  • Page 25 Traffic regulations: a) Draw a waiting line for 50cm away from the device, so that the passengers can line up and pass one by one. b) Before the passengers walk through the device, they should remove all the carried metal objects (such as keys, mobile phone, watch, coins, etc.), place on the side of security chute or a table, and pick it up after security checking.

  • Page 26: Brief Maintenance

    If the false alarm not caused by the environment, please reduce the sensitivity of all zones. c) Change the frequency d) Change the installation location 22 ZK-D4330 User Manual...

  • Page 27: Technical Parameters

    Technical Parameters Input voltage: 100-240 V，50/60 Hz Working temperature: -20℃ ~ 50℃ External Dimensions (H x W x D): 2220 mm x 930 mm x 760 mm Channel Dimensions (H x W x D): 2010 mm x 760 mm x 760 mm Package Dimensions (H x W x D): 2300 mm x 335 mm x 800 mm Gross Weight: 70 [kg] Technical Parameters 23...

  • Page 28: Factory Settings

    Factory Settings 100000 Default Password Audio alarm lasts LED alarm lasts 1 12 Zone Sensitivity Overall Sensitivity Language English 24 ZK-D4330 User Manual...

  • Page 29: Packing List

    Packing List Thank you for purchasing the walk through metal detectors of our company. Please check whether the articles in the packing list are all contained in the packing case. Contact us if any article is missing or damaged. Packing list: (1) L side panel (2) R side panel (3) Front beam...

  • Page 30: Warranty Card

    This card will not be supplied again if losing it. Model Number Date Acquisition User Post Code Address User s Phone Number 26 ZK-D4330 User Manual...
  • Page 31 Date of Maintenance Record of Maintenance Maintainer Warranty Card 27...
