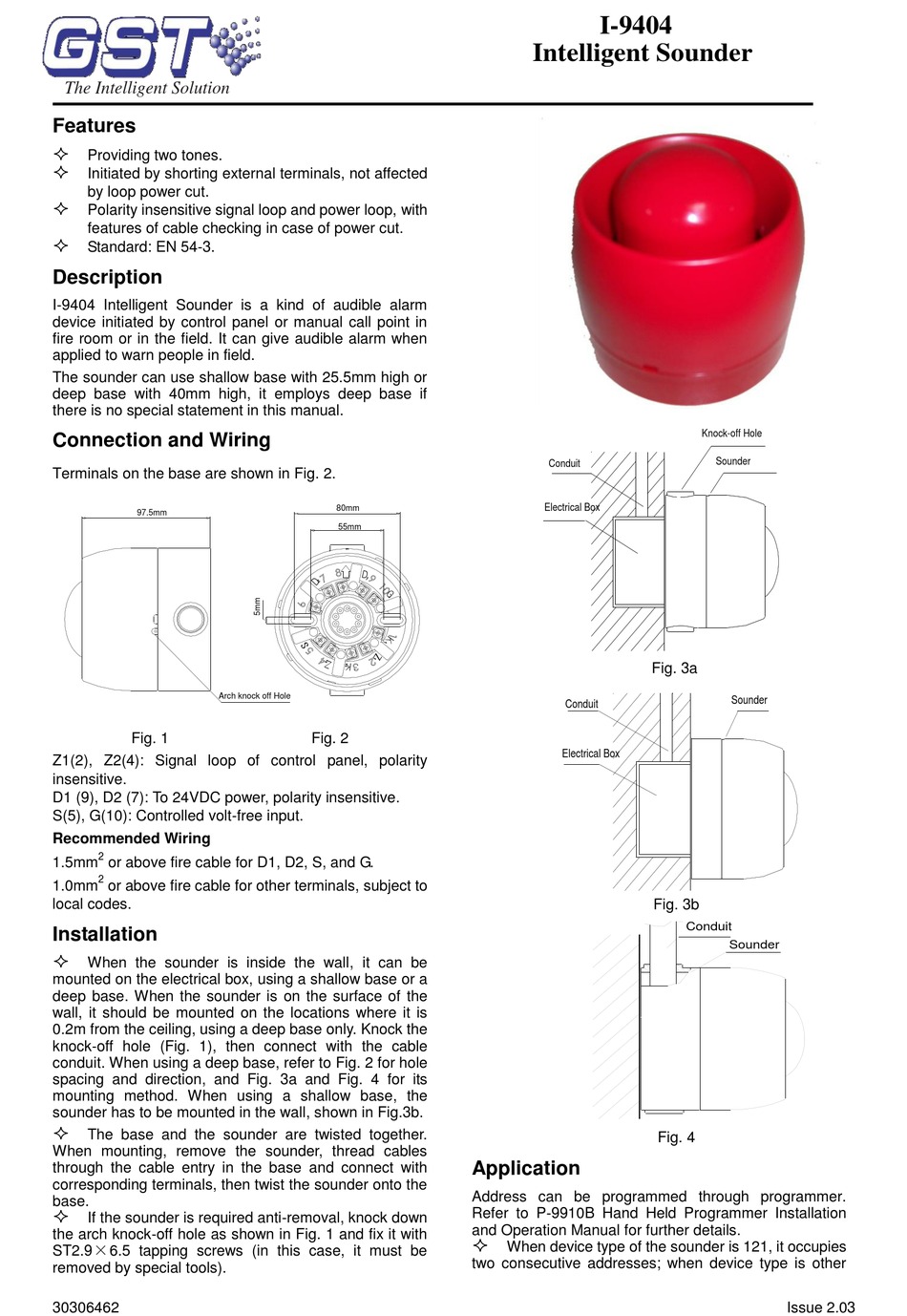

GST I-9404 Installation Instructions

The Intelligent Solution

Features


Providing two tones.

Initiated by shorting external terminals, not affected
by loop power cut.

Polarity insensitive signal loop and power loop, with
features of cable checking in case of power cut.

Standard: EN 54-3.

Description

I-9404 Intelligent Sounder is a kind of audible alarm
device initiated by control panel or manual call point in
fire room or in the field. It can give audible alarm when
applied to warn people in field.
The sounder can use shallow base with 25.5mm high or
deep base with 40mm high, it employs deep base if
there is no special statement in this manual.

Connection and Wiring

Terminals on the base are shown in Fig. 2.
97.5mm
Arch knock off Hole
Fig. 1
Z1(2), Z2(4): Signal loop of control panel, polarity
insensitive.
D1 (9), D2 (7): To 24VDC power, polarity insensitive.
S(5), G(10): Controlled volt-free input.

Recommended Wiring

2
1.5mm or above fire cable for D1, D2, S, and G.
2
1.0mm or above fire cable for other terminals, subject to
local codes.

Installation


When the sounder is inside the wall, it can be
mounted on the electrical box, using a shallow base or a
deep base. When the sounder is on the surface of the
wall, it should be mounted on the locations where it is
0.2m from the ceiling, using a deep base only. Knock the
knock-off hole (Fig. 1), then connect with the cable
conduit. When using a deep base, refer to Fig. 2 for hole
spacing and direction, and Fig. 3a and Fig. 4 for its
mounting method. When using a shallow base, the
sounder has to be mounted in the wall, shown in Fig.3b.

The base and the sounder are twisted together.
When mounting, remove the sounder, thread cables
through the cable entry in the base and connect with
corresponding terminals, then twist the sounder onto the
base.

If the sounder is required anti-removal, knock down
the arch knock-off hole as shown in Fig. 1 and fix it with
ST2.9×6.5 tapping screws (in this case, it must be
removed by special tools).
30306462
80mm
55mm
Fig. 2

Application

Address can be programmed through programmer.
Refer to P-9910B Hand Held Programmer Installation
and Operation Manual for further details.

two consecutive addresses; when device type is other
I-9404
Intelligent Sounder
Conduit
Electrical Box
Fig. 3a
Conduit
Electrical Box
Fig. 3b
Fig. 4
When device type of the sounder is 121, it occupies
Knock-off Hole
Sounder
Sounder
Conduit
Sounder
Issue 2.03
