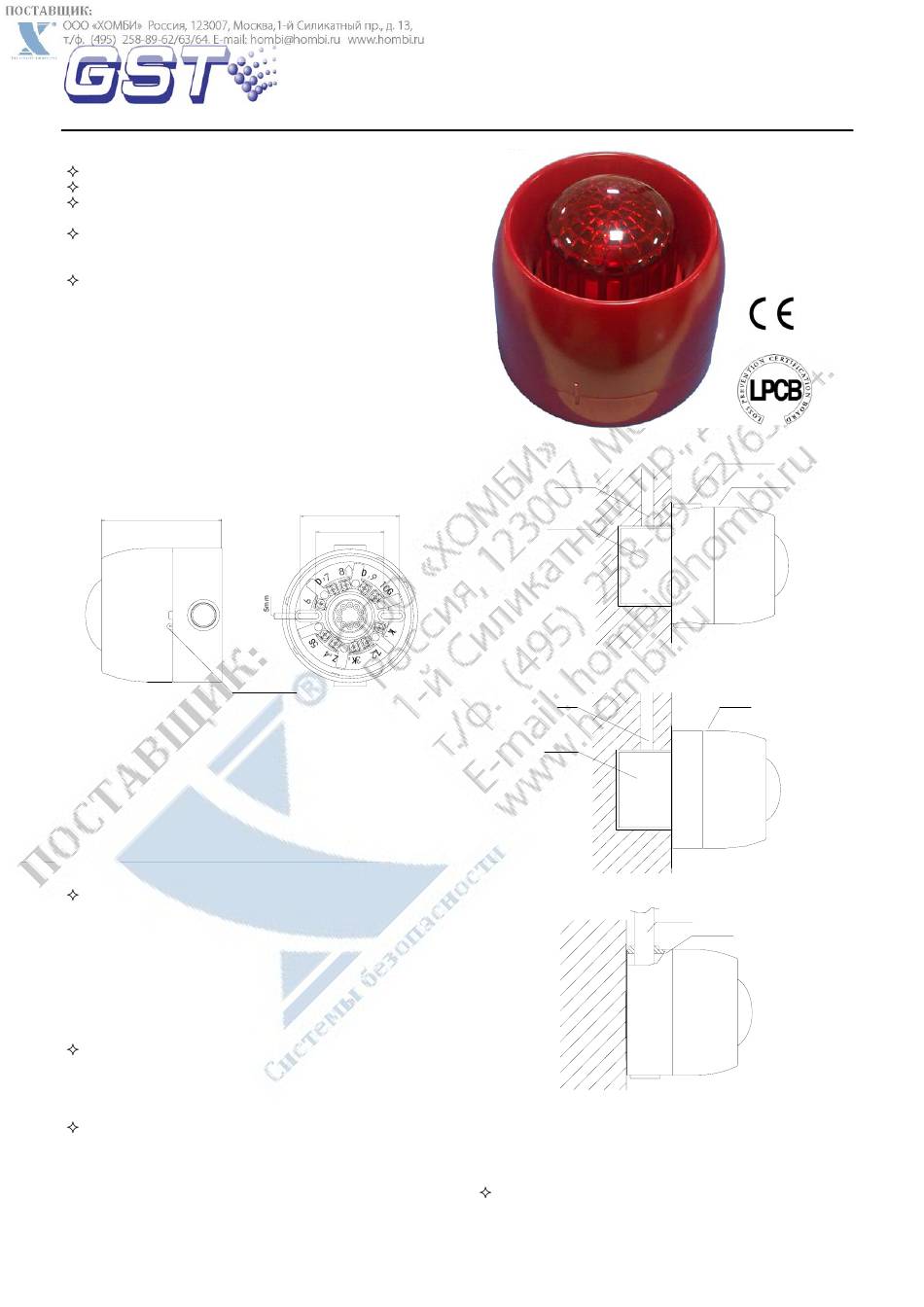

GST I-9403 Manual

The Intelligent Solution

Features

Providing two tones.
Using several high red LEDs as light source.
Initiated by shorting external terminals; not affected by
loop power cut.
Signal loop and power loop are polarity-insensitive,
which is convenient for wiring and features power-off
checking.
Standard: EN 54-3.

Description

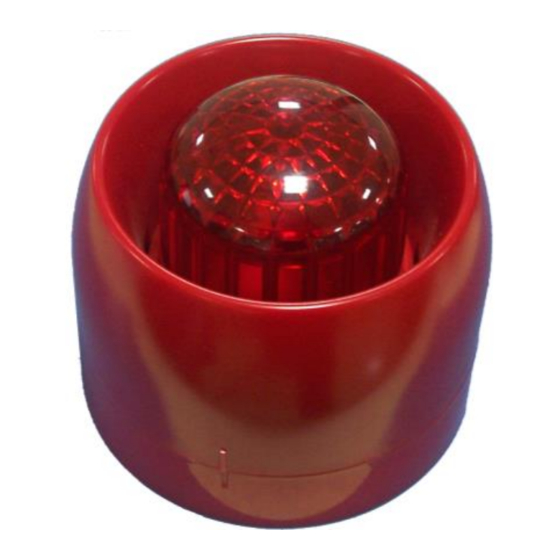

I-9403 Intelligent Sounder Strobe is a kind of audible and
visual alarm device installed in field, which can be initiated by
fire alarm control panel in fire control center or by manual call
point installed in field. Having been initiated, it will generate
strong audible and visual alarm signal to warn people in field.
Both shallow base with 25.5mm high and deep base with
40mm high are available, deep base is used if there is no
special statement in this manual.
Connection & Wiring
Terminals on the base are shown in Fig. 2.
97.5mm
Fig. 1
Z1 (2), Z2 (4): To control panel loop, polarity-insensitive.
D1 (9), D2 (7): To 24VDC power, polarity-insensitive.
S (5), G (10): External volt-free input.

Recommended Wiring

2
1.5mm or above fire cable for power wire D1, D2 and
external wire S, G; 1.0mm
terminals, subject to local codes.

Installation

When the sounder strobe is surface mounted, it should
be placed 0.2m from the ceiling for normal space height.
When conduit is embedded, the base can be mounted on the
electrical box. When conduit is surface mounted, the deep
base should be adopted. Knock the knock-off hole, then
connect the conduit with it. The mounting hole spacing and
mounting direction are shown in Fig. 2. Mounting method is
shown in Fig. 3a and Fig. 4. When the shallow base is
required, the sounder strobe only adopts conduit embedded.
Its mounting method is shown in Fig. 3b.
The base and the sounder strobe are twisted together.
When mounting, remove the sounder strobe, thread cables
through cable entry in the base and connect with
corresponding terminals, then twist the sounder strobe onto
the base.
If the sounder strobe is required anti-removal, knock
down the arch knock-off hole as shown in Fig. 1 and fix it with
ST2.9×6.5 tapping screws (in this case, it must be removed
by a special tool).
30302714
E-MAIL: hombi@hombi.ru
80mm
55mm
Arch knock off Hole
Fig. 2
2
or above fire cable for other
HTTP://GSTRU.RU
I-9403
Intelligent Sounder Strobe
Conduit
Electrical Box
Fig. 3a
Conduit
Electrical Box
Fig. 3b
Fig. 4

Application

Address can be programmed through a programmer. Refer
to P-9910B Hand Held Programmer Installation and
Operation Manual for further details.
The sounder strobe
addresses when its device type is 121. It occupies one
0832-CPD-0448
548e/02
Knock-off Hole
Sounder Strobe
Sounder Strobe
Conduit
Sounder Strobe
occupies two consecutive
Issue 2.05
