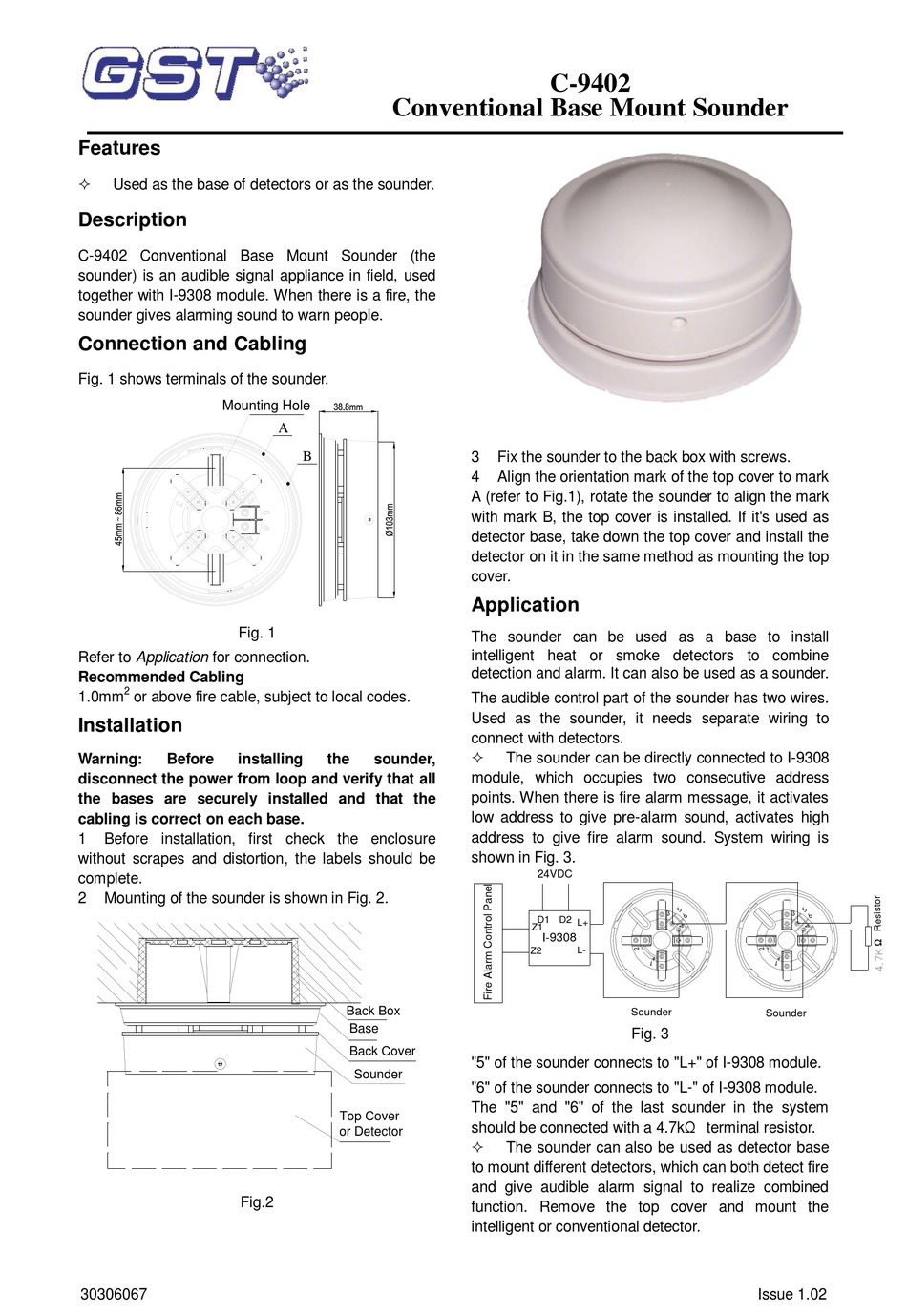

Features

Used as the base of detectors or as the sounder.
Description
C-9402 Conventional Base Mount Sounder (the
sounder) is an audible signal appliance in field, used
together with I-9308 module. When there is a fire, the
sounder gives alarming sound to warn people.
Connection and Cabling
Fig. 1 shows terminals of the sounder.
Mounting Hole
Fig. 1
Refer to Application for connection.
Recommended Cabling
2
1.0mm or above fire cable, subject to local codes.
Installation
Warning: Before installing
disconnect the power from loop and verify that all
the bases are securely installed and that the
cabling is correct on each base.
1 Before installation, first check the enclosure
without scrapes and distortion, the labels should be
complete.
2 Mounting of the sounder is shown in Fig. 2.
Fig.2
30306067
Conventional Base Mount Sounder
A
B
the sounder,
Back Box
Base
Back Cover
Sounder
Top Cover
or Detector
C-9402
3 Fix the sounder to the back box with screws.
4 Align the orientation mark of the top cover to mark
A (refer to Fig.1), rotate the sounder to align the mark
with mark B, the top cover is installed. If it's used as
detector base, take down the top cover and install the
detector on it in the same method as mounting the top
cover.
Application
The sounder can be used as a base to install
intelligent heat or smoke detectors to combine
detection and alarm. It can also be used as a sounder.
The audible control part of the sounder has two wires.
Used as the sounder, it needs separate wiring to
connect with detectors.

The sounder can be directly connected to I-9308
module, which occupies two consecutive address
points. When there is fire alarm message, it activates
low address to give pre-alarm sound, activates high
address to give fire alarm sound. System wiring is
shown in Fig. 3.
24VDC
D1 D2
L+
Z1
I-9308
L-
Z2
Sounder
Fig. 3
"5" of the sounder connects to "L+" of I-9308 module.
"6" of the sounder connects to "L-" of I-9308 module.
The "5" and "6" of the last sounder in the system
should be connected with a 4.7kΩ terminal resistor.

The sounder can also be used as detector base
to mount different detectors, which can both detect fire
and give audible alarm signal to realize combined
function. Remove the top cover and mount the
intelligent or conventional detector.
Sounder
Issue 1.02
