Installation

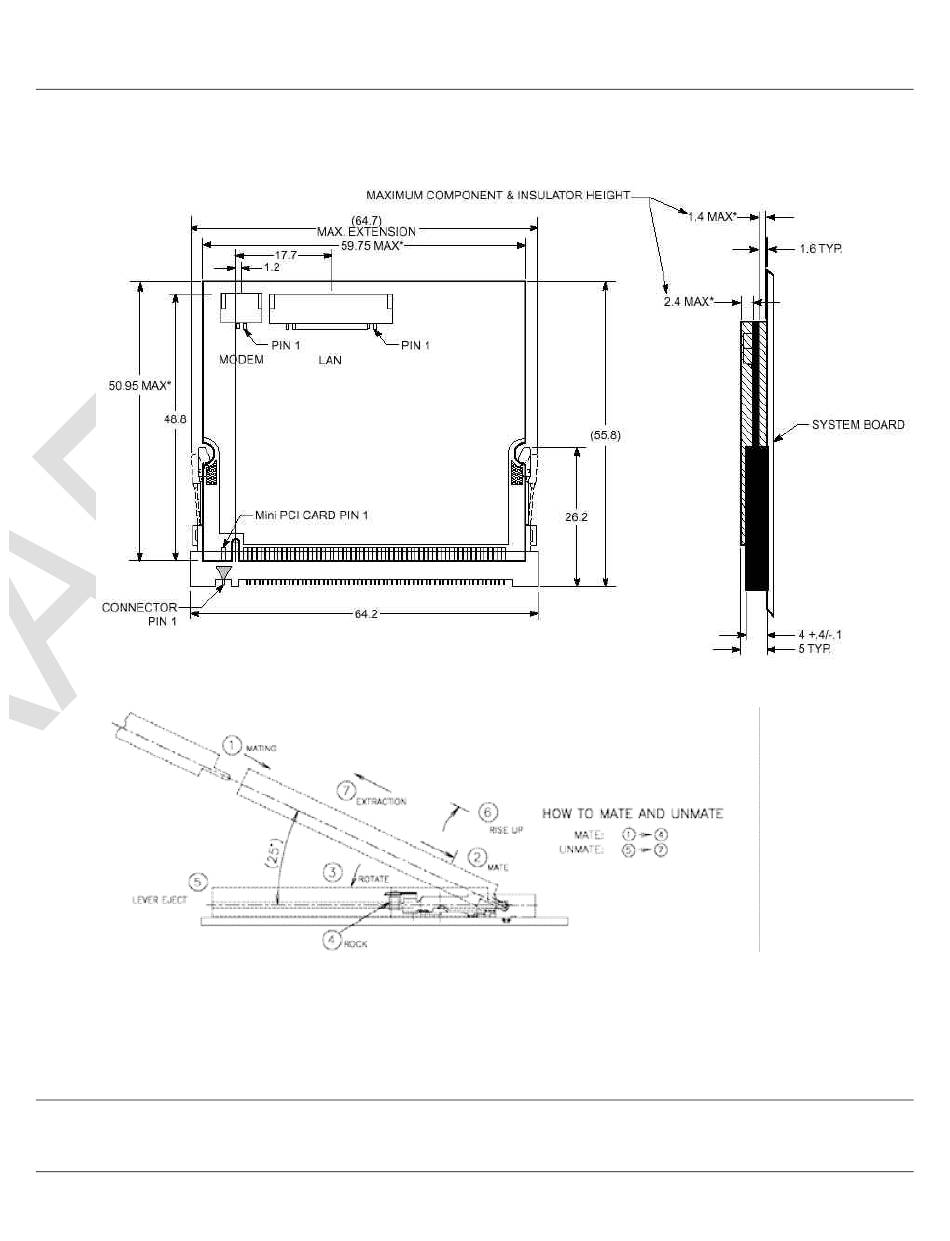

The Radiolinx IHW-OEM module fits into a MiniPCI connector. The diagram below shows the
dimensions of a MiniPCI TypeIIIA card.
The diagram below shows inseration and removal of the Mini-PCI card.
Digital connection is through Mini PCI type III defined by the Mini PCI Specification document
published by the PCI Special Interest Group. As a recommendation, the Molex 67315-0011 can
be used.
Pin
Signal
ProSoft Technology, Inc.
September 6, 2007
Pin
Signal
Pin
RLX-IHW-OEM ? 802.11a, b, g
Signal
Pin
Industrial Hotspot
Signal
Page 4 of 6
