Rae AutoRAE 2 Quick Start Manual

by Honeywell
Setup
Before using the AutoRAE 2 Controller and AutoRAE 2 Cradle(s) to bump test or calibrate ToxiRAE Pro-family
and/or QRAE 3 and/or MultiRAE-family (pumped versions) instruments, follow the instructions in the
AutoRAE 2 User's Guide for programming the gas configurations. The steps to follow for assembly and gas
configuration, as well as functionality, are the same for all cradles.
Connections

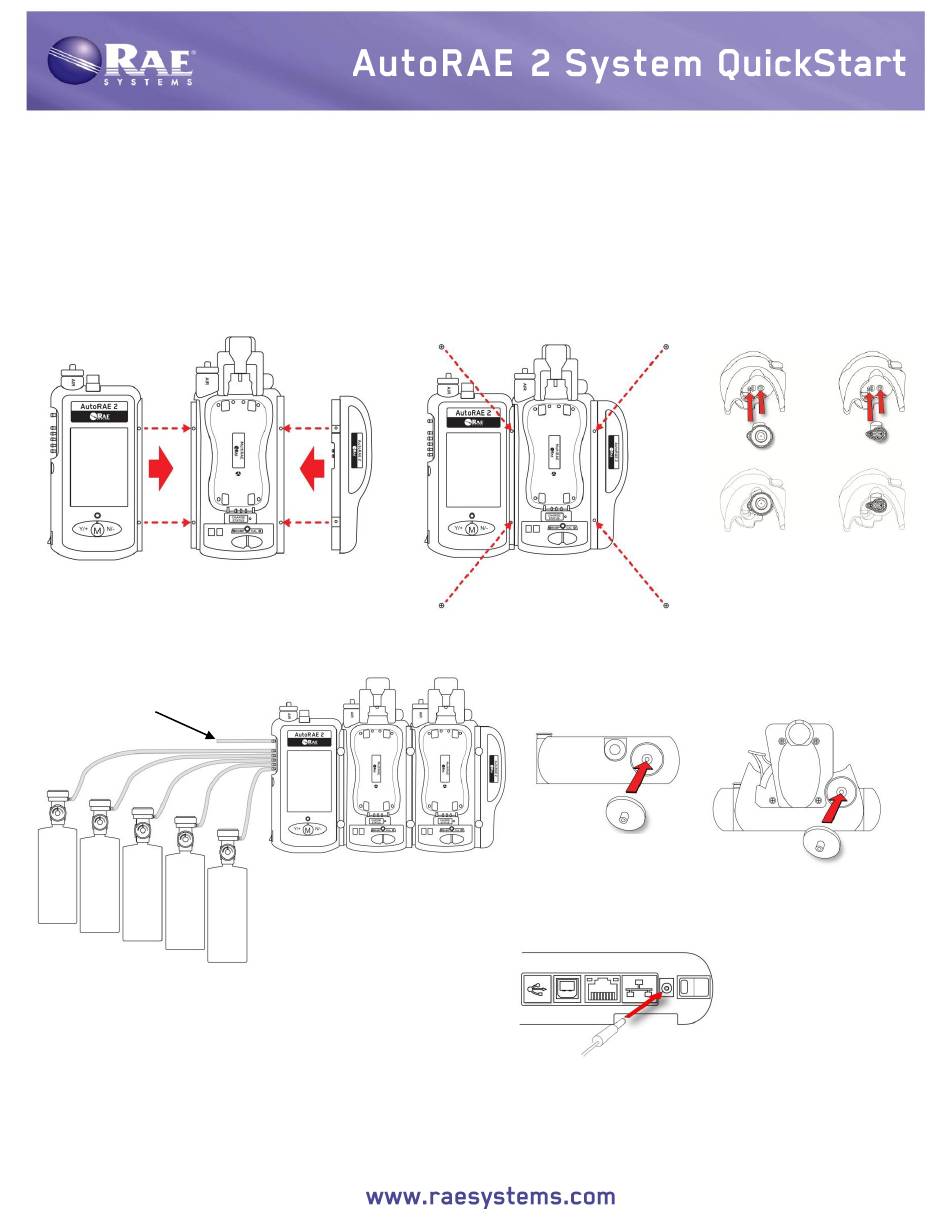

Assemble the system. Connect the AutoRAE 2 Controller to any Cradles, and then connect the Terminator. For
ToxiRAE Pro Cradles, insert the appropriate adapter.
Attach Controller to Cradle(s) and then
attach Terminal Adapter to last Cradle.
Exhaust
Calibration gas cylinders
(each must have a demand-flow regulator)
Important! Make sure an SD card is installed in the AutoRAE 2 Controller. The system cannot operate if an SD
card is not installed. For installation instructions, consult the AutoRAE 2 User's Guide. Make sure the AutoRAE 2
Controller's RTC (real-time clock) has been set in ProRAE Studio II before its first use.
AutoRAE 2
AutoRAE 2
Cradles
Controller
(maximum
of 10)
Insert and tighten
screws, and then put
caps over screws.
Press filter onto
receptacle at end
of Controller
The ToxiRAE Pro Cradle
requires an adapter to be
inserted in the capture
mechanism. ToxiRAE Pro
and ToxiRAE Pro LEL (L)
and ToxiRAE Pro PID (R).
Press filter onto
receptacle at
end of Cradle
Plug the barrel from
AC adapter into jack.
Then plug its cord into
the transformer, and
the transformer into
AC power source.
