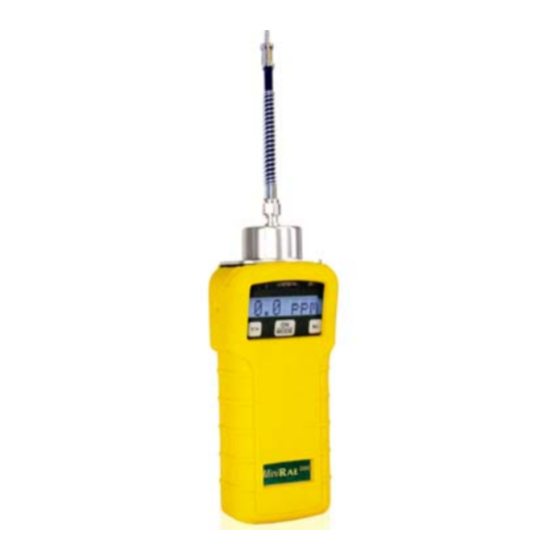

MiniRAE 2000
Portable VOC Monitor
PGM-7600
OPERATION AND MAINTENANCE
MANUAL
(Document No.: 011-4001)
Rev. C
RAE SYSTEMS INC.
1339 Moffett Part drive
Sunnyvale, CA 94089
November 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniRAE 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Rae MiniRAE 2000

Summary of Contents for Rae MiniRAE 2000

  • Page 1 MiniRAE 2000 Portable VOC Monitor PGM-7600 OPERATION AND MAINTENANCE MANUAL (Document No.: 011-4001) Rev. C RAE SYSTEMS INC. 1339 Moffett Part drive Sunnyvale, CA 94089 November 2001...
