Instrucciones generales para instalación, uso y mantenimiento
Instructions générales pour l'instalation, l'utilisation et

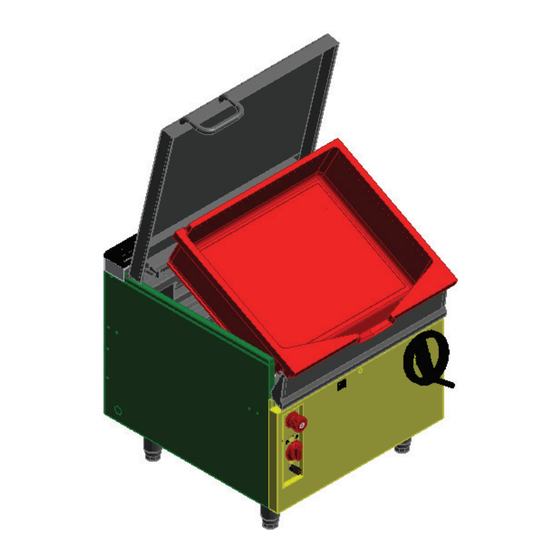

SAUTEUSE BASCULANTE A GAZ
Allgemeine bedienungssanleitung zur installation, bedienung
General instructions for installation, use and maintenance
Instruccioni generali per l´installzione, l´uso e la manutenzione
Montaj, kullamin ve bakim için kullanim kilavuzu
Mod:
SBG9-10, SBG9-10 I
SBG9-10 S, SBG9-10 IS
SBG9-10 M, SBG9-10 IM,
SBG9-10 MS, SBG9-10 IMS,
SBG9-15 IMS
SBG9-15 IM
SBG7-10 I
SARTEN BASCULANTE A GAS
l'entretien
und wartung
GAS-KIPPBRATPFANNE
GAS TILTING BRATT PAN
PADELLA BASCULANTE A GAS
GAZLI DEVR L R TAVA
X026501
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fagor SBG9-10
Summary of Contents for Fagor SBG9-10
- Page 1 Instruccioni generali per l´installzione, l´uso e la manutenzione PADELLA BASCULANTE A GAS Montaj, kullamin ve bakim için kullanim kilavuzu GAZLI DEVR L R TAVA Mod: SBG9-10, SBG9-10 I SBG9-10 S, SBG9-10 IS SBG9-10 M, SBG9-10 IM, SBG9-10 MS, SBG9-10 IMS, SBG9-15 IMS X026501 SBG9-15 IM...
- Page 2 SBG9-10, SBG9-10I A: Water inlet G: Gas inlet E: Electricity point SBG9-10 M, SBG9-10 IM, SBG9-15 IM ¡...
- Page 3 SBG7-10 ¢...
- Page 4 1 - SBG9-10, SBG9-10I, SBG9-10S, SBG9-10IS 2 - SBG9-10M, SBG9-10IM, SBG9-10MS, SBG9-10I MS 3 - SBG9-15 IM, SBG9-15IMS 4 - SBG7-10 £...
- Page 5 ¥ ¦ § ¨ © ¨ ¦ § ¦ ¦ " Fig. 8 Fig. 9 ¤...
- Page 6 Nevertheless, we recommend you to read this manual which has been compiled at length by FAGOR's kitchen supervisors, in order to benefit to the maximum from the multiple possibilities and advantages that this appliance offers you.
- Page 7 ¶ ¶ consumption(Table & Consumption of necessary air for the combustion Mod. Nm3/h SBG9-10, SBG9-10I, SBG9-10S, SBG9- 10IS, SBG9-10 M, SBG9-10I M, SBG9-10 MS, SBG9-10I MS SBG9-15IM, SBG9-15I MS & SBG9-10 M, SBG9-10I M, SBG9-10 MS, SGB7-10I SBG9-10I MS, ¢...
- Page 8 & ¶ Table of operating categories, gases and pressures (Table & ¶ ¶ ¶ RANGE 900 ¶ ¶ ¶ ¶ Country of destination Pressure (mbar) Categories ¶ & 20-50 II2H3B/P BE, LU 20/25-28/37 II2E+3+ CH, IT 8-20,20-30/37 II1a2H,II2H3+ 20-50 II2E3B/P 8-20-30 III1a2H3B/P 8-18-28/37...
- Page 9 Cuadro N° 1¶ ¶ & ¶ Injector diameter and adjusment(Table4) & ¶ ¶ ¶ SBG9-10, SBG9-10I ¶ SBG9-10 S, SBG9-10 IS SBG9-15 IM ¶ SBG7-10 I ¶ SBG9-15 IMS SBG9-10 M, SBG9-10 IM ¶ SBG9-10 MS, SBG9-10 IMS FAMILY ¶...
-
Page 10: Installation
1.-INSTALLATION Positioning and levelling The positioning and electrical and gas installation should always be carried out by an AUTHORISED TECHNICIAN, observing the standards of each country. It is advisable to install an extraction hood for the optimum operation of the appliance. Place the appliance in a well ventilated place. - Page 11 2.-USAGE Never start the appliance empty, as overheating could seriously damage the tub. .-SBG9-10, SBG9-10I, SBG9-10S, SBG9-10IS SBG9-10M, SBG9-10IM, SBG9-10MS, SBG9-10I .- Water inlet tap. 2.- On lamp. 1.- Water inlet tap. 3.- Pilot light position lamp. 2.- On lamp.
-
Page 12: Maintenance
3.-MAINTENANCE Daily cleaning In order for the appliance to work as new, it is advisable to follow the following instructions: Do not use gritty and abrasive detergents for cleaning. Do not use a water hose to clean the appliance. It is advisable to regularly clean the inner part of the tub with soapy water that will be left to boil for a few minutes, and then rinse it with plenty of water.
