3

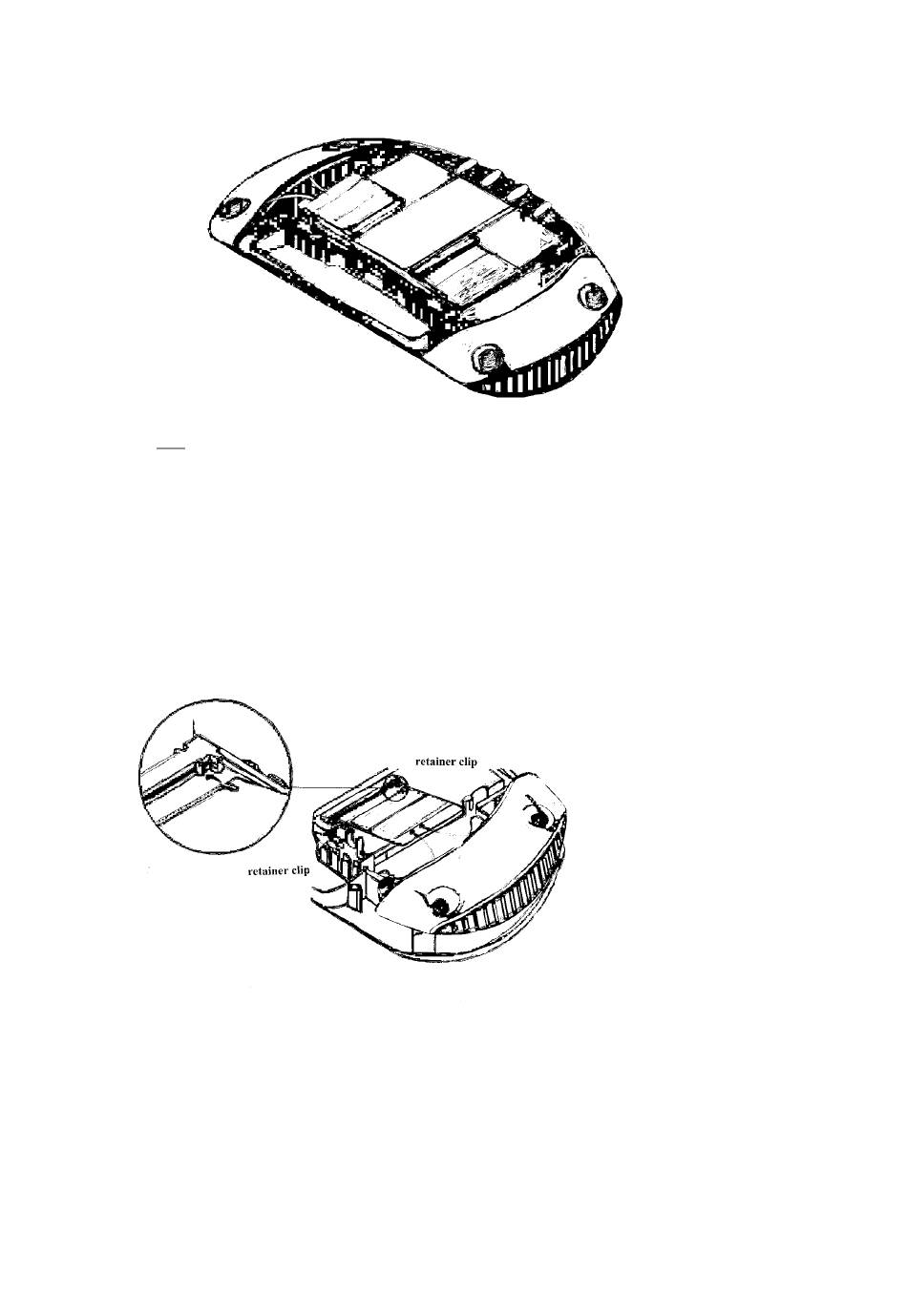

Remove the antenna housing.
Grasp the inside edge of the antenna housing and pull up to disengage the housing from the unit, as
shown below. This part is no longer needed.
4
Install the 11a upgrade kit.
4.1. 11a mini PCI card side:
Holding the radio board at an angle, align the contact edge with the mini PCI connector
on the unit. Make sure the keying notch on the contact edge line up with the key on the
connector, as shown in the detail below. Slide the board into the connector and press
down gently until the two retainer clips snap into place.
