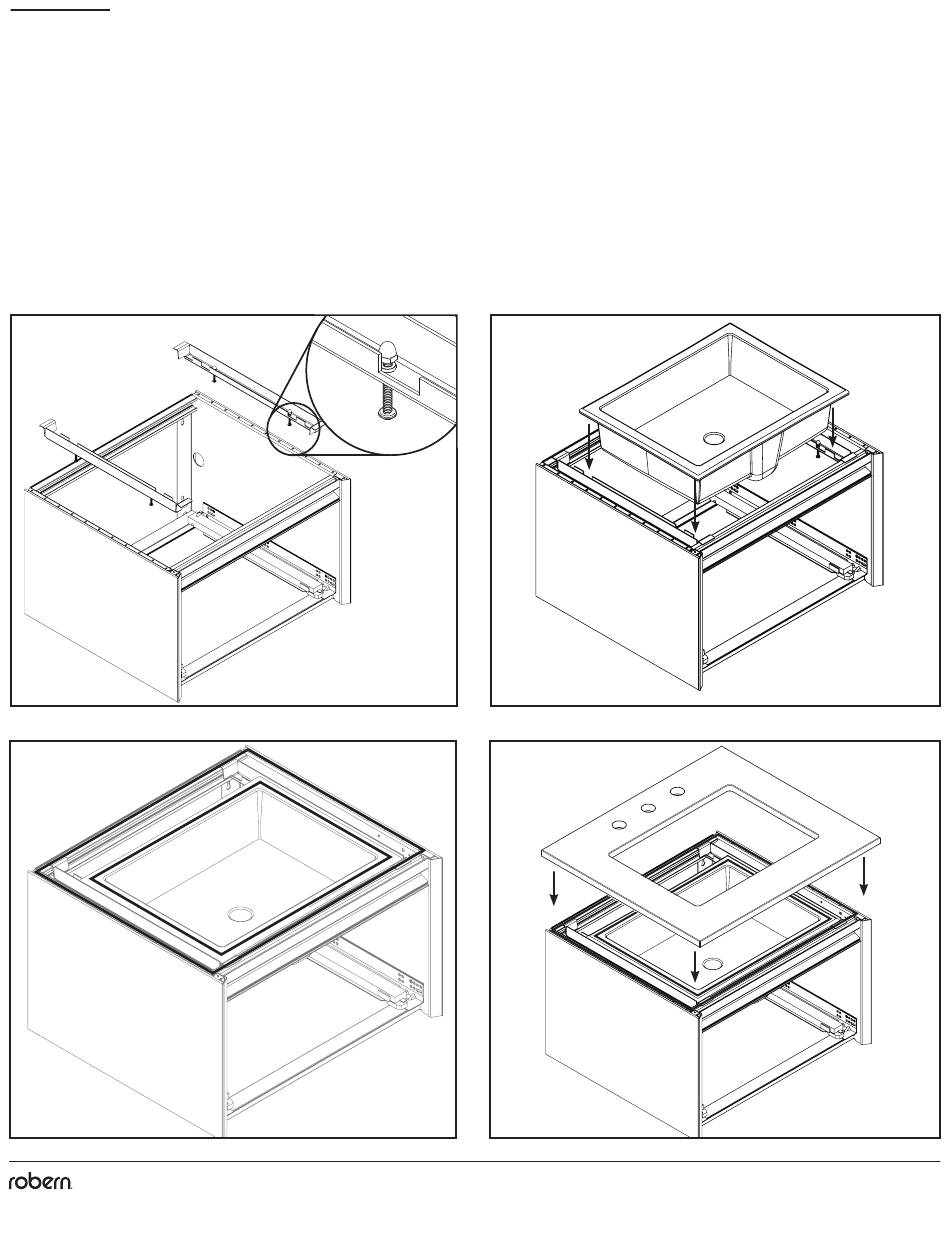

STEP 5 - SINK ASSEMBLY
1. Thread the screws [203-1335] into the brackets [210-1100] and thread the acorn nuts [203-1337] onto the screws. Place the
assembled brackets into the vanity opening(s). Brackets should be snug and flush to the top of the vanity.
2. Place the sink(s) into the opening(s) and position the sink(s) at the front of the vanity. Test fit the stone top to be sure the sink(s) is
properly located.
3. Apply a 1/4" (6mm) bead of silicone sealant on both vanity and sink flange(s).
4. Carefully place the stone top on the vanity and sink. Note: The back edge of the stone top must be flush against the wall and equal
left and right overhang on each side of the vanity.
1
2
3
4
Part no. 209-1274-rA rev. 06/06/17
Curated Cartesian H2
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376
www.robern.com
8
Installation instructions
Advertisement
Table of Contents
Need help?
Do you have a question about the CURATED CARTESIAN VANITY and is the answer not in the manual?
Questions and answers
The slides on my vanity drawer do not operate properly. When the drawer is closed it won't open when I push it in and let go. Is there some adjustment to the slide mechanism that can fix this?
To adjust the slide mechanism on a Robern Curated Cartesian Vanity drawer that does not open properly, follow these steps:
1. Fully extend the slide rails – Pull the rails all the way out to ensure they are properly aligned.
2. Reinstall the drawer – Place the drawer back into the extended slide rails.
3. Secure the drawer – Close the drawer until you hear a series of clicks, indicating it is properly engaged.
4. Check leveling – If the drawer does not open or close smoothly, verify that the vanity frame is level and adjust if necessary.
5. Shim if needed – If the wall is bowed or uneven, shim the frame to ensure proper alignment.
6. Tighten structural bolts – Ensure that the frame bolts are securely tightened to maintain stability.
If the issue persists, check for obstructions or misaligned components in the slide mechanism.
