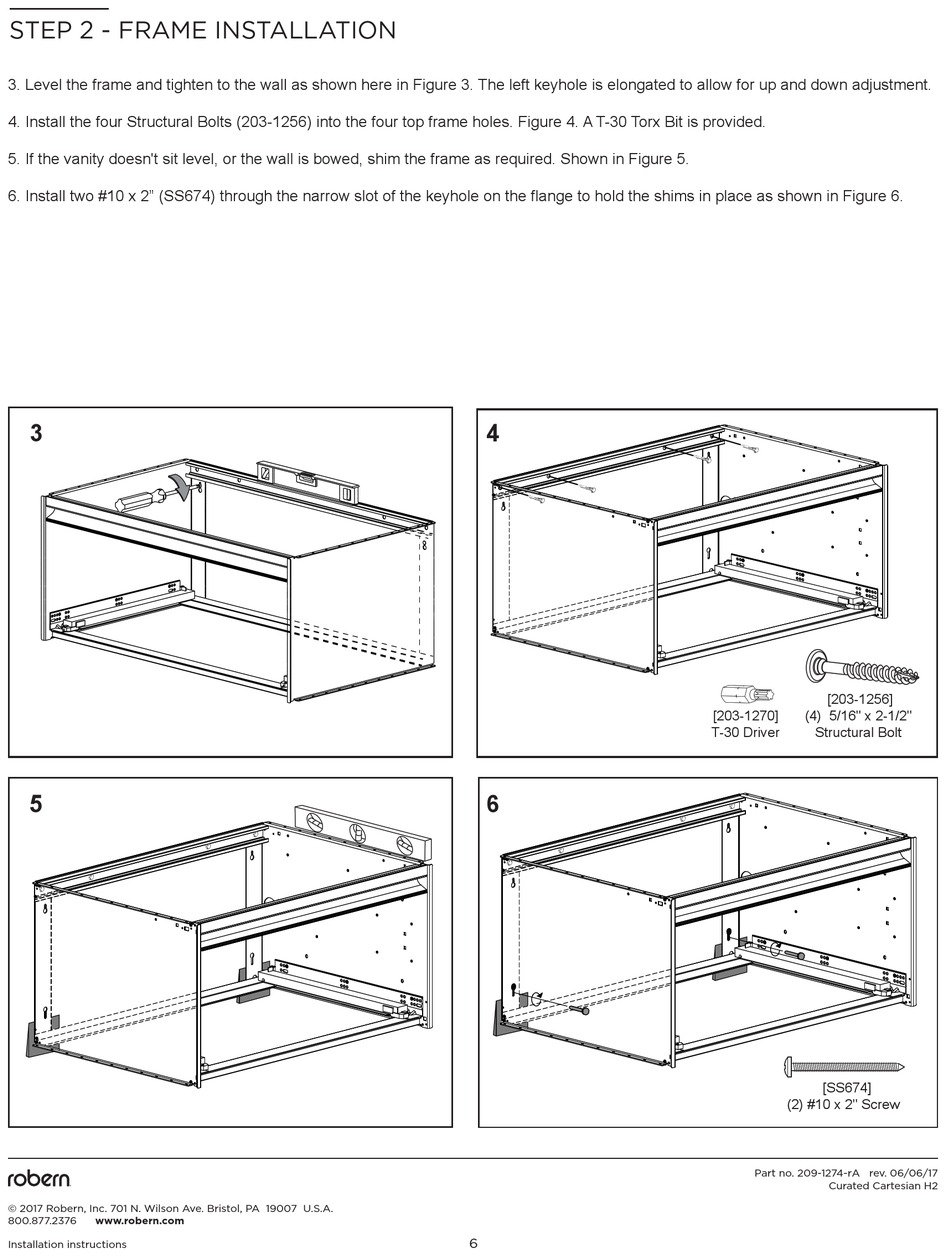

STEP 2 - FRAME INSTALLATION
3. Level the frame and tighten to the wall as shown here in Figure 3. The left keyhole is elongated to allow for up and down adjustment.
4. Install the four Structural Bolts (203-1256) into the four top frame holes. Figure 4. A T-30 Torx Bit is provided.
5. If the vanity doesn't sit level, or the wall is bowed, shim the frame as required. Shown in Figure 5.
6. Install two #10 x 2" (SS674) through the narrow slot of the keyhole on the flange to hold the shims in place as shown in Figure 6.
3
5
© 2017 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376
www.robern.com
Installation instructions
4
6
6
[203-1256]
[203-1256]
5/16" x 2 1/2"
[203-1270]
(4) 5/16" x 2-1/2"
4-Structural Bolt
T-30 Driver
Structural Bolt
4-Boulon
4-Perno estructural
[SS674]
(2) #10 x 2" Screw
Part no. 209-1274-rA rev. 06/06/17
