Summary of Contents for FS AP-S300

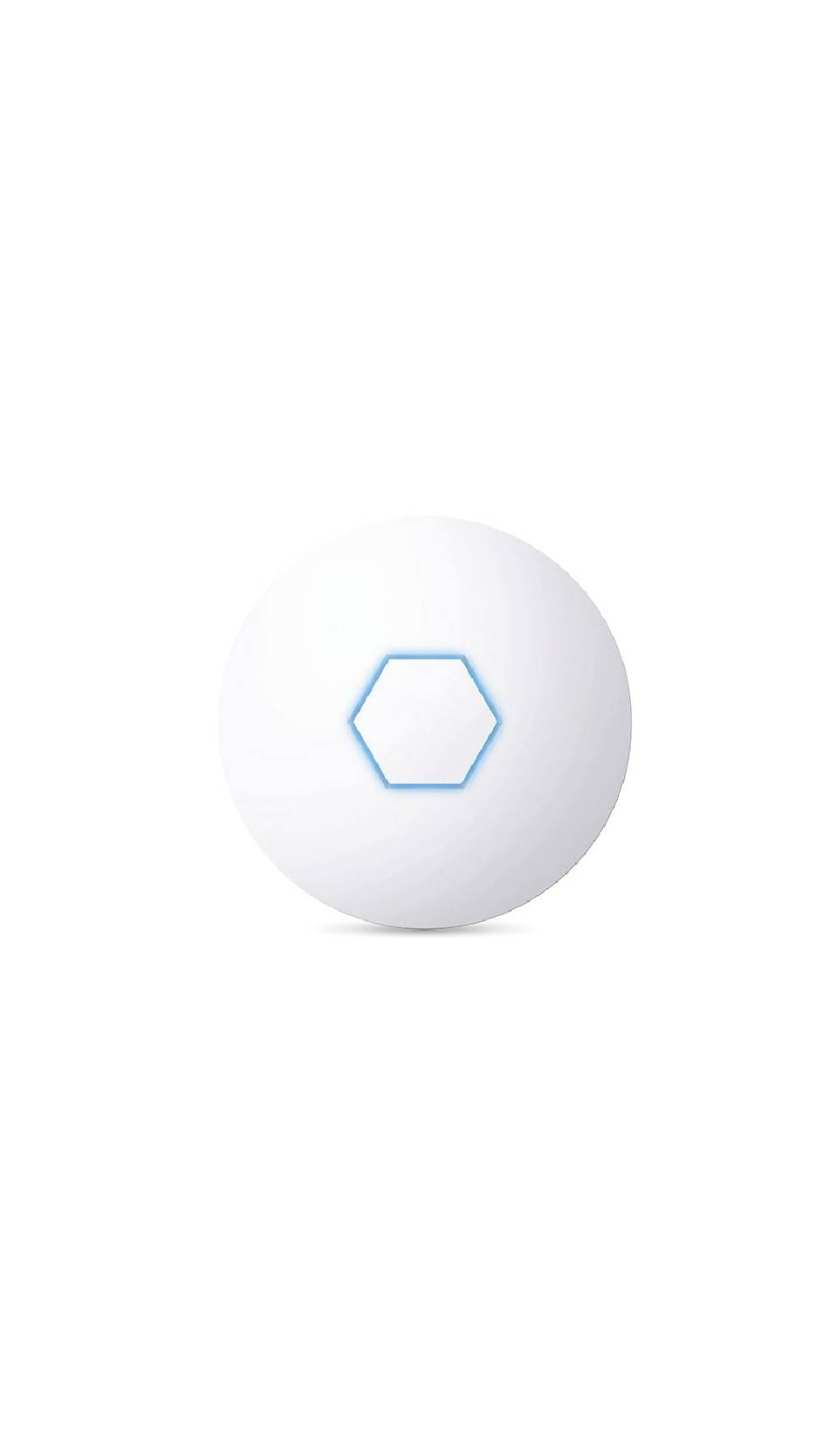

- Page 1 WIRELESS AP/ROUTER QUICK INSTALLATION GUIDE Wireless Access Point 300Mbps...
-
Page 2: Package Contents
Introduction This Quick Start Guide is designed to guide you through installation and includes warranty terms. Package Contents 1.Wireless Access Point 2.Gigabit PoE with Mounting Bracket 3.Power Cord 4.Ethernet cable 5.Fitting screws 5.Quick Start Guide 6.Certificate of approval Installation Requirements •... -
Page 3: Installation Diagram
Installation Diagram Solution 1 Internet POE POWER SUPPLY Data Center & Cloud Computing Infrastructure Solution... - Page 4 Solution 2 Internet AC CORE GATEWAY CORE SWITCH POE SWITCH POE SWITCH …… …… …… Note: Solution 1 (Single Device Setting): Get into the web setting page independently. Solution 2 (Multiple Devices Setting): Do centralized management settings and local portal by AC core gateway. (POE power supply and other devices are not standard, please refer to the packing list.
-
Page 5: Hardware Overview
Hardware Overview LED Color States White Power on WAN port connected Blue Wifi signal received Connection Diagram POE Power Supply (Not Standard) LAN RESET WAN Higher Level Network Note: Set the LAN port of the device to the computer. Data Center & Cloud Computing Infrastructure Solution... -
Page 6: Ceiling Installation
Installation Diagram Ceiling Installation ceiling ceiling ceiling ① the chassis is removed, ② let the AP and chassis ③ installation over whichis fixed on the chiling docking with four screws Wall Installation wall wall wall ① the chassis is removed, ②... -
Page 7: Connecting Power Over Ethernet
802.11n: 6.5-300Mbps Auto transmission rate selection: 802.11g: 6/9/12/18/24/36/48/54/108Mbps 802.11b: 1/2/5.5/11Mbps Support WLAN Standards: IEEE 802.11b/g/n, IEEE 802.3u, IEEE 802.3af Support Protocols: FS/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3/4/5 Using Environment & Physically Properties Using Environment Physically Properties Product 0.855KG(Net) / Working Temperature: -30°C~65°C ... -
Page 8: Safety Notices
Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. -
Page 9: Limited Warranty
Limited Warranty The company warrants that the products (hereinafter referred to as “the products") shall not be defective in materials and workmanship within one (1) year from the date of delivery, in accordance with the products provided below (hereinafter referred to as “products") under normal use and operation. In accordance with the foregoing guarantee, the sole obligation and responsibility of the company is to repair or replace any product that does not conform to the guarantee contents in the above warranty period according to its judgment. - Page 10 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. 1.
-
Page 11: Rf Exposure Warning
RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. - Page 12 Kowloon, HongKong Neufahrn bei Freising, Munich Tel: +(852) 5808 7203 Tel: +49 (0) 89 414176412 Addresses, phone number and fax number also have been listed at www.fs.com. Please e-mail us at sales@fs.com or call us for assistance. All statements, technical information, and recommendations related to the products here are based upon information believed to be reliable or accurate.
