Innotek MC3000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

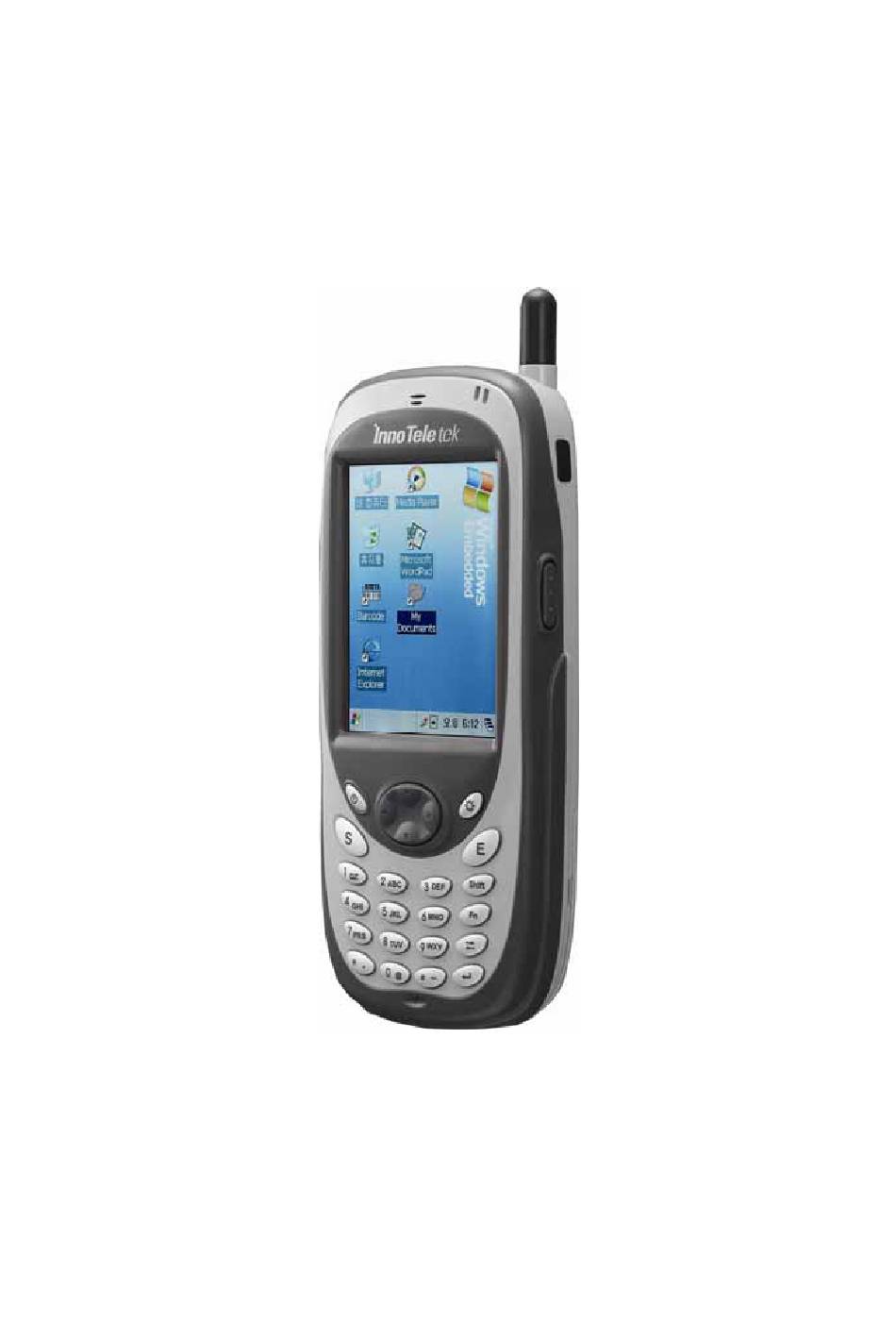

MC3000 User's Guide
Preliminary Version
January 2005
InnoTeletek, Inc.
1
Preliminary Version / January 2005

Advertisement

Table of Contents
loading

Summary of Contents for Innotek MC3000

  • Page 1 MC3000 User’s Guide Preliminary Version January 2005 InnoTeletek, Inc. Preliminary Version / January 2005...
  • Page 2 FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
  • Page 3 FCC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This devices may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Contents Notice⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ Chapter 1. Parts of the Terminal ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ Chapter 2. Getting Started ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅9 Charging the Battery⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅9 Turning on/off the Terminal⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅10 Chapter 3. Adjusting Settings ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ Sleep Mode⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅13 LCD Display⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅13 Volume & Sounds⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅13 Date/Time⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅13 Chapter 4. Operating the Terminal ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ Using the Stylus⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅14 Calibrating the Screen⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅14 Resetting your Terminal⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅15...

  • Page 5: Notice

    Notice 1. Limited Warranty InnoTeletek will repair the defective parts free of charge if the problem is due to materials or workmanship during the warranty period. The warranty period for this product is one year from the date of product purchase. Provided that the date of purchase is not clear, it is six months from the date of manufacture.
  • Page 6 The user shall not modify or merge any form of a licensed program with other programs, or use it in a network without prior consent of InnoTeletek. No right to copy a licensed program in whole or in part is granted except as permitted under copyright law.
  • Page 7 - TERMINAL: 1 - LITHIUM-ION BATTERY: 1 - HANDSTRAP: 1* - TERMINAL CASE: 1* - STYLUS: 1* - MC3000 USER’S GUIDE: 1 The cradle box contains (optional): - ONE-SLOT CRADLE: 1 - USB SYNCH CABLE: 1 - ADAPTER: 1 - POWER CORD: 1...

  • Page 8: Chapter 1. Parts Of The Terminal

    Chapter 1. Parts of the Terminal Indicator Lamp (LED) Antenna (For W-WAN use) IrDA port Speaker Scan Trigger 4way direction Key Power Button Send & End Key for WWAN. Numeric Key Pad (Alphabet and Hangul can be applied) (10) Keypad Backlit button (11) Function Key (12)

  • Page 9: Chapter 2. Getting Started

    Chapter 2. Getting Started 1. Charging the Battery Before using the terminal for the first time, charge the Li-ion Battery fully in the terminal until the battery charging LED turns GREEN. It may take approximately 3 hours. Place your terminal into the cradle and charge it.

  • Page 10: Turning On/Off The Terminal⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅10

    Note: Your terminal is equipped with a memory backup battery. This backup battery retains data in memory when the terminal’s battery is removed. If the terminal leaves without the battery in more than 1 hour, the backup battery consumes. It is preferable to exchange a used up battery with a fully charged battery within 10 minutes or charge the battery with the terminal in the cradle.
  • Page 11 ③ Insert a battery in the battery compartment with the battery tether positioned. Ensure that the top of the battery snaps into the place first, and then the bottom. When closing the battery compartment, slide right the Battery cover and hook the RUBBOR into the hole. 2) When you’re using the power button to turn the terminal on ①...
  • Page 12 2) Turning off Terminal ① Press and hold the Power button for about 3 seconds or tap Suspend on the start menu. - You can also set your terminal to auto-suspend or to turn it off after a certain time period. It allows you to save the battery power.

  • Page 13: Chapter 3. Adjusting Settings

    Chapter 3. Adjusting Settings 1. Sleep Mode 1) For low power consumption, push the Power button for about 3 seconds or tap Start → Suspend, and your terminal will turn into a sleep mode. Data stored in RAM still remains even after you perform a sleep mode.

  • Page 14: Chapter 4. Operating The Terminal

    Note: 1. If the surface of the screen becomes soiled, clean it with a soft cloth before using the stylus pen. 2. Take care not to scratch the screen. When working with your MC3000, use the supplied pen intended for use with a touch-sensitive screen. Never use an actual pen or pencil or other sharp object on the surface of the MC3000 screen.

  • Page 15: Performing A Soft Reset⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅15

    < Picture 3-2. Calibration Settings is completed > 3. Resetting Your Terminal If the screen freezes or the terminal becomes inoperative, you may reset the terminal. 1) Performing a Soft Reset Note: Move all stored data into a computer. Otherwise files that remain open during a soft reset may not be retained.

  • Page 16: Performing A Hard Reset⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅16

    2) Performing a Hard Reset With a hard reset, formats, preferences, date and time, and other settings are restored to their factory default settings. To perform a hard reset, push Reset button located in right upper side of the Battery Cover. Push the Reset Button in the hole using the stylus pen.

  • Page 17: Chapter 5. Applications

    Chapter 5. Applications 1. Making documents ® You can make a new document on your terminal with Microsoft WordPad , or work on a pre- existing document by copying it from the desktop computer to your terminal. Information between terminal and computer can be up- or downloaded through ActiveSync® software. There are the following two ways to enter characters on the document using document-editing programs.
  • Page 18 ② Tap on the bottom of the screen, with the stylus pen (Picture 4-3). Then the drop- ® , Keyboard> will appear. Select Keyboard herein (Picture4-4). down menu with <Jipilmook < Picture 4-3 > < Picture 4-4 > ③ When a keyboard screen appears on the lower portion of the screen, tap the keys with your stylus.
  • Page 19 ③ Select Jipilmook®. A window with the <a, A, 1·@> options appears on the lower portion of the screen. Small letters, capital letters and numbers/symbols should be written on the “a”, “A” and “1·@” -marked portion respectively. Space Enter Back Space <...

  • Page 20: Barcode Scanning ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅20

    ⑤ For the split screen mode for writing, tap the -shaped button on the bottom menu bar at the full screen mode. Above portion of the arrow circled in blue in the picture below is for capital letter-input space and the below portion of the arrow is for small letters-input space.
  • Page 21 2) Place the terminal to the direction of a barcode and press one of trigger buttons. Let laser aimer line covers the barcode. DO NOT PRESS THE SCAN BUTTON TOO LONG; IT MAY RESULT IN FAILURE OR MISOPERATION. A short beep indicates successful decoding. And the result appears in the scan window. 4) In order to accelerate decoding performance, you can enable or disable imaging by clicking Option menu.
  • Page 22 5) Readable codes Linear Symbologies: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, Interleaved 2 of 5, ISBT 128, MSI, Reduced Space Symbology, Straight 2 of 5 IATA, UPC-A, UPC-E, UPC-E1 Preliminary Version / January 2005...

  • Page 23: Connecting With The Desktop Computer⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅23

    3. Connecting with the Desktop Computer ActiveSync® is the software that allows to a user to move files, update messages and phone book, so on, between desktop and terminal. As you connect the terminal and desktop computer, by placing terminal to cradle, a little pop up window appears on your desktop and terminal, indicating the synchronization status.
  • Page 24 2) Setting up a partnership. ① Place your terminal on the cradle, which is connected to the desktop computer by a USB or RS232 cable, and a screen saying that the terminal is connecting will appear. < Picture 4-13 > ②...
  • Page 25 ③ The Select Synchronization Settings Window appears. Select the items you want to synchronize, then the Next button. < Picture 4-15 > ④ Select the Finish button, then the basic settings for connecting the desktop computer and terminal are finished. <...
  • Page 26 ⑤ Go through the steps above to run ActiveSync®. < Picture 4-17 > ⑥ The screen shows that synchronization is finished < Picture 4-18 > Preliminary Version / January 2005...

  • Page 27: Wireless Lan(Option)⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅27

    Wireless LAN (Option) With a wireless LAN type model, you can log onto the internet wirelessly through internal WLAN card. Your terminal must be set up with the equipment required to run the wireless LAN including an Access Point, and the terminal must be properly configured. ①...
  • Page 28 ③ Dynamic IP Select Obtain an IP address via DHCP. In this case, wireless communication is unavailable cause DHCP is not the static IP. ④ Static IP i) Select Start → Settings → Control Panel, then double tap Network and Dial-up Connections.
  • Page 29 * To check the reception status, Select the icon shaped like on the desk bar, then Wireless Information tap. The Signal Strength is indicated as Very Good or Good etc. < Picture 5-5 > < Picture 5-6 > v) Select the IP Information tap, and make sure that the static IP information has been entered.

  • Page 30: Chapter 6. Troubleshooting

    Chapter 6. Troubleshooting Problem Cause Solution Battery not charged. Charge or replace the battery in the terminal. turns If reset rubber can be pushed with your finger, Terminal terminal is unable to boot. then cut the tip of the rubber. does not turn Terminal is unable to Take away battery from battery compartment, and...
  • Page 31 Problem Cause Solution Scan window is not clean. Clean the scan window with a soft cloth. Object trembles while Be careful the object should not tremble while scanning. scanning. Tap Start, then Settings → Control Panel, and Scanning application is select the System tab to verify the unit is loaded not loaded.

  • Page 32: Chapter 7. Technical Specifications

    Chapter 7. Technical Specifications 1. Physical Characteristic Dimensions* 30(Head) H / 27(Tail) H x 176.2 L x 77.8 W Weight (including battery)* 310g Drop Specification 1.2m drop to concrete -20℃ ∼ 60℃ Operating Temperature -30℃ ∼ 70℃ Storage Temperature Environmental Sealing IP54 standard (Dust-protected, Protected splashing water) Humidity 5% to 95% RH non-condensing...

  • Page 33: Service Information ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅.⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅33

    3. Service Information InnoTeletek, Inc. 461-25 Junmin-Dong, Yusung-Gu, Daejon, Republic of Korea 305-811 Tel: +82-(0)42-476-1320~6 Fax: +82-(0)42-476-1327 E-mail: service@innoteletek.com Preliminary Version / January 2005...

  • Page 34: Limited Warranty Statement

    Limited Warranty Statement. General Limitation of Liability This Limited Warranty applies to the InnoTeletek InnoTeletek is not liable for any damages caused brand name products sold with this Limited by the product or the failure of the product to Warranty Statement. perform, including any lost profits, lost savings, incidental damages, or consequential damages.
  • Page 35 Support in later section. A technical support Warranty Period specialist will help you diagnose the problem. Carry-in Warranty service The warranty period for this product is one (1) year from the date of product purchase. This warranty does not extent to expendable parts. Carry your product into InnoTeletek Authorized Center of warranty repair.
