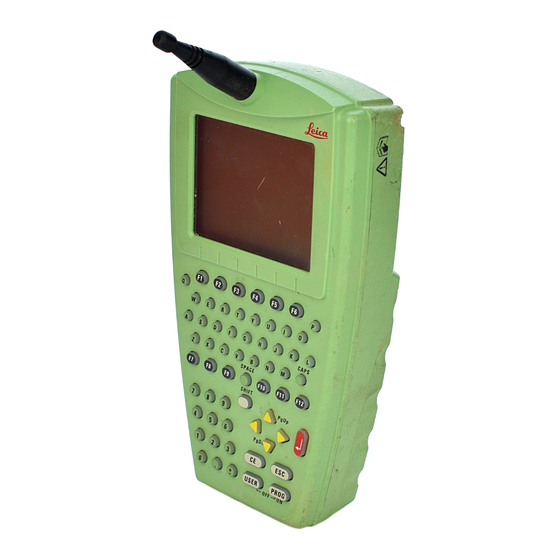

Leica Geosystems RX1200 User Manual

Multi-purpose controller
Hide thumbs Also See for RX1200:
Table of Contents

Advertisement

Quick Links

Download this manual
Leica RX1200
User Manual
(Draft Copy Only)
Version 5.0
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leica Geosystems RX1200

Summary of Contents for Leica Geosystems RX1200

  • Page 1 Leica RX1200 User Manual (Draft Copy Only) Version 5.0 English...
  • Page 2 The type and serial number of your product are indicated on the type plate. identification Enter the type and serial number in your manual and always refer to this information when you need to contact your agency or Leica Geosystems authorized service workshop. Type: _______________ Serial No.:...
  • Page 3 Windows and Windows CE are a registered trademark of Microsoft Corporation • CompactFlash and CF are trademarks of SanDisk Corporation • Bluetooth is a registered trademark of Bluetooth SIG, Inc All other trademarks are the property of their respective owners. Introduction RX1200...

  • Page 4: Table Of Contents

    2.2.2 Data Storage and Data Conversion Concept 2.2.3 Power Concept Transport Containers 2.3.1 Container Contents for SmartPole 2.3.2 Container Contents for the TPS Instrument 2.3.3 Container Contents for the GNSS Receiver RX1200 Components User Interface Keyboard Screen Operating Principles Icons...
  • Page 5 Operation Equipment Setup 4.1.1 Fixing RX1200 to a Holder, Handstrap or GNSS Receiver 4.1.2 Setting up with SmartPole 4.1.3 Setting up with the TPS Instrument 4.1.4 Setting up with the GNSS Receiver Batteries 4.2.1 Operating Principles 4.2.2 RX1220/RX1250 Battery 4.2.3 SmartAntenna Battery 4.2.4...
  • Page 6 Table of Contents RX1200 4.11.2 Working in Transparent Mode 4.11.3 Working in Semi-Transparent Mode Local Mode Accessing the Main Configuration Menu Overview of the Main Configuration Menu Choosing a Sensor Local Settings Radio Settings 5.5.1 Radio Communication Settings 5.5.2 Configuring the Radios...
  • Page 7 Hazards of Use Electromagnetic Compatibility EMC FCC Statement, Applicable in U.S. Trouble Shooting Technical Data RX1200 Technical Data SmartAntenna Technical Data 9.2.1 Tracking Characteristics 9.2.2 Accuracy 9.2.3 Technical Data GHT56 Technical Data Conformity to National Regulations 9.4.1 RX1220 (RX1220 and RX1220 T) 9.4.2...
  • Page 8 Table of Contents RX1200 Index...
  • Page 9 Table of Contents RX1200...

  • Page 10: How To Use This Manual

    How to Use this Manual RX1200 How to Use this Manual It is recommended to set-up the product while reading through this manual. Path Main Menu: Manage...\Data stands for this working sequence: From the Main Menu select Manage... and then select Data.
  • Page 11 • ESC, USER, PROG, CE, ENTER, SHIFT. • Arrow keys. Softkeys Displayed on the screen, can be selected by using the assigned fixed key. For example CONT (F1). The assigned fixed key is shown in brackets. How to Use this Manual RX1200...
  • Page 12 • The RX1200 is available as RX1210 or with touch screen functionality as RX1210T, RX1220T, RX1250 X, RX1250 T. The names RX1210 and RX1220 are used throughout the manual and may also represent the touch screen...
  • Page 13 The RoadRunner application program is described in a separate manual. Technical Reference Overall comprehensive guide to the product and program Manual functions. Included are detailed descriptions of special software/hardware settings and software/hardware func- tions intended for technical specialists. How to Use this Manual RX1200...
  • Page 14 How to Use this Manual RX1200 Available documentation depending on use case Use case User Manual System Field Applications Technical Manual Field Manual Reference Manual TPS1200 TPS1200 TPS1200 TPS1200 TPS RCS RX1200 TPS1200 TPS1200 TPS1200 GPS1200 GPS1200 GPS1200 GPS1200 GPS SmartRover...
  • Page 15 How to Use this Manual RX1200...

  • Page 16: Description Of The System

    Total Station Positioning System GNSS Global Navigation Satellite System (generic term for satellite based navigation systems like GPS, GLONASS, SBAS) Remote Control Surveying LEICA Geo Office RX1200 controller Description Type Description RX1200 This is a collective term describing the various models of the...
  • Page 17 Type Description For TPS, a component of RCS is RX1200. TPS1200 instruments can be used with these controllers and radio modems (Radio- Handle or TCPS27) to form RCS. For GPS, these controllers can be used with GPS instruments. RX1250 can replace RX1210/RX1220 but not vice versa.
  • Page 18 Description of the System RX1200 RX1250 T SmartPole Holders Two types of holders exist. The type of holder to be used depends on the RX1200 model. Type Description GHT39 • To mount RX1200 on a GLS11 prism pole or on an antenna pole.
  • Page 19 This is both an integrated radio modem with attached antenna and instrument carry handle. TCPS27 Leica external radio modem with attached antenna. TCPS27B TCPS27 set to operate as a base radio. TCPS27R TCPS27 set to operate as a remote radio. Description of the System RX1200...
  • Page 20 Description of the System RX1200 RCS accessories For TPS, the following accessories for RCS can be stored in the transport container: Type Description GRZ4 360° prism Enables omnidirectional distance measurement to the target. Does not require to be aligned to the instrument for measure- ments to be made.
  • Page 21 TCPS27B can be adjusted to a vertical position. LEICA Geo Office Type Description LEICA Geo Office: An office software consisting of a suite of standard and extended programs for the viewing, exchange and management of data. Description of the System RX1200...

  • Page 22: System Concept

    Software Concept Description The software concept depends on the RX1200 model. The various types of software are explained in paragraph "Software type". The software concept for the RX1200 models is explained in paragraph "Software concept". Software type Software type Description RX1200 For RX1210 and RX1220T.
  • Page 23 GeoC++ development kit. programs Information on the GeoC++ development environment is avail- able on request from a Leica Geosystems representative. SmartAntenna This is the software for the ATX1230/ATX1230 GG. It covers the software firmware for the measurement engine.
  • Page 24 Description of the System RX1200 Software concept Type Software type uploaded to RX1200 TPS instrument / GPS receiver RX1210/ • RX1200 software • System software RX1220 • Language software • Application programs • Customised application programs RX1250 • System software •...
  • Page 25 CompactFlash card in the RX1250 using the methods listed in the table below. After uploading, the software must then be transferred from the CompactFlash card to the RX1250 System RAM. Refer to GPS1200 Technical Reference Manual for information. Description of the System RX1200...
  • Page 26 Description of the System RX1200 From Interface Program Refer to chapter RX1250 CF card online help in RX1250 CF card ActiveSync CF card Microsoft ActiveSync is the synchronization software for Windows mobile-based pocket PC’s. Microsoft ActiveSync enables a PC and a Windows mobile-based pocket PC to communicate.

  • Page 27: Data Storage And Data Conversion Concept

    Unplugging connecting cables or removing the CompactFlash card during the meas- urement may cause loss of data. Always return to GPS1200 Main Menu before removing the CompactFlash card and switch off the instrument before removing cables. Description of the System RX1200...
  • Page 28 Description of the System RX1200 Data conversion Export Data can be exported from a job in a wide range of ASCII formats. The export format is defined in Format Manager which is a PC tool in LEICA Geo Office. Refer to the online help of LGO for information on creating format files.
  • Page 29 RX1250 CF card PC ASCII RX1250 CF card PC ActiveSync ASCII CF card CompactFlash cards can directly be used in an OMNI drive as supplied by Leica Geosystems. Other PC card drives may require an adaptor. Description of the System RX1200...

  • Page 30: Power Concept

    Description of the System RX1200 2.2.3 Power Concept General Use the Leica Geosystems batteries, chargers and accessories or accessories recommended by Leica Geosystems to ensure the correct functionality of the instru- ment. Power options RX1200 Model Application Power supply RX1210...
  • Page 31 Model Application Power supply Externally via cable to battery. SmartAntenna Power for the antenna is supplied internally. One GEB211 battery fits into the antenna. Description of the System RX1200...

  • Page 32: Transport Containers

    Description of the System RX1200 Transport Containers 2.3.1 Container Contents for SmartPole Container for a) 360° mini prism with adapter SmartPole GRZ101 b) RadioHandle c) Radio modem with antenna TCPS27 d) Grip with circular bubble and fixing element GHT25 (without clamp)

  • Page 33: Container Contents For The Tps Instrument

    A TPS1200 instrument integrated with an add-on GPS system, comprising hardware and software components, forms SmartStation. Components of SmartStation include SmartAntenna, SmartAntenna Adapter with attached clip-on-housing and antenna for a communication device and Communication side cover (not included in transport container). Description of the System RX1200...
  • Page 34 Description of the System RX1200 Container for a) 360° mini prism with adapter SmartStation/RCS GRZ101 components b) RadioHandle part 1 of 2 c) Radio modem with antenna TCPS27 d) Grip with circular bubble and fixing element GHT25 (without clamp) e) Y-cable GEV186 / battery...
  • Page 35 GHT43 d) Spare stylus e) External battery - GEB70 or GEB171 2 x internal batteries GEB211 g) RX1220 controller with stylus and antenna h) Pole holder GHT39 (with clamp) (stored under RX1220 controller) RX12_004 Description of the System RX1200...

  • Page 36: Container Contents For The Gnss Receiver

    Description of the System RX1200 2.3.3 Container Contents for the GNSS Receiver Description Components for a two component cableless GNSS real-time system are combined in one transport container. Container for a) Adjusting pin SmartRover b) GHT57 part 1 of 2 c) 90°...
  • Page 37 Screw-to-stub adapter d) CompactFlash card e) Grip for pole Screw to attach GHT39 and grip on pole g) Device such as radio h) Spare battery for SmartAn- tenna Spare battery for GHT56 Manuals GPS12_152 Description of the System RX1200...

  • Page 38: Rx1200 Components

    Description of the System RX1200 RX1200 Components Upperside of RX1200 a) For RX1220: Radio antenna b) Screen c) Keyboard d) Hand strap bottom clips e) LEMO port For RX1250 including USB port RX12_017...
  • Page 39 Underside of RX1200 a) Bottom spring clip for pole holder b) Top clips for pole holder c) Hand strap top clips d) Stylus e) Hand strap bottom clips LEMO port For RX1250 including USB port g) Battery compartment For RX1250 with CompactFlash card...

  • Page 40: User Interface

    User Interface RX1200 User Interface Keyboard Keyboard display PROG a) Function keys F1-F6 b) Alpha keys c) CAPS d) Hot keys F7-F12 e) SPACE, SHIFT ENTER CAPS g) Arrow keys SPACE h) CE, ESC, USER, PROG SHIFT PgUp Numeric keys PgDn For RX1250: Windows key symbol.
  • Page 41 For the purpose of the illustration, a RX1250 model has been selected which is representative for all models. Differences to other RX1200 models are outlined. Keys Function Function keys Correspond to six softkeys that appear on the bottom of the F1-F6 screen when the screen is activated.
  • Page 42 SPACE Enters a blank. USER Calls the user defined menu. Hold down for 2 s to open RX1200 Main Configuration Menu. Arrow keys Move the focus on the screen. ENTER • Selects the highlighted line and leads to the next logical menu / dialog.
  • Page 43 PROG plus USER • For RX1210/RX1220: Turns instrument off. • For RX1250: Puts RX1250 into sleep mode. SHIFT Pages up. SHIFT Pages down. SHIFT PROG ( ) For RX1250: Displays either the Windows CE task bar and start menu. User Interface RX1200...

  • Page 44: Screen

    User Interface RX1200 Screen Screen a) Time b) Caption c) Title d) Screen area e) Message line Icons g) ESC h) CAPS SHIFT icon Quick coding icon k) Softkeys RX12_013 Elements Type Description Time The current local time is shown.
  • Page 45 Quick coding icon Shows the quick coding configuration. Can be used with touch screen to turn quick coding on and off. Softkeys Commands can be executed using F1 - F6 keys. The commands assigned to the softkeys are screen dependent. Can be used directly with touch screen. User Interface RX1200...

  • Page 46: Operating Principles

    User Interface RX1200 Operating Principles Keyboard and The user interface is operated either by the keyboard or by the touch screen with touch screen supplied stylus. The workflow is the same for keyboard and touch screen entry, the only difference lies in the way information is selected and entered.

  • Page 47: Icons

    TPS1200 refer to TPS1200 System Field Manual. RCS icons For TPS, RCS settings are displayed. Touch screen: Tapping the icon leads to CONFIGURE Interfaces. Icon Description The RCS is turned on. The RCS is within radio range and is receiving messages. User Interface RX1200...
  • Page 48 User Interface RX1200 Bluetooth icons The status of each Bluetooth port and any Bluetooth connection is displayed. Touch screen: Tapping the icon leads to STATUS Bluetooth. Icon Description RX1250, GNSS receiver with GFU16 or TPS instrument with Communication side cover is Bluetooth capable. In case of a RX1250, Bluetooth is integrated.
  • Page 49 For RX1250: Internal battery is in use. For RX1250: External battery attached and in use. For TPS1200 instruments: Internal TPS and RCS batteries are in use. For TPS1200 instruments: External TPS and RCS batteries are in use. User Interface RX1200...

  • Page 50: Operation

    Operation RX1200 Operation Equipment Setup 4.1.1 Fixing RX1200 to a Holder, Handstrap or GNSS Receiver Description RX1200 can be set up using • a holder on the pole. • GNSS receiver. • a handstrap. All three setups are described in this chapter.
  • Page 51 Holders Components of the GHT39 The GHT39 consists of a number of components, as shown in the diagram below. a) Plastic sleeve b) Pole clamp c) Clamp bolt d) Tightening screw e) Mounting plate Mounting arm RX12_005 Operation RX1200...
  • Page 52 Clip-on-contacts for connecting RX1250 g) LED RX12_016 h) Mounting plate Battery compartment Locking mechanism for battery k) Space for clip-on-housing with LEMO port Mount RX1200 to pole step-by-step Using the GHT39 is explained in this step-by-step instruction. Using GHT56 works accordingly.
  • Page 53 Tighten the clamp with the tightening screw. Once tightened, the button on the tightening screw can be depressed to change the position of the handle for more comfort. A locking mechanism is incorporated in the mounting plate of the holder. Operation RX1200...
  • Page 54 RX1200 Step Description Before RX1200 is placed onto the mounting plate ensure that the locking pin is put into the unlocked position. To unlock the locking pin, push down the red button situated on top of the mounting plate. RX12_015...
  • Page 55 The guides of the holder aid in this action. RX12_006 After RX1200 is placed onto the mounting plate ensure that the locking pin is put into the locked position. To lock the locking pin, push up the red button from below.
  • Page 56 Unlock the locking pin by pushing down the red button situated on top of the mounting plate. Place the palm over the top of RX1200 until the fingers grip the bar of the holder under the top of RX1200. Compress the top of RX1200 toward the bar of the holder.
  • Page 57 GNSS receiver. Apply slight pressure in a downward direction and then lower the top part of RX1200 until the unit is clicked into the GNSS receiver. The recess in the housing of the GNSS receiver helps to guide RX1200.
  • Page 58 Detach RX1210/RX1220T from GNSS receiver step-by-step Step Description Place the palm over the top of RX1200. Compress RX1200 downward toward the ports of the GNSS receiver. While in this position, raise the top of RX1200 from the GNSS receiver. RX12_009...
  • Page 59 Hold the main hook rotated to approximately the 11 o'clock position in rela- tion to RX1200. Lower the main hook onto the pivot knob in the middle of RX1200. Rotate the main hook to the 12 o'clock position. A click should be felt when the clip is secure.
  • Page 60 Operation RX1200 Step Description Take the other end of the handstrap and clip it to the base of RX1200.

  • Page 61: Setting Up With Smartpole

    4.1.2 Setting up with SmartPole SmartPole setup a) 360° prism b) Prism pole c) RX1220 d) RX1200 holder and pole clamp e) TPS1200 instrument Tripod g) TCPS27B h) External battery Y-cable RX12_011 Operation RX1200...

  • Page 62: Setting Up With The Tps Instrument

    Refer to "TPS1200 User Manual" for additional information on RadioHandle. setup for RCS with RadioHandle a) 360° prism b) Prism pole c) RX1220 d) RX1200 holder and pole clamp e) RadioHandle Communication side cover g) TPS1200 instrument h) Tripod RX12_013...
  • Page 63 TCPS27B, it should be mounted in a vertical position on the tripod leg approximately 30 cm from the top of the tripod. RX12_010 If the adapter is no longer able to retain it’s angle position, the adjustment bolt at the hinge can be slightly tightened. Operation RX1200...
  • Page 64 Operation RX1200 TPS1200/RX1200 setup for RCS with TCPS27 a) 360° prism b) Prism pole c) RX1220 d) RX1200 holder and pole clamp e) TPS1200 instrument Tripod g) TCPS27B h) External battery Y-cable RX12_011...

  • Page 65: Setting Up With The Gnss Receiver

    Battery for SmartAntenna c) Height hook d) Carrier e) Tribrach Tripod g) GHT57 h) GHT56 Radio housing Transport container k) RX1250 X Radio antenna m) Battery for RX1250 X n) CompactFlash card o) Battery for GHT56 RX12_28 Operation RX1200...
  • Page 66 Operation RX1200 SmartRover setup with external radio a) SmartAntenna b) Battery for SmartAntenna c) Upper half aluminium pole with screw or stub d) Grip for pole e) GHT56 Radio in housing g) Lower half aluminium pole h) Radio antenna Battery for RX1250 X...
  • Page 67 Attach the radio in its housing to GHT56. Place the battery into the battery compartment of the GHT56. Attach GHT56 to the pole and tighten the screw. Connect the radio antenna to the radio housing using the 1.2 m antenna cable. Operation RX1200...

  • Page 68: Batteries

    +10°C to +20°C/+50°F to +68°F if possible. • It is normal for the battery to become warm during charging. Using the chargers recommended by Leica Geosystems, it is not possible to charge the battery if the temperature is too high.
  • Page 69 Operation/Discharging • The batteries can be operated from -20°C to +55°C/-4°F to +131°F. • Low operating temperatures reduce the capacity that can be drawn; very high operating temperatures reduce the service life of the battery. Operation RX1200...

  • Page 70: Rx1220/Rx1250 Battery

    Operation RX1200 4.2.2 RX1220/RX1250 Battery Change RX1220/RX1250 battery step-by- step RX12_018 Step Description Turn RX1220/RX1250 over to gain access to the battery compartment. Push the slide fastener in the direction of the arrow with the open-lock symbol.
  • Page 71 This is a visual aid to assist in placing the battery correctly. Place the battery into the battery compartment with the Leica logo facing to the left. Close the battery compartment by pushing the slide fastener in the direc- tion of the arrow with the close-lock symbol. Operation RX1200...

  • Page 72: Smartantenna Battery

    Operation RX1200 4.2.3 SmartAntenna Battery Change SmartAn- tenna battery step- by-step TPS12_193 Step Description Turn the SmartAntenna over to gain access to the battery compartment. Open the battery compartment by pushing the slide fastener in the direc- tion of the arrow with the open-lock symbol.
  • Page 73 Place the battery onto the battery housing, ensuring that the contacts are facing outward. Click the battery into position. Close the battery compartment by pushing the slide fastener in the direc- tion of the arrow with the close-lock symbol. Operation RX1200...

  • Page 74: Ght56 Battery

    Operation RX1200 4.2.4 GHT56 Battery Description GEB211 and GEB221 can both be used with GHT56. The battery powers a device in a clip-on-housing attached to the GHT56. Change GHT56 battery step-by- step RX12_022 Step Description Turn GHT56 over to gain access to the battery compartment.
  • Page 75 Ensure that the battery is placed adjacent to the locking mechanisam with the contacts facing down. Press simultaneously on the right side of the locking mechanism and the right side of the battery. This locks the battery into position. Operation RX1200...

  • Page 76: Working With The Compactflash Card

    Operation RX1200 Working with the CompactFlash Card This chapter is valid for RX1250. • Keep the card dry. • Use it only within the specified temperature range. • Do not bend the card. • Protect the card from direct impacts.
  • Page 77 Insert and remove The CompactFlash card is inserted into a slot inside the battery compartment on the a CompactFlash underside of the RX1250. card step-by-step RX12_019 Step Description Turn RX1250 over to gain access to the battery compartment. Operation RX1200...
  • Page 78 Operation RX1200 Step Description Push the slide fastener in the direction of the arrow with the open-lock symbol. Open the battery compartment. Pull the battery from the battery compartment. The card should be held with the label for the care instructions upwards and the contacts facing the slot.
  • Page 79 PC. To exit the screen without formatting the memory device, press ESC. This returns to the previous screen. CONT (F1) YES (F4) to continue with the formatting of the selected device. Operation RX1200...
  • Page 80 Operation RX1200 Step Description NO (F6) to not continue with the formatting of the selected device and to return to TOOLS Format Memory Device. Once the formatting of the card is completed the system returns to GPS1200 Main Menu.

  • Page 81: Led Indicators On Smartantenna

    LED Indicators on SmartAntenna LED indicators Description SmartAntenna has Light Emitting Diode indicators. They indicate the basic antenna status. Diagram Tracking LED Bluetooth LED Power LED GPS12_153 Operation RX1200...
  • Page 82 Operation RX1200 Description of the LED’s IF the THEN no satellites are tracked. flashing green less than four satellites are tracked, a position is not yet available. green enough satellites are tracked to compute a posi- tion. green Bluetooth is in data mode and ready for connecting.

  • Page 83: Led Indicators On Ght56

    LED Indicators on GHT56 LED indicator Description GHT56 has one Light Emitting Diode indicator. It indicates the basic power status. Diagram a) Power LED RX12_021 Operation RX1200...
  • Page 84 Operation RX1200 Description of the LED IF the THEN power is off. green power is okay. flashing green power is low. The remaining time for which enough power is available depends on the type of survey, the temperature and the age of the battery.

  • Page 85: Working With The Clip-On-Housings For Devices On Ght56

    Digital cellular phone Clip-on-housing Siemens MC45 GFU17 Siemens MC75 GFU24 CDMA MultiTech MTMMC-C (US) GFU19 CDMA MultiTech MTMMC-C (CAN) GFU25 Radios fitting into a clip-on-housing Radio Clip-on-housing Pacific Crest PDL, receive GFU15 Satelline 3AS, transceive GFU14 Operation RX1200...
  • Page 86 Operation RX1200 Attach a clip-on- The clip-on-housing for devices fits to the underside of the GHT56. housing step-by- step RX12_020 Step Description A circular screw is located at one end of the clip-on-housing. Ensure that the circular screw is in the unlocked position. Turn it anticlockwise, as...
  • Page 87 Press the small press clip next to the guide rail on the GHT56 to unlock step the clip-on-housing from the GHT56. Slide the clip-on-housing away from the press clip until the connector is completely unplugged from the LEMO port. Operation RX1200...
  • Page 88 Operation RX1200 Step Description Pull the clip-on-housing from the GHT56. Insert a SIM card For those digital cellular phones that require SIM cards. step-by-step Step Description Take the SIM card, a coin and a pen. Locate the SIM card screw, that covers the SIM card slot, on the bottom of the clip-on-housing.
  • Page 89 Step Description Place the SIM card screw back on the housing. Insert the coin into the groove of the SIM card screw. Turn the coin clockwise to tighten the SIM card screw. Operation RX1200...
  • Page 90 Operation RX1200 Remove a SIM card For those digital cellular phones that require SIM cards. step-by-step GPS12_088 Step Description Take a coin and a pen. Locate the SIM card screw, that covers the SIM card slot, on the bottom of the clip-on-housing.
  • Page 91 Put the SIM card holder back into the SIM card slot, the even side not facing the contacts inside the slot. Place the SIM card screw back on the housing. Turn the coin clockwise to tighten the SIM card screw. Operation RX1200...
  • Page 92 Operation RX1200 LED indicators Description Each clip-on-housing for a radio, digital cellular phones or Bluetooth communication has Light Emitting Diode indicators on the bottom side. They indicate the basic device status. Diagram a) Warning LED, available for Satelline b) Data transfer LED...
  • Page 93 IF the THEN Warning GFU14 with the device is in the configuration Satelline 3AS mode controlled from the PC via cable. Data any device data is not being transferred. transfer green or flashing data is being transferred. green Operation RX1200...
  • Page 94 Operation RX1200 IF the THEN Signal GFU19 (US), device is on, not registered on strength GFU25 (CAN) the network. with CDMA flashing red device is on, registered on the MultiTech network. MTMMC-C download mode or device is off. GFU17 with call is in progress.
  • Page 95 Packet switched data transfer is short break in progress. device is off. GFU15 with red or flashing red the communication link, Data Pacific Crest Carrier Detection, is okay on the roving receiver. the DCD is not okay. Operation RX1200...
  • Page 96 Operation RX1200 IF the THEN GFU14 with red or flashing red the communication link, Data Satelline 3AS Carrier Detection, is okay on the roving receiver. the DCD is not okay. Status Bluetooth green Bluetooth is in stand-by mode. communication orange Bluetooth is in configuration mode.

  • Page 97: Basic Operation

    When RX1200 has a power supply, pressing PROG (ON) on RX1200 unit switches the unit on. Connection to When RX1200 is connected via cable to either TPS1200 or the LEMO port GPS1200 that are already switched on, RX1200 automati- cally switches on.
  • Page 98 GPS1200 acts as the control unit of the GPS1200. Direct connection to • When RX1200 is connected directly to TPS1200 with a TPS1200 cable, RX1200 acts as a secondary control unit for TPS1200 which additionally offers dedicated alpha keyboard and touch screen capabilities.
  • Page 99 Turning RX1200 off Type Description The RX1200 can only be turned off in the Main Menu screen. • For RX1210/RX1220: Pressing the USER and PROG keys simultaneously will switch off RX1200. Hold ESC for 2 s. • For RX1250: SHIFT OFF (F2) to completely turn off.
  • Page 100 Operation RX1200 Sleep mode on Description RX1250 In sleep mode, the RX1250 shuts down and reduces power. The sleep mode is designed to preserve energy. Rebooting RX1250 from sleep mode is quicker than a cold start after turning off. Putting RX1250 into sleep mode The RX1250 can only be put into sleep mode in the Main Menu screen.
  • Page 101 Switching between Leica software and Windows CE desktop a) Icon to start Leica software b) Windows CE desktop c) Task bar d) Start button RX12_33 Access Leica software THEN RX1250 is started the Leica software starts up automatically. Operation RX1200...
  • Page 102 Operation RX1200 THEN Windows CE double click to display the Leica software. desktop is active SHIFT PROG ( ) to display the Leica software. Leica software is double click to maximise it. minimised select SmartRover in the task bar to maximise it.

  • Page 103: Licence Keys

    A licence key file can be uploaded to the receiver/RX1250. To upload a licence key file the file should be located on the \SYSTEM directory of the CompactFlash card. Licence key files use the naming convention L_123456.key, where 123456 is the instrument serial number. Operation RX1200...
  • Page 104 Operation RX1200 Licence keys can also be typed in manually in Main Menu: Tools...\Licence Keys or the first time the application program is started. Access Select Main Menu: Tools...\Licence Keys. Select an application program on RX1250 not yet activated. TOOLS...
  • Page 105 User input Available for <Method: Manual Entry of Key>. The licence key required to activate an applica- tion program. Entry is not case sensitive. Next step CONT (F1) returns to GPS1200 Main Menu or continues with selected application program. Operation RX1200...

  • Page 106: Guidelines For Correct Results With Gnss Surveys

    Operation RX1200 Guidelines for Correct Results with GNSS Surveys Undisturbed satel- Successful GNSS surveys require undisturbed satellite signal reception, especially lite signal recep- at the receiver which serves as a reference. Set up the receivers in locations which tion are free of obstructions such as trees, buildings or mountains.

  • Page 107: Rx1250 Connections

    Select Main Menu: Config...\Interfaces... in the Leica software. Highlight SmartAntenna. EDIT (F3) CONFIGURE SmartAntenna Interface <Use Device: Yes> Select a free Bluetooth port. DEVCE (F5) CONFIGURE Devices Highlight ATX1230. CONT (F1) SRCH (F4) to search for Bluetooth devices. SmartAntenna must be turned on. Operation RX1200...
  • Page 108 Operation RX1200 Step Description CONFIGURE Search Bluetooth Device All available Bluetooth devices are displayed. Highlight the SmartAntenna to be used. CONT (F1) If the SmartAntenna selected is connected for the first time, a Windows CE authentication request comes up. Type in 0000 as identification number for Leica’s Bluetooth and click OK.

  • Page 109: Connection To A Digital Cellular Phone

    CONFIGURE Devices, Modems/GSM page Highlight a Bluetooth capable digital cellular phone. CONT (F1) SRCH (F4) to search for the digital cellular phone. The digital cellular phone must be turned on and Bluetooth must be acti- vated. CONFIGURE Search Bluetooth Device Operation RX1200...
  • Page 110 Operation RX1200 Step Description All available Bluetooth devices are displayed. Highlight the digital cellular phone to be used. CONT (F1) If the digital cellular phone selected is connected for the first time, the Windows CE dialog for pairing comes up. Type in 0000 as identification number for Leica’s Bluetooth and click OK.

  • Page 111: Connection To A Personal Computer

    Wait until the Windows CE desktop is visible. Plug the GEV161 cable into the USB port of the PC. The new hardware wizard starts up automatically. Tick No, not at this time. Next>. Tick Install from a list or specific location (Advanced). Operation RX1200...
  • Page 112 Operation RX1200 Step Description Next>. Insert the GPS1200 firmware CD version 4.0 or higher. Tick Search removable media (floppy, CD-ROM...). Next>. Confirm Hardware Installation window with Continue Anyway. Finish. Run the ActiveSync installation program if not already installed. Allow USB connections inside the Connection Settings window of ActiveSync.
  • Page 113 Start the Leica SmartRover software on the RX1250. Goto Data Exchange Manager in LGO. Click Refresh on the ActiveSync folder. Establish the communication to RX1250. The folders CF-Card, System1200 and Sensor System are displayed in the Data Exchange Manager. Operation RX1200...
  • Page 114 Operation RX1200 Connect to PC via Step Description USB cable Start the PC. step-by-step Plug the GEV161 cable into RX1250. Turn the RX1250 on. Plug the GEV161 cable into the USB port of the PC. ActiveSync starts up automatically. If does not start automatically, start ActiveSync.
  • Page 115 Click - -> to move the service to the Trusted box. Highlight the service required in the Trusted box. Right mouse click to access the context menu. Tick Active. Go to Start/Settings/Control/System/Device Name to give the RX1250 a specific name. Operation RX1200...
  • Page 116 Operation RX1200 Step Description Go to Start/Settings/Control Panel/PC Connection. Select Bluetooth from the combo box. Go to Start/Programs/Communication/ActiveSync to initialise the communication. As soon as the communication is initialised on the RX1250, ActiveSync establishes the link between the PC and RX1250.

  • Page 117: Working With The Tps Instrument

    Access Step Description step-by-step Proceed to the local menu of RX1200. Select RX1200: Main Configuration Menu: Radio/Comms Settings, Modes page. Set <ComMode: RCS Mode>. <ComMode: RCS Mode> is set automatically when turning on RX1220.

  • Page 118: Working In Transparent Mode

    Step Description step-by-step From CONFIGURE Interfaces on TPS1200 ensure that GeoCOM Mode is turned on and RCS Mode is turned off. Proceed to the local menu of RX1200. Select RX1200: Main Configuration Menu: Radio/Comms Settings, Modes page. Set <ComMode: Transparent>.

  • Page 119: Working In Semi-Transparent Mode

    <ComMode: Semi-Transparent> enables the total remote control of TPS1200 in RCS mode but the data being captured by TPS1200 will be sent via radio link to the LEMO port of RX1200. A computer connected to this port will receive the data captured on TPS1200 in real-time.

  • Page 120: Local Mode

    A message is displayed for a period of 10 s. Next step IF RX1200 THEN is to be configured CONF (F2) leads directly to RX1200 Main Configu- ration Menu. is to be connected automati- AUTO (F3) initiates the auto detect function. cally RX1200 tries to connect to any available instrument or receiver.
  • Page 121 IF RX1200 THEN is to be connected to TPS TPS (F4) tries to connect to any available TPS instrument. is to be connected to GPS GPS (F5) tries to connect to any available GPS receiver. Local Mode RX1200...

  • Page 122: Overview Of The Main Configuration Menu

    Main menu function Description Refer to Configuration chapter Menu Choose Sensor Select the sensor to be working with RX1200. Local Settings Change or adjust the display and sound settings of RX1200. Radio/Comms Change or adjust the communication settings of Settings RX1200.

  • Page 123: Choosing A Sensor

    Choosing a Sensor Access Step Description step-by-step Refer to "5.1 Accessing the Main Configuration Menu" to access RX1200 Main Configuration Menu. RX1200 Main Configuration Menu Highlight Choose Sensor. CONT (F1). RX1200 Description of fields Choose Sensor Field Option Description Sensor TPS1200 Sets RX1200 to work with TPS1200.
  • Page 124 Local Mode RX1200 Next step CONT (F1) to return to RX1200 Main Configuration Menu.

  • Page 125: Local Settings

    The settings are stored on RX1200 itself. Access Step Description step-by-step Refer to "5.1 Accessing the Main Configuration Menu" to access RX1200 Main Configuration Menu. RX1200 Main Configuration Menu Highlight Local Settings. CONT (F1). RX1200...
  • Page 126 Local Mode RX1200 Field Option Description <Screen Illum:> Off, Always On, Controls the screen illumination to be on, On for 30 s, off or on for the specified time after the On for 1 min, last key was pressed or touch screen On for 2 min or event.
  • Page 127 CALIB (F5) calibrates the touch screen. the next page is to be accessed PAGE (F6) changes to another page on this screen RX1200 Description of fields Local Settings, Field Option...
  • Page 128 RX Off After the preset time of RX1200 inactivity, RX1200 switches off. RX+TPS Off After the preset time of RX1200 inactivity, both RX1200 and TPS1200 switch off. <After time:> From 1 to 99 Time of RX1200 inactivity before the set action minutes is executed.

  • Page 129: Radio Settings

    This screen is relevant to RX1220, RX1220T and RX1250T. For RX1210, this screen is relevant when combined with TCPS27R. Access Step Description step-by-step Refer to "5.1 Accessing the Main Configuration Menu" to access RX1200 Main Configuration Menu RX1200 Main Configuration Menu Highlight Radio/Comms Settings. CONT (F1). RX1200...
  • Page 130 Enables measurement data to be sent from Transparent TPS1200, via the radio link, to the LEMO port of RX1200 in real-time. RX1200 continues to control TPS1200 in the normal RCS way. Refer to "4.11.3 Working in Semi-Transparent Mode" for more information.
  • Page 131 CONT (F1) accepts changes and returns to the screen from are to be exited where this screen was accessed. the next page is to PAGE (F6) changes to another page on this screen be accessed RX1200 Description of fields Radio/Comms Field Option Description...
  • Page 132 Local Mode RX1200 Field Option Description <Terminator:> Output The terminator of a data packet. <Data Bits:> Output Number of bits in a block of digital data. <Stop Bits:> Output Number of bits to end a block of digital data. <Set as:>...
  • Page 133 SYNC (F5) synchronises the settings between the internal be synchronised radio of RX1220 and external radio TCPS27B when connected to each other via cable. Open RX1200 Radio/Comms Settings, Param page to change the parameters for the communica- tion between RX1220 and TCPS27. the next page is to...

  • Page 134: Configuring The Radios

    • the simultaneous synchronisation of both the internal and external radios. View/edit Step Description internal/external Open RX1200 Radio/Comms Settings, Param page. radio settings step-by-step • For RX1220 and RX1250T the internal radio settings are displayed. • For RX1210 the external radio settings are displayed.
  • Page 135 Connect TCPS27 to RX1220 with a Y-cable and external battery. RX1220 step-by-step Open RX1200 Radio/Comms Settings, Param page. SYNC (F5). Open RX1200 Radio/Comms Settings, Param page. The settings of the internal radio of RX1220 are displayed. Edit settings.

  • Page 136: Working With A Sensor

    Local Mode RX1200 Working with a Sensor Description This function allows to leave the RX1200 Main Configuration Menu and returns to working with the sensor. Exit Configuring Step Description RX1200 From any screen in the local mode press SHIFT QUIT (F6).
  • Page 137 Local Mode RX1200...

  • Page 138: Care And Transport

    Always carry the product in its transport container and secure it. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, transport container and cardboard box, or its equiva- lent, to protect against shock and vibration. Shipping, transport...

  • Page 139: Storage

    • Remove batteries from the product and the charger before storing. • After storage recharge batteries before using. • Protect batteries from damp and wetness. Wet or damp batteries must be dried before storing or use. Care and Transport RX1200...

  • Page 140: Cleaning And Drying

    Care and Transport RX1200 Cleaning and Drying Product Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer compo- nents. Damp products Dry the product, the transport container, the foam inserts and the accessories at a temperature not greater than 40°C / 108°F and clean them.
  • Page 141 Care and Transport RX1200...

  • Page 142: Safety Directions

    Safety Directions RX1200 Safety Directions General Introduction Description The following directions should enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid operational hazards. The person responsible for the product must ensure that all users understand these...

  • Page 143: Intended Use

    • Use of products with obviously recognizable damages or defects. • Use with accessories from other manufacturers without the prior explicit approval of Leica Geosystems. • Inadequate safeguards at the surveying site, for example when measuring on roads. Safety Directions...
  • Page 144 Safety Directions RX1200 • Controlling of machines, moving objects or similar monitoring application without additional control- and safety installations. Warning Adverse use can lead to injury, malfunction and damage. It is the task of the person responsible for the equipment to inform the user about hazards and how to counteract them.

  • Page 145: Limits Of Use

    Danger Local safety authorities and safety experts must be contacted before working in hazardous areas, or in close proximity to electrical installations or similar situations by the person in charge of the product. Safety Directions RX1200...

  • Page 146: Responsibilities

    Geosystems, is responsible for supplying the product, including the user manual and original accessories, in a completely safe condition. Manufacturers of The manufacturers of non Leica Geosystems accessories for the product are responsible for developing, implementing and communicating safety concepts for Leica Geosystems...
  • Page 147 The person responsible for the product must ensure that it is used in accordance with the instructions. This person is also accountable for the training and the deploy- ment of personnel who use the product and for the safety of the equipment in use. Safety Directions RX1200...

  • Page 148: International Warranty, Software Licence Agreement

    Leica Geosystems. Such software is protected by copy- right and other laws and its use is defined and regulated by the Leica Geosystems Software Licence Agreement, which covers aspects such as, but not limited to, Scope of the Licence, Warranty, Intellectual Property Rights, Limitation of Liability, Exclusion of other Assurances, Governing Law and Place of Jurisdiction.
  • Page 149 (10) days of purchase to obtain a full refund of the purchase price. Safety Directions RX1200...

  • Page 150: End User Licence Agreement Eula

    • You may use the SOFTWARE only on the DEVICE. • NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. Leica Geosystems HAS INDEPENDENTLY DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON Leica...
  • Page 151 ESSENTIAL PURPOSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY DOLLARS (U.S.$250.00). • Limitations on Reverse Engineering, Decompilation, and Disassembly. You may not reverse engineer, decompile, or disassemble the SOFTWARE, Safety Directions RX1200...
  • Page 152 Safety Directions RX1200 except and only to the extent that such activity is expressly permitted by appli- cable law notwithstanding thes limitation. • SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights under this EULA only as part of a permanent sale or transfer of the Device, and only if the recipient agrees to this EULA.

  • Page 153: Hazards Of Use

    Precautions: Keep at a safe distance from electrical installations. If it is essential to work in this environment, first contact the safety authorities responsible for the electrical instal- lations and follow their instructions. Safety Directions RX1200...
  • Page 154 Safety Directions RX1200 Warning By surveying during a thunderstorm you are at risk from lightning. Precautions: Do not carry out field surveys during thunderstorms. Warning During dynamic applications, for example stakeout procedures there is a danger of accidents occurring if the user does not pay attention to the environmental conditions around, for example obstacles, excavations or traffic.
  • Page 155 Warning Only Leica Geosystems authorized service workshops are entitled to repair these products. Warning If computers intended for use indoors are used in the field there is a danger of elec- tric shock. Precautions: Adhere to the instructions given by the computer manufacturer with regard to field use in conjunction with Leica Geosystems products.
  • Page 156 Before transportation or shipping contact your local passenger or freight transport company. Warning Using a battery charger not recommended by Leica Geosystems can destroy the batteries. This can cause fire or explosions. Precautions: Only use chargers recommended by Leica Geosystems to charge the batteries.
  • Page 157 Precautions: The product must not be disposed with household waste. Dispose of the product appropriately in accordance with the national regulations in force in your country. Always prevent access to the product by unauthorized personnel. Safety Directions RX1200...
  • Page 158 Safety Directions RX1200 Product specific treatment and waste management information can be downloaded from the Leica Geosystems home page at http://www.leica-geosystems.com/treat- ment or received from your Leica Geosystems dealer.

  • Page 159: Electromagnetic Compatibility Emc

    Warning Electromagnetic radiation can cause disturbances in other equipment. Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. Caution There is a risk that disturbances may be caused in other equipment if the product is...
  • Page 160 Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that the product may be disturbed by very intense electromagnetic radiation, for example, near radio transmitters, two-way radios or diesel generators.
  • Page 161 Precautions: Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed or that humans or animals may be affected. •...

  • Page 162: Fcc Statement, Applicable In U

    Safety Directions RX1200 FCC Statement, Applicable in U.S. Applicablility The greyed paragraph below is only applicable for RX1210 products without internal radio. Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 163 Warning Changes or modifications not expressly approved by Leica Geosystems for compli- ance could void the user's authority to operate the equipment. Labelling This device complies with Type: RX1210 ..RX1210 part 15 of the FCC Rules....
  • Page 164 Safety Directions RX1200 Labelling Type: RX1220 This device complies with part ... RX1220 and RX1220 T 15 of the FCC Rules. Operation is ....
  • Page 165 (2) this device must accept any interference received, including inter- ference that may cause undesired operation. Type: AT..Art.No.: ..Equip.No.: XXXXXX S.No.: ..Power: 12V---, nominal 1/0.5A max. Leica Geosystems AG CH-9435 Heerbrugg Manufactured: 2004 Made in Switzerland S.No.: ..TPS12_208 Safety Directions...
  • Page 166 Safety Directions RX1200 Labelling This device complies with Type: GHT 56 ..GHT56 part 15 of the FCC Rules....Operation is subject to the .
  • Page 167 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired GPS12_103 Safety Directions RX1200...
  • Page 168 Safety Directions RX1200 Labelling Type: GFUXX ..GFU19,GFU25 ........
  • Page 169 This device complies with part 15 of the FCC Rules. Operation internal battery is subject to the following two conditions: (1) This device GEB211,GEB221 may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TPS12_082 Safety Directions RX1200...
  • Page 170 Labelling Type: GEV161 Art.No.: 733281 Power: 3,3V / 0,005mA USB cable GEV161 Leica Geosystems AG CH-9435 Heerbrugg Manufactured: 08.2005 Made in Switzerland S.No.: 0055 This device complies with part 15 of the FCC Rules. Operation is subject to the following...
  • Page 171 Safety Directions RX1200...

  • Page 172: Trouble Shooting

    <Sensor: TPS1200> or <Sensor: Auto not connect to Detect> is selected in Main Configura- TPS1200 tion Menu: Choose Sensor on the RX1200. Refer to "5.3 Choosing a Sensor". • <ComMode: RCS Mode> is selected in Main Configuration Menu: Radio/Comms Settings on the Modes...
  • Page 173 The radio settings in RX1220 and the base radio are correct. Refer to "5.5 Radio Settings". Radio settings should be synchronised to Leica default values. Refer to paragraph "Synchronising radio settings for RX1220 step-by-step" in "5.5.2 Configuring the Radios". Trouble Shooting RX1200...
  • Page 174 Via cable • <Sensor: TPS1200> or <Sensor: Auto Detect> is selected in Main Configura- tion Menu: Choose Sensor on the RX1200. Refer to "5.3 Choosing a Sensor". • <ComMode: RCS Mode> is selected in Main Configuration Menu: Radio/Comms Settings on the Modes page.
  • Page 175 Problem Details To be checked • <Sensor: GPS1200> or <Sensor: Auto Detect> is selected in Main Configura- tion Menu: Choose Sensor on RX1200. Refer to "5.3 Choosing a Sensor". Via cable • RX1200 is properly connected to GPS1200. • <Sensor: GPS1200> or <Sensor: Auto Detect>...
  • Page 176 Trouble Shooting RX1200 RX1220 radio Problem Details To be checked performance Radio range • TCPS27B is mounted onto the tripod not optimal using the adapter. Refer to "4.1.3 Setting up with the TPS Instrument". • Change the link number if it is suspected to have other 2.4 GHz radios operating in...
  • Page 177 RX1250 does CompactFlash • CompactFlash card is inserted. Flash card not recognise card is inserted • CompactFlash card is pushed in CompactFlash into a slot inside completely. card the battery compartment on the underside of the RX1250. Trouble Shooting RX1200...
  • Page 178 Trouble Shooting RX1200 RX1250 Problem Details To be checked Windows CE Icon to display • Tap the Start button in the bottom left Leica software corner of Windows CE desktop. Then select Programs\Leica Geosys- not on tems\GPS1200. Windows CE desktop •...
  • Page 179 Bluetooth device. • Check the Bluetooth device settings, for example the Options and COM ports pages. • Is ActiveSync running? Is the correct COM port defined in the Connection Settings dialog? • Re-boot the PC or/and RX1250. Trouble Shooting RX1200...

  • Page 180: Technical Data

    Technical Data RX1200 Technical Data RX1200 Technical Data Design Glass reinforced polymer housing with optional integrated battery and radio modem. Control unit Display: 1/4 VGA (320 x 240 pixels), monochrome, graphics capable LCD, illumination, optional touch screen Keyboard: 62 keys including 12 function keys, illumination Angle Display: 360°’", 360°...
  • Page 181 • 90000 real-time points with codes GPS + GLONASS (8 + 4 satellites) • 340 h data logging at 15 s rate • 1360 h data logging at 60 s rate • 90000 real-time points with codes Technical Data RX1200...
  • Page 182 Technical Data RX1200 Power Type Consumption [W] External supply voltage RX1210 Nominal voltage 12 V DC ( Voltage range 11.5 V-28 V RX1220 Nominal voltage 12 V DC ( Voltage range 11.5 V-28 V RX1250 X Nominal voltage 12 V DC ( Bluetooth to SmartAntenna, Voltage range 11.5 V-28 V...
  • Page 183 GEB211: 1.9 Ah 11 h Bluetooth to SmartAn- tenna Environmental Temperature specifications Type Operating temperature [°C] Storage temperature [°C] RX1200 -30 to +65 -40 to +80 Bluetooth: -25 to +65 Internal battery -20 to +50 -40 to +70 Technical Data...
  • Page 184 IP67 (IEC60529) Dusttight Waterproof to 1 m temporary immersion Humidity Type Protection RX1200 Up to 100 % The effects of condensation are to be effectively counter- acted by periodically drying out RX1200. Interfaces Type RS232 RS232 Bluetooth No handshake Handshake RX1210/ •...
  • Page 185 Terminator: CR/LF Data bits: Stop bits: Ports Type 8 pin LEMO-1 Special clip-on interface RX1210/ For power and/or communication For power and communication to RX1220 GPS1200 RX1250 For power and/or communication For communication to GHT56 and GPS1200 Technical Data RX1200...

  • Page 186: Smartantenna Technical Data

    Technical Data RX1200 SmartAntenna Technical Data 9.2.1 Tracking Characteristics Receiver SmartTrack+ (ATX1230 GG) technology SmartTrack (ATX1230) Satellite reception Dual frequency Receiver channels ATX1230 GG: 14 channels continuous tracking on L1 and L2 (GPS); twelve channels continuous tracking on L1 and L2 (GLONASS); two channels tracking SBAS.
  • Page 187 Reconstructed carrier phase via P2 code L2, AS on Switches automatically to patented P code-aided technique providing full L2 reconstructed carrier phase GLONASS Condition ATX1230 GG Reconstructed carrier phase via C/A code Reconstructed carrier phase via P2 code Technical Data RX1200...
  • Page 188 Technical Data RX1200 Code measure- ments Condition ATX1230 GG/ATX1230 L1, AS off Carrier phase smoothed code measurements: C/A code L1, AS on L2, AS off Carrier phase smoothed code measurements: P2 code L2, AS on Carrier phase smoothed code measurements: Patented P...

  • Page 189: Accuracy

    The baseline precision of a differential code solution for static and kinematic surveys is 25 cm. Differential phase Normal baselines in post-processing Static Kinematic Horizontal Vertical Horizontal Vertical 5 mm + 0.5 ppm 10 mm + 0.5 ppm 10 mm + 1 ppm 20 mm + 1 ppm Technical Data RX1200...
  • Page 190 Technical Data RX1200 Long baselines Static Horizontal Vertical 3 mm + 0.5 ppm 6 mm + 1 ppm Differential phase Static Kinematic in real-time Horizontal Vertical Horizontal Vertical 5 mm + 0.5 ppm 10 mm + 0.5 ppm 10 mm + 1 ppm...

  • Page 191: Technical Data

    Description ATX1230 GG/ L1/L2 SmartTrack+/SmartTrack With RX1250 or TPS1200. ATX1230 antenna with built in ground- plane. Dimensions Height: 0.890 m Diameter: 0.186 m Connector 8 pin LEMO-1 Mounting 5/8" Whitworth Weight 1.1 kg including internal battery GEB211 Technical Data RX1200...
  • Page 192 Technical Data RX1200 Power Power consumption: 1.8 W typically, 270 mA External supply voltage: Nominal 12 V DC ( , GEV197 SmartAntenna to PC for data transfer and to external power supply), voltage range 5-28 V DC Battery internal Type:...
  • Page 193 BW, -30 dBi Environmental Temperature specifications Operating temperature [°C] Storage temperature [°C] -40 to +65 -40 to +80 Bluetooth: -30 to +65 Protection against water, dust and sand Protection IP67 (IEC 60529) Dusttight Protected against water jets Technical Data RX1200...
  • Page 194 Technical Data RX1200 Protection Waterproof to 1 m temporary immersion Humidity Protection Up to 100 % The effects of condensation are to be effectively counteracted by periodically drying out the antenna.

  • Page 195: Ght56 Technical Data

    GEB211: 1.9 Ah, GEB221: 3.8 Ah Typical operating time: The given operating times are valid for • one fully charged GEB221 battery. • 25°C. Operating times will be shorter when working in cold weather. • good data link. Technical Data RX1200...
  • Page 196 Technical Data RX1200 GFU14, receive only mode: 14.5 h GFU17, GFU24: 6.1 h Pacific Crest radio, receive only mode: 13.3 h Environmental Temperature specifications Operating temperature [°C] Storage temperature [°C] -20°C to +65 -40 to +80 Protection against water, dust and sand...
  • Page 197 Humidity Protection Up to 100 % The effects of condensation are to be effectively counteracted by periodically drying out the antenna. Technical Data RX1200...

  • Page 198: Conformity To National Regulations

    FCC Part 15 (applicable in US) national • Hereby, Leica Geosystems AG, declares that the RX1220 is in compliance with regulations the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosys- tems.com/ce.
  • Page 199 Frequency band [MHz] Limited to 2409 - 2435 RX1220 Output power Type Output power [mW] RX1220 < 100 (e. i. r. p.) Antenna Type Antenna Gain Connector Frequency [dBi] band [MHz] RX1220 Detachable λ/4 antenna 2409 - 2435 Technical Data RX1200...

  • Page 200: Rx1250 (Rx1250 X And Rx1250 T)

    FCC Part 15 (applicable in US) national • Hereby, Leica Geosystems AG, declares that the RX1250 is in compliance with regulations the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosys- tems.com/ce.
  • Page 201 For RX1250 X and RX1250 T Frequency band Type Frequency band [MHz] Bluetooth 2400 - 2483.5 Output power Type Output power [mW] Bluetooth Antenna Type Antenna Gain Connector Frequency [dBi] band [MHz] Bluetooth Integrated antenna Technical Data RX1200...
  • Page 202 Technical Data RX1200 For RX1250 T Frequency band Type Frequency band [MHz] Limited to 2409 - 2435 RX1250 T Output power Type Output power [mW] RX1250 T < 100 (e. i. r. p.) Antenna Type Antenna Gain Connector Frequency [dBi]...

  • Page 203: Gfu16, Bluetooth Communication

    FCC Part 15 (applicable in US) national • Hereby, Leica Geosystems AG, declares that the GFU16 is in compliance with regulations the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosys- tems.com/ce.
  • Page 204 Technical Data RX1200 Antenna Type Internal patch antenna Gain 2.7 dBi...

  • Page 205: Gfu17, Siemens Mc45

    FCC Part 15 and 24 (applicable in US) national • Hereby, Leica Geosystems AG, declares that the GFU17 is in compliance with regulations the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosys- tems.com/ce.
  • Page 206 Technical Data RX1200 Antennas Type GAT 3 GAT 5 Frequency band 900 or 1800 MHz 850 or 1900 MHz Type Detachable λ/2 antenna Detachable λ/2 antenna Gain 0 dBi 0 dBi Connector Specific The product meets the limits for the maximum permissible exposure of the guide- Absorption Rate lines and standards which are force in this respect.

  • Page 207: Gfu24, Siemens Mc75

    FCC Part 15, 22 and 24 (applicable in US) national • Hereby, Leica Geosystems AG, declares that the GFU17 is in compliance with regulations the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosys- tems.com/ce.
  • Page 208 Technical Data RX1200 Antennas Type GAT 3 GAT 5 Frequency band 900 or 1800 MHz 850 or 1900 MHz Type Detachable λ/2 antenna Detachable λ/2 antenna Gain 0 dBi 0 dBi Connector Specific The product meets the limits for the maximum permissible exposure of the guide- Absorption Rate lines and standards which are force in this respect.

  • Page 209: Gfu19 (Us), Gfu25 (Can) Cdma Multitech Mtmmc-C

    FCC part 15, 22 and 24 has to be approved prior to use and operation. Frequency band Dual-Band CDMA850/CDMA1900 MHz Output power CDMA850: CDMA1900: 0.4 W Antenna Type GAT 5 Frequency band 850 or 1900 MHz Type Detachable λ/2 antenna Gain 0 dBi Connector Technical Data RX1200...
  • Page 210 Technical Data RX1200 Specific The product meets the limits for the maximum permissible exposure of the guide- Absorption Rate lines and standards which are force in this respect. The product must be used with (SAR) the recommended antenna. A separation distance of at least 20 centimeters should be kept between the antenna and the body of the user or nearby person within the intended application.

  • Page 211: Smartantenna With Bluetooth

    FCC Part 15 (applicable in US) national • Hereby, Leica Geosystems AG, declares that the SmartAntenna with Bluetooth regulations is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosystems.com/ce.
  • Page 212 Technical Data RX1200 Output power Type Output power [mW] GNSS Receive only Bluetooth Antenna GNSS Internal GNSS antenna element (receive only) Bluetooth Type: Internal Microstrip antenna Gain: 1.5 dBi...
  • Page 213 Technical Data RX1200...

  • Page 214: Appendix A Directory Structure Of The Memory Device

    Directory Structure of the Memory Device RX1200 Appendix A Directory Structure of the Memory Device Description On the memory device, files are stored in certain directories. The following diagram of the directory structure refers to both CompactFlash card and internal memory if fitted.
  • Page 215 GSI files (*.gsi) • ASCII files for export from job (*.*) |—— SYSTEM • Application program files (*.a*) • Firmware files (*.fw) • Language files (*.s*) • Licence file (*.key) • System files (System.ram) Directory Structure of the Memory RX1200 Device...

  • Page 216: Appendix B Cables

    Appendix B Cables Description Some applications require the connection of instruments, devices or accessories to the RX1200. In this chapter, the required cables and their use are listed. Cables connecting The table shows in alphabetical order which instruments, devices or accessories can instruments, be connected using cables.
  • Page 217 From Cables • GEV188 RX1250 • GEV162 SmartAntenna • GEV197 RX1200 GPS1200 • GEV163 • GEV164 GRX1200 Pro/ • GEV163 GRX1200 GG Pro • GEV164 TPS1200 • GEV185 • GEV186 RX1210/RX1220 TCPS27 • GEV190 RX1250 SmartAntenna • GEV173 TCPS27 RX1210/RX1220 •...
  • Page 218 Cable 2.8 m, data transfer GX RX to RS232 GEV163 Cable 1.8 m, RX to GX GEV164 Cable 1.0 m, RX to GX, all-on-pole setup GEV173 Cable 1.2 m, SmartAntenna to RX1250 GEV185 Cable 1.8 m, TPS1200 to RX1200 GEV186 Y-cable 1.8 m, RX1210/RX1220/TCPS27 to TPS1200 with power...
  • Page 219 Name Description GEV188 Y-cable 2.0 m, RX1210/RX1220/TCPS27 to RS232 with power GEV190 Y-cable 1.8 m, RX1210/RX1220 to TCPS27 with power GEV197 Y-cable 2.8 m, SmartAntenna to PC for data transfer and to power supply Cables RX1200...
  • Page 220 Index RX1200 Index Abbreviations ............16 Backwards compatible with GPS System500 ... 214 Accuracy ............189 Battery ActiveSync ........... 26, 111 Change in GHT56 .......... 74 Adapter cable ............ 218 Change in RX1250 ........70 Almanac file, directory ........214 Change in SmartAntenna ......
  • Page 221 SmartAntenna ..........191 DTM job, directory ..........215 Container Contents Part 1 of 2 ............34 Part 2 of 2 ............35 Electrical data, SmartAntenna ......192 Conversion of data ..........28 End User Licence Agreement ......150 Index RX1200...
  • Page 222 Index RX1200 Environmental specifications GFU19 .............. 207 GHT56 ............196 GHT56 ..............18 SmartAntenna ..........193 GNSS = Global Navigation Satellite System ..16 EULA ..............150 GSI file, directory ..........215 Firmware file, directory ........215 Handstrap ............59 Flashing LED on clip-on-housing ....
  • Page 223 Fixed keys ............11 SmartAntenna, description ......82 Function keys ..........41 LEICA Geo Office ..........21 Hot keys ............41 Leica software Numeric keys ..........41 Access ............101 PROG key ............42 Exit ............... 102 SHIFT key ............42 Index RX1200...
  • Page 224 OMNI drive ............ 26, 28 Operating Temperature Main Configuration Menu For internal battery GEB211 ......183 Accessing ............. 120 For RX1200 controller ........183 Choosing a sensor ........123 GHT56 ............196 Description of ..........122 SmartAntenna ..........193 Local settings ..........125...
  • Page 225 PC card drive on office computer ......29 Container Contents part 2 of 2 ....... 35 Power Description of ..........16 GHT56 ............195 RX1200 controller .......... 16 SmartAntenna ..........192 Setup with RadioHandle ........ 62 Power LED Setup with TCPS27 ........64 GHT56 ............
  • Page 226 Index RX1200 Description of ..........16 Setup for RCS Detach from GPS receiver ......58 With RadioHandle .......... 62 Detach from pole ..........56 With TCPS27 ..........64 Mount handstrap ..........59 Siemens MC45 Mount to GPS receiver ........57 GFU17, technical data ......
  • Page 227 Touch Screen, operating principles ....46 Storage Temperature Tracking LED, SmartAntenna ......81 For internal battery GEB211 ....139, 183 Transfer data ............28 For RX1200 controller ........183 Transparent Mode ..........118 GHT56 ............196 Transport of Equipment ........138 SmartAntenna ..........193 Trouble Shooting Switching, Leica software and Windows CE ..
  • Page 228 Index RX1200 Turn Controller On ......... 42, 97 Unlock, keyboard ..........100 Upload software ..........24 User Interface ............40 User Manual Available formats ..........14 How to use ............. 10 Validity of ............12 Weight GHT56 ............195 SmartAntenna ..........191 Windows CE desktop, access ......
  • Page 229 Index RX1200...
  • Page 230 International Standards of Quality Management and Quality Systems (ISO standard 9001) and Environmental Management Systems (ISO standard 14001). Ask your local Leica Geosystems dealer for more information about our TQM program. Leica Geosystems AG Heinrich-Wild-Strasse...
