Dacor Renaissance ETT304-1 Planning Manual

Document # PG03-002
Product tolerances: ±1/16" (±1.6 mm) unless otherwise noted
30 1/4" *
(76.8 cm)
19 3/8"
21 1/4" *
(49.5 cm)
(54.0 cm)

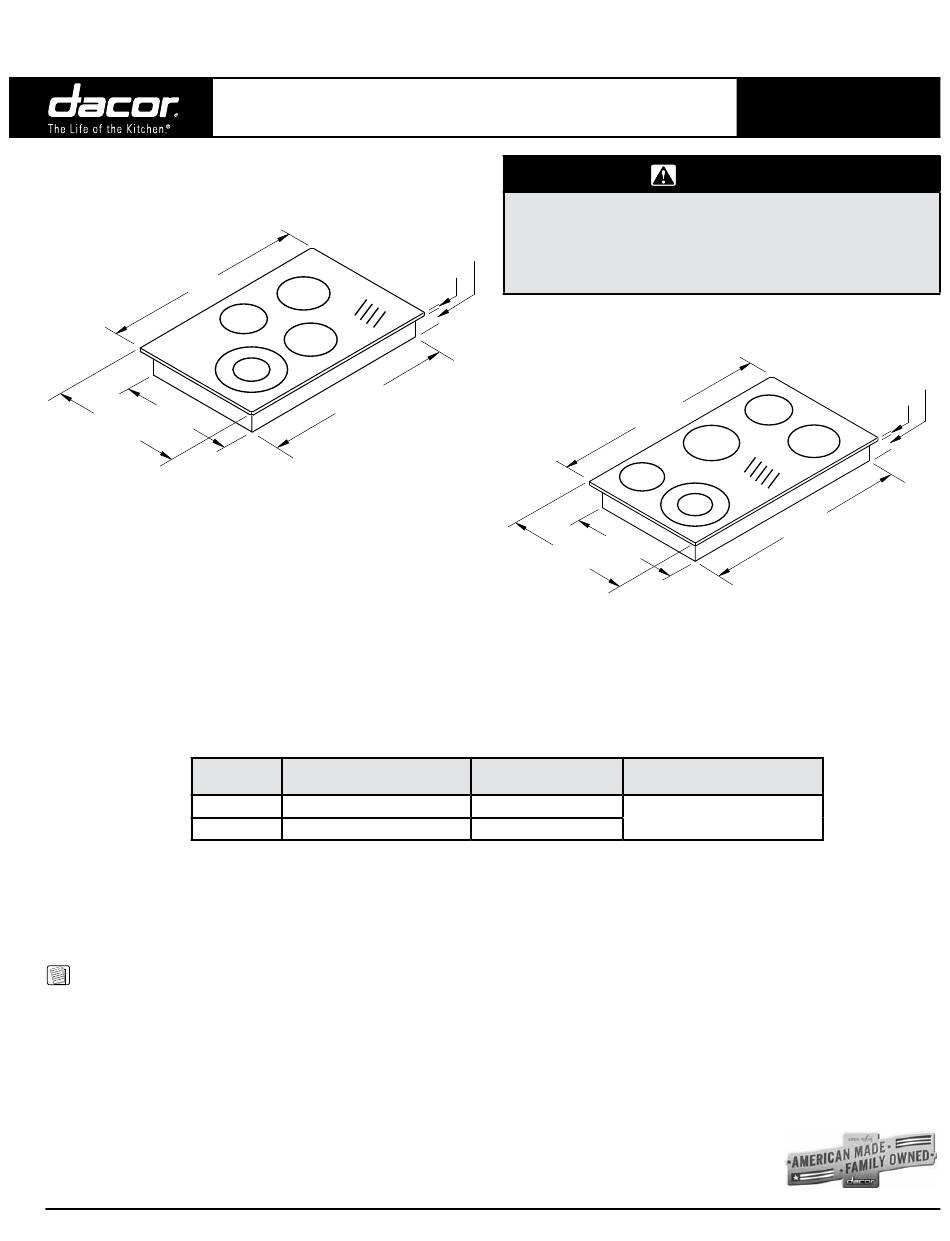

PRoDUCT DImENsIoNs - ETT304-1
ETT304-1
ETT365-2
* For reference only, See the product data label on bottom of unit for exact specifications.
NOTES:
1. The cooktop is supplied with a flexible, 48 inch long
power conduit consisting of two (2) insulated hot lead
conductors (L1 and L2) and one (1) insulated ground
conductor. There is no neutral connection. All leads are
copper. The conduit is connected to the right corner of
the cooktop. Do not connect the ground wire to neutral.
2. Tested in accordance with the latest edition of ANSI
Z21.1 and U.L. 858 Standard for household cooking
appliances.
3. These cooktops are not approved for recessed
installation.
All specifications subject to change without notice.
ETT304-1, ETT365-2
Renaissance
Electric Cooktops
28 3/8"
(72.1 cm)
* For units with stainless steel trim, other units may be up to 1/8" less.
Model No. Electrical Circuit Required
240 Vac, 60 Hz, 40 Amps.
240 Vac, 60 Hz, 40 Amps.
ELECTRICAL sUPPLy REqUIREmENTs
® 30" and 36" Wide,
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
4" (10.2 cm)
chassis height
• This appliance must be installed in accordance with the
3/16" (4.8 mm)
accompanying installation instructions.
21 1/4" *
(54.0 cm)
Total Connected
Load*
6.9 kW (29 Amps.)
9.1 kW (38 Amps.)
www.dacor.com
Revised 10/03/12 Page 1/3
PLANNING
WARNING
36 1/4" *
(92.1 cm)
19 3/8"
(49.5 cm)
PRoDUCT DImENsIoNs - ETT365-2
Minimum Supply Wire Size
Line and Ground Connections
No. 8 AWG
Phone: (800) 793-0093
GUIDE
4" (10.2 cm)
chassis height
3/16" (4.8 mm)
34 3/8"
(87.3 cm)
