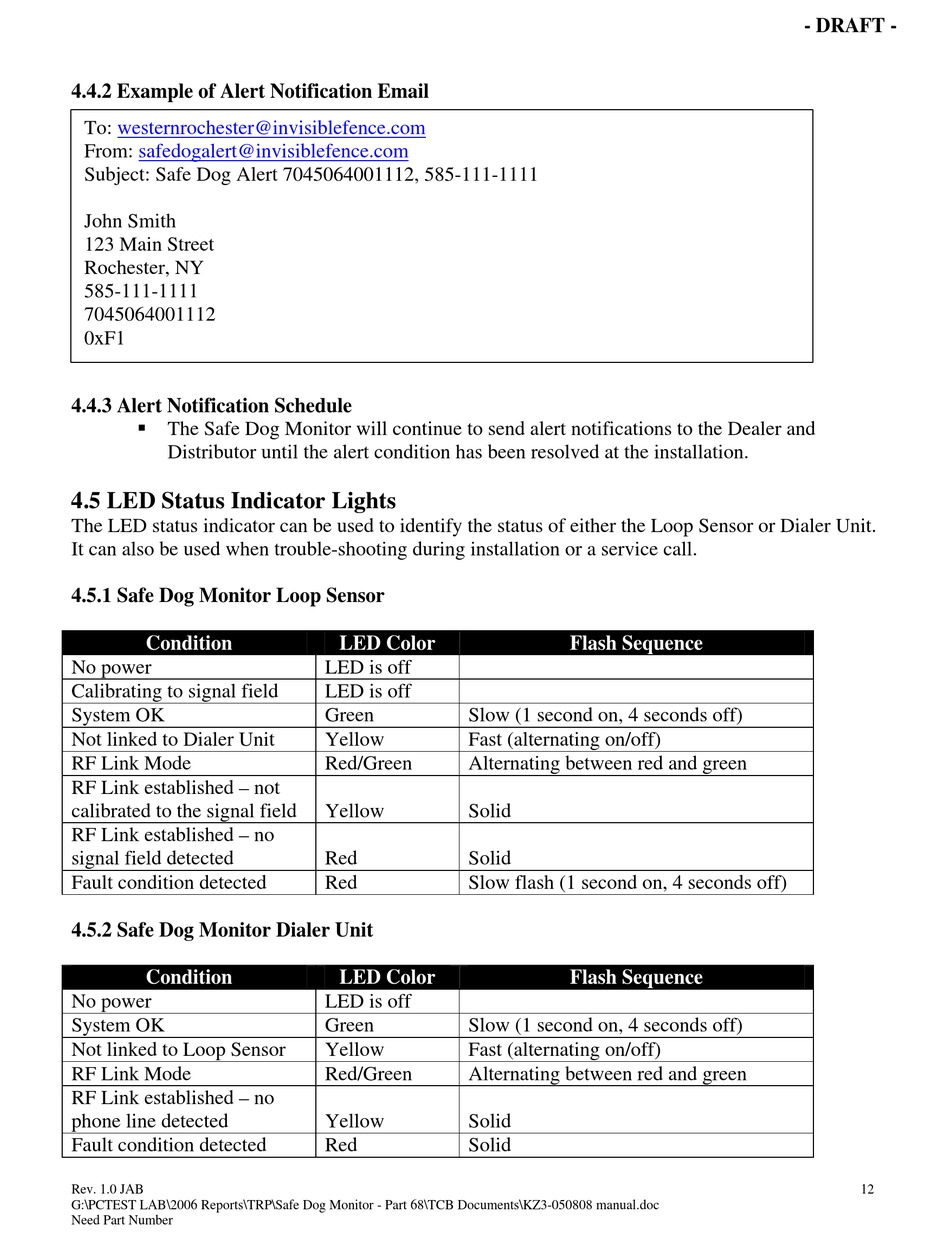

4.4.2 Example of Alert Notification Email

To: westernrochester@invisiblefence.com
From: safedogalert@invisiblefence.com
Subject: Safe Dog Alert 7045064001112, 585-111-1111
John Smith
123 Main Street
Rochester, NY
585-111-1111
7045064001112
0xF1

4.4.3 Alert Notification Schedule

§ The Safe Dog Monitor will continue to send alert notifications to the Dealer and
Distributor until the alert condition has been resolved at the installation.

4.5 LED Status Indicator Lights

The LED status indicator can be used to identify the status of either the Loop Sensor or Dialer Unit.
It can also be used when trouble-shooting during installation or a service call.
4.5.1 Safe Dog Monitor Loop Sensor
Condition
No power
Calibrating to signal field
System OK
Not linked to Dialer Unit
RF Link Mode
RF Link established – not
calibrated to the signal field
RF Link established – no
signal field detected
Fault condition detected
4.5.2 Safe Dog Monitor Dialer Unit
Condition
No power
System OK
Not linked to Loop Sensor
RF Link Mode
RF Link established – no
phone line detected
Fault condition detected
