2.
KGX Control Panel
INTRODUCTION
The KGX 150T/130T models interface to the KGX Control Panel (P/N:
89000016--001) used in--flight by the pilot to control output of ADS--B
messages. The KGX Control Panel receives power from and
communicates with the KGX 150T/130T. The KGX Control Panel
consists of the following components:
Monochrome liquid crystal display (LCD)
D
Mode Selection knob
D
Code Knob
D
Identification (IDT) button
D
Visual flight rules (VFR) button
D
Function button
D
Enter button.
D
Each of the KGX Control Panel functions will be explained in the
paragraphs that follow. Figure 2--1 shows the available control panel
components used for operating the KGX 150T/130T.
D201405000060
REV 0 Oct 2014
Honeywell International Inc. Do not copy without express permission of Honeywell.
KGX 150/130 Transceivers and Receivers

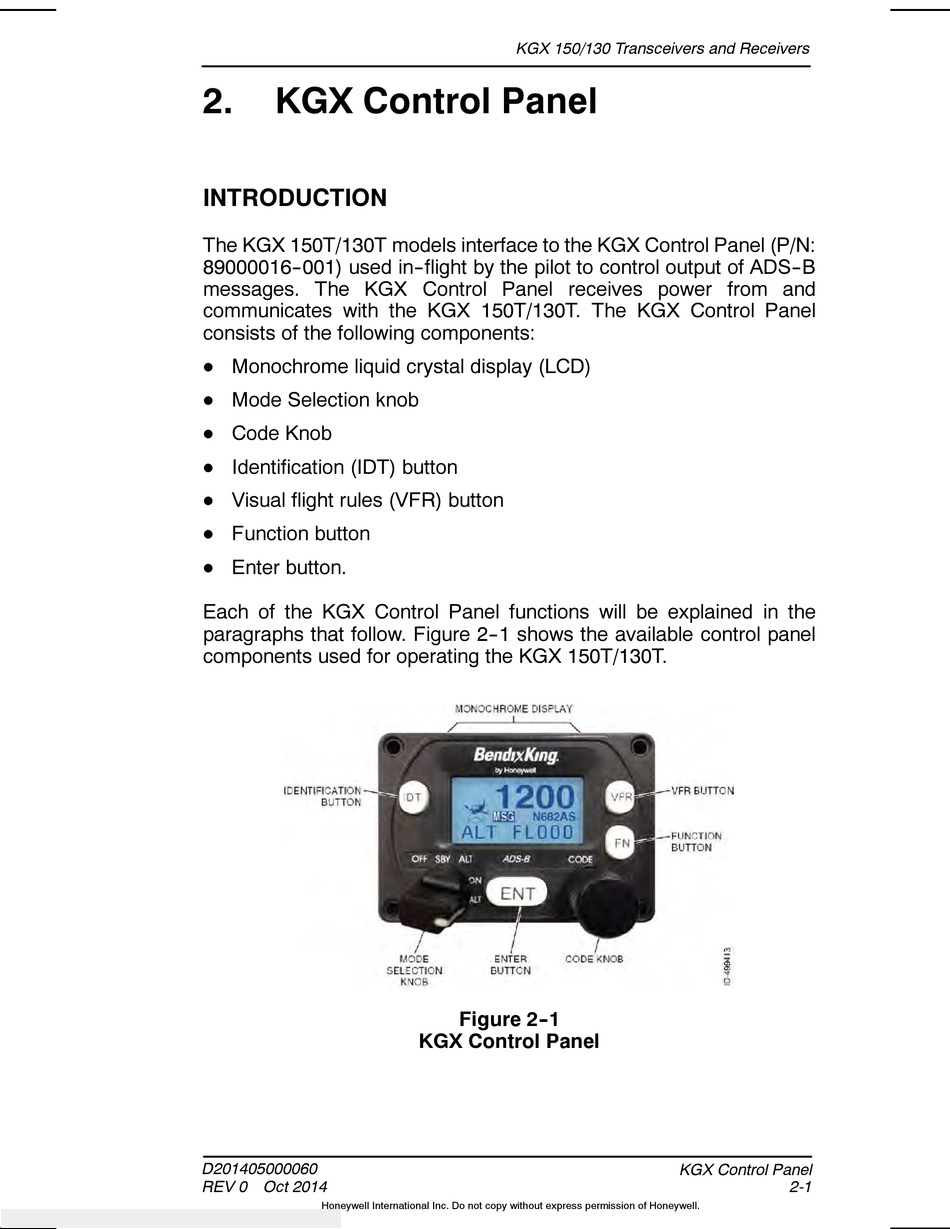

Figure 2- -1
KGX Control Panel
KGX Control Panel
2-1
