Figure 2--2 shows the KGX 150T/130T powered on in the Airborne
Transmission mode with a pressure altitude of flight level 500 feet being
displayed.

MODE SELECTION KNOB

The left hand mode selection knob, shown in Figure 2--3, controls the
power to the KGX 150T/130T and the operating mode.
The mode selection knob rotates between the different operating
modes, as defined in the following paragraphs:
OFF -- Power is removed from the KGX.
D201405000060
REV 0 Oct 2014
Honeywell International Inc. Do not copy without express permission of Honeywell.
KGX 150/130 Transceivers and Receivers

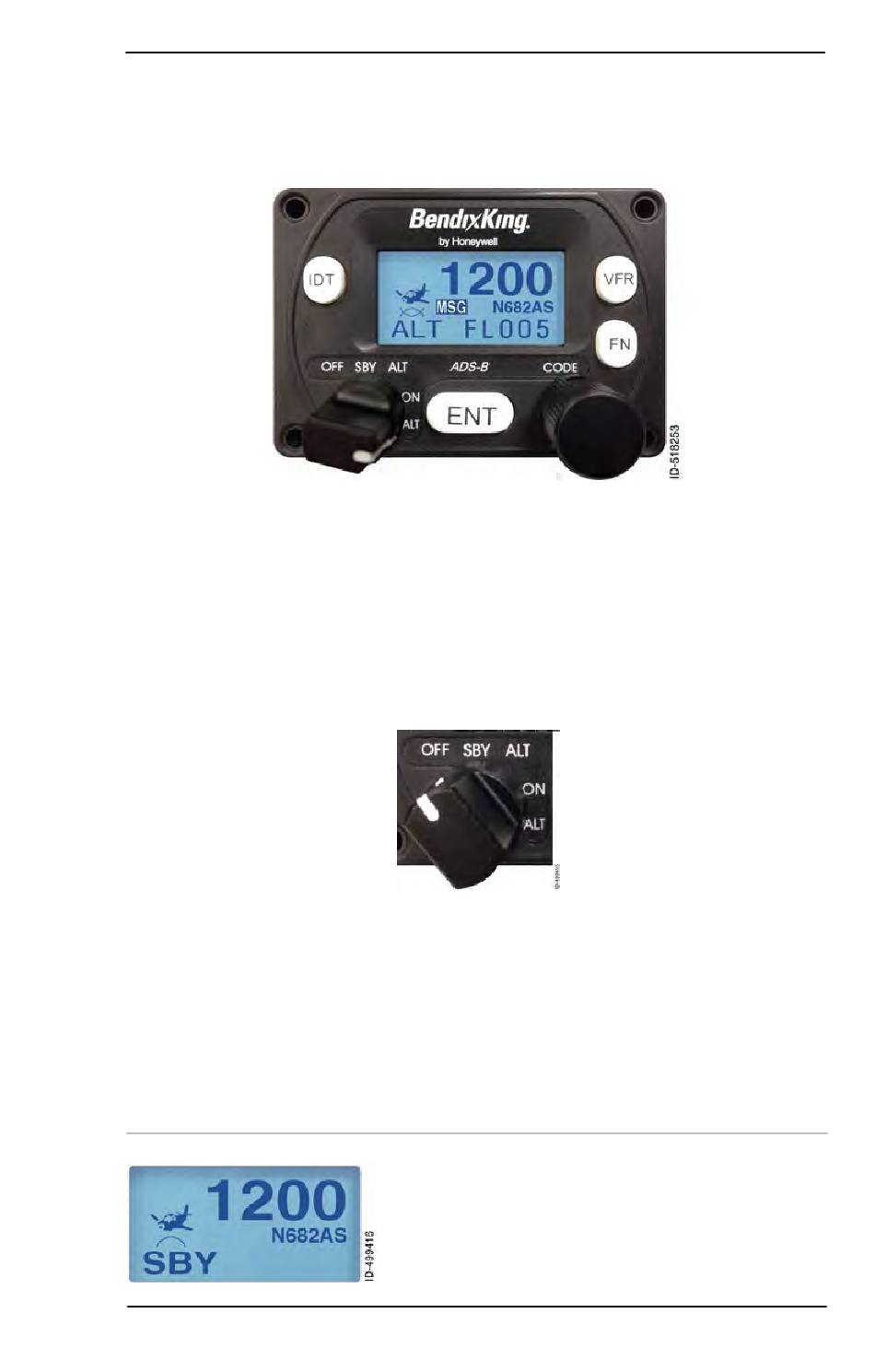

Figure 2- -2

Display in ALT Mode

Figure 2- -3

Mode Selection Knob

SBY -- The KGX 150T/130T is on but will
not transmit any ADS--B messages but
will still receive ADS--B messages.
