- Page 1 BYD Battery-Box HV QUICK REFERENCE GUIDE Valid for Battery-Box H 5.1/6.4/7.7/9.0/10.2/11.5 (AU)

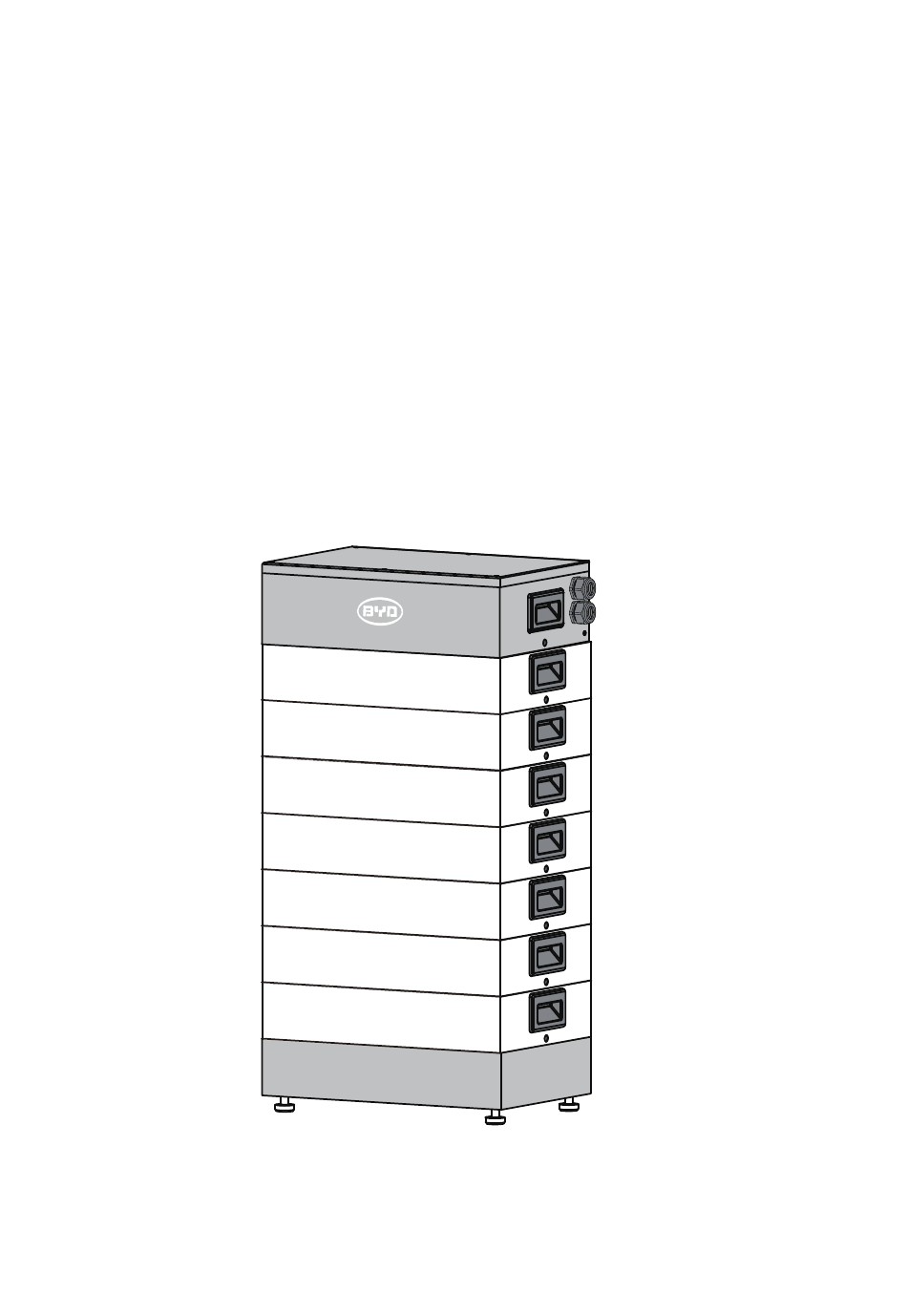

- Page 2 Overall structure n=9, 11.5KWh * If connected to the SMA inverter, n = 5-8 Modules n=8, 10.2KWh Unless SMA & BYD updates the information. * Whether the inverter supports 4 battery matching, please n=7, 9.0KWh consult the inverter manufacturer. n=6, 7.7KWh n=5, 6.4KWh...
- Page 3 Separate base Unpack Balance Install Wall-mount and BCU Before installing BCU, make sure the system switch is switch off. BCU + Base D=0-6.3cm Avoid the collision between connector and corners. ≥40cm ≥40cm ≥40cm Vertical install to protect the connector B-Plus H 1.28A Locking Open the BCU cover Over view of BCU...
- Page 4 Password byd@12345 cancel login Setup system information Time and Date Hour : Min : Day : Month : Year : Battery-Box HV Next Privacy Policy STEP 1 STEP 2 FINISH & REBOOT Installation Home Server IP Address bboxhserver.byd.com.cn Device Information...
- Page 5 13a. SMA Sunny Boy storage 2.5 / 3.7 / 5.0 / 6.0 Use a twisted-pair wire for CAN_H and CAN_L (PIN 6 and 8). This is important for the stability of the CAN communication. Battery-Box SMA SBS Battery-Box 2-EN 11V+ B-Enable C-GND and 4-EN 11V-...
- Page 6 13c. Fronius Symo Hybrid Please refer to the inverter installation manual for detailed wiring. 1.When connecting the meter in the second connection mode, the jumper cap above the JP2 in the BCU PCBA must be unplugged. If not unplugged, it is possible that the Battery-Box and inverter will not be able to communicate properly.
- Page 7 13d. Goodwe ET Inverter Goodwe ET ① 1 Cut the BMS cable of the Goodwe ET (according to Goodwe Manual). Goodwe ② Connect the blue PIN to terminal block position 6 and the white-blue PIN to terminal block position 8, according to the picture. Blue white-blue Choose any one...
- Page 8 Please wait about 50 seconds. This manual is a shortened assistance for the installation of the Battery-Box HV and does not replace the original manual, which can be found on http://alpspower.com.au. The installation must be carried out by a qualied expert. Attention, High Voltage Storage! Improper handling can cause...
