8. Sulzer wireless modem
Max 1 unit per system

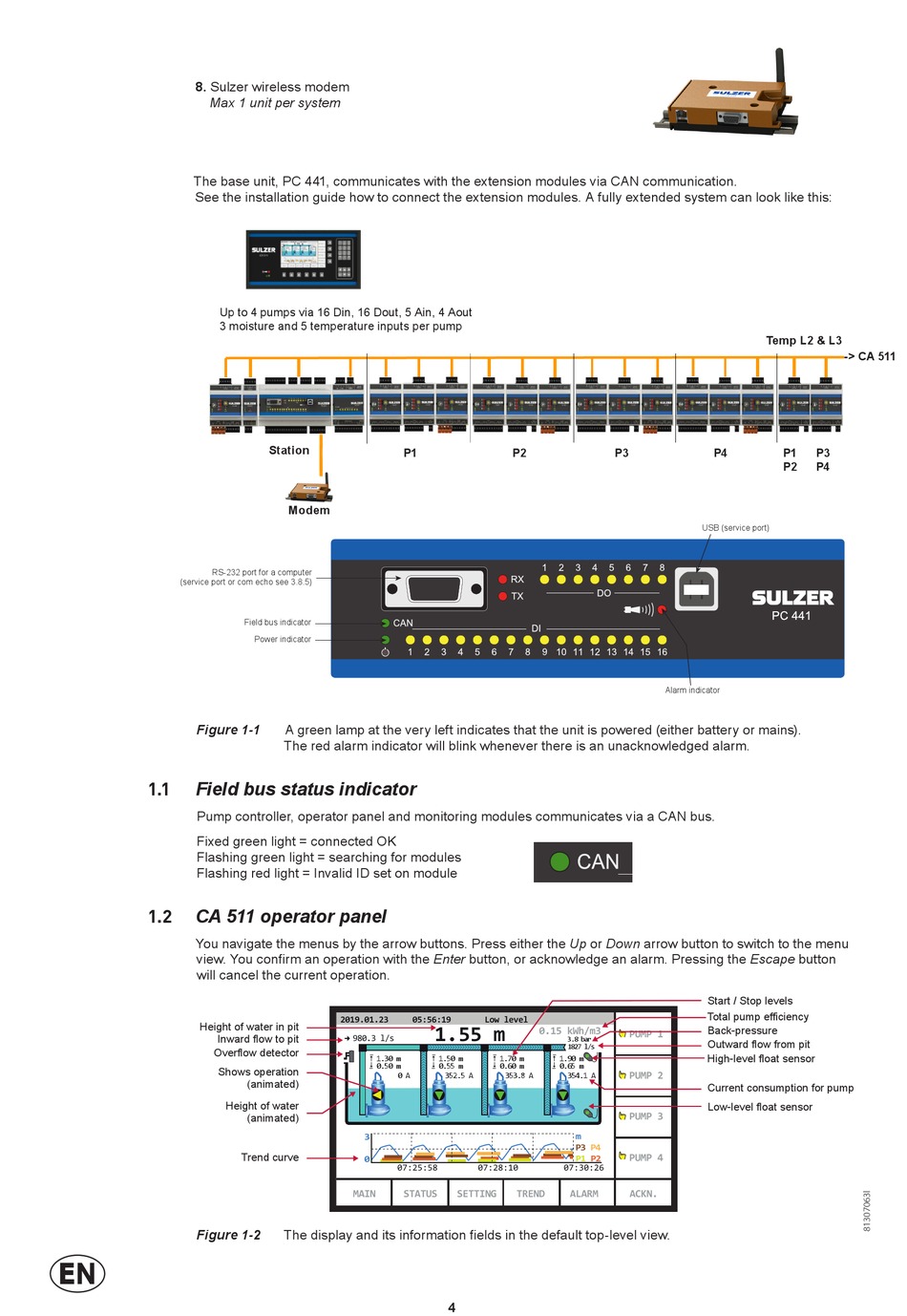

The base unit, PC 441, communicates with the extension modules via CAN communication.
See the installation guide how to connect the extension modules. A fully extended system can look like this:
Up to 4 pumps via 16 Din, 16 Dout, 5 Ain, 4 Aout
3 moisture and 5 temperature inputs per pump
RS-232 port for a computer
(service port or com echo see 3.8.5)
Figure 1-1
1.1

Field bus status indicator

Pump controller, operator panel and monitoring modules communicates via a CAN bus.
Fixed green light = connected OK
Flashing green light = searching for modules
Flashing red light = Invalid ID set on module
1.2

CA 511 operator panel

You navigate the menus by the arrow buttons. Press either the Up or Down arrow button to switch to the menu
view. You confirm an operation with the Enter button, or acknowledge an alarm. Pressing the Escape button
will cancel the current operation.
Height of water in pit
Inward flow to pit
Overflow detector
Shows operation
Height of water
Figure 1-2
EN
Station
P1
Modem
Field bus indicator
Power indicator
A green lamp at the very left indicates that the unit is powered (either battery or mains).
The red alarm indicator will blink whenever there is an unacknowledged alarm.
2019.01.23
980.3 l/s

 1.30 m
0.50 m

0 A
(animated)
(animated)
3
Trend curve
0
07:25:58
MAIN STATUS
The display and its information fields in the default top-level view.
P2
05:56:19 Low level
1.55 m
0.15 kWh/m3
3.8 bar
1827 l/s
 1.50 m  1.70 m  1.90 m
0.55 m 0.60 m 0.65 m
  
352.5 A 353.8 A 354.1 A
m
P3
P1
07:28:10 07:30:26
SETTING TREND ALARM
4
8.
P3 P4
USB (service port)
Alarm indicator
Start / Stop levels
Total pump efficiency
Back-pressure
PUMP 1
Outward flow from pit
High-level float sensor
PUMP 2
Current consumption for pump
Low-level float sensor
PUMP 3
P4
PUMP 4
P2
ACKN.
Temp L2 & L3
-> CA 511
P1 P3
P2 P4
