Summary of Contents for Sulzer ABS PC 441
- Page 1 Pump Controller Type ABS PC 441 Installation Guide www.sulzer.com...
- Page 2 Sulzer. Sulzer assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
-
Page 3: Installation

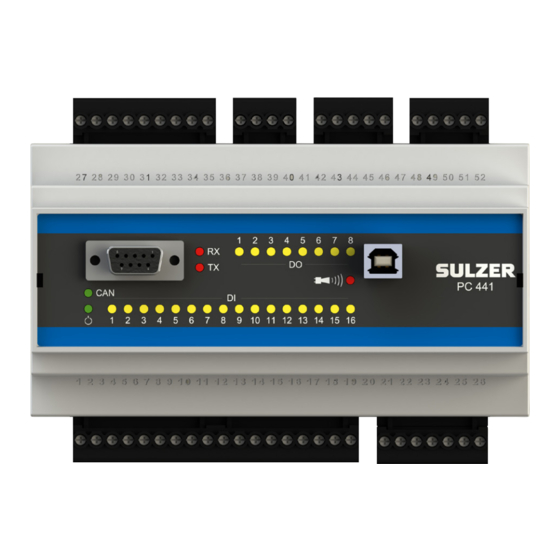

Pump controller type ABS PC 441, Installation guide INSTALLATION Mount the controller Mount the controller on a 35 mm DIN rail. The physical dimensions of the con- troller is: 86 x 160 x 60 mm (3.39 x 6.30 x 2.36 inch) (H x W x D). If it doesn’t easily snap onto the rail, you can pull the small tab at the bottom side of the unit, using a small screwdriver. - Page 4 Pump controller type ABS PC 441, Installation guide Table 1. Terminals at the bottom side of the pump controller Factory Settings Name ⇒ Voltage supply, 10–32 V DC → Overflow level Digital In 1 → HIgh level float Digital In 2 →...
- Page 5 Pump controller type ABS PC 441, Installation guide Table 2. Terminals at the top side of the pump controller Name Factory Settings V - 0V → Alarm alert → Pump 1 → Pump 2 → Pump 3 → Pump 4 →...
- Page 6 Pump controller type ABS PC 441, Installation guide PC 441 PINS 4-20 mA Level sensor Analogue In I Figure 3. Analogue input connection (level sensor) PC 441 PINS Relay Figure 4. Digital output connection (external relay) Loads are connected series...
- Page 7 Pump controller type ABS PC 441, Installation guide CAN bus (Field bus) A CAN network is of multidrop type witch means that all units are connected in parallel on the same cable. PC 441 is the master on the bus to which display devices like CA 511 and any monitoring devices are connected (type CA 441 / 442 / 443).
- Page 8 Pump controller type ABS PC 441, Installation guide 1.3.3 CAN ID In a CAN network every unit must have a unique address or ID-number. PC 441 and CA 511 use a fixed ID on the bus and no ID settings are needed for these devices.
- Page 9 Pump controller type ABS PC 441, Installation guide Figure 8. Depending on the type of modem, connect according to the figure. Modem cable 43320588. CONNECTION OF XYLEM PUMPS TO ABS PC 441 It is possible to connect Xylem pumps in parallel with ABS pumps.
- Page 10 Pump controller type ABS PC 441, Installation guide Case B: Only temp sensors Chose “Klixon” Thermo switch/PTC or “Pt100” mode in the settings menus for CA 442 ABS PC 441 Power input Xylem pump ABS CA 442 Klixons/ Pt100 T(n)+...
-
Page 11: Technical Data
Pump controller type ABS PC 441, Installation guide TECHNICAL DATA Technical data PC 441 Ambient operation temperature -20 to +50 °C (-4 to +122 °F) Ambient storage temperature -30 to +80 °C (-22 to +176 °F) Degree of protection IP 20, NEMA: Type 1... - Page 12 Meno a adresa osoby oprávnenej na zostavenie technického súboru pre úrady na požiadanie: Asmens, įgalioto valdžios institucijoms pareikalavus sudaryti techninę bylą, vardas, pavardė ir adresas: Frank Ennenbach, Director Product Safety and Regulations, Sulzer Management AG , Neuwiesenstrasse 15, 8401 Winterthur, Switzerland Declare under our sole responsibility that the products: Försäkrar under eget ansvar att produkterna:...
- Page 13 Manufacturer: Sulzer Pump Solutions Ireland Ltd. Address: Clonard Road, Wexford, Ireland Declare under our sole responsibility that the product: Pump controller type ABS PC 441 To which this declaration relates is in conformity with the following standards or other normative documents as defined by: Electromagnetic Compatibility Regulations 2016, S.I.
- Page 14 Sulzer Pump Solutions Ireland Ltd, Clonard Road, Wexford, Ireland Tel +353 53 91 63 200, www.sulzer.com...
