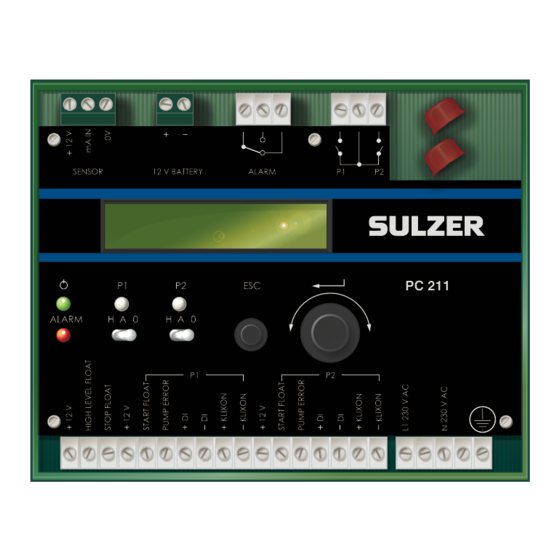

Pump Controller Type ABS
PC 111/211
EN
Installation and User Guide
www.sulzer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC 111 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sulzer PC 111

Summary of Contents for Sulzer PC 111

  • Page 1 Pump Controller Type ABS PC 111/211 Installation and User Guide www.sulzer.com...

  • Page 2: Table Of Contents

    Sulzer. Sulzer assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.

  • Page 3: About This Guide, Audience And Concepts

    ABOUT THIS GUIDE, AUDIENCE AND CONCEPTS This guide describes the pump control units PC 111/211. The only difference be- tween the two pump controllers is that PC 111 is intended for one pump whereas PC 211 can control two pumps.

  • Page 4: Installation

    INSTALLATION Mount the controller Mount the controller on a 35 mm DIN rail. The physical dimensions of the con- troller is:118 x 128 x 72 mm (H x W x D); depth from the panel surface is 55 mm. It easily snaps onto the rail, but to remove it you may need to pull/bend the tab at the side, using a screwdriver.
  • Page 5 Relay for start/stop of Pump 2, or starting capacitor in PC 111 Senses current in the range 4–20 mA. ii. In PC 111, the function of the relay is to temporarily connect a starting capacitor to a single-phase motor (P1) during startup.

  • Page 6: Overview Of Functions And Usage

    OVERVIEW OF FUNCTIONS AND USAGE PC 111 and PC 211 are control units for one and two pumps respectively. These units have the same functionality in terms of their capability to control pumps and manage alarms — the only difference is that PC 211 is intended for two pumps whereas PC 111 is intended for one pump.
  • Page 7 Battery backup PC 111/211 includes a charger for a lead-acid battery backup. During battery operation (no 230 V power), the pump relays are always off. The power indicator will remain on, and the alarm indicator will be on. The alarm relay will function...

  • Page 8: Menus: Status And Settings

    “usable”; for instance, if Sensor Type is set to Start/Stop float rather than Analogue, you will not see the menu items for setting start and stop levels. Likewise, the menu on PC 111 will not show items related to pump 2. Table 3-1. Menu items that show current status, sorted clockwise...
  • Page 9 Pump controller type ABS PC 111/211, Installation and user guide Menus: Status and settings Table 3-2. Settings, sorted clockwise (Sheet 1 of 2) Menu item Value Comment {Analog, Choose method of level control: an analogue Sensor Type Start/stop float level-sensor or start/stop floats.
  • Page 10 If you have forgotten the password, contact the Integer Password distributer to unlock the controller. PC 111 ⁄ 211 Ver Version Select Language Select a language Cos ȹ is measured about 5 seconds after the pump has started. If either Stop Criteria or Dry Run Detect is set to Delta cos ȹ, then the measured value, subtracted by the chosen Delta cos ȹ, is the threshold...

  • Page 11: Technical Data And Emc Compatibility

    Pump controller type ABS PC 111/211, Installation and user guide Technical data and EMC compatibility TECHNICAL DATA AND EMC COMPATIBILITY Technical data Ambient operating temperature: –20 to +50 °C Ambient storage temperature: –30 to +80 °C Mounting: DIN rail 35 mm Humidity: 0–95 % RH non-condensing...

  • Page 12: Declaration Of Conformity

    Meno a adresa osoby oprávnenej na zostavenie technického súboru pre úrady na požiadanie: Asmens, įgalioto valdžios institucijoms pareikalavus sudaryti techninę bylą, vardas, pavardė ir adresas: Frank Ennenbach, Director Product Safety and Regulations, Sulzer Management AG , Neuwiesenstrasse 15, 8401 Winterthur, Switzerland Declare under our sole responsibility that the products: Försäkrar under eget ansvar att produkterna:...
  • Page 13 Address: Kvarnbacksvägen, 592 41 Vadstena, Sweden. Declare under our sole responsibility that the product: Pump controller type ABS PC 111 / 211 To which this declaration relates is in conformity with the following standards or other normative documents as defined by: Electromagnetic Compatibility Regulations 2016, S.I.
  • Page 14 Sulzer Pump Solutions Ireland Ltd., Clonard Road, Wexford, Ireland Tel. +353 53 91 63 200, www.sulzer.com...

This manual is also suitable for:

Pc 211
