EW-7301APg/EW-7302APg
User Manual
Version 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-7301APg and is the answer not in the manual?

Questions and answers

Related Manuals for Edimax EW-7301APg

Summary of Contents for Edimax EW-7301APg

  • Page 1 EW-7301APg/EW-7302APg User Manual Version 1.00...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1. Before You Start ........................3 Preface ..............................3 Conventions ............................3 Chapter 2. System Overview ........................4 Introduction of EW-7301APg/EW-7302APg..................4 System Concept ............................5 Specification ............................6 Chapter 3. Base Installation ........................9 Hardware Installation..........................9 3.1.1 Package Contents ............................9 3.1.2 Panel Function Descriptions .........................9 3.1.3...
  • Page 3 5.3.4 System Upgrade ............................83 5.3.5 Reboot.................................84 Status..............................86 5.4.1 System Overview ............................87 5.4.2 Associated Client Status..........................89 5.4.3 Repeater Information ..........................90 5.4.4 Event Log..............................91 Appendix A. EZ Connector Installation ....................92 Appendix B. System Manager Authorities ..................95 Appendix C. Windows TCP/IP Settings....................96...

  • Page 4: Chapter 1. Before You Start

    DSL depending on the deployment needs. This manual provides step-by-step instructions with pictorial aid to guide the administrator through installing and configuring EW-7301APg/EW-7302APg for both CPE mode and AP mode; users with basic network knowledge can easily install the system via a web-based management interface.

  • Page 5: Chapter 2. System Overview

    Introduction of EW-7301APg/EW-7302APg The 802.11 b/g compliant EW-7301APg/EW-7302APg is an outdoor wireless device that can be used for dual purposes. Either it can be deployed as a traditional fixed wireless Access Point, AP or it can be used as a Customer Premises Equipment, CPE, that connects to Wireless Internet Service Provider’s, WISP’s, wireless outdoor network.

  • Page 6: System Concept

    User Manual System Concept The EW-7301APg/EW-7302APg is designed with WISP’s deployment needs in mind, especially the management capability and permission control with respect to management roles. The EW-7301APg/EW-7302APg can be used in many applications such as examples as follows: •...

  • Page 7: Specification

    Receiver sensitivity: (1) 802.11b: 11Mbps@-83dBm (2) 802.11g: 54Mbps@-68dBm RF transmission power: 23dBm / 200mW EW-7301APG provides a N-Female connector . EW-7302APg built-in 10dBi at 2.4GHz Sector Directional Antenna ( Horizontal : 110 degree , Vertical : 60 degree ) •...
  • Page 8 EW-7301APg/EW-7302APg User Manual ACK timeout support Adjustable transmission power: 5 levels Wireless site survey: for scanning the surrounding access points for connection. • Gateway Features in the CPE Mode Built-in NAT mode: to support IP sharing on the LAN side for multiple users (subscribers) to get access to the Internet.
  • Page 9 EW-7301APg/EW-7302APg User Manual Support statistics on total transmission encountered and transmitting error occurred • Hardware Specifications Metal case: weather proof, compliant with IP67 standard On board surge protection LED Indication: Power x 1; Ethernet x 1; Wireless x 1 •...

  • Page 10: Chapter 3. Base Installation

    EW-7301APg/EW-7302APg User Manual Chapter 3. Base Installation Hardware Installation Package Contents The standard package contents of EW-7301APg/EW-7302APg: EW-7301APg/EW-7302APg Quick Installation Guide CD-ROM (with User Manual and QIG) PSE with AC cable Mounting Kit Waterproof Connector Pack Warning: It is highly recommended to use all the supplied components other than any substitute to ensure best performance of the system.

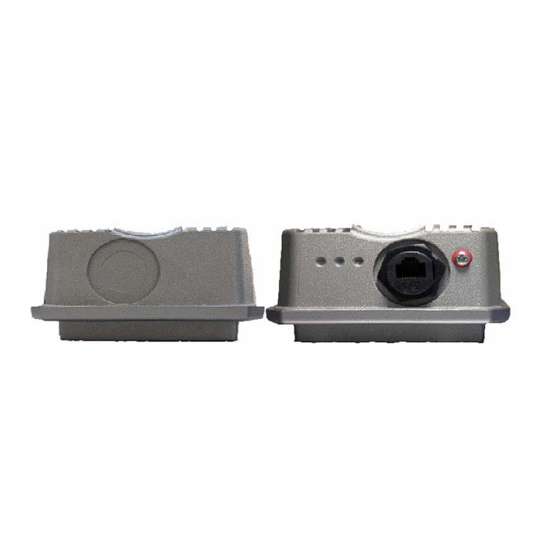

  • Page 11 EW-7301APg/EW-7302APg User Manual EW-7301APg Rear Panel 1. N-type Connector: For connection to antenna. EW-7302APg Front Panel 1. Power: Green LED ON indicates power on, and OFF indicates power off. 2. WLAN: Green LED ON indicates system ready. 3. Ethernet: Green LED ON indicates connection, OFF indicates no connection, and BLINKING indicates transmitting data.

  • Page 12: Hardware Installation Steps

    User Manual Hardware Installation Steps Please follow the steps mentioned below to install the hardware of EW-7301APg/EW-7302APg: 1. Connect N-type antenna to the N-type connector on the rear panel. 2. Connect PSE to the PoE connector on the front panel.

  • Page 13: Software Configuration

    Software Configuration Instruction to Web Management Interface EW-7301APg/EW-7302APg provides a user friendly web management interface for configuration. As the EW- 7301APg/EW-7302APg is a dual mode system which can be configured into either a gateway or access point as desired, it is recommended the system manager follows the respected installation procedures of the desired mode in order to properly setting up the system.
  • Page 14 EW-7301APg/EW-7302APg User Manual 3.2.1.1. CPE Mode Step 1: Launch Web Browser Launch a web browser to access the web management interface of CPE mode by entering the default IP address, http://192.168.2.1, in the URL field, and then press Enter. Note: The default IP addresses for CPE mode and AP mode are different. Using an incorrect default IP address will result in no Login Page shown in web browser.
  • Page 15 EW-7301APg/EW-7302APg User Manual Step 3: Login Success System Overview page will appear after successful login. To logout, simply click on the Logout button on the top right hand corner of the management interface. Note: By default, CPE mode is enabled. Thus, system manager must login to the system via the CPE mode login page at the first time login to the system.
  • Page 16 Step 1: IP Segment Set-up for Administrator’s PC Set the IP segment of the administrator’s computer to be in the same range as EW-7301APg/EW- 7302APg for accessing the system. Do not duplicate the IP address used here with IP address of EW-7301APg/EW-7302APg or any other device within the network.
  • Page 17 EW-7301APg/EW-7302APg User Manual Step 3: System Login The system manager Login Page then appears. Enter “root” as User name and “1234” as Password, and then click OK to login to the system. Note: There is only one system manager account in AP mode, i.e. the root account.

  • Page 18: Quick Configuration

    User Manual Quick Configuration EW-7301APg/EW-7302APg is a dual mode system which can be configured either as a gateway or an access point as desired. This section provides a step-by-step configuration procedure for basic installation on both CPE mode and AP mode.
  • Page 19 EW-7301APg/EW-7302APg User Manual Step 2: Change Password Click on the Utilities button and then select the Change Password tab. • Change Root Account Password Enter the old password in the Old Password field; default password is 1234. Enter a new password, and verify it again in the New Password field and Re-enter New Password field respectively.
  • Page 20 EW-7301APg/EW-7302APg User Manual Step 4: Select AP to be Associated Search for the AP to be associated with from the scan list provided in Step 3; use Cip-A3-1 as an example here where the AP is encrypted via WEP security type.
  • Page 21 EW-7301APg/EW-7302APg User Manual Step 7: LAN Configuration Click on the System button and then select Network tab. The LAN Configuration page is on the same page as WAN Configuration. Enter the IP address and Netmask of the LAN port. Click Apply to activate all settings configured so far.
  • Page 22 EW-7301APg/EW-7302APg User Manual 3.2.2.2. AP Mode: Step 1: Mode Confirmation Ensure the Operating Mode is currently at AP mode; the web management UI can be viewed at the Status section under the System Overview page. Note: For more information in switching to AP mode, if it is not currently active, please refer to Section 4.1.2 –...
  • Page 23 EW-7301APg/EW-7302APg User Manual Enter a new password, and verify it again in the New Password field and Re-enter New Password field respectively. Click Save, and proceed with steps followed. Note: For more information to change password, please refer to Section 5.3.1 – Change...
  • Page 24 EW-7301APg/EW-7302APg User Manual Step 3: Network Settings Click on the System button and then select the Network tab. Enable Static, and then enter the related information in the field marked with red asterisks. Click Save to save the settings. Note: For more information on network settings, please refer to Section 5.1.3 – Network Setting.
  • Page 25 Select WEP from the drop down list as an example here. Enter the information required in the blank field, and the same information will also be used to set up devices which will then be using EW-7301APg/EW-7302APg’s services. Click Apply to activate all settings configured so far.

  • Page 26: Chapter 4. Cpe Mode Configuration

    When CPE mode is active, the system acts as a gateway where it connects to the WAN wirelessly, and provides Ethernet connection to users via wired LAN. This section will guide you through setting up the CPE mode with graphical illustrations. EW-7301APg/EW-7302APg provides functions as stated below where they can be configured via a user-friendly web-based interface.

  • Page 27: System

    EW-7301APg/EW-7302APg User Manual System This section provides information in configuring the following functions: System Information, Operating Mode, Network Settings, and Management Services. Note: System restart is required when a reminding message appears after clicking APPLY button; all settings entered and saved will take effect only after the system restart.

  • Page 28: System Information

    EW-7301APg/EW-7302APg User Manual System Information The administrator can later obtain the geographical location of the system via the information configured here. System time can also be configured via this page where manual setting and NTP server configuration are both supported.

  • Page 29: Operating Mode

    Set Time: Select the appropriate Hour, Min, and Sec from the drop down list. Operating Mode EW-7301APg/EW-7302APg supports two operation modes: CPE mode and AP mode. The administrator can set the desired mode via this page, and then configure the system according to their deployment needs.

  • Page 30: Network Settings

    EW-7301APg/EW-7302APg User Manual Network Settings WAN and LAN settings can be configured via this page. • WAN Configuration: Information entered here shall follow the network setting as the AP to be associated with. Otherwise, the WAN connection cannot be set up.
  • Page 31 Secondary DNS Server: The IP address of the substitute DNS server. DHCP: This connection type is applicable when the EW-7301APg/EW-7302APg is connected to a network with the presence of a DHCP server; all related IP information required will be provided by the DHCP server automatically.
  • Page 32 EW-7301APg/EW-7302APg User Manual DDNS: Check Enable button to activate this function or Disable to deactivate this function. Provider: The name of the DDNS provider the system is registered with. Select appropriate provider from the drop down list. Host Name: The FQDN name registered with the above service provider.

  • Page 33: Management Services

    EW-7301APg/EW-7302APg User Manual Start IP / End IP: Specify the range of IP addresses to be used by the DHCP server when assigning IP address to clients. Preferred DNS Server: Enter IP address of the preferred DNS server; this field is required.
  • Page 34 EW-7301APg/EW-7302APg User Manual Enable/ Disable: Check Enable button to activate this function or Disable to deactivate this function. Server IP Address: Enter the IP address of the assigned server for receiving the trap report. • Syslog Configuration: Event can be exported to an external server for record keeping and management via this function.

  • Page 35: Wireless

    EW-7301APg/EW-7302APg User Manual Wireless This section will guide users through wireless setting for EW-7301APg/EW-7302APg to associate with its uplink AP.

  • Page 36: General Settings

    EW-7301APg/EW-7302APg User Manual General Settings • Band: Select an appropriate wireless band, or disable if the service is not required; bands available are 802.11b, 802.11g and 802.11b+802.11g. • SSID: Assign Service Set ID for the wireless system to be associated with.

  • Page 37: Advanced Wireless Settings

    EW-7301APg/EW-7302APg User Manual Advanced Wireless Settings The administrator can set the RTS threshold, and fragmentation threshold via this page. • RTS Threshold: Tuning the Request to Send, RTS, threshold will help the system control its access to medium and alleviate the hidden node problem. Enter a value ranging from 1 to 2346.

  • Page 38: Security Settings

    EW-7301APg/EW-7302APg User Manual Security Settings The system supports two encryption types, WEP and WPA-PSK. The administrator can configure the encryption settings via this page, or disregard the encryption by selecting None from the drop down list. • None: Data are unencrypted during transmission when this option is selected.
  • Page 39 EW-7301APg/EW-7302APg User Manual Cipher Suite: Select an encryption method to be used from the drop down list, i.e. TKIP, AES (WPA2), or Mixed. Pre-shared Key Type: Check on the respected button to enable Pre-shared key type, either PSK (Hex) or Passphrase.

  • Page 40: Site Survey

    EW-7301APg/EW-7302APg User Manual Site Survey Access points located around the system can be found via the scan function. The administrator can then select a desired AP to be associated with via this page. Figure 4-2-4-1: AP Scan Result • SSID: Service Set ID of the AP or repeater found around the system.
  • Page 41 EW-7301APg/EW-7302APg User Manual WPA-PSK: Click Setup to configure the WPA-PSK setting required by to-be-associated target AP. The following interface appears at the bottom of the screen. For more information on the WPA-PSK security settings, please refer to Section 4.2.3- Security Settings.

  • Page 42: Firewall

    EW-7301APg/EW-7302APg User Manual Firewall Current firewall functions supported are IP/ Port forwarding and DMZ, Demilitarized Zone. The administrator can open a certain area in the network to the Internet for limited and controlled access for special purpose such as gaming server or conferencing center.

  • Page 43: Ip/ Port Forwarding

    EW-7301APg/EW-7302APg User Manual IP/ Port Forwarding A certain area in the network can be exposed to the Internet in a limited and controlled way for on-line game or video conferencing via this page. Please ensure the internal port to be used is not occupied by other applications.
  • Page 44 EW-7301APg/EW-7302APg User Manual • IP/ Port Forwarding: The information of the current service available. External Port Range: The port range of the external port used for the respected service. Internal IP Address: The corresponding IP of the internal host used for the respected service.

  • Page 45: Demilitarized Zone

    EW-7301APg/EW-7302APg User Manual Demilitarized Zone The Demilitarized Zone, DMZ, allows a computer or server to be exposed to the Internet for special purpose, i.e. a web server, where external users can access the location without authentication. • Enable: Check Enable button to activate this function, and Disable to deactivate.

  • Page 46: Utilities

    EW-7301APg/EW-7302APg User Manual Utilities The administrator can maintain the system via this page; Change Password, Network Utilities, Configuration Save / Restore, System Upgrade, and Reboot.

  • Page 47: Change Password

    EW-7301APg/EW-7302APg User Manual Change Password The system supports two management accounts, root and admin. The system manager is assigned with full administrative privileges when logging in with the root account where the root manager can manage the system in any respect. However, when the system manager logs in via the admin account, only basic maintenance can be performed.
  • Page 48 EW-7301APg/EW-7302APg User Manual...

  • Page 49: Network Utilities

    EW-7301APg/EW-7302APg User Manual Network Utilities The administrator can diagnose the WAN and LAN connectivity via this function. • Ping Host (Domain/ IP): Enter the desired domain name or IP address of the target device for diagnosis purpose, i.e. www.google.com, and click Ping to proceed. The ping result will be shown in the Result field.

  • Page 50: Configuration Save & Restore

    • Reset to Default: Click Reset to load the factory default settings of EW-7301APg/EW-7302APg. A pop-up screen will appear to reconfirm the request to restart the system. Click OK to proceed, or click Cancel to cancel the restart request.
  • Page 51 EW-7301APg/EW-7302APg User Manual Backup Settings: Click Save to save the current system settings to a local disk, i.e. the HDD of a local computer or Compact Disc. Restore Settings: Click Browse to search for a previously saved backup file, and then click Upload to restore...

  • Page 52: System Upgrade

    EW-7301APg/EW-7302APg User Manual System Upgrade To upgrade the system firmware, click Browse to search for the new firmware file, and then click Apply to execute the upgrade process. Note: 1. To prevent data loss during firmware upgrade, please back up the current settings before proceeding to firmware upgrade.

  • Page 53: Reboot

    User Manual Reboot This function allows the administrator to safely restart the EW-7301APg/EW-7302APg. Click Reboot to restart the system immediately, and the whole process will take about three minutes to complete. A pop-up screen appears to confirm the request to restart the system. Click OK to proceed, or click Cancel to cancel the restart request.

  • Page 54: Status

    EW-7301APg/EW-7302APg User Manual Status Information of current system settings can be overviewed via this page; statuses of System Overview, Event Log, DHCP Lease and UPnP are displayed in this interface.

  • Page 55: System Overview

    EW-7301APg/EW-7302APg User Manual System Overview Detailed information on System, Radio Status, LAN Interface, and WAN Interface can be reviewed via this page. • System: Display the information of the system. System Name: The name of the system. Firmware Version: The current firmware version installed.
  • Page 56 EW-7301APg/EW-7302APg User Manual Signal Strength: The signal strength of the associated AP. The administrator can configure the encryption settings via this page, or disregard the encryption by selecting None from the drop down list. Security: The encryption settings. • LAN Interface: Display the information of the LAN connection.

  • Page 57: Event Log

    EW-7301APg/EW-7302APg User Manual Event Log All the system events are shown here. Note: As the Event Log is stored in RAM, it will be refreshed after the system is restarted. The system also supports a Syslog function which can report the event to an external Syslog server.

  • Page 58: Dhcp Leases

    EW-7301APg/EW-7302APg User Manual DHCP Leases Information on DHCP leases is stated in this page where administrator can easily search for LAN IP/MAC address binding information and the lease period. • No: Item number of the respected LAN IP leased. •...

  • Page 59: Upnp

    EW-7301APg/EW-7302APg User Manual UPnP Devices within LAN can communicate with hosts at WAN via the mapped ports without performing manual configuration by the administrator when the UPnP, Universal Plug-and-Play, feature is enabled; the device using this service shall also support UPnP function. All devices currently using this service will be listed in this page.

  • Page 60: Online Help

    EW-7301APg/EW-7302APg User Manual Online Help Online Help: There is a Help button allocated on the top right hand corner. Click Help to enter the Online Help page, and then click the respected hyperlink on the topic to obtain further information.

  • Page 61: Chapter 5. Ap Mode Configuration

    EW-7301APg/EW-7302APg User Manual Chapter 5. AP Mode Configuration When AP mode is activated, the system can be configured as an Access Point or Access Point/Repeater at the same time. This section provides information in configuring the AP mode with graphical illustrations. EW- 7301APg/EW-7302APg provides functions as stated below where they can be configured via a user-friendly web based interface.

  • Page 62: System

    EW-7301APg/EW-7302APg User Manual System This section provides information in configuring the following functions: System Information, Operating Mode, Network Settings, and Management Services. Note: System restart is required when a reminding message appears after clicking APPLY button; all settings entered and saved will take effect only upon system restart.

  • Page 63: System Information

    EW-7301APg/EW-7302APg User Manual System Information The administrator can later obtain the geographical location of the system via the information configured here. System time can also be configured via this page where manual setting and NTP server configuration are both supported.
  • Page 64 EW-7301APg/EW-7302APg User Manual ▬ Set Date: Select the appropriate Year, Month, and Day from the drop down list. ▬ Set Time: Select the appropriate Hour, Min, and Sec from the drop down list.

  • Page 65: Operating Mode

    EW-7301APg/EW-7302APg User Manual Operating Mode EW-7301APg/EW-7302APg supports two operation modes; CPE mode and AP mode. The administrator can set the desired mode via this page, and then configure the system according to their deployment needs. • CPE Mode: Check CPE Mode button to enable CPE mode, and then click Apply to activate the setting.

  • Page 66: Network Settings

    Secondary DNS Server: The IP address of the substitute DNS server. DHCP: This configuration type is applicable when the EW-7301APg/EW-7302APg is connected to a network with the presence of a DHCP server; all related IP information will be provided by the DHCP server automatically.
  • Page 67 EW-7301APg/EW-7302APg User Manual • VLAN for Management: By enabling this function, management traffic from the device is tagged with a VLAN ID. Enter a value ranged from 1 to 4094 for the VLAN ID if the option is enabled. •...
  • Page 68 EW-7301APg/EW-7302APg User Manual • Syslog Configuration: Event can be reported to an external server for record keeping and management via this function. Enable/ Disable: Check Enable button to activate this function or Disable to deactivate this function. Server IP: The IP address of the Syslog server to receive the event report.

  • Page 69: Wireless

    EW-7301APg/EW-7302APg User Manual Wireless The system manager can configure related wireless settings, General Settings, Advanced Settings, Security Settings, Repeater Settings, Access Control Settings, and Site Survey via this page.

  • Page 70: General Settings

    EW-7301APg/EW-7302APg User Manual General Settings EW-7301APg/EW-7302APg supports 802.11b, 802.11g, and 802.11b/g mode. Select the desired mode and proceed further with information required respectively to set up the system. • Band: Select an appropriate wireless band, or disable if the service is not required; bands available are 802.11b, 802.11g, and 802.11b+802.11g.

  • Page 71: Advanced Wireless Settings

    EW-7301APg/EW-7302APg User Manual Advanced Wireless Settings The administrator can further tune up wireless LAN via this page. • Beacon Interval: The duration of time for the system to transmit beacon frames. Enter a value between 25 and 500ms; the default value is 100 milliseconds.

  • Page 72: Security Settings

    EW-7301APg/EW-7302APg User Manual Security Settings The system supports several wireless security types, namely WEP, 802.1X, WPA-PSK, WPA-RADIUS, and MAC. The administrator can configure the wireless settings via this page or disregard the setting by selecting None from the drop down list.
  • Page 73 EW-7301APg/EW-7302APg User Manual • 802.1X: When 802.1X Authentication is enabled, please refer to the following Dynamic WEP and RADIUS settings to complete the configuration. Dynamic WEP Settings: Dynamic WEP Key: By enabling this function, the system will automatically generate WEP keys for encrption.
  • Page 74 EW-7301APg/EW-7302APg User Manual selected. Group Key Update Period: The time interval for the Group Key to be renewed; the unit is in second. • WPA-RADIUS: The RADIUS authentication and data encryption will be both enabled if this option is selected.

  • Page 75: Repeater Settings

    EW-7301APg/EW-7302APg User Manual Repeater Settings The system can serve as an Access Point, a Repeater, or an Access Point with Repeater depending on deployment needs. Select the desired mode from the drop down list, Repeater Type, and proceed with respected settings.
  • Page 76 EW-7301APg/EW-7302APg User Manual The SSISD Upper-Bound AP: Specify the SSID of the upper-bound AP the system will assist to extend its wireless service coverage. Security Type: Select the security type used by upper-bound AP, either WEP or WAP-PSK. The security settings should follow the configuration of the upper-bound AP.

  • Page 77: Access Control Settings

    EW-7301APg/EW-7302APg User Manual Access Control Settings The administrator can restrict the wireless access based on clients’ MAC addresses. • Access Control Type - Disable: When Disable is selected, there is no restriction for wireless clients to access the system. •...

  • Page 78: Site Survey

    EW-7301APg/EW-7302APg User Manual Site Survey If Universal Repeater function is enabled, Site Survey tool is enabled to scan surrounding available APs. The system manager can then select an appropriate/desired AP to be connected to extend its wireless service coverage. Figure 5-2-6-1: Site Survey- when repeater function is disabled.
  • Page 79 EW-7301APg/EW-7302APg User Manual WPA-PSK: Click Setup to configure the WPA-PSK setting required by to-be-associated target AP. The following interface will then appear at the bottom of the screen and please provide the same settings from to-be-associated target AP. Note: The detailed information of AP displayed in Figure 5-2-6-2 is for example only. Actual shown data of APs...

  • Page 80: Utilities

    EW-7301APg/EW-7302APg User Manual Utilities The administrator can maintain the system via this page: Change Password, Network Utilities, Configuration Save & Restore, System Upgrade, and Reboot. Change Password The administrator can change password via this page. Enter the original password and new password, and then verify the new password in the Re-enter Password field.

  • Page 81: Network Utilities

    EW-7301APg/EW-7302APg User Manual Network Utilities The administrator can diagnose the network connectivity via this function. • Ping Host (Domain/ IP): Enter the desired domain name or IP address of the target device for diagnosis purpose, i.e. www.google.com, and click Ping to proceed. The ping result will be shown in the Result field.

  • Page 82: Configuration Save & Restore

    • Reset to Default: Click Reset to load the factory default settings of EW-7301APg/EW-7302APg. A pop-up screen will appear to reconfirm the request to restart the system. Click OK to proceed, or click Cancel to cancel the restart request.
  • Page 83 EW-7301APg/EW-7302APg User Manual Backup Settings: Click Save to save the current system settings to a local disk, i.e. the HDD of a local computer or Compact Disc. Restore Settings: Click Browse to search for a previously saved backup file, and then click Upload to restore the...

  • Page 84: System Upgrade

    EW-7301APg/EW-7302APg User Manual System Upgrade To upgrade the system firmware, click Browse to search for the new firmware file, and then click Apply to execute the upgrade process. Note: 1. To prevent data loss during firmware upgrade, please back up the current settings before proceeding to firmware upgrade.

  • Page 85: Reboot

    User Manual Reboot This function allows the administrator to safely restart the EW-7301APg/EW-7302APg. Click Reboot to restart the system immediately, and the whole process will take about three minutes to complete. A pop-up screen appears to confirm the request to restart the system. Click OK to proceed, or click Cancel to cancel the restart request.
  • Page 86 EW-7301APg/EW-7302APg User Manual...

  • Page 87: Status

    EW-7301APg/EW-7302APg User Manual Status Information of current system settings can be overviewed via this page; statuses of System Overview, Clients, Repeater, and Event Log are displayed in this interface.

  • Page 88: System Overview

    EW-7301APg/EW-7302APg User Manual System Overview Detailed information on System, Radio Status, LAN Interface, and AP Status can be reviewed via this page. • System: Display the information of the system. System Name: The name of the system. Firmware Version: The current firmware version installed.
  • Page 89 EW-7301APg/EW-7302APg User Manual Tx Power: The wireless transmitting power of the system. • LAN Interface: Display the information of the LAN interface. MAC Address: The MAC address of the LAN port. IP Address: The IP address of the LAN port.

  • Page 90: Associated Client Status

    EW-7301APg/EW-7302APg User Manual Associated Client Status The administrator can obtain detailed Information such as ESSID, MAC Address, SNR, and Idle Time of all associated clients via this page. • ESSID: ESSID which the device is associated with. • MAC Address: Indicate the associated client’s MAC address.

  • Page 91: Repeater Information

    EW-7301APg/EW-7302APg User Manual Repeater Information Detailed information on the repeater function can be reviewed in this page. • Repeater Status: Status: The status of the repeater, either Enabled or Disabled. Mode: The mode selected for the repeater function, either Universal Repeater or WDS.

  • Page 92: Event Log

    EW-7301APg/EW-7302APg User Manual Event Log The reported system events can be reviewed here. Note: As the Event Log is stored in RAM, it will be refreshed after the system is restarted. The system also supports a Syslog function which can report the event to an external Syslog server.

  • Page 93: Appendix A. Ez Connector Installation

    EW-7301APg/EW-7302APg User Manual Appendix A. EZ Connector Installation Please follow the procedures below to install the waterproof connector for Ethernet cable. Step 1: The Connector Package There is a connector pack included with the system as show in figure below.
  • Page 94 EW-7301APg/EW-7302APg User Manual Step 3-2: Plug Connected-E & B with Part -F. The figure below illustrates the connected result. Step 4: Connect Part-C with Part-G Tear off top sticker (white) from part-C, and then attach part-C to part-G. Step 5: Install UTP Cable Install UTP Cable through Part-A , the connected-part-B, and the connected-part-G.
  • Page 95 EW-7301APg/EW-7302APg User Manual • Completed: Step 7: Plug RJ-45 Connector into EW-7301APg/EW-7302APg. Step 8: Completion The EZ connector installation is then completed. Mounting Kit Installation:...

  • Page 96: Appendix B. System Manager Authorities

    EW-7301APg/EW-7302APg User Manual Appendix B. System Manager Authorities There are two system management accounts for maintaining the system under CPE mode; namely, the root and admin accounts are with different levels of privileges. The root manager account is empowered with full privilege while the admin manager account is with partial.

  • Page 97: Appendix C. Windows Tcp/Ip Settings

    EW-7301APg/EW-7302APg User Manual Appendix C. Windows TCP/IP Settings • Windows 9x / ME From Control Panel, select Network. In Network Configuration window, select TCP/IP and click on Properties button. Select Specify an IP address, and type in: IP Address: 192.168.1.100...
  • Page 98 EW-7301APg/EW-7302APg User Manual • Windows 2000 From Control Panel, select Network and Dial- up Connections. Click right on Local Area Connection icon and select Properties. In Local Area Connection Properties window, select Internet Protocol (TCP/IP) and click on Properties button.
  • Page 99 EW-7301APg/EW-7302APg User Manual • Windows XP From Control Panel, select Network and Internet Connections and then click on Network Connections. Click right on Local Area Connection icon and select Properties. In Local Area Connection Properties window, select Internet Protocol (TCP/IP) and click on Properties button.
  • Page 100 FCC Warning statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
