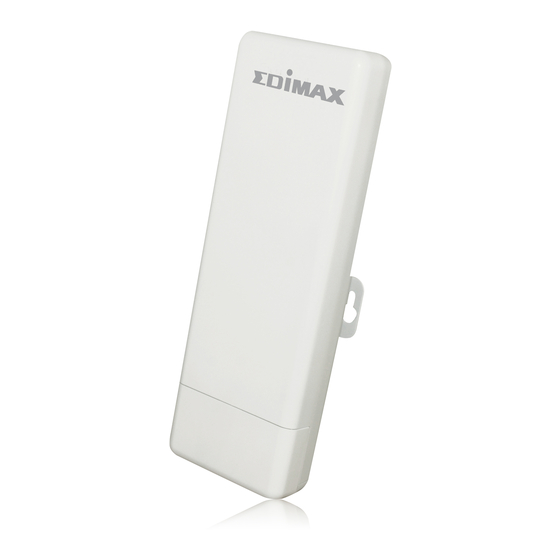

Edimax EW-7303HPn V2 Connection Manual

How to establish wds connection

Hide thumbs Also See for EW-7303HPn V2:

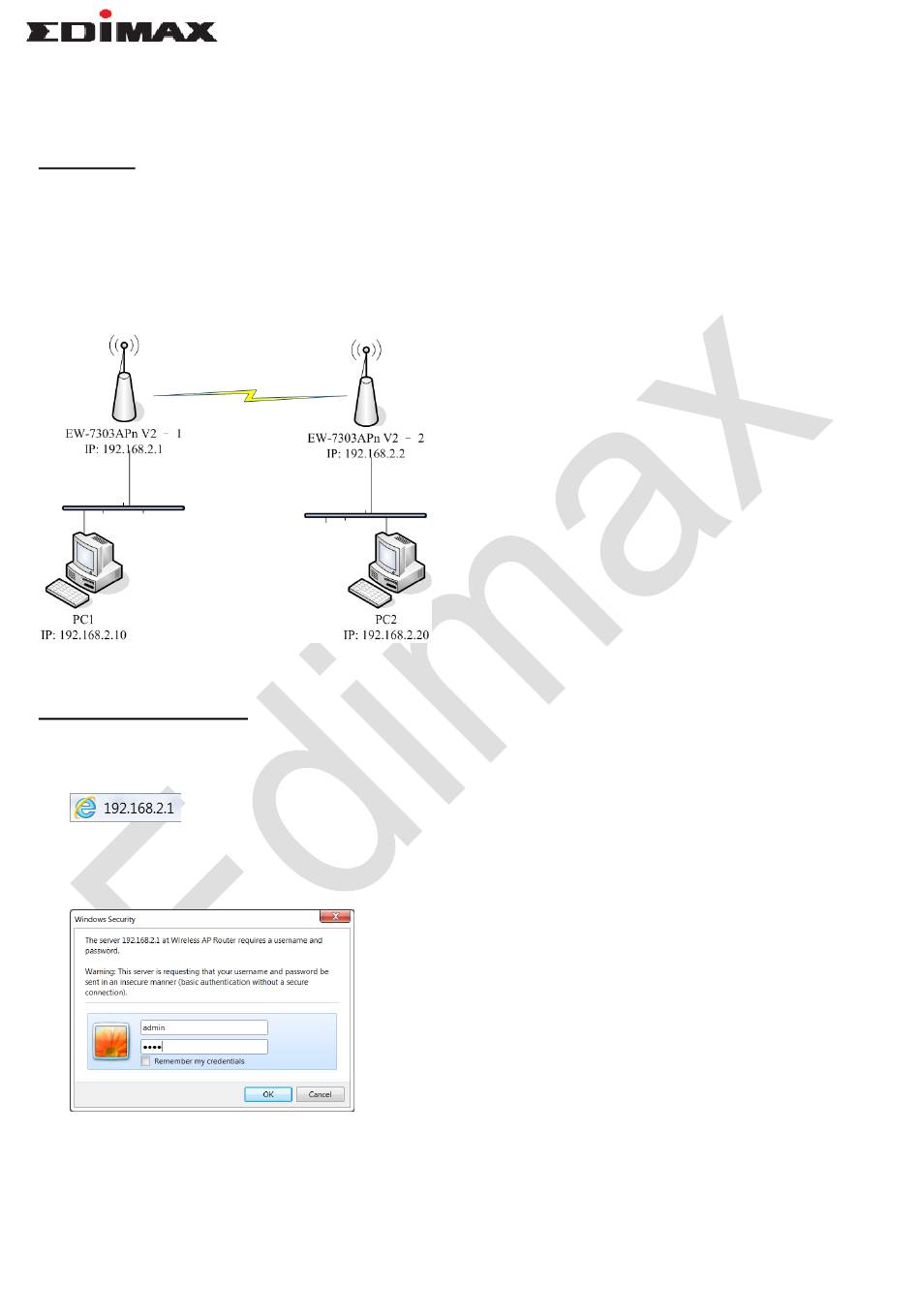

How to Establish WDS Connection Between Two EW-7303HPn v2

1. Connect EW-7303APn V2 - 1 and PoE injector using 4-pair cable.

2. Connect PC1 and PoE injector using cable.

3. Connect EW-7303APn V2 - 1 and PoE injector using 4-pair cable.

4. Connect PC2 and PoE injector using cable.

5. Please configured the IP address of PC1 and PC2 as below.

1. Open web browser on PC1, type 192.168.2.1 on the address bar, and press enter.

2. The default username/password is admin/1234.

Table of Contents

Do you have a question about the EW-7303HPn V2 and is the answer not in the manual?

Page 1 How to Establish WDS Connection Between Two EW-7303HPn v2 Topology 1. Connect EW-7303APn V2 - 1 and PoE injector using 4-pair cable. 2. Connect PC1 and PoE injector using cable. 3. Connect EW-7303APn V2 - 1 and PoE injector using 4-pair cable.
Page 2 3. Click Wireless Settings, click Basic, change Wireless Mode to WDS, click Apply, and then click Reboot Now. 4. After reboot, please configure as the below. a. Click Wireless Settings, and then click WDS b. You could configured the encrypt type, or just leave it none. c.
Page 3 7. Click Wireless Settings, click Basic, change Wireless Mode to WDS, click Apply, and then click Reboot Later. 8. Click Internet Settings, click LAN, change IP Address as 192.168.2.2, and then click Apply. It will reboot.
Page 4 9. After reboot, please configure as the below. a. Click Wireless Settings, and then click WDS b. You could configured the encrypt type, or just leave it none. c. Enter the MAC address of the EW-7303APn v2 -2. The MAC address is on the label stuck on the EW-7303APn V2 –...
Page 5 11. Type ping 192.168.2.10. If they are connected, it will show “Reply from ……”. The connection is established successfully. If not, please help check whether the security or the MAC address is not correct.
