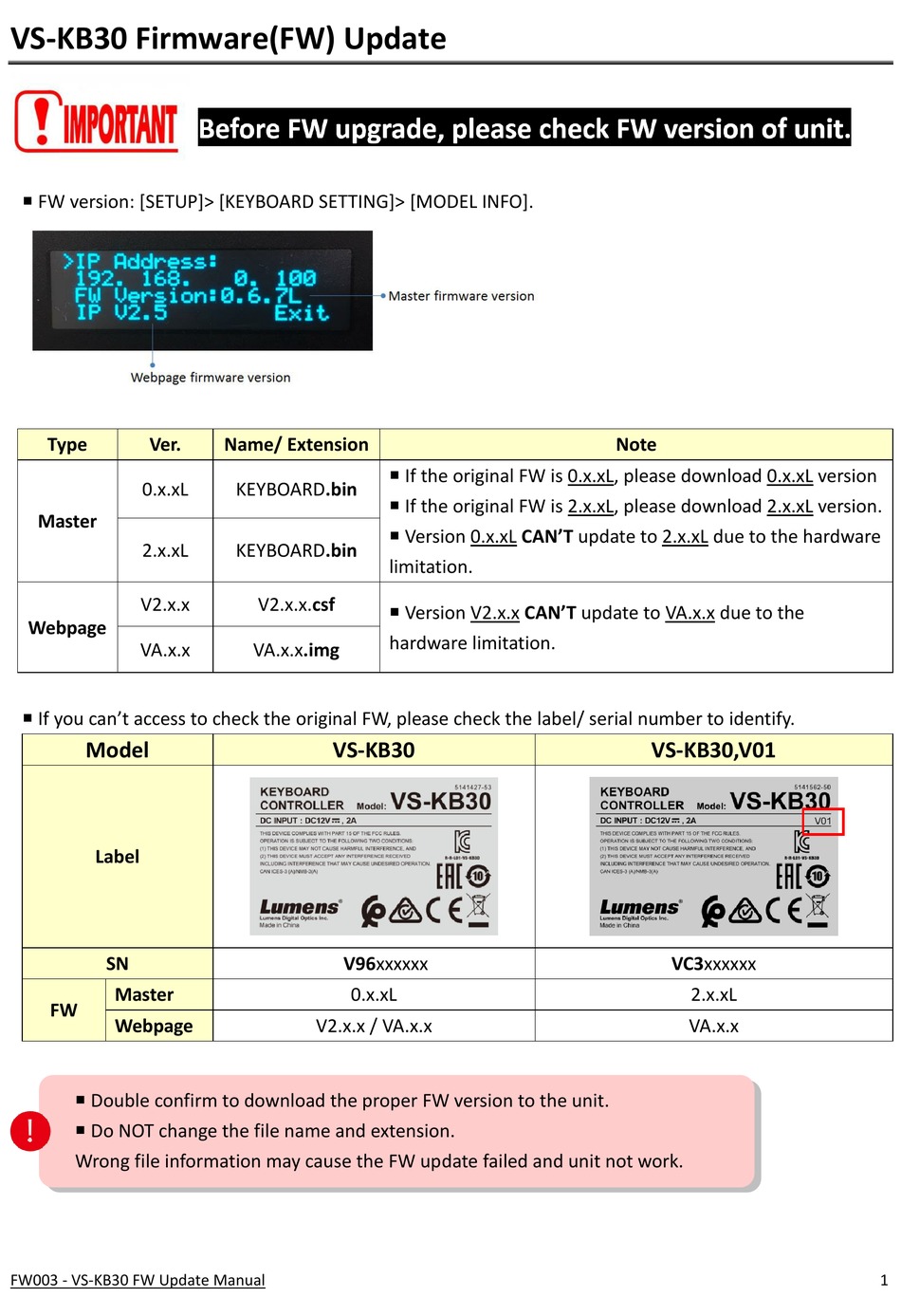

VS-KB30 Firmware(FW) Update
 FW version: [SETUP]> [KEYBOARD SETTING]> [MODEL INFO].
Type
Ver.
0.x.xL
Master
2.x.xL
V2.x.x
Webpage
VA.x.x
 If you can't access to check the original FW, please check the label/ serial number to identify.
Model
Label
SN
Master
FW
Webpage
 Double confirm to download the proper FW version to the unit.
 Do NOT change the file name and extension.
Wrong file information may cause the FW update failed and unit not work.
FW003 - VS-KB30 FW Update Manual
Name/ Extension
 If the original FW is 0.x.xL, please download 0.x.xL version
KEYBOARD.bin
 If the original FW is 2.x.xL, please download 2.x.xL version.
 Version 0.x.xL CAN'T update to 2.x.xL due to the hardware
KEYBOARD.bin
limitation.
V2.x.x.csf
 Version V2.x.x CAN'T update to VA.x.x due to the
hardware limitation.
VA.x.x.img
VS-KB30
V96xxxxxx
0.x.xL
V2.x.x / VA.x.x
Note
VS-KB30,V01
VC3xxxxxx
2.x.xL
VA.x.x
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-KB30 and is the answer not in the manual?

Questions and answers

Related Manuals for Lumens VS-KB30

Summary of Contents for Lumens VS-KB30

  • Page 1  Double confirm to download the proper FW version to the unit.  Do NOT change the file name and extension. Wrong file information may cause the FW update failed and unit not work. FW003 - VS-KB30 FW Update Manual...
  • Page 2 2.1.1 Save the “KEYBOARD.bin” firmware file in the root directory (not inside of a folder) 2.2 Place the flash drive into the USB port on the back panel of the VS-KB30 2.3 Hold down the L/R Direction knob and click the power button into the “On” position.
  • Page 3  Version V2.x.x CAN’T update to VA.x.x due to the hardware limitation.  DO NOT change the file extension. 3.1 Set your PC or laptop and VS-KB30 in the same network. 3.2 Type IP address of VS-KB30 on browser to access the login page. 3.2.1 User：admin 3.2.2 Password：...
