Product and functional overview

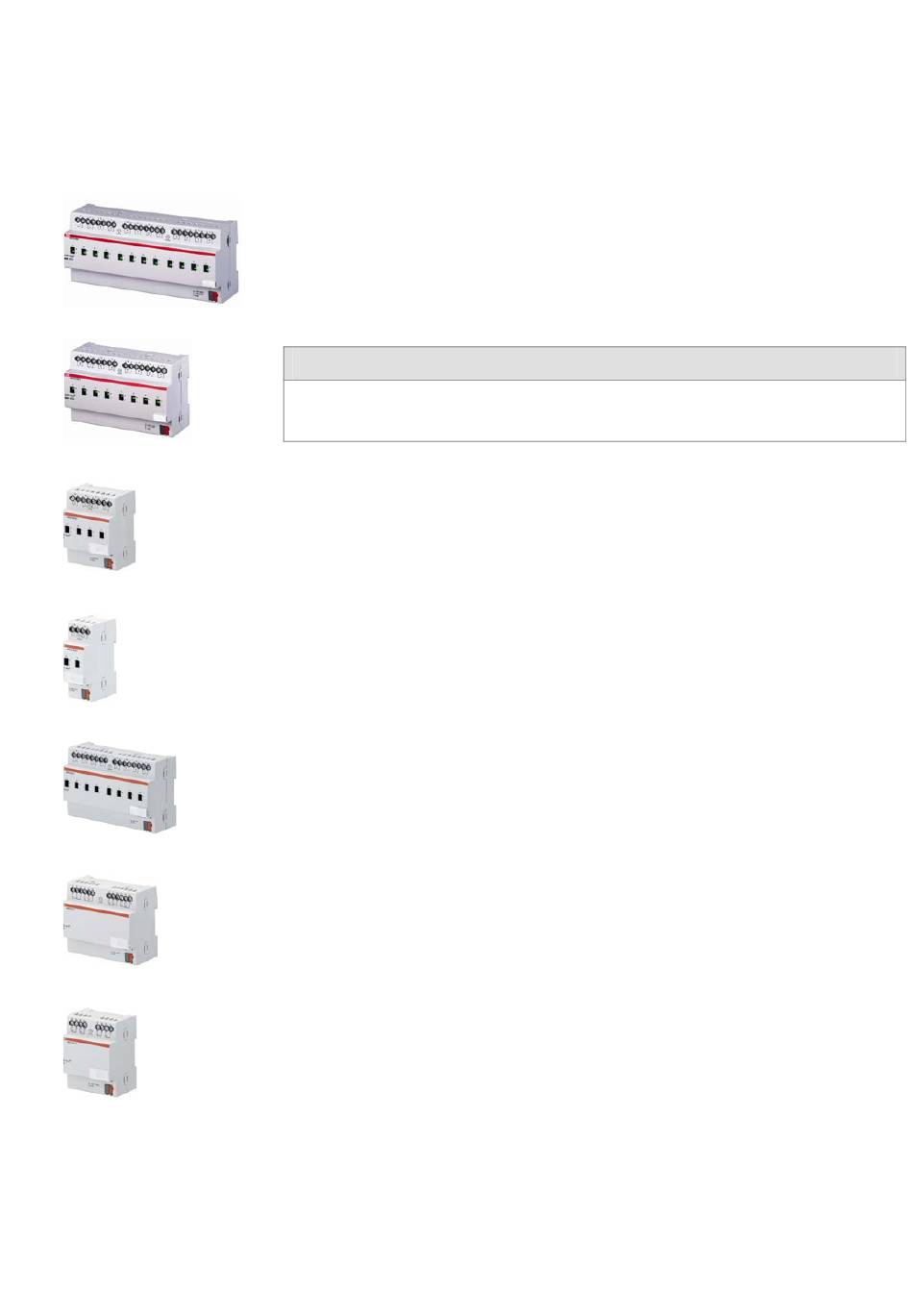

SA/S 12.16.6.1
SA/S 8.16.6.1
SA/S 4.16.2.1
SA/S 2.10.2.1
SA/S 8.6.2.1
SA/S 8.6.1.1
SA/S 4.6.1.1
®
ABB i-bus
KNX SA/S Switch Actuators are modular installation devices with module widths of
2/4/8/12 units in ProM design for installation in a distribution board.
Connection to the ABB i-bus
The Switch Actuators require no auxiliary voltage.
The assignment of the physical address as well as the parameterization is carried out with
Engineering Tool Software (ETS), version ETS2 V1.3a or higher. If using ETS3 or ETS4 you
will need to import the corresponding application program.
Please note
The illustrations of the parameter windows in this manual correspond to the ETS3 parameter
windows. The user program is optimized for ETS3.
In ETS2 the parameter page for any parameter being used may split automatically.
The Switch Actuators can switch 2 to 12 independent electrical AC or three-phase loads via
KNX with floating contacts. With SA/S x.16.6.1 types it is possible to detect the load current for
each output. The outputs of the 6 A, 10 A, 16 A and 16/20 A Switch Actuators can be switched
on and off manually.
Switch Actuators SA/S x.16.6.1 and SA/S 12.16.5.1, which have the highest switching capacity
(C-load), are particularly well-suited for switching loads with high peak inrush currents, e.g.
lighting equipment with compensation capacitors or fluorescent lamp loads (AX) to EN 60 669.
The following functions can be set individually for each output:
Time and ON/OFF delay functions
Staircase lighting function with warning and modifiable staircase lighting time
Recall of scenes/presets via 8/1 bit commands
Logical functions AND, OR, XOR, GATE function
Status messages
Forced operation and safety functions
Response to threshold values
Control of electro-thermal valve drives
Selection of the default state on bus voltage failure and recovery
Output inversion
®
is established via a bus connection terminal on the front.
SA/S | 2CDC 505 056 D0208 7
