Point-to-Point Wiring

Pin Configuration
Pin Wire Colour
1 Brown
2 White
3 Blue
4 Black
5 Yellow
Note: Units without integral solenoid only have 4-pins
Output 1 indicates when the valve is CLOSED and sends this signal to the PLC input card Output 2 indicates when the valve is OPEN
and sends this signal to the PLC input card. These outputs can be reversed in the "Output Option" within the M-VUE menu

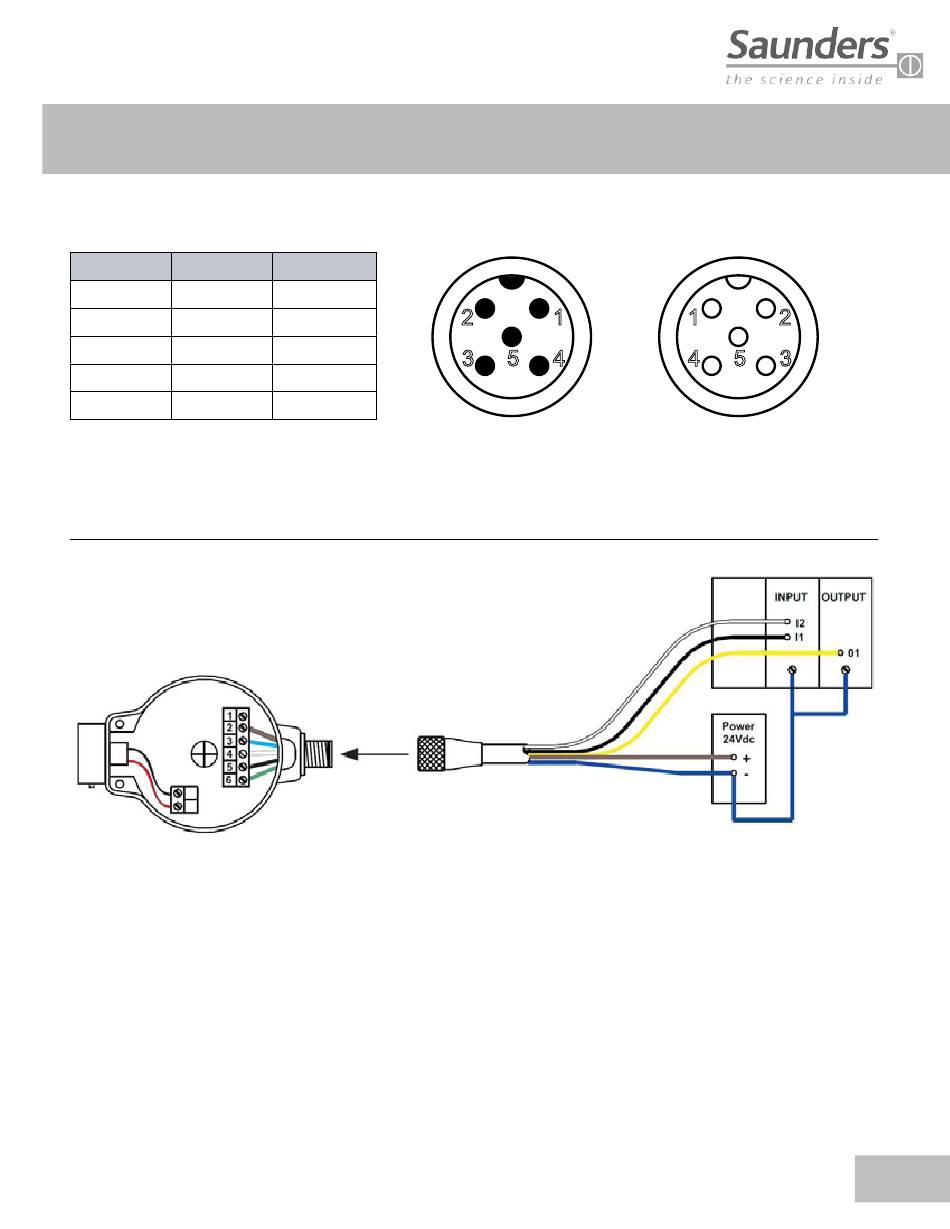

Wiring Diagram
Note: For units without integral solenoid, pin 5 is not active. To bypass the integral solenoid (to use a panel mounted solenoid) the
pin 5 (yellow wire) is isolated or connected to the negative 24dc (pin 3) terminal.
Note: The wiring configurations and colours in this manual relate to Saunders supplied cables only. If alternative cables are used,
ensure the correct wire relates to the correct pin.
