SOLAR-POWERED POOL ALARM SYSTEM FOR SAFETY AID
TO READ ATTENTIVELY AND TO PRESERVE FOR FUTURE CONSULTATION
WARNING
This system is simply a safety aid which announces a danger (or risk of danger) when an
equivalent of 8kgs (18 pounds) object falls into a unsupervised swimming pool. The fast
intervention in less than 3 min of a responsible adult is obligatory when the signal of alarm
happens. Ensure the construction of the pool wall is solid enough, thus it can stand the drilling
of the screws and wall plugs without cracking the pool wall. After installation, ensure the pool
alarm itself cannot be shaken, otherwise it will affect the performance of pool alarm detection. In
the event of any injury or death to any person arising out of misuse, abuse, negligence, accident
or alteration, Everspring Tech USA, Inc., will not be liable for any consequence caused.
This system does not replace the good direction nor with the several liability. The purpose of it is
not to either replace the vigilance of the parents and/or the responsible adults, which remains the
essential factor for the protection of the children with less than five years;
The user who turns OFF the system must be conscious that the human monitoring must take
The greatest vigilance of the responsible parent /adult is necessary between the end of the bathe

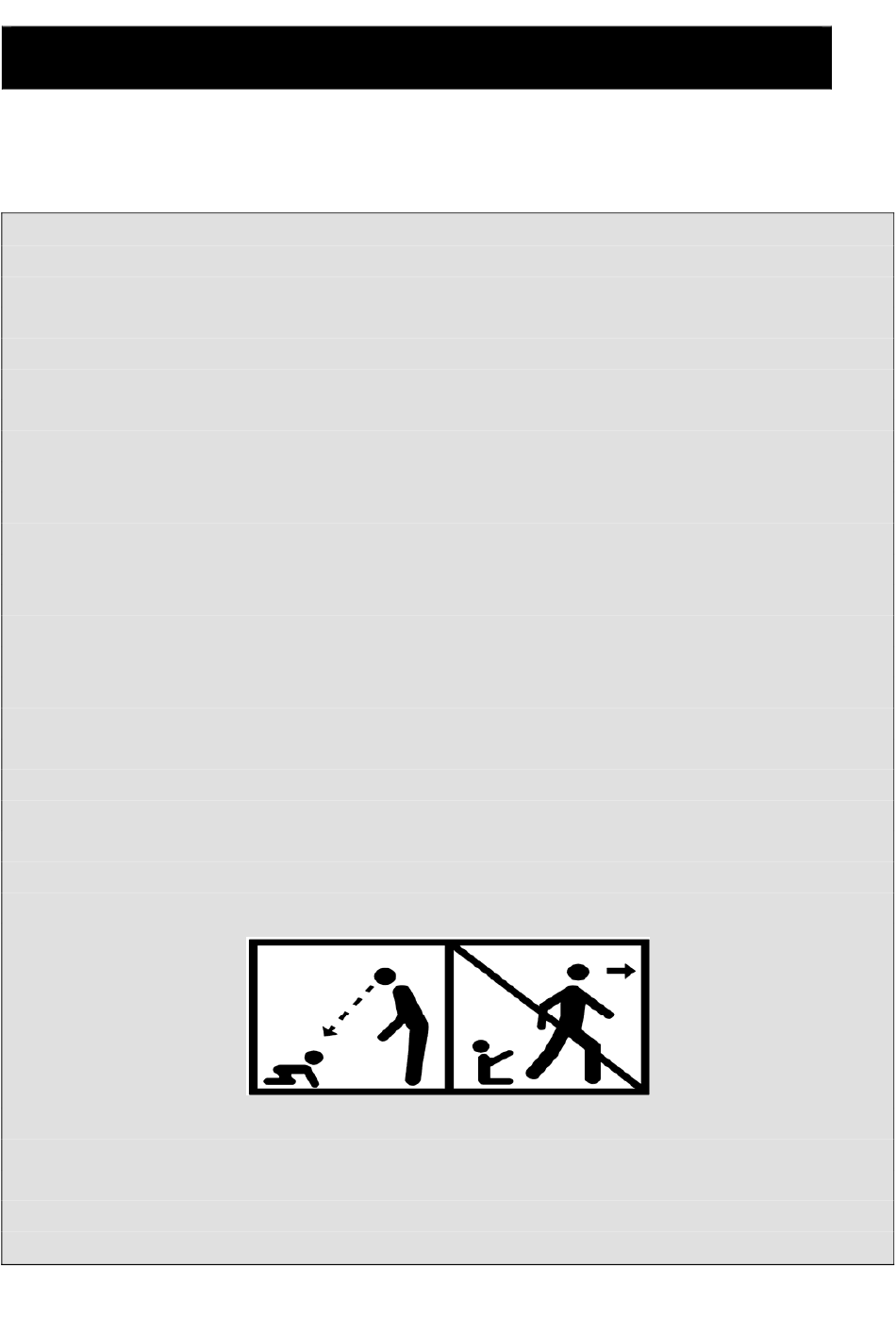

Never leave children unattended in or around the swimming pool or spa. Children under five years of
age are at the greatest risk for injury or death in pool-related accidents.
In the event of possibility of stroke with against current: "Cancel the stroke with against current at
the end of the bathe to allow the reactivation of the product".
Some of cleaning robots as a plunger robots type are incompatible with the systems of detection
It is imperative to react when the signal of alarm happens;
and the reactivation of the product;
over;
of immersion
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST113 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EVERSPRING ST113

  • Page 1 Everspring Tech USA, Inc., will not be liable for any consequence caused. This system does not replace the good direction nor with the several liability. The purpose of it is not to either replace the vigilance of the parents and/or the responsible adults, which remains the essential factor for the protection of the children with less than five years;...
  • Page 2: Product Layout

    PRODUCT LAYOUT Solar-powered Wireless Pool Alarm (ST113) Battery Cover Solar Panel Two Indication Light (Top & Bottom) Sensing Compartment Detachable Tube Flat Mounting Plate ○ Adjustable Mounting Plate ○ Spacers ○ Mounting Feet ○ Wireless Keypad (SA802) Setting/Low Battery LED ○...
  • Page 3 Siren & Strobe (SE802) Strobe Light Red & Green LED Tamper Switch Learning Key DC Jack Two-Phase Sound Jumper Link Anti-jamming Jumper Link Tamper Jumper Link Mounting Bracket Wireless Remote Controller (SR803) A LED indicator E Mute switch OFF MODE F Key Chain Ring ON MODE G Negative Polarity...
  • Page 4: Package Content

    covers, locks, and so forth… And some devices may not detect gradual entry. INTRODUCTION The Solar- Powered Pool Alarm uses seismic technology to detect unwanted intrusions into swimming pools. In the event of a child or pet ( min. 18 lbs) accidentally falling into the pool the Pool Alarm would detect the intrusion and sound an 110 db alarm at the pool and an 85db alarm in the house.
  • Page 5 SOLAR-POWERED WIRELESS POOL ALARM INSTALLING THE POOL ALARM There are four detachable tubes which can be connected to create a single, long tube. (Fig.1 &Fig. 2)You will need to connect the appropriate number of tubes to ensure that the distance from the bottom end of the tube to the water level is 9.65 inches (24.5 cm) (Fig.
  • Page 6 with a small amount of silicone. Place the unit over the holes and attach using four 30mm screws provided. (Fig.3) Fig.3 Fig.4 Note: The pool alarm may not functional properly if your pool’s water level is not maintained and the bottom of the tube is not at least 9.65 inches (24.5 cm) below the water line. Adjustable Mounting Plate To permanently install the unit on coping that is sloped.
  • Page 7: Wireless Keypad

    Fig.6 Fig.7 Note: The pool alarm may not functional properly if your pool’s water level is not maintained and the bottom of the tube is not at least 9.65 inches (24.5 cm) below the water line. WIRELESS KEYPAD The Wireless Keypad is used to control the Pool Alarm by using a four digit Administrator password. The Keypad is powered by 3 x AA 1.5V alkaline battery.
  • Page 8: Changing The Administrator Password

    2. Using the mounting bracket as a template, mark the positions of the two fixing holes on the wall. 3. Fix the mounting bracket to the wall using the screws and wall plugs provided. (Fig.10) Do not over-tighten the fixing screws as this may distort or damage the mounting bracket. 4.
  • Page 9 (2) Enter New Administrator password SIREN & STROBE (SE802) The Siren & Strobe serves as an auxiliary accessory to the Pool Alarm. When the Pool Alarm detects unwanted intrusions into unclosed swimming pools, a full alarm condition will occur. Simultaneously, the Siren &...
  • Page 10: Setting The Remote Controller

    Jumper link removed - disable Two-phase Sound Jumper Link Sound volume selectable – 90 or Jumper link fitted – 100 dB 100 dB/ 0.3 feet Jumper link removed – 90 dB DC Jack Use AC/DC adaptor Jumper link fitted Jumper link removed Enable Disable NOTE: The Anti-jamming Jumper Link is preset disabled due to its high sensitivity easily causes...
  • Page 11 must be located so that the water returning to the pool is at least 18” away from the Pool Alarm. If your pool has an irregular shape more than one unit may be required to provide adequate coverage. The coverage area of a Pool Alarm unit can be represented by sweeping a 22’ radius arc with the center point located at the axis of the Pool Alarm sensor tube.
  • Page 12: Initial Power-Up

    Note : Do not mount the Pool Alram either in the corner or at the indentation of the pool side or it may result in a blind spot. POOL LENGTH (Y) * POOL WIDTH (X) One Unit Required Two Units Required UNIT PLACEMENT DIMENSION (d) Less than 39' 39'-80'...
  • Page 13 will keep the unit fully charged. The batteries provide back up power in the event that the solar panel is unable to fully recharge. When Pool Alarm is under “Arm Mode” the unit detects a low battery condition the unit will provide a low battery alert.
  • Page 14 Pool Alarm will turn on and switch to armed mode directly subject to ambient environment detection being taken properly. The unit will start detecting ambient environment for 8 – 14 minutes. The main purpose of it is to detect the wave intensity of water action avoiding false alarming resulted from wave being caused by strong wind.
  • Page 15: Swim Mode

    response and enter the sleep mode, which means no automatic activation will occur. SWIM MODE Pool Alarm can be placed into Swim mode using either the Remote Keypad or the Remote controller. The swim mode allows people to use the pool without turning off Pool Alarm. When people leave the pool, Pool Alarm will sense that there are no longer people swimming.
  • Page 16 Press the “MUTE” button. The LED on the remote controller will momentarily flash green. You will hear 1 short beep as a response. Once the alarm is disarmed, it is recommended that reset the mode to the desired one or the mode will switch to armed mode directly.
  • Page 17 2. Press on the Wireless Keypad Administrator password Enter 3. If learning the ID code is successful, the LED of function key on Wireless Keypad will light for 3 seconds. Meanwhile, the Pool Alarm will beep once as a confirmation without flashing the orange indication light. If failed, all 0~9 number buttons will flash 3 times simultaneously.
  • Page 18 Wireless Keypad If it is not necessary to use the Wireless Keypad for operation, reset the administrator password to factory default by proceeding with the steps as shown on page 8. Wireless Remote Controller No need to clear code. QUICK GUIDELINE FOR LED INDICATION AND BEEP SOUND ON THE POOL ALARM Mode Status System on / System off / Enter swim mode Continuous 3 short-beep...
  • Page 19: General Swimming Pool Safety Guidelines

    clear the preset ID code Green illuminating LED for 6 seconds Successful clearing the preset ID code Long beep once Failed to clear the preset ID code 3 intermittent short-beep Green flashing LED 3 times QUICK GUIDELINE FOR LED INDICATION ON THE WIRELESS KEYPAD Keypad Status Success Failure...
  • Page 20 - The safety of your children depends only on you! The risk is maximum when the children have less than five years. The accident does not arrive only at the others! Be ready to face there! - Supervise and act : - the monitoring of the children must be brought closer and constant;...
  • Page 21: Replacing The Batteries

    MAINTAINING THE POOL ALARM REPLACING THE BATTERIES Replace the batteries whenever a low battery is indicated (see page 18 for a description of the low battery indication). Be sure to turn the unit off whenever replacing the batteries. SPECIAL CONSIDERATIONS DURING WINTER The unit will not operate if the water in your pool becomes frozen.
  • Page 22: Troubleshooting

    TROUBLESHOOTING Symptom Possible Cause Recommendation Upon power being connected, Batteries were not fitted properly Remove and refit the batteries the Pool Alarm cannot enter or reverse battery armed mode directly polarity LED indicator not working on the LR20 batteries or rechargeable 1.
  • Page 23: Specifications

    Wireless Remote Controller Too far distance Replace a new battery cannot control the Pool Alarm Low battery SPECIFICATIONS Model No. ST113 Solar-powered Wireless Pool Alarm Item Siren Twin piezo siren Siren Output 110 dB / 1 meter Effective Pool Alarm 16’...
  • Page 24: Warranty

    Model No. SR 803-2 Wireless Remote Controller Item Battery Type CR2032 3V/230mAhr Operating Frequency 923MHz Communication Range Up to 50m (150 feet) in open space Safety *Specifications are subject to change without prior notice. ASTM A501111093R Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 25 Damage due to a natural disaster, floods or vandalism. CONTACT US Please feel free to write or call us with your comments or questions at the address below. Everspring Tech USA, INC 3200 Wilshire Blvd. South Tower, STE# 1730 Los Angeles, CA. 90010 Tel: (626) 698-1898, Fax: (626) 956-0600 Email: steve_chang@everspring.com...
  • Page 26 With a proof of buying (Invoice or bill) To : Via email : customerservice@everspringamerica.com Via courrier : 3200 Wilshire Blvd. South Tower, STE# 1730 Los Angeles, CA. 90010 Tel: (626) 698-1898, Fax: (626) 956-0600 Customer Title (Mr/Ms) First Name Middle Initial Last Name Address Zip Code...
