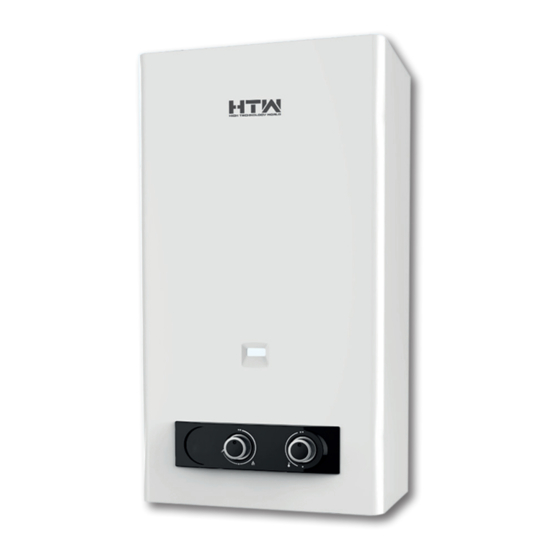

- Page 1 OWNER’S AND INSTALLATION MANUAL GAS WATER HEATER MODULANTE AO2 HTW-CLM-11AO2GN HTW-CLM-11AO2GLP Thanks for choossing our product. Please, read carefully this manual before using the product...
-
Page 2: Table Of Contents
Content Outline ……………………………………………………….3 User Instructions ………………………………..…….4 Usage …………………………………………………..5 Installation Instruction ………………………………...7 Connection to water, gas and pipe ………………….8 Gas Conversion Instruction …………………………10 First Use ……………………………………………...11 Maintenance ………………………………………….11 Technical Data …………………………..…..……….12 Malfunction and Remedies ...……………………….15... -
Page 3: Outline
Outline It is very necessary to read through all the warnings and contents in this manual before installation. read carefully this manual before installation. The installation, connection and first use of this gas water heater must be carried out by technician personnel. Incorrect installation or maintenance might cause risk to health or death. -
Page 4: User Instructions
To users User Instructions This product can only be used under the purpose described in this manual, that is, to provide heated water for domestic use. This product can only be used under normal operation conditions. In case of any malfunction or failure, please contact with maintenance personnel. Do not damage lead sealing labels or other labels. -
Page 5: Usage
To users Prevention of poisoning: When water heater is in use, oxygen inside the room where it is installed will be consumed, so please keep the room well ventilated. Please read carefully the manual and obey instructions of the installation personnel to prevent any poisoning accident. - Page 6 To users Adjustment of water temperature Water flow can be controlled by adjusting water temperature knob, and in this way outlet hot water temperature can be changed. You can push and turn the water temperature knob clockwise to decrease outlet hot water temperature and turn the knob anti-clockwise to increase hot water temperature.
-
Page 7: Installation Instruction
To technician personnel Installation Instruction The product is assembled with a flue thermostat (combustion products discharge safety device), if flue is blocked up, the thermostat will function, then gas valve will be shut off and the water heater cannot be ignited before it cools down. Never put this thermostat out of operating. It will be serious to timely interfere with the thermostat. -
Page 8: Connection To Water, Gas And Pipe
To technician personnel Use methods as below to install the water heater: 1. Use installation template of the graph in “Technical Information” to decide positions of installation holes. 2. If necessary, use installation template to pre-install connection parts of gas, flue gas and water pipe. - Page 9 To technician personnel Connection to Flue This product must be connected to flue or a chimney. This product must be connected to specially designed flue before use. The flue shall meet the specifications as below: Minimum vertical length: 0.5 m. Maximum length: 3 m.
-
Page 10: Gas Conversion Instruction
To technician personnel Gas Conversion Different gas conversion of gas water heater must be carried out by professional technician personnel. Any broken seals shall be re-made and/ or any adjuster shall be sealed. A self-adhesive label which is intended to be fitted on the water heater shall be supplied with the parts and the conversion instructions provided by . -
Page 11: First Use
To technician personnel First Use The first-time use of water heater shall be carried out by professional technician personnel. Open battery box and put two batteries (model. LR20, 1.5V) inside. Open hot water valve to let water run out and then shut off it. Open gas inlet valve. -
Page 12: Technical Data
To technician personnel Framework Use soft cloth with neutral detergent to clean the framework. DO NOT use chemical or corrosive detergent to clean. Technical Data Model No. Unit Pin code 0845CQ0006 0845CQ0006 Type B11BS B11BS Heat input Qn (Hi) Min. Heat input Qmin(Hi) Nominal useful output Pn (Hi) Min useful output Pmin Heat efficiency... - Page 13 To technician personnel Dimensions Front Side Installation size Gas water heater dimensions Connectors Sizes 111.5 111.5 68.5 68.5 Installation size...
- Page 14 To technician personnel internal structure drawing internal structure drawing 1. Draft hood 13. Microswitch 2. 100 thermostat 14. Gas inlet 3. Heat exchanger bracket 15. Battery box 4. 85 thermostat 16. Valve bracket 5. Heat exchanger 17. Water outlet 6. Ignition pin assembly 18.
-
Page 15: Malfunction And Remedies
To users Malfunction and remedies Severe harm or death might be caused if the following instructions are not followed. In case of malfunction, please shut off the water heater immediately and contact with technician personnel. MUSTN’T try to repair the water heater by yourself. MUSTN’T use the water heater if it appears malfunction. - Page 16 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: 93 390 42 20 Fax: 93 390 42 05 info@htwspain.com...
