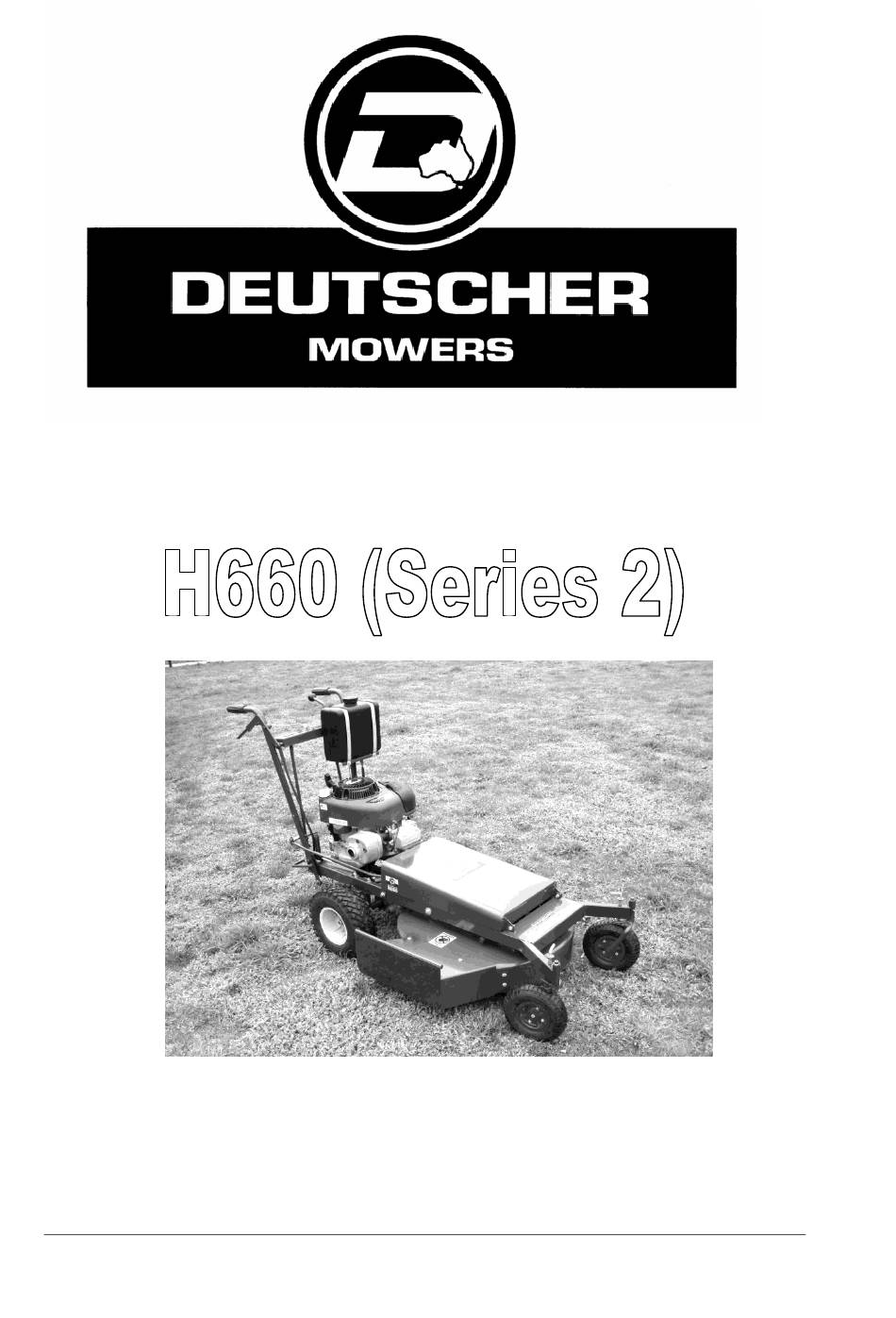

- Page 1 Deutscher OWNER’S INSTRUCTION MANUAL AND PARTS LIST...
-
Page 2: Assembly Instructions
INDEX Page No. Topic Index and Assembly Instructions Safety Instructions Maintenance and Storage ETC ETC ASSEMBLY INSTRUCTIONS HANDLE ATTACHMENT (Pre delivery) (Refer to Figure 1) 1. Connect the handles to the side rails of the chassis using four 75mm M8 bolts, while making sure that the ball on gearbox linkage “... -
Page 3: Safety Instructions
Attach throttle lever here. Figure 2. FUEL TANK ATTACHMENT ENGINE PREPARATION (Pre delivery) 1. Remove the dipstick and add oil as per the instructions in the engine manual. 2. Add unleaded petrol to the petrol tank. 3. Follow the starting procedure listed below, and check there are no abnormal vibrations, and that the gear lever, forward drive lever, height adjustment lever and blade clutch are functioning satisfactorily. -
Page 4: Operation
OPERATION: • Never mow while people, especially children, or pets are nearby. • Mow only in daylight or in good artificial light. Stay alert for holes in the terrain and other hidden hazards. • Never direct discharge of material towards bystanders. •... -
Page 5: Specifications
CUTTER ENGAGEMENT ACTIVATOR PARKING BRAKE ACTIVATOR PRE-START CHECK: Your Deutscher Mower comes to you tested and ready to operate, with engine and gearbox filled with oil. • Read all safety instructions and know how to stop engine quickly in any emergency. - Page 6 TO START THE ENGINE (Electric start version): • When engine is cold, move throttle lever to CHOKE position. • When engine is hot, move throttle lever to high throttle position. • Turn key to start position and release once engine is running. •...
-
Page 7: Maintenance
MAINTENANCE: THE MANUFACTURES RESERVE THE RIGHT TO ALTER, CHANGE OR VARY THE SPECIFICATIONS OF THE MACHINE OR ANY OF THE COMPONENT PARTS AT ANY TIME WITHOUT NOTICE. LUBRICATION CHART Lubrication. Daily 20hrs 100hrs Engine, Refer engine manual. Gearbox Check Change Gear oil EPX 85w/140 King pins... - Page 8 CUTTER BELT: REPLACEMENT See Illustration 7 on the next page. • Before replacements of the belts and associated parts turn engine off and pull spark plug lead off spark plug. • Be careful during adjustment of the mower to prevent entrapment of the fingers between moving blades, pulleys and fixed parts of the mower.
-
Page 9: Wiring Diagram
BLADES: • Before any inspection or replacements of the blades and associated parts turn engine off and pull spark plug lead off spark plug. • Be careful during adjustment of the mower to prevent entrapment of the fingers between moving blades and fixed parts of the mower. •... - Page 10 Item Part Part Description Item Part Part Description 1768 Chassis Assembly 1489 Pulley, engine 1463 Connecting rod, front 1492 1464 Raise & lower rod, rear 1493 Plate, clutch pulley 1465 Top cover. 1496 Wheel complete 1017 Bolt 8mm x 20 1497 Tube 13-500-6 1018...
- Page 11 Item Part Part Description Item Part Part Description 1646 Pulley 3107 Housing, spindle 2092 Brake disc x 4 1558 Push rod 2093 Brake pad assembly 1585 Connector, push rod 3085 Brake lever 1563 Spring, deck retract 3095 Brake lever stop 3098 Spindle &...
-
Page 12: Handle Bars & Controls
HANDLE BARS & CONTROLS Item Part Description Item Part Description Knob 3/8” ID 1580 Cable, throttle 1618 1583 Gear lever 1619 Guide, gearbox belt 1584 Lever, throttle (Not used) 1586 Hand grip 1624 Spring 1587 Clutch lever 1625 Selector arm and ball 1590 Vert. -
Page 13: Gearbox Assembly
GEARBOX ASSEMBLY... - Page 14 GEARBOX ASSEMBLY Item Part Part Description Item Part Part Description 1100 Screw, pulley 1690 O-ring 1640 1691 Selector tappet Forward 1641 Spring washer 1695 Selector tappet reverse 1642 Washer 1739 High crown gear 1643 Pulley 1699 Bearing, needle, axle 1650 Spacer 1700 Spacer, diff.
- Page 15 Item Part Part Description Item Part Part Description 1746 Tank, 6.5lt D2720 Paint, Deutscher Green 1lt tin 1329 Cap, fuel tank H641 Decal set 1747 Strap 1748 Bracket, tank...
-
Page 16: Warranty Policy
WARRANTY POLICY • DEUTSCHER MOWERS PTY. LTD. Will warrant the repair or replacement, free of charge, any parts of the mower, that are defective in materials or workmanship or both for a period 24months from the date of purchase. •...
