Summary of Contents for Deutscher H660

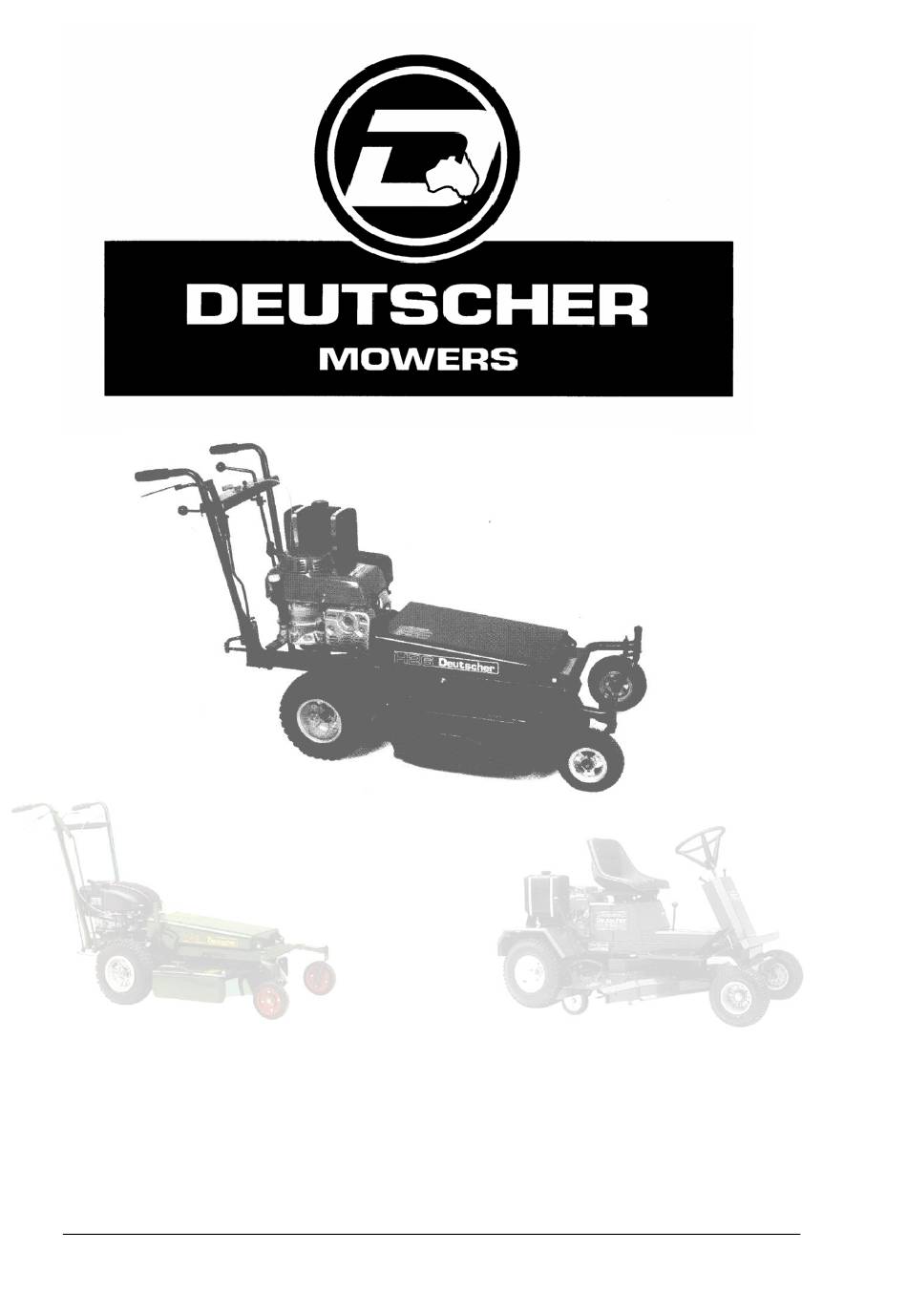

- Page 1 OWNER’S MANUAL H660...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS! BEFORE STARTING: • Know your controls. Read the owners manuals thoroughly. Learn how to stop the engine quickly in an emergency. • Inspect the area to be mown, remove all debris and obstacles that may be in the path of the mower. -
Page 3: Maintenance And Storage
ENGINE: Honda and Briggs and Stratton engines are used, see engine owner’s manual supplied with the mower. GEARBOX: Deutscher HD120, with two forward gears and reverse, incorporating a differential gearbox in an oil bath alloy housing. Recommended oil EPX 85w/140... -
Page 4: Pre-Start Check
CUTTER ENGAGEMENT ACTIVATOR PARKING BRAKE ACTIVATOR PRE-START CHECK: Your Deutscher Mower comes to you tested and ready to operate, with engine and gearbox filled with oil. • Read all safety instructions and know how to stop engine quickly in any emergency. -
Page 5: Maintenance
• Set throttle setting to a position as not to stall engine on engagement. • Place right foot on lever and press down and lock into position. • To release, knock lever up with right foot. ILLUS. 2 RELEASE • ENGAGE MOWING ACROSS SLOPES AND REVERSING •... - Page 6 LUBRICATION CHART Lubrication. Daily 20hrs 100hrs Engine, Refer engine manual. Gearbox Check Change Gear oil EPX 85w/145 Cutter spindle Grease King pins Grease Raise & lower frame slides Grease Gear control linkages Clutch control linkages Oil Height control linkages Oil Throttle cable GEARBOX: Use gear oil 85w/140...
- Page 7 • Before any inspection or replacements of the belts and associated parts turn engine off and pull spark plug lead off spark plug. • Be careful during adjustment of the mower to prevent entrapment of the fingers between moving blades and pulley’s fixed parts of the mower. •...
- Page 8 • Before replacements of the belts and associated parts turn engine off and pull spark plug lead off spark plug. • Be careful during adjustment of the mower to prevent entrapment of the fingers between moving blades, pulley’s and fixed parts of the mower. •...
-
Page 9: Wiring Diagram
WIRING DIAGRAM: HONDA GXV390K1 DAEU BLUE GREEN BLACK Illus. No. Part No. Description. Illus. No. Part No. Description. T316 Key Switch Regulator R323 Cable 330mm Starter Motor H315 Battery 12volt Earth, regulator Solenoid, starter R322 Loom assembly Stop switch T302 Solenoid Engine Alternator wire... - Page 10 NOTES WHEN ORDERING PARTS SPECIFY THE MODEL AND SERIAL NUMBER ON THE NAME PLATE OF THE MOWER AND THE PART NUMBER IN THIS MANUAL. THE MANUFACTURES RESERVE THE RIGHT TO ALTER, CHANGE OR VATY THE SPECIFICATIONS OF THE MACHINE OR ANY OF THE COMPONENT PARTS AT ANY TIME WITHOUT NOTICE.
- Page 11 CHASSIS 5,7,19 ILLUS PART No. DESCRIPTION ILLUS PART No. DESRIPTION H600 Chassis Pulley, engine H602 Rod, conn. Raise & low. RD126 H603 Rod, conn. R&L rear Plate, clutch pulley H604 Top cover, B&S. HD121 Wheel complete H605 Top cover, Honda T564 Tube 13-500-6 Y558...
-
Page 12: Cutter Assembly
Brake lever stop Bolt, blade plate x 3 Spring H650 Blade N,B,W x 2 Lock nut H651 Blade x 2 Dust cap H652 Nut,bolt & washer.x 2 Spacer V-belt, cutter,B66 Raise & Lower frame H660 Cutting deck complete H661 Main Guard Inc... -
Page 13: Handle Bars & Controls
chute & flap HANDLE BARS & CONTROLS ILLUS PART No DESCRIPTION ILLUS PART No DESCRIPTION D130 Cable, throttle Knob, 3/8”id Gear lever Guide, g/box belt Lever, throttle Collar Hand grip Spring H627 Clutch lever Selector arm & ball Vert. Clutch rod Circlip, int.19mm H628 Handle bars... -
Page 15: Gearbox Assembly
GEARBOX ASSEMBLY... - Page 16 GEARBOX ASSEMBLY LLUS PART No DESCRIPTION ILLUS PART No DESCRIPTION HD105 Screw, pulley HD80 Selector tappet Forward HD107 HD81 Selector tappet reverse H631 Spring washer HD77 High crown gear HD106 Washer Bearing, needle, axle HD108 Pulley MRD179 Spacer, diff. HD109 Spacer HD76 Low crown gear...
- Page 17 FUEL TANKS / SUNDRY PARTS BRIGGS & STRATTON ENGINES HONDA ENGINES ILLUS PART No DESCRIPTION PARTS NOT ILLUSTRATED R260 Tank, 6.5lt D2720 Paint, Deutscher Green 1lt tin R261 Cap, fuel tank H641 Decal set R262 Strap, angle R263 Strap, square R264 Bracket, rear...
-
Page 18: Warranty Policy
WARRANTY POLICY: • DEUTSCHER MOWERS PTY. LTD. Will warrant the repair or replacement, free of charge, any parts of the mower, that are defective in materials or workmanship or both for a period 12 months from the date of purchase.
