PL360G55CF-EK Quick Start Guide
Overview
PL360G55CF-EK is an evaluation kit for the PL360 modem, a multi-protocol device to implement
standard and customized PLC solutions. PL360G55CF-EK includes a SAMG55 ARM
microcontroller, which provides a full-featured platform to develop a complete communication system over
PLC technology.

Getting Started

Attention: Before starting, please obtain PL360G55CF-EK online resources from Microchip
website. Please follow the instructions of the welcome letter included with this kit.
Important: This guide assumes the use of 2 units of PL360G55CF-EK board running G3-PLC
PHY Tester.
Power-Up
The board can be supplied with the included USB cable or from an external DC Power Supply ranging
from 6V to 30V. When powered-up, LED 3V3 and LED 12V turn on. Please check the PL360G55CF-EK
User Guide to know more about the power supply requirements.
The kit comes already programmed with the G3-PLC PHY Tester for CENELEC-A application, allowing
the transmission and reception of PLC messages at PHY layer level. LED0 (green) blinks to indicate that
the application is running. LED1 (red) flashes when a PLC message is received and LED D104 (yellow)
will flash at each transmission.
Running PHY Tester Demo

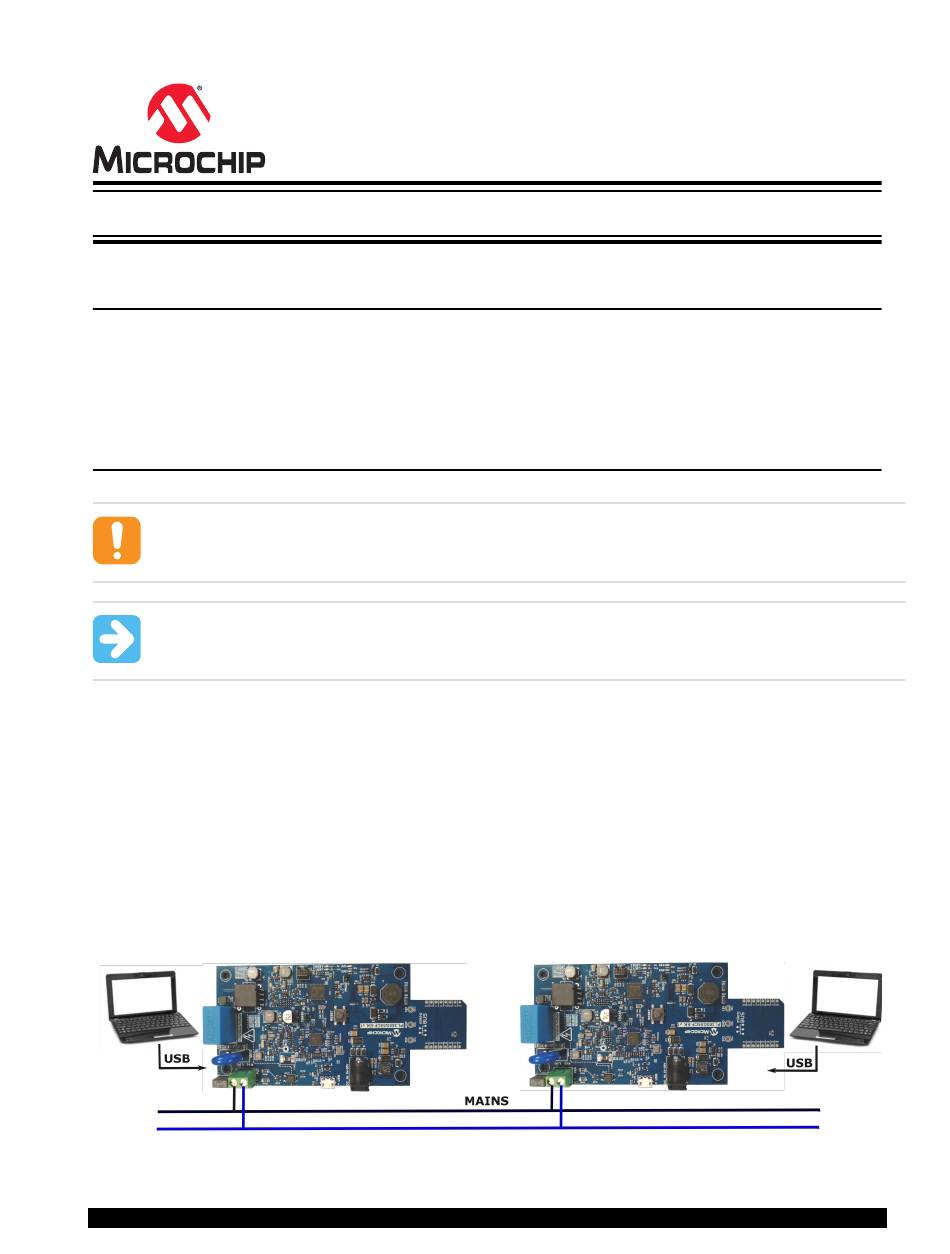

Figure 1. PLC Test Setup
1. Download Microchip PLC PHY Tester from the online resources site and install it
©
