Naturela NPBC-V3C-1 Technical Manual

Electronic pellet burner controller
Hide thumbs Also See for NPBC-V3C-1:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: User Manual
Electronic pellet burner controller – NPBC-V3C
Electronic Pellet Burner Controller
NPBC-V3C-1
T
M
ECHNICAL
ANUAL
Technical Manual / version 1.1
http://www.naturela-bg.com/en/
page 1 of 9

Advertisement

loading

Related Manuals for Naturela NPBC-V3C-1

Summary of Contents for Naturela NPBC-V3C-1

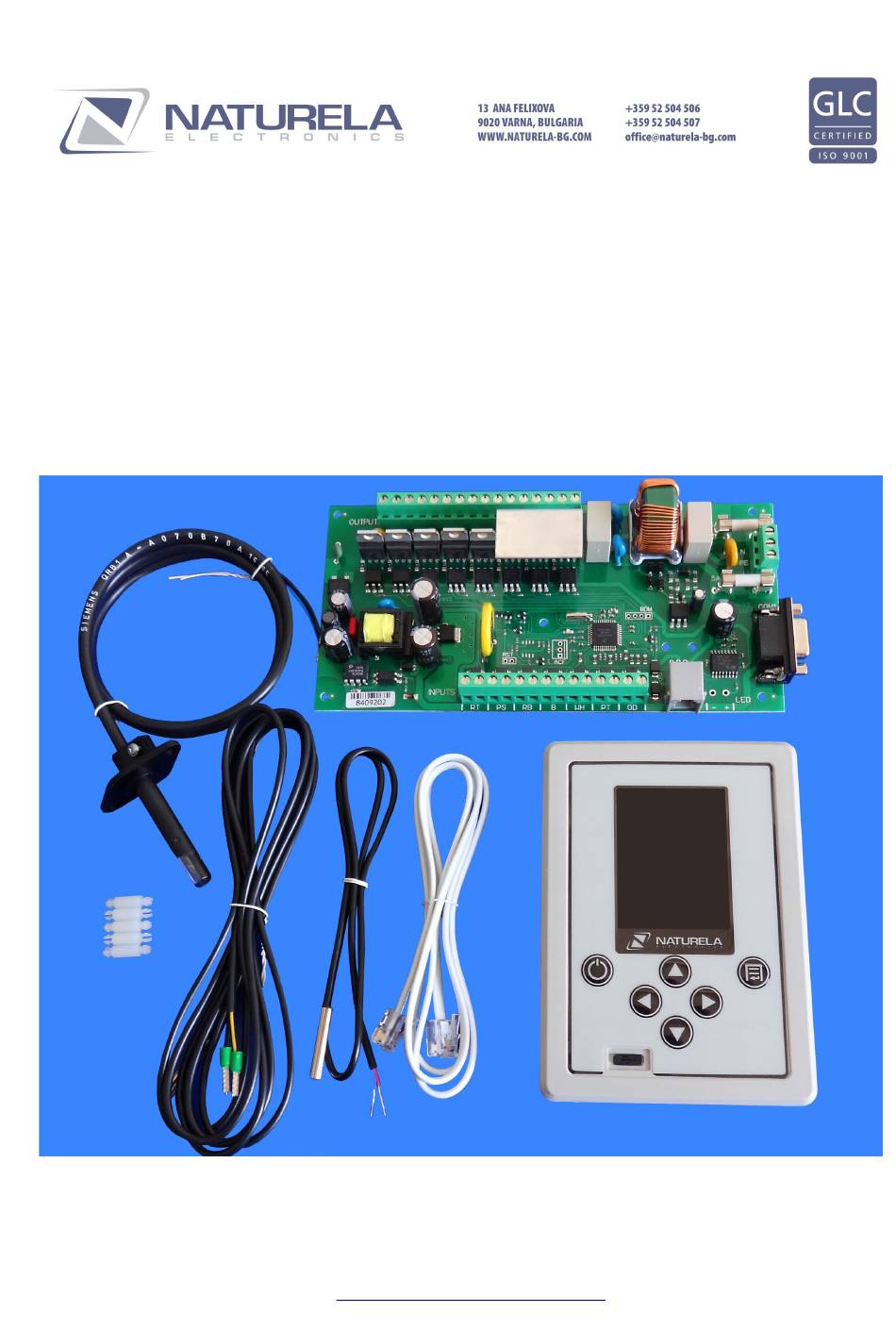

  • Page 1 Electronic pellet burner controller – NPBC-V3C Electronic Pellet Burner Controller NPBC-V3C-1 ECHNICAL ANUAL Technical Manual / version 1.1 http://www.naturela-bg.com/en/ page 1 of 9...
  • Page 2  The Control module NRC-6 can be equipped with a WiFi module NRM-W3 for connection with the Naturela remote monitoring and control system through the web  4 preset fuel profiles make switching between different fuels easier than ever ...
  • Page 3 Both blowers' power can be adjusted from the controller. NPBC-V3C-1 has an option to measure and control the temperature of the exhaust gases with a high temperature sensor pt100, mounted in the entrance of the vent. For more effective cleaning process the controller can also run an additional powerful fan to blow away the ashes from the burning chamber or a mechanical cleaning mechanism with an option to be run by one controlling or powering up voltage.
  • Page 4 The controller has two modules: Executive module – NPBC-V3M and Control module with color display – NRC-6. They are connected with 4 wired cable with RJ11 connectors. Dimensions and mounting holes of the Executive module Technical Manual / version 1.1 http://www.naturela-bg.com/en/ page 4 of 9...
  • Page 5 The control module could be mounted on a wall, by using 2 screws vertically placed on 60 mm from each other with size of the head between 5 mm and 7.8 mm. Technical Manual / version 1.1 http://www.naturela-bg.com/en/ page 5 of 9...
  • Page 6  A potential free contact of a room thermostat for better control of the burning process Technical Manual / version 1.1 http://www.naturela-bg.com/en/ page 6 of 9...
  • Page 7 Boiler temperature sensor Heating installation pump Water heater temperature sensor Hot water heater pump pt100 high temperature sensor Ignition heater External stop switch (Optional) Fan for cleaning Analog controlled fan (Optional) Technical Manual / version 1.1 http://www.naturela-bg.com/en/ page 7 of 9...
  • Page 8 Electronic pellet burner controller – NPBC-V3C Technical Manual / version 1.1 http://www.naturela-bg.com/en/ page 8 of 9...

  • Page 9: Echnical Specification

    Power consumed in Standby mode <1.5W Executive module's PCB dimensions 180х90 mm Control module's PCB dimensions 126х90 mm Maximum length of the wire between Executive module and up to 40 m Control module Technical Manual / version 1.1 http://www.naturela-bg.com/en/ page 9 of 9...
