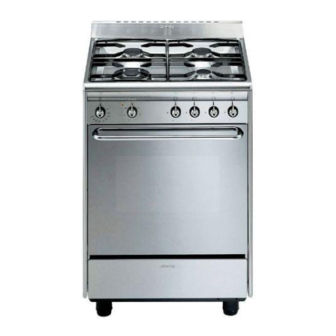

Smeg SNZ60EVX Instructions For Installation And Use Manual

Smeg range instructions for installation and use
Hide thumbs
Table of Contents

Advertisement

Quick Links

1. INSTRUCTIONS FOR PROPER USE ..................................................................................... 4
2. DISPOSAL INSTRUCTIONS - OUR ENVIRONMENT POLICY ............................................. 5
3. SAFETY PRECAUTION .......................................................................................................... 6
4. INTENDED USE OF THE APPLIANCE ................................................................................... 6
5. KNOW YOUR COOKER .......................................................................................................... 7
6. BEFORE FIRST USE .............................................................................................................. 7
7. USE OF THE HOB .................................................................................................................. 8
8. FRONT CONTROL PANEL ..................................................................................................... 9
9. USE OF THE OVEN .............................................................................................................. 10
10. AVAILABLE ACCESSORIES .............................................................................................. 12
11. CLEANING AND MAINTENANCE ....................................................................................... 13
12. EXTRAORDINARY MAINTENANCE ................................................................................... 15
13. PROBLEMS AND CAUSES ................................................................................................ 16
14. INSTALLATION OF THE APPLIANCE ................................................................................ 17
15. ADAPTATION TO DIFFERENT TYPES OF GAS ............................................................... 20
16. FINAL OPERATIONS .......................................................................................................... 21
Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary instructions for maintaining
unaltered the appearance and functional qualities of the cooker.
INSTRUCTIONS FOR THE USER: these provide recommendations for use, a description of the controls
and the correct procedures for cleaning and maintaining the appliance
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified engineer who is to install,
commission and test the appliance
Contents
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNZ60EVX and is the answer not in the manual?

Questions and answers

Related Manuals for Smeg SNZ60EVX

Summary of Contents for Smeg SNZ60EVX

  • Page 1: Table Of Contents

    1. INSTRUCTIONS FOR PROPER USE ... 4 2. DISPOSAL INSTRUCTIONS – OUR ENVIRONMENT POLICY ... 5 3. SAFETY PRECAUTION ... 6 4. INTENDED USE OF THE APPLIANCE ... 6 5. KNOW YOUR COOKER ... 7 6. BEFORE FIRST USE ... 7 7.

  • Page 2: Instructions For Proper Use

    Instructions for proper use 1. INSTRUCTIONS FOR PROPER USE THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE COOKER.

  • Page 3: Disposal Instructions - Our Environment Policy

    Safety instruction 2. DISPOSAL INSTRUCTIONS – OUR ENVIRONMENT POLICY Our appliances are only packaged using non-pollutant, environment-friendly, recyclable materials. We urge you to cooperate by disposing of the packaging properly. Contact your local dealer or the competent local organisations for the addresses of collection, recycling and disposal facilities. Never leave all or part of the packaging lying around.

  • Page 4: Safety Precaution

    3. SAFETY PRECAUTION ELECTRICAL CONNECTION: PLEASE REFER TO INSTALLATION INSTRUCTION FOR THE GAS & ELECTRICAL SAFETY REGULATIONS AND THE VENTILATION REQUIREMENTS. IN YOUR OWN INTEREST, AND THAT OF SAFETY, IT IS THE LAW THAT ALL GAS APPLIANCES BE INSTALLED AND SERVICE BY COMPETENT PERSONS, WHO WILL COMPLY WITH THE RELEVANT STANDARDS AND REGULATIONS.

  • Page 5: Know Your Cooker

    5. KNOW YOUR COOKER 6. BEFORE FIRST USE Do not leave the packing in the home environment. separate the various waste materials and take them to the nearest special garbage collection centre. The inside of the appliance should be cleaned to remove all manufacturing residues. For further information about cleaning, see section "11.

  • Page 6: Use Of The Hob

    7. USE OF THE HOB 7.1 Lighting of the hob burners Before lighting the hob burners check that the flame caps are in the correct position and that their burner caps are in place, making sure that the holes A in the flame caps correspond to the spark plugs and thermocouples.

  • Page 7: Front Control Panel

    8. FRONT CONTROL PANEL All the cooker controls and commands are on the front panel. ELECTRIC OVEN THERMOSTAT ELECTRIC OVEN FUNCTION KNOB FRONT LEFT BURNER The flame is lit by pressing the knob and turning it anticlockwise to minimum flame .

  • Page 8: Warnings And General Advice

    9. USE OF THE OVEN 9.1 Warnings and general advice Using the oven and the grill for the first time, heat them to the maximum temperature (260°C) for as long as it takes to burn off any production oil residues which could give a nasty flavour to the food. During cooking, do not cover the bottom of the oven with aluminium or tin foil and do not place pans or oven trays on it as this may damage the enamel coating.
  • Page 9 9.4 WARNING • Cooking procedures in this mode must never last more than 60 minutes. • In models with electric oven, the door must be close during grilling and grill-rotisserie cooking. • To avoid dangerous overheating when the oven or the grill is used, the glass cover must always be •...

  • Page 10: Available Accessories

    Instructions for the user 10.AVAILABLE ACCESSORIES The oven has 4 support for positioning plates and racks at various heights. Oven grill: for cooking food on plates, small cakes, roasts or food requiring light grilling. Plate grill: for placing above plate for cooking foods that might drip. Oven plate: useful for catching fat from foods on the grill above.

  • Page 11: Cleaning And Maintenance

    Instructions for the user 11.CLEANING AND MAINTENANCE NEVER USE A STEAM JET TO CLEAN THE APPLIANCE. 11.1 Cleaning stainless steel To maintain stainless steel in good condition clean it regularly after each use, once it has cooled down. 11.2 Ordinary daily cleaning To clean and preserve the stainless steel surfaces, always use only specific products that do not contain abrasives or chlorine-based acids.

  • Page 12: Cleaning Of Oven

    11.5 Cleaning of oven For best oven upkeep clean regularly after having allowed to cool. Take out all removable parts. • Clean the oven grill with hot water and non-abrasive detergent. Rinse and dry. • Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.

  • Page 13: Extraordinary Maintenance

    Instructions for the user 12.EXTRAORDINARY MAINTENANCE The oven may require extraordinary maintenance or replacement of parts subject to wear such as seals, bulbs, and so on. The following instructions describe how to carry out these minor maintenance operations. Before any intervention, disconnect the power supply of the device. 12.1 Lubrication of the taps In time the taps may be difficult to turn or may be blocked.

  • Page 14: Problems And Causes

    12.5 Preventive maintenance This appliance does not need any special maintenance. However, a few simple operations have to be carried out periodically to prevent malfunctioning: Burners: the burners must be cleaned after every use to ensure correct combustion; make sure that all the openings and flame ports are clean and free of obstacles, and that the burners rest firmly on their supports.

  • Page 15: Installation Of The Appliance

    14.INSTALLATION OF THE APPLIANCE It is the law that all gas appliances are installed by authorised persons. Clearance around the cooker must comply with the requirements of AS5601. 14.1 Electrical connection Make sure that the power line voltage matches the specifications indicated on the rating plate located inside the storage compartment.

  • Page 16: Room Ventilation

    Instructions for the user 14.2 Gas connection This appliance is suitable for installation with Natural Gas or LPG (propane). Refer to page 12 for the relevant burner pressure and appropriate injector sizes. When the appliance is to be connected to Natural Gas then the pressure regulator supplied must be fitted to the gas inlet.

  • Page 17: Instructions For The Installer

    However, in no case shall the clearance between the highest part of the hob of the cooking appliance and a range hood be less than 600 mm or, for an overhead exhaust fan, 750 mm. Any other downward facing combustible surface less than 600 mm above the highest part of the hob shall be protected for the full width and depth of the cooking surface area in accordance with Clause 5.12.1.2.
  • Page 18 Instructions for the installer 14.6 Instruction for wall fixing 1 Fasten the two wall brackets to the wall taking care to comply with the centre distances and measurements indicated in the images below. The dimensions are given in mm. A= 262 / B = 168 2 Attach the chain to the cooker 3 Stretch out the chain attached to the cooker horizontally so that the other end touches the wall.

  • Page 19: Adaptation To Different Types Of Gas

    Instructions for the installer 15.ADAPTATION TO DIFFERENT TYPES OF GAS Before performing any cleaning or maintenance work, disconnect the appliance from the mains. The hob of the cooker is adjusted for use with either natural gas at a pressure of 1.0kPa. If used with other types of gas, you have to replace the nozzles, then adjust the minimum flame on the gas taps.
  • Page 20 Instructions for the installer 15.2 Burner and nozzle characteristics table Burner NOMINAL GAS CONSUMPTION (MJ/H) Auxiliary Semi rapid 12.8 Burner NOMINAL GAS CONSUMPTION (MJ/H) Auxiliary Semi rapid 15.0 15.3 Arrangement of the burners on the hob LPG (PROPANE)–2.75 KPA TURN-DOWN GAS CONSUMPTION (MJ/H) NG –1.0 KPA...

  • Page 21: Final Operations

    Instructions for the installer 16.FINAL OPERATIONS After replacing the nozzles, reposition the flame-spreader crowns, the burner caps and the grids. Following adjustment to a gas other than the preset one, replace the gas adjustment label fixed to the appliance with the one corresponding to the new gas. This label is in the packet together with the nozzles.
  • Page 22 914772495/ E...
