1.
INSTRUCTIONS FOR SAFE AND PROPER USE _______________________________4
2.
INSTALLATION OF THE APPLIANCE_________________________________________6
3.
ADAPTATION TO DIFFERENT TYPES OF GAS ________________________________9
4.
FINAL OPERATIONS_____________________________________________________12
5.
DESCRIPTION OF CONTROLS ____________________________________________14
6.
USE OF THE HOB _______________________________________________________16
7.
USE OF THE OVEN______________________________________________________18
8.
ELECTRONIC PROGRAMMER (ONLY ON EQUIPPED MODELS) _________________21
9.
AVAILABLE ACCESSORIES _______________________________________________23
10. CLEANING AND MAINTENANCE ___________________________________________24
11. EXTRAORDINARY MAINTENANCE _________________________________________26
THESE INSTRUCTIONS ARE VALID ONLY FOR THE END USER COUNTRIES WHOSE
IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.
INSTRUCTIONS FOR THE INSTALLER: these are for the qualified technician who must
carry out a suitable check of the gas system, install the appliance, set it functioning and carry
out an inspection test.
INSTRUCTIONS FOR THE USER: these contain user advice, description of the commands
and the correct procedures for cleaning and maintenance of the appliance.
Contents
3
Advertisement
Table of Contents
Related Manuals for Smeg SSA91MFA
Summary of Contents for Smeg SSA91MFA
-
Page 1: Table Of Contents
INSTRUCTIONS FOR SAFE AND PROPER USE _______________________________4 INSTALLATION OF THE APPLIANCE_________________________________________6 ADAPTATION TO DIFFERENT TYPES OF GAS ________________________________9 FINAL OPERATIONS_____________________________________________________12 DESCRIPTION OF CONTROLS ____________________________________________14 USE OF THE HOB _______________________________________________________16 USE OF THE OVEN______________________________________________________18 ELECTRONIC PROGRAMMER (ONLY ON EQUIPPED MODELS) _________________21 AVAILABLE ACCESSORIES _______________________________________________23 10. -
Page 2: Instructions For Safe And Proper Use
Introduction 1. INSTRUCTIONS FOR SAFE AND PROPER USE THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE USING THE COOKER. - Page 3 Introduction DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH THE HEATING ELEMENTS INSIDE THE OVEN. DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE OUTER PERIMETER OF THE HOB. THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO GO NEAR OR PLAY WITH IT.
-
Page 4: Installation Of The Appliance

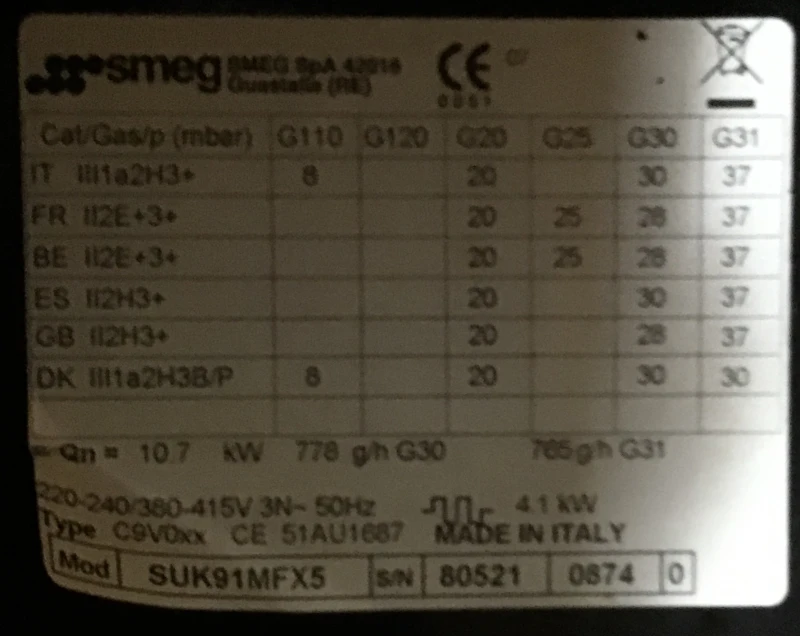

Instructions for the installer 2. INSTALLATION OF THE APPLIANCE It is the law that all gas appliances are installed by competent persons. Corgi gas installers are approved to work to safe and satisfactory standards. All gas installation, servicing and repair work must be in accordance with the gas safety regulations 1984 (installation and use) as amended 1990. - Page 5 Instructions for the installer 2.1 Electrical connection Make sure that the power line voltage matches the specifications indicated on the rating plate located inside the storage compartment. This rating plate must never be removed. If the appliance is connected to the supply by means of a fixed connection, install a multipolar cut-out device on the line, with contact opening distance equal to or greater than 3 mm, located near the appliance and in an easily reachable position.
- Page 6 Instructions for the installer 2.3 Connecting to natural and LPG gas FOR THE GAS CONNECTION, SEE THE TYPE OF APPLIANCE SUPPLY TUBE • Free hexagonal connector Make the connection to the appliance using flexible bayonet style hose in accordance to B.S. 669. The hose connection at the rear of the appliance has a ½”...
-
Page 7: Adaptation To Different Types Of Gas
Instructions for the installer 3. ADAPTATION TO DIFFERENT TYPES OF GAS Before performing any cleaning or maintenance work, disconnect the appliance from the mains. The cooker hob is preset for natural gas G20 (2H) at a pressure of 20 mbar. In the case of operation with other types of gas the burner nozzles must be changed and the minimum flame adjusted on the gas taps. - Page 8 Instructions for the installer 3.2 Burner and nozzle characteristics table (Mod. 90 cm.) Rated Burner heating capacity (kW) Auxiliary Semi rapid Rapid Triple crown Rated Burner heating capacity (kW) Auxiliary Semi rapid Rapid Triple crown 3.3 Arrangement of the burners on the hob (Mod. 90 cm.) LPG –...
- Page 9 Instructions for the installer 3.4 Burner and nozzle characteristics table (Mod. 60 cm.) Burner Rated heating capacity (kW) Auxiliary Semi rapid Triple crown Burner Rated heating capacity (kW) Auxiliary Semi rapid Triple crown 3.5 Arrangement of the burners on the hob (Mod. 60 cm.) LPG –...
-
Page 10: Final Operations
Instructions for the installer 4. FINAL OPERATIONS After replacing the nozzles, reposition the flame-spreader crowns, the burner caps and the grids. Following adjustment to a gas other than the preset one, replace the gas adjustment label fixed to the appliance with the one corresponding to the new gas. This label is in the packet together with the nozzles. - Page 11 Instructions for the installer 4.4 Wall fixing • Stretch out the chain attached to the cooker horizontally so that the other end touches the wall. • Mark the wall in the position where the hole is to be drilled. • Drill the hole, insert a wall plug and attach the chain.
-
Page 12: Front Control Panel
Instructions for the installer 5. DESCRIPTION OF CONTROLS 5.1 Front control panel All the cooker controls and commands are on the front panel. If the cooker is equipped with an electronic programmer, before using the oven make sure that the symbol ;... -
Page 13: Variable Grill Knob
Instructions for the user VARIABLE GRILL KNOB This allows to vary heat intensity when cooking with the grill. The knob can be set with continuity between “0” and the stop release position, which corresponds to maximum heat. ELECTRIC OVEN CONTROL KNOB Each of the functions listed below can be used (except the oven light and the small grill) only together with the correct temperature thermostat regulation as described... -
Page 14: Use Of The Hob
Instructions for the installer 6. USE OF THE HOB 6.1 Lighting of the hob burners Before lighting the hob burners check that the flame caps are in the correct position and that their burner caps are in place, making sure that the holes A in the flame caps correspond to the spark plugs and thermocouples. - Page 15 Instructions for the user 6.3 Diameter of the vessels to be used on each burner BURNERS Auxiliary Semi rapid Rapid Triple crown Ø min. and max. (in cm) 12-14 16-24 18-26 18-26...
-
Page 16: Use Of The Oven
Instructions for the installer 7. USE OF THE OVEN For the models with electronic programmer, before using the oven make sure that the display shows the symbol 7.1 Warnings and general advice Using the oven and the grill for the first time, heat them to the maximum temperature (260°C) for as long as it takes to burn off any production oil residues which could give a nasty flavour to the food. -
Page 17: Rotisserie In Cookers With Maxi Oven
Instructions for the user 7.2.2 Using the rotisserie in cookers with maxi oven Fit the supporting frame onto the second runner up from the bottom so that the seat to take the rod projects outside the oven. Place the rod as shown in the diagram (1) and push the frame into the oven until the end of the rod reaches the hole in the rotisserie motor. - Page 18 Never store inflammable materials such as rags, paper or the like. The compartment is intended only for holding the metal accessories of the range. The inside of the compartment becomes very hot during operation of the oven: turn off the oven and let it cool down before opening the compartment door.
-
Page 19: Electronic Programmer (Only On Equipped Models)
Instructions for the user 8. ELECTRONIC PROGRAMMER (ONLY ON EQUIPPED MODELS) LIST OF FUNCTIONS MINUTE-COUNTER KEY COOKING TIME KEY END-OF-COOKING KEY DECREASE TIME KEY INCREASE TIME KEY 8.1 Clock adjustment When using the oven for the first time, or after a power failure, the display flashes regularly and indicates . -
Page 20: Minute Counter
Instructions for the installer 8.4 End of cooking When cooking is over, the oven will automatically switch off and, at the same time, an intermittent alarm will sound. After switching off the alarm, the display will once again show the right time together with the symbol , indicating that the oven has returned to manual operation mode. -
Page 21: Available Accessories
Instructions for the user 9. AVAILABLE ACCESSORIES The oven has 4 support for positioning plates and racks at various heights. Oven grill: for cooking food on plates, small cakes, roasts or food requiring light grilling. Plate grill: for placing above plate for cooking foods that might drip. -
Page 22: Cleaning And Maintenance
Instructions for the installer 10. CLEANING AND MAINTENANCE 10.1 Cleaning stainless steel and enamelled versions To maintain stainless steel in good condition clean it regularly after each use, once it has cooled down. 10.1.1 Ordinary daily cleaning To clean and preserve the stainless steel surfaces, always use only specific products that do not contain abrasives or chlorine-based acids. - Page 23 Instructions for the user 10.3 Cleaning of oven For best oven upkeep clean regularly after having allowed to cool. Take out all removable parts. • Clean the oven grill with hot water and non-abrasive detergent. Rinse and dry. • Do not allow residues of sugary foods (such as jam) to set inside the oven. If left to set for too long, they might damage the enamel lining of the oven.
-
Page 24: Extraordinary Maintenance
Instructions for the installer 11. EXTRAORDINARY MAINTENANCE The oven may require extraordinary maintenance or replacement of parts subject to wear such as seals, bulbs, and so on. The following instructions describe how to carry out these minor maintenance operations. Before any intervention, disconnect the power supply of the device. 11.1 Replacement of light bulb Remove cover A by twisting anticlockwise, replace bulb B with another similar bulb (25 W).
