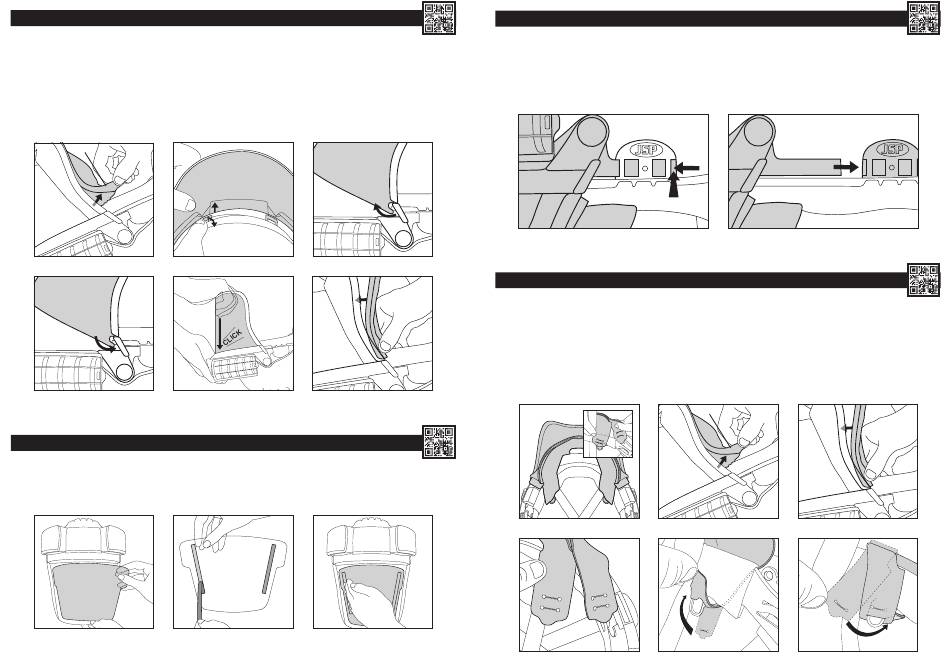

REMOVING & REPLACING THE VISOR: (Care should be taken to avoid scratching the visor surfaces during fitting)
1. Remove the visor. Pull the seal skirt out of its locating channel. Start the removal from either end. DO NOT PULL FROM THE MIDDLE.
2. Unhook one of the locking tabs inside the front of the visor carrier. Pull the front of the visor clear of the locking tab. Repeat for the locking tab on
the other side.
3. Release the rear visor hooks from the rear of the visor carrier. Dispose of used visor in accordance with local legislation.
4. Replace the visor. Hook the tabs at the rear of the visor into the rear of the visor carrier.
5. Push the front of the visor down until the locking tabs are fully located.
6. Place one end of the sealing strip into the top of the channel at the rear of the visor with the rubber blade outwards and progressively push the seal
strip into the channel right round to the other end.
SKIRT
1 2
VISOR
4 5
VISOR
REMOVING & REPLACING THE VISOR COVER:
1. Peel used visor cover from visor. Dispose of used visor cover in accordance with local legislation.
2. Peel backing tape from either side of the new visor cover.
3. Position visor cover centrally, using the side of the hand, smooth visor cover on to visor and press adhesive tape in place. Repeat for the other side.
1 2
3
VISOR VISOR
6
VISOR
3
10
REMOVING & REPLACING THE DRIVE UNIT & VISOR CARRIER ASSEMBLY:
See Battery & Airflow Check, Removing & Replacing Filters, Removing & Replacing the Visor and Removing & Replacing the Face-Seal Skirt
sections to remove the battery cable, filters, visor and skirt.
1. To release the visor carrier, press the rear of the visor side arms on both sides of the helmet towards the helmet shell and slide forwards.
2. When replacing the drive unit & visor carrier assembly, simply slide the visor side arms back into the visor carrier adaptors on both sides of the helmet.
Dispose of used drive unit & visor carrier assembly in accordance with local legislation.
1
REMOVING & REPLACING THE FACE-SEAL SKIRT:
1. Remove the face-seal skirt. Unhook the four inner and outer skirt loops from the harness mounting points inside the helmet.
2. Pull the seal skirt out of its locating channel. Start the removal from either end. DO NOT PULL FROM THE MIDDLE. Dispose of used seal skirt in
accordance with local legislation.
3. Replace the face-seal skirt. Place one end of the new sealing strip into the top of the channel at the rear of the visor with the rubber blade outwards
and progressively push the seal strip into the channel right round to the other end.
4. Locate both the outer and inner set of skirt loops at one end of the sealing skirt.
5. Feed the outer set of skirt loops behind the harness inside the helmet. Hook the loops over the harness mounting points inside the helmet.
6. Hook the inner set of skirt loops over the harness mounting point and outer loops. Repeat with the loops on the other end of the sealing skirt.
1 2
SKIRT LOOPS
4 5
INNER LOOP OUTER LOOP
2
SKIRT
3
VISOR
VISOR
6
