D4T/D4R

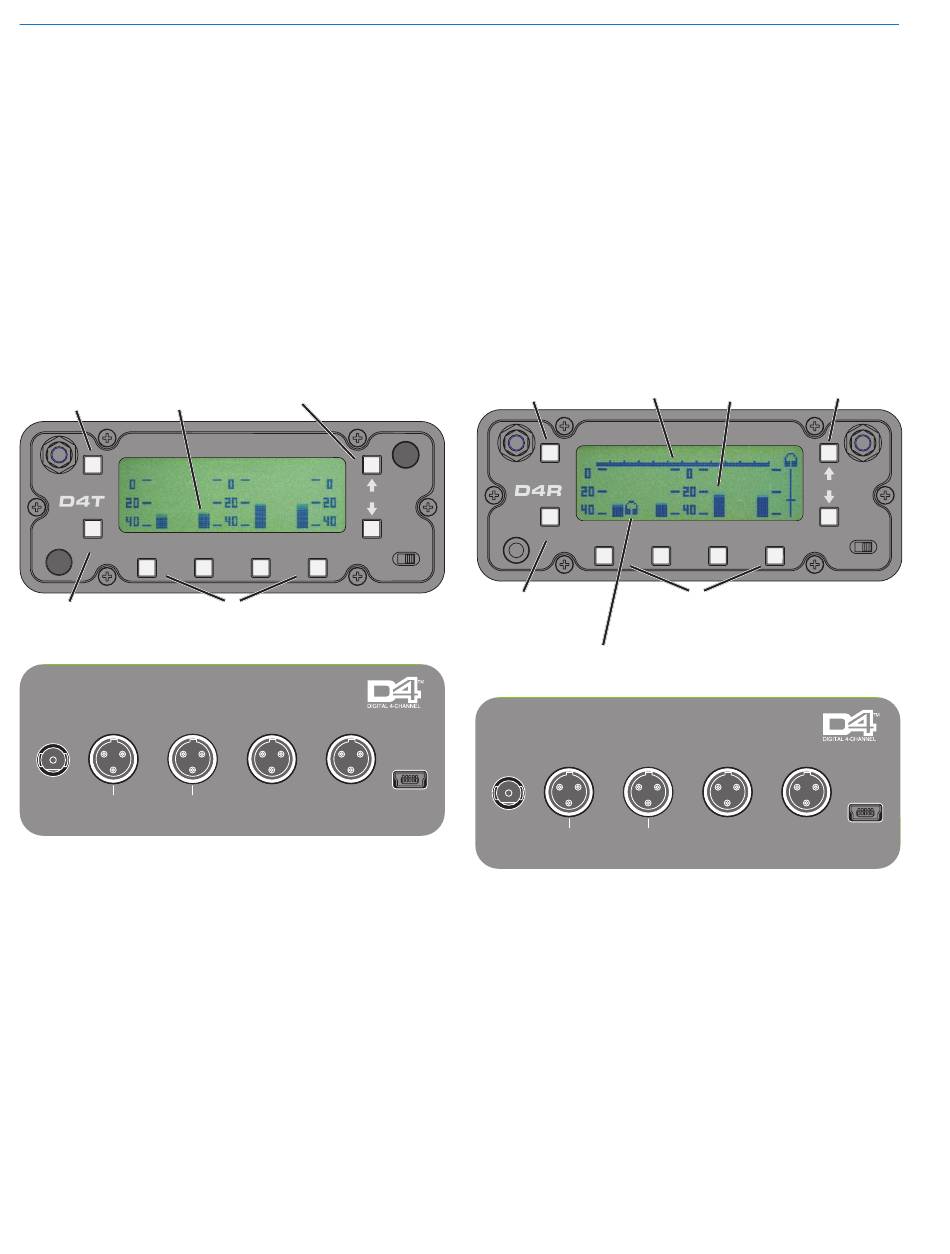

Front and Rear Panels
Setup and operation of the transmitter and receiver is
a straightforward process using an LCD and push but-
ton interface on the front panels. The Main Window dis-
plays audio levels during operation, with a setup menu
and screens to select operating modes and levels.
The rear panels provide the audio inputs and outputs,
power receptacle and USB port. Channels 1 and 2
provide balanced analog signals and AES-EBU digital
signals as selected from the LCD setup screens.
Channels 3 and 4 are balanced analog audio only. The
connectors are standard TA3M type.
D4T Transmitter
Press to Enter
Audio
Setup Menus
Level
DIGITAL 4 CHANNEL TRANSMITTER
FUNC
BACK
1
Return to
Channel Select 1-4
Previous
Menu
D4T 4-CHANNEL DIGITAL TRANSMITTER
1
2
9-16 VDC
500 mA
AES 1/2
AES 3/4
6
Menu Item &
Parameter Select
2
3
4
OFF
3
4
The units are powered with an external source of 9 to
16 VDC, with power consumption of 500 mA for the
transmitter and 250 mA for the receiver.
The USB port is used for firmware updates.
D4R Receiver
Press to Enter
Setup Menus
FUNC
PHONES
BACK
ON
Return to
Previous
Menu
Channel selected
for headphone
monitoring
1
9-16 VDC
300 mA
USB
AES 1/2
Incoming
Audio
RF level
Level
DIGITAL 4 CHANNEL RECEIVER
1
2
3
Menu Item/Parameter
Channel
Select 1-4
D4R 4-CHANNEL DIGITAL RECEIVER
2
3
AES 3/4
LECTROSONICS, INC.
Menu Item &
Parameter Select
4
OFF
ON
Select Buttons
4
USB
