D4T/D4R

General Technical Description

D4T Transmitter

The transmitter can accept up to four inputs from digi-
tal or analog sources. Inputs 1 and 2 are selectable be-
tween two digital channels each or 1 balanced analog
channel each and inputs 3 and 4 can each accept a
single balanced analog signal.
The inputs can be configured as follows:
• Four balanced analog inputs using all four jacks
• Two digital channels using jack 1 and two bal-
anced analog inputs using jacks 3 and 4
• Four digital channels using jacks 1 and 2
The input connectors are TA3 "mini XLR" types with
the same pin numbering and configuration as standard
XLR connectors for AES-EBU and balanced line level
analog signals.
Input preamp circuits use a special balanced amplifier
with very high common mode rejection to minimize
hum and noise.

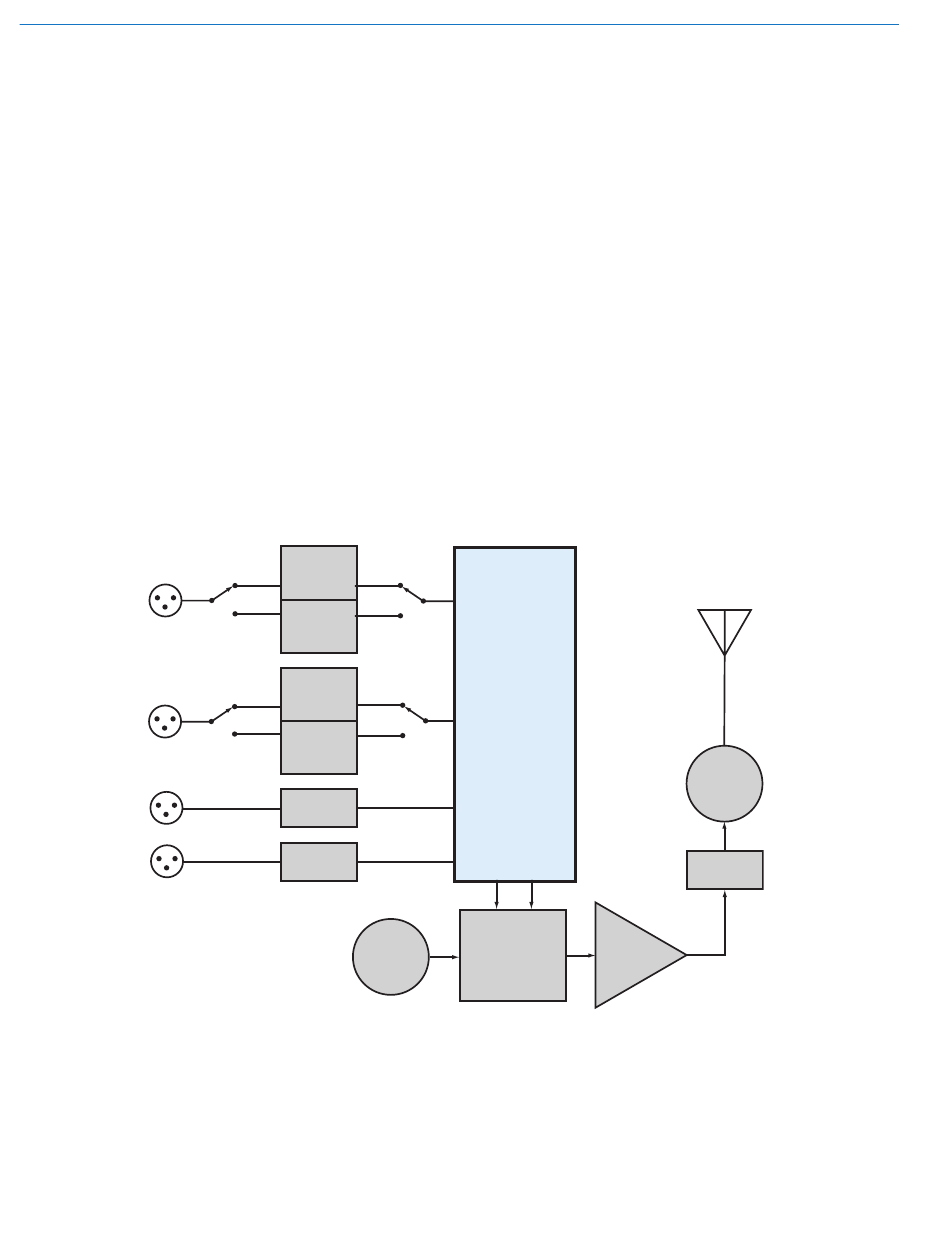

1
TA3F
INPUTS
2
3
4
4
24-bit D/A
(analog)
AES/EBU
OUT
(digital)
24-bit D/A
(analog)
AES/EBU
OUT
(digital)
24-bit D/A
(analog)
24-bit D/A
(analog)
OSC
900 MHz
Analog input signals are sampled at 48kHz and con-
verted to 24-bit digital audio and fed into the FPGA
for further processing. The FPGA applies a spreading
algorithm to expand the bandwidth of each channel
to 4,2 MHz to improve immunity to interference and
noise. The baseband signal is then delivered to the
D-A to generate the I and Q signals for final output.
The modulated signal is filtered before and after the
RF amp to suppress out of band noise and spurious
signals. A circulator/isolator is used in the final RF
output to minimize IM that can occur when external
signals enter the output stage through the antenna.
The isolator passes the transmitter output signal to the
antenna but shunts returning signals to ground.
A USB port is provided to simplify firmware updates.
DIGITAL
BASEBAND
ENCODER
RF
POWER
DEMOD
AMP
CIRCULATOR
ISOLATOR
FILTER
