RE 91 401/09.00 | A2FO

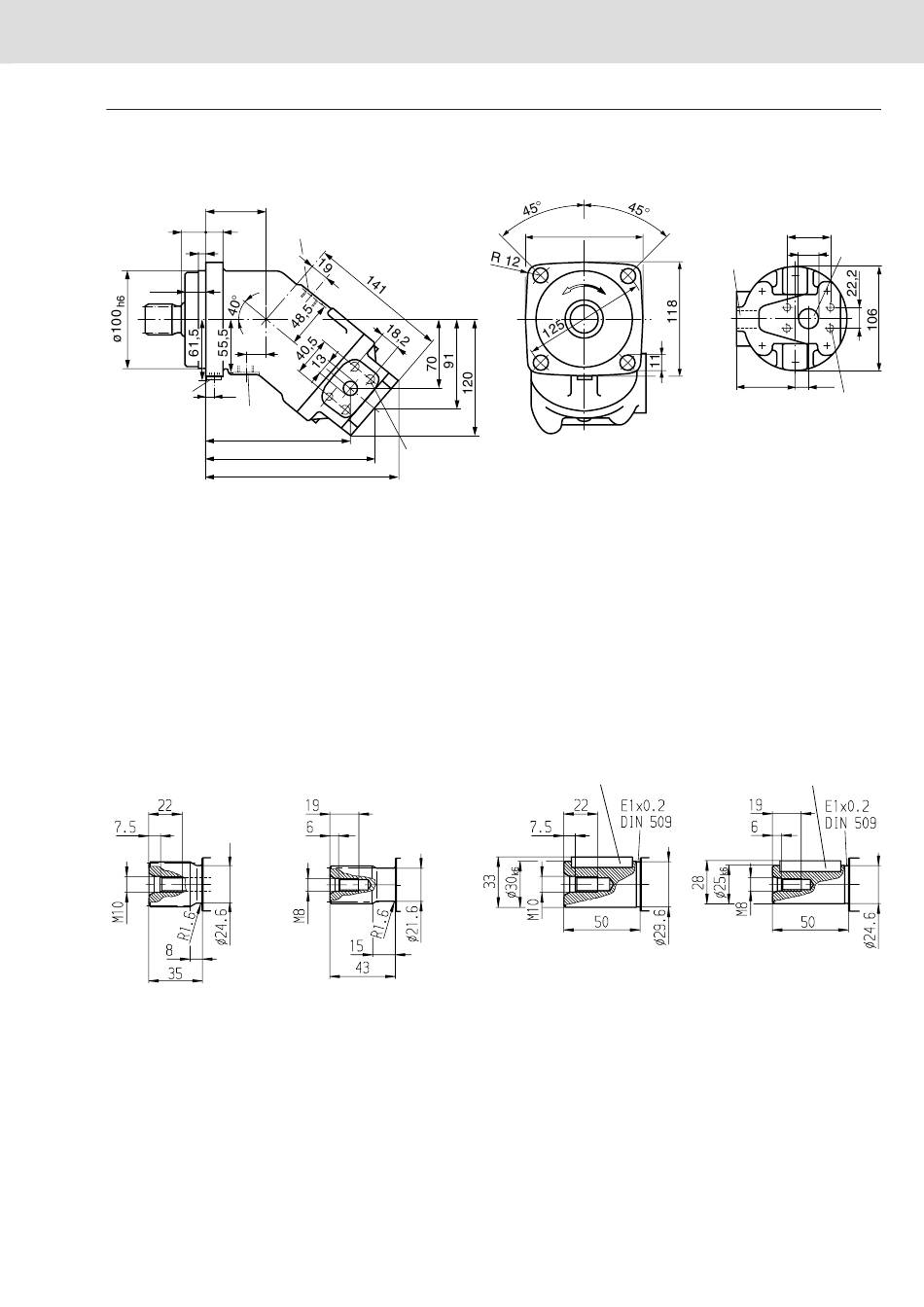

Unit Dimensions, Sizes 23, 28, 32

60,7
25
18
8
23,2
19
R
9
T
2
144
Shaft ends
Sizes 23, 28, 32
A Splined shaft, DIN 5480
W 30x2x30x14x9g
p = 400 bar
N
T
1
169
M8; 15 deep
193
Sizes 23, 28
Z Splined shaft, DIN 5480
W 25x1,25x30x18x9g
p = 400 bar
N
Mobile Hydraulics | Bosch Rexroth AG
Before finalising your design, please request a certified drawing.
118
Connections
B(A) Service line ports
420 bar (6000 psi) high pressure series
S Suction port
350 bar (5000 psi) standard series
T ,T Drain port (1 port plugged)
1 2
R Air bleed (plugged)
Sizes 23, 28, 32
B Parallel shaft with key,
AS 8x7x40, DIN 6885
p = 350 bar
N
9/20
Note:
For anti-clockwise rotation port
plate is rotated through 180º
47,6
19
S
B (A)
60 14
M10; 17 deep
SAE 1/2"
SAE 3/4"
M16x1,5
M10x1
Sizes 23, 28
P Parallel shaft with key,
AS 8x7x40, DIN 6885
p = 350 bar
N
