ELECTRONIC ENGINEERING LTD.
Outdoor Double Optics PIR +
Outdoor Double Optics PIR +
Outdoor Double Optics PIR +
Outdoor Double Optics PIR +
MW detector with Pet immune
MW detector with Pet immune
MW detector with Pet immune
MW detector with Pet immune
alarm shop
EDS- - - - 3000
EDS
EDS
EDS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
USER MANUAL
USER MANUAL
USER MANUAL
USER MANUAL
3000
3000
3000
& & & &
1
P/N 7101691 Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crow EDS-3000
Summary of Contents for Crow EDS-3000
- Page 1 ELECTRONIC ENGINEERING LTD. EDS- - - - 3000 3000 3000 3000 Outdoor Double Optics PIR + Outdoor Double Optics PIR + Outdoor Double Optics PIR + Outdoor Double Optics PIR + MW detector with Pet immune MW detector with Pet immune MW detector with Pet immune MW detector with Pet immune INSTALLATION INSTRUCTIONS...
- Page 2 alarm shop...
-
Page 3: Table Of Contents
General............................5 Features ............................ 5 Assembly description......................... 6 Detection Pattern........................7 Selecting mounting location....................... 8 Detector Installation........................9 Terminal Block Connections....................11 Wire Size Requirements....................11 Settings & Adjustments ......................12 Detection beam direction....................12 Detection range setting ....................12 alarm shop Sensitivity, Range and Pet immune Adjustment............... - Page 4 alarm shop...
-
Page 5: General
The EDS-3000 is designed to protect large areas and can easily be installed on walls in order to provide a solid protection of the area while rejects interferences from birds and small animals due to “PET MASK”... -
Page 6: Assembly Description

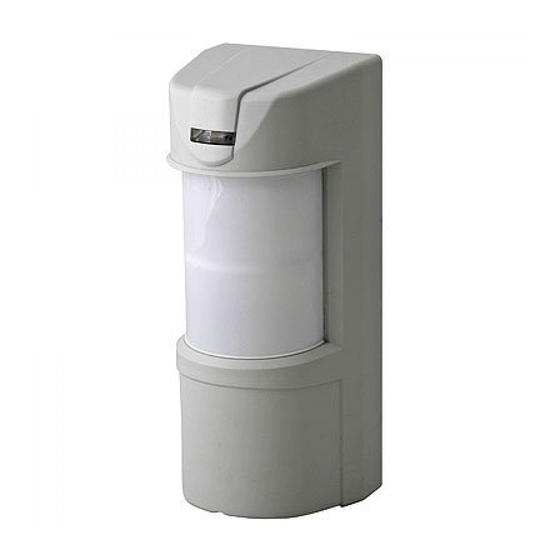

Assembly description The EDS-3000 is a robust detector which includes big indication led prism that can be easily observed from long distance. Having a back metal bracket, the EDS-3000 can be easily mounted to walls and poles using mounting screws or metal bands (supplied). -
Page 7: Detection Pattern
Detection Pattern The EDS-3000 has a 90° top view PIR and MW detection pattern with over 18m (59 ft) detection distance (when installed at 1.2m (4 ft) above the ground surface). The EDS-3000 has an internal rotating housing (which includes the 2 PIR elements and the MW) that can be adjusted horizontally, so its 90°... -
Page 8: Selecting Mounting Location
The bracket provides EDS-3000 installation on a wall or pole. The wall or pole should be leveled. Choose a location most likely to intercept an intruder according to detection pattern on page 6. -
Page 9: Detector Installation
Detector Installation Important! Prior to installation, read both “Operation” and “Selecting the mounting location” sections carefully. 1. Install the detector in such manner that the intruder 2. The detector is to be installed at height of 0.8 to 1.5 is most likely to cross the detection area from side to meter (2.6 to 4.9 ft) side. - Page 10 9. Break the relevant rear knockouts on plastic base 10. Attach the sealing “U” shaped Sponge Pad to the rear side for your installation and slide the wires from wire opening from the rear side after the wires the outside via the paths and knockout to the internal connection and prior to final product affixing to the side of the detector.
-
Page 11: Terminal Block Connections
Terminal Block Connections Terminal 1 - Marked “-” (GND) - Connect to the ground of the CP. Terminal 2 - Marked “+” (+12V) - Connect to a positive Voltage of 9.6 -16Vdc source (usually from the alarm CP) Terminals 3 & 4 - Marked “TAMP” - If a Tamper function is required connect these Terminals to a 24-hour normally closed protective zone in the CP. -
Page 12: Settings & Adjustments
8.2 Detection range setting alarm shop The EDS-3000 detection range may vary between 3m and 18m (10 ft to 59 ft), while installed on 1.2m (4 ft) height above the ground surface. Changing the detection range is achieved by sliding the upper detection element up or down. -
Page 13: Sensitivity, Range And Pet Immune Adjustment
8.3 Sensitivity, Range and Pet immune Adjustment The calibration of range and sensitivity is performed by single digital 16 position rotary switch. There are 3 groups of switch setting according to detection range. Each group is divided to several levels of sensitivity according to installation environment. The sensitivity is determined by a rotating switch (16 positions). -
Page 14: Indications Setting
Buzzer ON alarm shop Factory default setting Factory default setting The EDS-3000 has two types of indications: 1. LED 2. Buzzer The installer may determine both indications’ operation during detection (ON or OFF) by using switch number “1” for the buzzer and switch number “2” for the LED. -
Page 15: Operation
• Place the top cover to the base and close it using the bottom screw. Operation Note! Connect the EDS-3000 to a positive Voltage output of 9.6 -16VDC source. Use only a listed power limited source. alarm shop The detector shall be provided with minimum of 4 hours of standby power from either a listed compatible control unit or power supply. -
Page 16: Test Procedure
10 Test procedure Walk Test Allow 2 minutes of warm up time. Make sure that the protected area is cleared of all people. Start walking across the detection zone. Listen to ALARM sound whenever motion is detected (the red LED also turns ON whenever motion is detected). -
Page 17: Specifications
11 Specifications Detection Method Double PIR AND MW Microwave Frequency 24.125 GHz Power Input 9.6 to 16Vdc Active: 24mA (±5%) Current Draw Standby: 21mA (±5%) Temp Compensation Yes, Dual slop temperature compensation Alarm Period 2 sec (±0.5sec) Form C (NC, NO, Common) Alarm Outputs 28Vdc 0.1 A with 10 Ohm Two Switches... - Page 18 alarm shop...
- Page 19 There are no warranties, expressed or implied, of merchantability or fitness for a particular purpose or otherwise, which extend beyond the description on the face hereof. In no case shall CROW be liable to anyone for any consequential or incidental damages for breach of this or any other...
- Page 20 ELECTRONIC ENGINEERING LTD. ISRAEL: Crow Electronic Engineering Ltd. 12 Kineret St. Airport City P.O. Box 293, Ben Gurion Airport, 70100 Tel: +972-3-9726000 Fax:+972-3-9726001 E-mail: support@crow.co.il USA: 2160 North Central Road, Fort Lee, N.J. 07024 Tel: 1-800-GET CROW (201) 944 0005...
