- Page 1 ELECTRONIC ENGINEERING LTD. TEL : + 972 3 556 99 37 FAX: + 972 3 559 29 81 www.thecrowgroup.com support@crow.co.il CS47 GSM PHONE LINE BACKUP User Guide V1.00 REV. A SOFTWARE VERSION 1 12/07/04...
-
Page 2: Table Of Contents
....................16 communication with the unit................. 16 File Options ......................17 Using the CS47 after it was installed ..............18 Sending SMS Messages ..................18 Output operation by SMS..................18 Activating and Deactivating the System ..............19 Changing the User Password ................ -
Page 3: Introduction

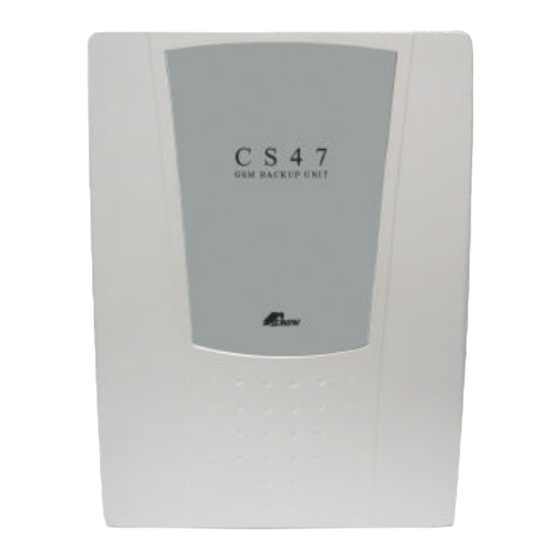

1 INTRODUCTION The CS-47 is a cellular backup to PSTN phone line system. When connected to an alarm control panel, the CS-47 operates as a GSM back up unit to a PSTN line, enabling to re-direct incoming and outgoing calls to the GSM network in case of regular phone line failure. 1.1 General Specification: •... -
Page 4: Password Protection
1.6 SMS support The CS-47 support programmable SMS messages, the messages are programmed by Crow PC software and downloaded to the system by a D- Link cable. The system support multi language SMS messages 1.7 Inputs The CM-18 offers 4 digital inputs. -
Page 5: Connecting The Cs-47
2 Connecting the CS-47 TEL-OUT: phone line output supplied to an external system, RJ11 connector or terminal block TEL-IN: PSTN phone line input (main phone line), RJ11 connector or terminal block Main power supply: 13.8 VDC supplied by external power source or panel Battery: 12V / 1.3A Antenna: dual band GSM antenna. -
Page 6: Pc Software
3.2 Software installation To install the configuration program, perform the following steps: 1. From the CD that comes with the CS47 package, double -click the setup file. 2. Follow the steps in the setup wizard to select the required location on the... -
Page 7: Configuration Of The Cs-47 Unit
1. Local configuration – using crow graphical interface (PC software), connecting via D-link cable 2. Local configuration – using crow DTU board, in order to use the DTU board the configuration must be load to the board before the installation from a programmed CS47 unit 3. -
Page 8: Configuring System Inputs
3.3 Configuring system inputs 3.3.1 Defining Input Telephone Numbers The Mobile Bridge allows the definition of up to four telephone numbers per system input. SMS messages concerning the state of the relevant input are sent to these numbers. To define the telephone numbers for each input, perform the following steps: 1. -
Page 9: Defining Sms Messages For Inputs
3.3.2 Defining SMS Messages for Inputs The Mobile Bridge allows the definition of different SMS messages to be sent, depending on the state of the input. For this reason,the Message area of the Input window contains two Message fields.These fields correspond to the two possible states of an input, which are as follows: •... -
Page 10: Configuring System Outputs
3.4 Configuring System Outputs The CS-47 allows the configuration of up to four output devices. The configuration procedure for each output device includes defining the normal status of each device. An output can be activated in two different ways: Locally – activate an output when an input is triggered. defined in the input page By SMS –... -
Page 11: Triggering The System
Note: The user password must consist of four characters. 3.Select the Enable checkbox for the first output to be defined.( “Enable SMS Control”) 4.Select the normal state of the output. Options are: NO – normally open: the output device is normally enabled NC –... - Page 12 4.Select Trigger Confirmation as relevant. If it is selected, continue to Step 5 (to define the Phone Number field). If it is not selected, go to Step 8 (to define the audible alarm). 5.In the Phone Number field, enter the phone number to which an SMS will be sent confirming that the System has been triggered on or off.
-
Page 13: Configuration Of The Miscellaneous Page
3.6 Configuration of the miscellaneous page 3.6.1 Configuration of the “ low power” message : In the Low Power area, define the parameters of the SMS message that is sent if System power drops below 9.5 volts: Select the Enable checkbox. In the Phone number field, enter the phone number to which the SMS message will be sent. -
Page 14: Configuration Of The "Phone Line " Area
Note: In order to receive messages as defined in the System OK area, the user must send the Program Password to the system. This means that only a user with the System Administrator password may activate such messages. a. Select the relevant option for sending messages. There are three possible configurations: •... -
Page 15: Add Prefix Number
3.6.4 Add prefix number In case the external application dials to a phone number in the same area code it doesn’t uses a prefix number, you can have a problem since the unit dials from a cellular line and needs the prefix number. So when the number doesn’t start with a zero the unit understand that there is a prefix missing and will automatically add the programmed prefix. -
Page 16: Communication Page
3.7 Communication page 3.7.1 cellular dial prefix In this area you can select a prefix number for a cheaper call routing. When the unit detect the prefix number that was programmed in this field the unit will direct the call to the GSM line although a PSTN line is connected. -
Page 17: File Options
Save File – to save the current configuration for later use. • From CS47 – uploads a file from the CS47 to the local computer. These buttons appear at the bottom of each window in the user interface. After configuring the System parameters as required, select the relevant... -
Page 18: Using The Cs47 After It Was Installed
4 Using the CS47 after it was installed 4.1 Sending SMS Messages With the CS47, it is possible to send SMS messages to four different output devices, to turn the devices on or off. Note: It is only possible to send messages if the system has been so configured. -
Page 19: Activating And Deactivating The System
Example: acac1n In this example, acac is the user password,1 is the outp ut number, and n turns the output on. 4.3 Activating and Deactivating the System Users can activate or deactivate the Mobile Bridge in one of two ways: §...
