Festo CMMO-ST-C5-1-LKP Original Instructions

CMMO-ST-C5-1-LKP
Brief description
Original: de

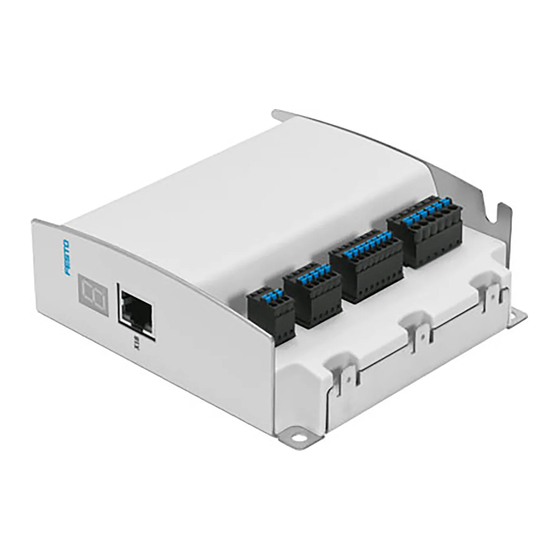

Motor controller CMMO-ST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Translation of the original instructions
The complete documentation for the motor controller CMMO-ST can be
found in the Support Portal è www.festo.com/sp.
This brief description is intended solely for initial information. The complete de­
scription includes the following documents:
Designation Table of contents
Brief description Brief equipment and functional description of the motor controller
1)
CMMO-ST-LK... for initial information
Manual Equipment and functional description of the motor controller:
GDCP-CMMO-ST-LK-SY-... – Mounting
– Commissioning via web server/Festo Configuration Tool (FCT)
– Diagnostics
– Technical data
Manual Description of the control and parameterisation of the motor
GDCP-CMMO-ST-LK-C-HP-... controller via the FHPP device profile (Festo Handling and Posi­
tioning Profile) via IO-Link, I-Port or Modbus TCP
Description Use of the STO safety function ("Safe Torque Off ")
GDCP-CMMO-ST-LK-S1-...
Help system for the FCT Complete description of parameterisation and commissioning
software with the FCT (Festo Configuration Tool).
– Configured drives (Festo Motor with axis)
– Positioning systems in the Optimised Motion Series OMS (axis/
motor units from Festo)
Special documentation Requirements for operating the product in the USA and Canada in
1)
CMMO-ST_U L accordance with certification by Underwriters Laboratories Inc.
(UL).
1) The documentation is enclosed in printed format.
Fig. 1 Documentation on the CMMO-ST
1 Safety
• Observe the safety instructions and warnings in the documentation of the motor
controller and the documentation of the other components used.
• Before mounting and installation work: Switch off the supply voltage. Secure
against accidental reactivation. Only switch on the supply voltage again when
mounting and installation work is complete.
• Never remove or insert a plug connector when the motor controller is powered.
• Observe the handling specifications for electrostatically sensitive devices.
• Only enable the controller if the drive has been professionally installed and fully
parameterised.
• Do not perform any repairs on the motor controller. In the event of a defect:
Replace the complete motor controller.
Warning
Serious injury or damage to components as a result of collisions.
• Make sure that there are no objects in the positioning range while the system
is connected to a source of electric power.
• Make sure that nobody is in, or is able to reach into, the operating area of the
connected actuators.
• Secure the danger zone through suitable safeguarding measures, e.g. guards
and warnings.
Personal injury and material damage.
Falling loads in the event of a voltage failure or disconnection of the power sup­
ply when installing the drive in an inclined or vertical position.
• Secure loads through external safety measures (e.g. toothed latches or mov­
able bolts).
Festo AG & Co. KG
Postfach
73726 Esslingen
High temperatures on the housing surfaces.
Germany
Touching the surface may cause a person to be startled and react in an uncon­
+49 711 347-0
trolled manner, with subsequent damages.
www.festo.com
• Protect the motor controller to prevent accidental touching.
• Inform operating and maintenance staff about any potential hazards.
8043635
• Before touching the product, e.g. for mounting or installation: Allow the motor
1507NH
controller to cool down to room temperature.
[8043613]
1.1 Intended use of the CMMO-ST
The intended use of the CMMO-ST is to control the following drives with 2-phase
step motors from Festo:
– Positioning systems in the Optimised Motion Series (OMS) with axis/motor units
from Festo
English
– Configured drives (rotary/linear):
– Axes from Festo e. g. EGC, DNCE, DGE
– User-defined axes
• Observe the specified standards as well as the regulations of the trade associa­
tions, the German Technical Control Board (TÜV), the VDE regulations or the
relevant national regulations.
• Observe the limit values for all additional components (e.g. sensors, actuators).
Use the CMMO-ST only as follows:
– In perfect technical condition
– in its original condition, without unauthorised modifications
– within the limits of the product defined through the technical data
– within the specified service life of the switching elements for the safety function
– as an installed device in a control cabinet
Use outside this control cabinet is possible provided that all plug connectors are
connected or are sealed with protective caps.
1.2 Intended use of the STO function
The STO function ("Safe Torque Off ") according to EN 61800-5-2 is intended to
disconnect the torque from a motor that is connected to the CMMO-ST. The STO
function prevents an unexpected start-up of the connected motor. The STO functi­
on should only be used for applications in which the specified safety characteri­
stics suffice.
Safety characteristics
The STO function of the CMMO-ST fulfils the requirements for the following safety
characteristics:
– PL e/Cat. 3 according to EN ISO 13849-1
– SIL 3 according to EN 61800-5-2
– SIL CL 3 according to EN 62061
The achievable safety level depends on the other components used to implement
the safety function.
To protect against unintended motor start-up, the motor controller must be ac­
tivated via the connection [X3] with the category required for the application ac­
cording to EN ISO 13849-1, e.g. via an external safety switching device.
Qualification of specialists (personnel requirements)
The product may only be placed in operation by a qualified electrotechnician who
is familiar with:
– installation and operation of electrical control systems
– the applicable regulations for operating safety-engineered systems
– the applicable regulations for accident prevention and occupational safety
– the documentation for the product
Diagnostic coverage (DC) for the safety function
Diagnostic coverage depends on the interconnection of the motor controller with
the control loop system as well as the implemented diagnostics measures.
If a potentially dangerous malfunction is recognised during the diagnostics, appro­
priate measures must be taken to maintain the safety level.
The motor controller cannot detect a cross circuit in the input circuit by itself.
• If required, use a safety switching device with cross-circuit detection.
Caution
Caution
Note
