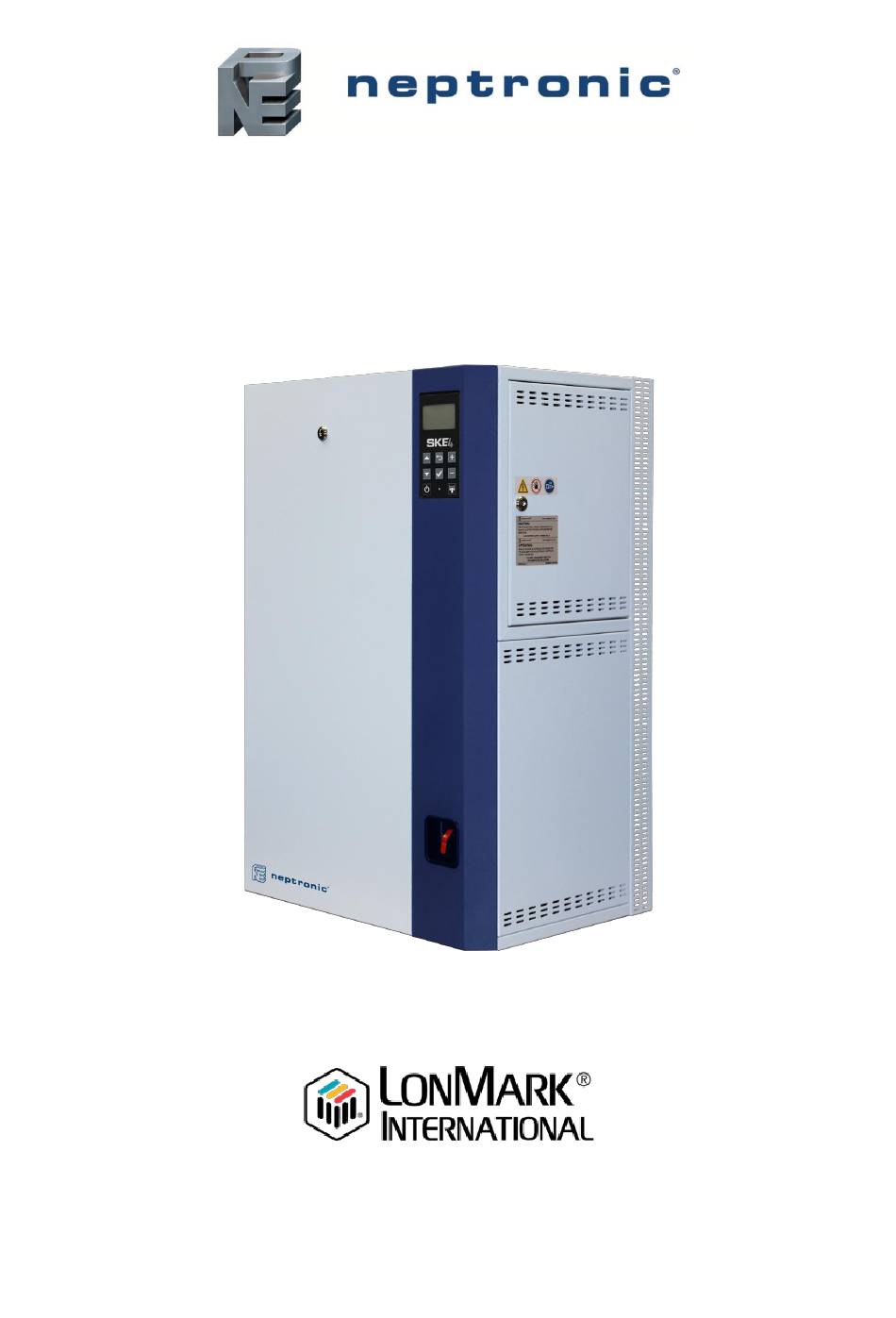

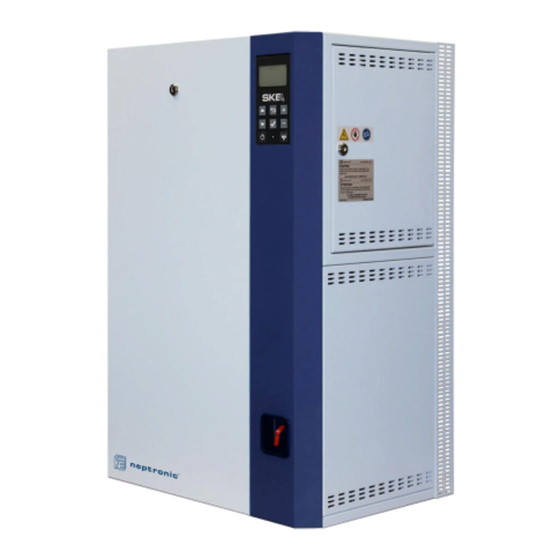

- Page 1 SKE4 Steam Humidifier LonWorks Integration Manual SKE4-LonWorks Integration Manual-180921...
-
Page 2: Installation Steps
Disconnect the power at the External Breaker/Fused Disconnect before commencing installation work. The following describes the procedure to follow in order to install the Neptronic LonWorks FTT Module for the SKE4 humidifier. The steps and guidelines outlined must be followed in order to avoid any anomaly resulting from inaccurate installation. - Page 3 3. In the low voltage compartment, remove the nuts that are attached to the printed circuit board at the two locations indicated below, and set them aside. Add the two nylon standoffs (supplied) onto these two locations. www.neptronic.com Page | 3...
- Page 4 5. Install the Ethernet IP board (supplied) onto the humidifier printed circuit board, by connecting it to the two Ethernet designated terminals. After Before www.neptronic.com Page | 4...
- Page 5 USB port located on the left side of the humidifier PCB. Connect the Ethernet cable (supplied) between the LonWorks FTT module and the Ethernet IP board, using the Ethernet connection located on the Ethernet board. www.neptronic.com Page | 5...
-
Page 6: Software Files
Echelon snivets. LnmL (Niagara Tridium Integration File): This is the device template of the humidifier for the Tridium / Niagara AX integrator. File name: SKE4lon.lnml File created: 14:03 File PID: 90:00:95:47:1E:02:04:66 www.neptronic.com Page | 6... -
Page 7: Device Identification
The Status LED will blink when the device accepts the Service Pin command. Manual Identification The Neuron ID of a device can also be entered manually through a commissioning or service tool. The Neuron ID is located on the ProtoCessor device itself. www.neptronic.com Page | 7... - Page 8 1 = 2 to 10Vdc 2 = 4 to 20mA 3 = 0 to 20mA Value of the current control input reading. nvoCtrlInput Control Input SNVT_count_inc_f 0% to 100%, Resolution 0.01% Only used if configured for analog external demand. www.neptronic.com Page | 8...
- Page 9 0 = No Foam 1 = Foam Present Displays the status of the high temperature switch. If the switch is nvoThermalCutout Thermal Cutout SNVT_switch Open, it indicates that an abnormal temperature has been detected. 0 = Closed, 1 = Open www.neptronic.com Page | 9...
- Page 10 Only used if configured for network internal demand. Value of room’s relative humidity setpoint received from the network. nvoRmRHSP Room RH Setpoint SNVT_count_inc_f 0% RH to 100% RH, Resolution 0.1% RH Only used if configured for internal demand. www.neptronic.com Page | 10...
- Page 11 0% to 100%, Resolution 0.01% Select whether to perform one of the following actions: 0 = None 1 = Reset Alarms nvoBlrRequest Boiler Request SNVT_count 2 = Drain 3 = Reset Counters 4 = Filling 5 = WaterCalib www.neptronic.com Page | 11...
- Page 12 Only used if configured for analog internal demand Value of the supply high limit humidity reading. 0% RH to 100% RH, nviSupHiLimRH Supply High Limit RH SNVT_count_inc_f Resolution 0.01% RH Only used if modulating high limit is used www.neptronic.com Page | 12...
- Page 13 Displays the status of the second stage contactor. nviHtrStg2 Heater Stage2 SNVT_switch 0 = Off, 1 = On Displays the status of the third stage contactor. nviHtrStg3 Heater Stage 3 SNVT_switch 0 = Off, 1 = On www.neptronic.com Page | 13...
- Page 14 Only used if configured for network external demand. Value of humidity control high limit received from the network. Humidity Control Network nviHmCtrNetHiLim SNVT_count_inc_f 0% to 100%, Resolution 0.01% High Limit Only used if a modulating high limit is used. www.neptronic.com Page | 14...
- Page 15 Displays the current status of the humidifier alarm. 0 = Normal 1 = FailedPump 2 = FillTimeout 3 = BlockedPiping nviBlrAlarm Boiler Alarm SNVT_count 4 = HeatTimeout 5 = Overheat 6 = WaterLeak 7 = Service 8 = Foaming www.neptronic.com Page | 15...
- Page 16 400 Lebeau blvd, Montreal, Qc, H4N 1R6, Canada www.neptronic.com Toll free in North America: 1-800-361-2308 Tel.: (514) 333-1433 Fax: (514) 333-3163 Customer service fax: (514) 333-1091 Monday to Friday: 8:00am to 5:00pm (Eastern time)
