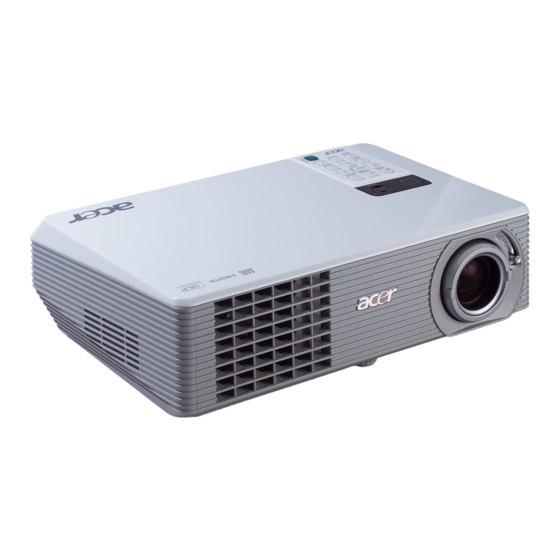

Acer H5350 Service Manual
  1. Manuals
  2. Brands
  3. Acer Manuals
  4. Projector
  5. H5350 Series
  6. Service manual

Acer H5350 Service Manual

Hide thumbs Also See for H5350:
Table of Contents

Advertisement

Quick Links

See also: User Manual
SERVICE MANUAL
H5350
Date
Revise Version
Description
2008.01.24
V1.0
Initial Issue
Copyright Jan,2008. All Rights Reserved P/N: 36.89T03G001
H5350:95.87U20G019;95.87U20GC0E
Emy
Roch
SI :
TSE:
Check:
Approved:

Advertisement

Table of Contents
loading

Related Manuals for Acer H5350

Summary of Contents for Acer H5350

  • Page 1 SERVICE MANUAL H5350 Date Revise Version Description 2008.01.24 V1.0 Initial Issue Copyright Jan,2008. All Rights Reserved P/N: 36.89T03G001 H5350:95.87U20G019;95.87U20GC0E Roch SI : TSE: Check: Approved:...
  • Page 2 Preface This manual is applied to H5350 projection system. The manual gives you a brief description of basic technical information to help in service and maintain the product. Your customers will appreciate the quick response time when you immediately identify problems that occur with our products.

  • Page 3: Table Of Contents

    Disassemble Fan Module 2-11 Disassemble Blower Module 2-12 Disassemble Speaker Module 2-13 Disassemble LVPS Module 2-14 Disassemble Interrupt Switch Module 2-15 Disassemble Lamp Driver Module 2-16 Disassemble Bottom Cover Module 2-18 Rod Adjustment 2-19 Re-write Lamp Usage Hour 2-20 H5350 Confidential...
  • Page 4 Assemble Top Cover Module 2-35 Assemble Lamp Module 2-36 Assemble Lamp Cover Module 2-36 Chapter 3 Troubleshooting LED Lighting Message Main Procedure Chapter 4 Function Test & Alignment Procedure Test Equipment Needed Service Mode OSD Reset Test Condition Test Inspection Procedure H5350 Confidential...
  • Page 5 DLP Composer Lite Setup Procedure USB Driver Upgrade Procedure Firmware Upgrade Procedure Chapter 6 EDID Upgrade EDID Introduction Equipment Needed Setup Procedure (VGA) EDID Key-In Procedure Setup Procedure (HDMI) Appendix A Exploded Image Appendix B Serial Number System Definition XXI PCBA Code Definition XXII H5350 Confidential...

  • Page 6: Chapter 1 Introduction

    - 80% Japan standard (Typical; Full power mode) Throw ratio - 58”@2M(1.55 ~ 1.70 :1) Audio - 2W*1 - F# 2.44~2.58, f = 21.83~23.81 mm, 1.10X Mechanical Projection lens Zoom Lens Lamp life - 3500 hours min, 50% survival rate System controller - TI DDP2230 H5350 Confidential...
  • Page 7 Number of active dots - 1280(H) x 720(V) - 6 segments (R90/Y35/G90/C35/W28/B82) Color wheel - 7200 rpm - 180 – Watt OSRAM Lamp (user replaceable) for full power Lamp mode - Operating: 5°C -- 35°C Temperature - Storage: -20°C -- 60°C H5350 Confidential...

  • Page 8: Compatible Mode

    66.6(67) 34.93 Power Mac G4 800x600 37.9 Power Mac G4 1024x768 48.4 Power Mac G4 1152x870 68.68 Power Mac G4 1280x960 PowerBook G4 640x480 31.35 PowerBook G4 640x480 66.6(67) 34.93 PowerBook G4 800x600 37.9 PowerBook G4 1024x768 48.4 H5350 Confidential...
  • Page 9 H.Frequency Modes Resolution [Hz] [KHz] PowerBook G4 1152x870 68.68 PowerBook G4 1280x960 i Mac DV(G3) 1024x768 (2) VGA Analog - Extended Wide timing 1280x768 48.36 WXGA 1280x768 57.6 1280x768 68.63 1280x720 1280x800 49.702 Native 1440x900 55.935 1680x1050 65.3 H5350 Confidential...
  • Page 10 1280x960 QuadVGA 1280x960 75.2 SXGA+ 1400x1050 65.3 UXGA 1600x1200 Power Mac G4 640x480 66.6(67) 34.9 Power Mac G4 800x600 37.9 Power Mac G4 1024x768 48.4 Power Mac G4 1152x870 68.7 Power Mac G4 1280x960 PowerBook G4 640x480 31.4 H5350 Confidential...
  • Page 11 67.4 For EMEA SKU 576i (PAL) 720x576(1440x576) 50(25) 15.6 576p (PAL) 720x576 31.3 720p (PAL) 1280x720 37.5 1080i (PAL) 1920x1080 28.1 1080p (PAL) 1920x1080 56.3 Horizontal scan rate: 31k-100kHz Graphic source monitor range limits Vertical scan rate: 56-85Hz H5350 Confidential...

  • Page 12: Product Overview

    Product Overview Projector Outlook Front /Upper side Item Description Item Description Zoom ring Power button and Power Indicator LED Focus ring Remote control Zoom lens Remote control receiver Lens cap H5350 Confidential...
  • Page 13 Rear side Item Description Item Description USB connector Composite video input connector HDMI connector Audio input connector Analog RGB/component input Power socket connector Component video input connector Kensington lock port S-Video input connector H5350 Confidential...
  • Page 14 Remote Control and Control Panel Layout H5350 Confidential...
  • Page 15 SOURCE Composite and HDTV sources. Momentarily turns off the video. Press “HIDE” to hide the HIDE image, press again to display the image. Empowering Unique Acer functions: eView, eTimer Management. FREEZE To pause the screen image. Note: H5350 Confidential 1-10...
  • Page 16 Remote Control Placement Please refer to the illustration to attach the remote control to the projector. H5350 Confidential 1-11...
  • Page 17 RCA component cable for YPbPr VGA cable S-Video cable Composite video cable Audio cable Jack/RCA Audio cable Jack/Jack Note: To ensure the projector works well with your computer,please make sure the timing of the display mode is compatible with the projector. H5350 Confidential 1-12...
  • Page 18 H5350 Confidential 1-13...
  • Page 19 Bottom Cover Dimension H5350 Confidential 1-14...

  • Page 20: Disassembly Process

    5. Long Nose Nipper 6. Tweezers 7. H5350 unit * Before you start: This process is protective level II. Operators should wear electrostatic chains. * Note: If you need to replace the main board, you have to get into service mode and record the lamp usage hour.

  • Page 21: Disassemble Lamp Cover Module

    2-2 Disassemble Lamp Cover Module 1. Unscrew 2 screws on Lamp Cover Module 2. Disassemble Lamp Cover Module Lamp Cover Module 2-3 Disassemble Lamp Module 1. Unscrew 2 screws on Lamp Module 2. Disassemble Lamp Module Lamp Module H5350 Confidential...

  • Page 22: Disassemble Top Cover Module

    1. Unscrew 2 screws on the unit base 2. Disassemble Top Cover Module(As the picture show) Note: - You should drop out of three tenons first, and then push the Top Cover Module to back. Top Cover Module H5350 Confidential...

  • Page 23: Disassemble Top Shielding

    1. Unscrew 7 screws on Top Shielding 2. Disassemble Top Shielding Top Shielding 2-6 Disassemble Main Board Module & I/O Cover Module 1. Unscrew 2 hex screws 2. Tear a tape 3. Unscrew 1 screw and 6 connectors on Main Board Module H5350 Confidential...
  • Page 24 4. Pull up the Main Board Module and then unplug 1 connector(As green square) 5. Disassemble Main Board Module and I/O Cover Module 6. Unscrew 3 screws to disassemble I/O Cover Module from Main Board Module I/O Cover Module Main Board Module H5350 Confidential...

  • Page 25: Disassemble Front Cover Module

    2-7 Disassemble Front Cover Module 1. Unscrew 1 screw(As yellow circle) 2. Press 1 tenon on each side and then pull up the Front Cover Module 3. Disassemble Front Cover Module Front Cover Module H5350 Confidential...

  • Page 26: Disassemble Engine Module

    2-8 Disassemble Engine Module 1. Pull the higher-part of Mylar up(As the red square) 2. Unscrew 4 screws on Engine Module 3. Disassemble Engine Module Engine Module H5350 Confidential...

  • Page 27: Disassemble Color Wheel Module

    2-9 Disassemble Color Wheel Module 1. Unscrew 2 screws to disassemble Color Wheel Module 2. Unscrew 1 screw to disassemble Photo Sensor Board from Color Wheel Module Color Wheel Module Photo Sensor Board H5350 Confidential...

  • Page 28: Disassemble Zoom Ring & Focus Ring

    2-10 Disassemble Zoom Ring & Focus Ring 1. Unscrew 2 screws on Engine Module to disassemble the Zoom Ring and Zoom Ring Holder 2. Unscrew 3 screws to disassemble Focus Ring Zoom Ring Holder and Zoom Ring Focus Ring H5350 Confidential...
  • Page 29 2-11 Disassemble DMD Board and DMD Chip 1. Unscrew 4 screws on Engine Module to disassemble Heat Sink 2. Unscrew 4 hex screws to disassemble DMD Board and DMD Chip Heat Sink H5350 Confidential 2-0...

  • Page 30: Disassemble Fan Module

    2-12 Disassemble Fan Module 1. Unscrew 4 screws 2. Take the Fan Cable out of the aperture (As the red square) H5350 Confidential 2-...

  • Page 31: Disassemble Blower Module

    3. Unscrew 4 screws to disassemble Fan Module 4. Unscrew 1 screw to disassemble Thermal Switch 2-13 Disassemble Blower Module 1. Unscrew 3 screws to disassemble Blower Module 2. Disassemble Rubber from the Blower H5350 Confidential 2-2...

  • Page 32: Disassemble Speaker Module

    2-14 Disassemble Speaker Module 1. Unscrew 1 screw and press 2 tenons to disassemble Speaker Module Note: - Use the tweezers to press the tenon. 2. Press the two tenons outward to disassemble the Speaker from the Speaker Holder H5350 Confidential 2-3...

  • Page 33: Disassemble Lvps Module

    1. Unscrew 1 ground screw(As red circle) 2. Unscrew 1 screw on LVPS Module(As yellow circle) to disassemble LVPS BRKT 3. Unscrew 3 screws on LVPS Module(As green circle) 4. Unplug 2 connectors to disassemble LVPS Module LVPS BRKT LVPS Module H5350 Confidential 2-...

  • Page 34: Disassemble Interrupt Switch Module

    1. Unscrew 1 screw and disassemble 1 Film Tape to disassemble Interrupt Switch Module 2. Tear off a Mylar 3. Press 2 tenons to disassemble Interrupt Aperture Switch from Interrupt Switch Holder Dent Film tape Interrupt Switch Module H5350 Confidential 2-5...

  • Page 35: Disassemble Lamp Driver Module

    1. Unscrew 1 screw to disassemble Lamp Driver Module 2. Unplug 1 connector(As red square) and unscrew 2 screws (As green circle) to disassemble Lamp Driver to Lamp Cable 3. Disassemble 1 Mylar(As green square) Lamp Driver to Lamp Cable H5350 Confidential 2-...
  • Page 36 4. Unplug 2 connectors to disassemble 2PIN and 5PIN cable 5. Unscrew 4 screws to disassemble Lamp Driver from Lamp Driver Holder 2 PIN&5 PIN Cable Lamp Driver Holder Lamp Driver Module H5350 Confidential 2-17...

  • Page 37: Disassemble Bottom Cover Module

    Bottom Cover Module Bottom Cover Module Shielding Bottom Cover Module Note: - Due to the iron sheet is out of shape easily,so we must turn it back before assemble the ROD DUCT. 5. The disassembly is completed ROD DUCT H5350 Confidential 2-...

  • Page 38: Rod Adjustment

    Note: - To avoid over adjust the rod. - “Screw 1” should be adjusted first, and then adjust the “Screw2”.After the adjustment, use the glue to fix the screws. H5350 Confidential 2-...

  • Page 39: Re-Write Lamp Usage Hour

    3. Choose “Return to Service Menu” and then exit the service mode Note: left key = decrease lamp hour right key =increase lamp hour Re-write lamp usage hour H5350 Confidential 2-20...

  • Page 40: Assemble Bottom Cover Module

    1. Assemble ROD DUCT on the Iron Sheet 2. Assemble the Bottom Cover Shielding on Bottom Cover Module 3. Stick 1 EMI tape 4. Screw 1 screw on Bottom Cover Module Bottom Cover shielding Bottom Cover Module H5350 Confidential 2-2...

  • Page 41: Assemble Lamp Driver Module

    2. Plug 2 connectors to assemble 2PIN and 5PIN cable Note: - The 2 PIN and 5 PIN cable must be pass through a Dent.(As the yellow square) 3. Stick a Mylar 2 PIN&5 PIN Cable Lamp Driver to Lamp Cable H5350 Confidential 2-22...
  • Page 42 4. Plug 1 connector(As blue square)and screw 2 screws to assemble Lamp Driver to Lamp Cable Note: - The lamp driver to lamp cable must be passed through two Dents.(As the yellow square) 5. Screw 1 screw on Lamp Driver Module H5350 Confidential 2-23...

  • Page 43: Assemble Interrupt Switch Module

    3. Screw 1 screw and stick 1 film tape to assemble Interrupt Switch Module Note: - Interrupt Switch cable must be passed Interrupt Switch Module through a dent and a aperture.And use a film tape to fix the cable in the dent. Aperture Dent Film tape H5350 Confidential 2-2...

  • Page 44: Assemble Lvps Module

    1. Plug 2 connectors (As yellow square) and screw 3 screws (As green circle) to LVPS BRKT LVPS Module assemble LVPS module 2. Screw 1 screw to assemble LVPS BRKT (As yellow circle) 3. Screw 1 ground screw(As red circle) H5350 Confidential 2-25...

  • Page 45: Assemble Speaker Module

    1. Fasten 2 tenons to assemble the speaker on the speaker holder 2. Fasten 2 tenons and screw 1 screw to assemble Speaker Module 2-26 Assemble Blower Module 1. Assemble the Rubber on the Blower 2. Screw 3 screws to assemble Blower Module H5350 Confidential 2-2...

  • Page 46: Assemble Fan Modul

    1. Screw 1 screw to assemble Thermal Switch(As green circle) 2. Screw 4 screws to assemble Fan Module 3. Screw 4 screws to assemble Fan Module on the unit Note: - The fan cable pass through from the aperture. H5350 Confidential 2-27...

  • Page 47: Assemble Dmd Board And Dmd Chip

    2-28 Assemble DMD Board and DMD Chip 1. Screw 4 hex screws to assemble all components of DMD parts 2. Screw 4 screws on Engine Module to assemble Heat Sink H5350 Confidential 2-2...

  • Page 48: Assemble Zoom Ring&Focus Ring

    2-29 Assemble Zoom Ring&Focus Ring 1. Screw 3 screws to assemble Focus Ring 2. Screw 2 screws on Engine module to assemble Zoom Ring and Zoom Ring Holder Zoom Ring Holder and Zoom Ring H5350 Confidential 2-2...

  • Page 49: Assemble Color Wheel Module

    2-30 Assemble Color Wheel Module 1. Screw 1 screw to assemble Photo Sensor on Color Wheel Module 2. Screw 2 screws to assemble Color Wheel Module H5350 Confidential 2-30...

  • Page 50: Assemble Engine Module

    2-31 Assemble Engine Module 1. Push the higher-part of Mylar down(As the red square) to assemble Engine Module 2. Screw 4 screws to assemble Color Wheel Module H5350 Confidential 2-3...

  • Page 51: Assemble Front Cover Module

    2-32 Assemble Front Cover Module 1. Push down the Front Cover Module 2. Fasten 1 tenon on each side 3. Screw 1 screw(As yellow circle) to assemble Front Cover Module H5350 Confidential 2-32...

  • Page 52: Assemble Main Board Module & I/O Cover Module

    Main Board Module 1. Screw 3 screws to assemble I/O Cover Module on Main Board Module 2. Plug 1 connector(As green square) 3. Screw 1 screw and 6 connectors on Main Board Module 4. Stick a tape H5350 Confidential 2-33...

  • Page 53: Assemble Top Shielding

    5. Screw 2 hex screws 2-34 Assemble Top Shielding 1. Screw 7 screws on the Top Shielding H5350 Confidential 2-3...

  • Page 54: Assemble Top Cover Module

    1. Fasten 3 tenons to assemble Top Cover Module on the unit Note: - You should press three tenons first, and then push the Top Cover Module to back. 2. Screw 2 screws on the unit base H5350 Confidential 2-35...

  • Page 55: Assemble Lamp Module

    2-36 Assemble Lamp Module 1. Assemble Lamp Module 2. Screw 2 screws on Lamp Module 2-37 Assemble Lamp Cover Module 1. Assemble Lamp Cover Module Lamp Cover Module 2. Screw 2 screws on Lamp Cover Module 3. Assembly is completed H5350 Confidential 2-3...

  • Page 56: Chapter 3 Troubleshooting

    Quick Flashing RED and Steady BLUE by returns Error (Fan lock) Quick Flashing RED and Steady BLUE by returns Error (Lamp break- Quick Flashing BLUE and Steady RED by returns down) Error (Color Wheel fail) Quick Flashing BLUE and Steady RED by returns H5350 Confidential...

  • Page 57: Main Procedure

    Lamp LED Light - Check Lamp - Check Lamp Driver - Check Main Board Auto Shut Down b. Temp LED Light - Check Thermal Switch - Check Fan c. Color Wheel - Check Color Wheel - Check Photo Sensor H5350 Confidential...
  • Page 58 - Do “Reset(All data)” of the OSD Menu - Ensure that the signal cables and source are work as well - Check Lamp Module Image Flicker - Check Color Wheel - Check DMD Board - Check Main Board H5350 Confidential...
  • Page 59 - Do “Reset(All data)” of the OSD Menu Function Abnormal - Check Main Board - Check DMD Board - Ensure that the signal cables and source are work as well Audio Abnonrmal - Check Speaker Module - Check Main Board H5350 Confidential...
  • Page 60 Administrator Password is. - How to get the Universal Password? (1) Click the “AcerSNID” (2) Input SNID number.(SNID number is on the Security Card) Forgetting Password (adminstrator Password) (3) Click“Calculate”.Then the Universal Password will appear. H5350 Confidential...

  • Page 61: Chapter 4 Function Test & Alignment Procedure

    1. After final QC step, we have to erase all saved change again and restore the OSD default setting. The following actions will allow you to erase all end-users' settings and restore the default setting: (1) Please enter OSD menu. (2) To execute "Reset" function. H5350 Confidential...

  • Page 62: Test Condition

    - Circumstance brightness: Dark room less than 5.0 lux. - Inspection distance: 1.8m~2.5m functional inspection. - Screen size: 60 inches diagonal - After repairing each , the unit should be run-in (refer to the table below) H5350 Symptom Run-in Time Normal repair 2 hours...

  • Page 63: Test Inspection Procedure

    - If not re-adjust by the following steps: (1) Select "Frequency" function to adjust the total pixel number of pixel clock in one line period. (2) Select "Tracking" function and use right or left arrow key to adjust the value to minimize Master H5350 Confidential...
  • Page 64 - Ref. below table Note: The defect criteria follows TI specification. 3. Blemish (Dark) Procedure - Test equipment: video generator. - Test signal: analog 1280 x 720@60Hz. 1280 x 720@60Hz. . - Test Pattern: blue 60 Blue 60 H5350 Confidential...
  • Page 65 - Adjacent pixel with each other is unacceptable. - Ref. below table Note: The defect criteria follows TI specification. 6. Focus test Procedure - Test equipment: video generator. - Test signal: analog 1280 x 720@60Hz 1280 x 720@60Hz H5350 Confidential...
  • Page 66 R -G-B-W. - Color levels should be sufficient and normal. (the unidentified color levels on both left and right sides should not over 8 color levels.) SMPTE RP-133 - Grey level should not have abnormal color or H5350 Confidential...

  • Page 67: Defect Specification Table

    Blue 60 pattern (diameter <1/2 inch) A+B=3 Bright blemish (Dirty) Gary 30 pattern (diameter <1/2 inch) Bright dot on frame Black pattern 4-8 Video Performance 1. CVBS Procedure - Test equipment: DVD player - Test signal: CVBS Motion video H5350 Confidential...
  • Page 68 - Test signal: CVBS Inspection item - Audio performance test Inspection Distance - 1.8M ~2.5M Criteria - Check the sound from speakers. - Check “Volume” is normal - Check “Mute” is normal 5. HDMI test Procedure - Test Signal : 720p,1080i H5350 Confidential...

  • Page 69: Optical Performance Measure

    - Select “Spoke On” 2. Brightness Procedure - Full white pattern - Use CL100 to measure brightness values of P1~P9. - Follow the brightness formula to calculate brightness values. ☼ Brightness Formula Avg.(P1~ P9)x1.1m Full white pattern Criteria - 800 lumens H5350 Confidential...

  • Page 70: Other

    ANSI Uniformity = Avg. (P1, P3, P7, P9) x 100% Criteria - 65% 4-11 Others 1. Functional Inspection Keypad button - All keypad buttons must operate smoothly. General - All OSD functions must be checked for functionality. When OSD menu is displayed, there H5350 Confidential 4-0...
  • Page 71 It should be locked in the correct place Plastic Parts All plastic parts can not be brocken and damaged Safety or warning All safety and warning label should be visible, label including all contents All interface connector should be complete and Connector workable H5350 Confidential 4-...

  • Page 72: Firmware Upgrade

    - DLP Composer - Firmware - Library V7.1 0330 (library file has to put in PC and set right path in 5-4 step 4) Hardware : - Projector - Power cord (42.53506G002) - USB Cable (42.87304G001) - PC or Laptop H5350 Confidential...

  • Page 73: Dlp Composer Lite Setup Procedure

    1. Choose "DLP Composer Lite V7.1 Setup" Program. 2. Click "Next" button. 3. Read "License Agreement". - Choose "I accept and agree to be bound by all the terms and conditions of this License Agreement". 4. Click "Next". 5. Click "Next". H5350 Confidential...
  • Page 74 6. Click "Next". 7. Click "Next". 8. Writing system registry values. 9. Click "Finish". H5350 Confidential...

  • Page 75: Usb Driver Upgrade Procedure

    - Link PC USB port and projector USB port by USB Cable. 2. Execute Program (1) "Found new hardware wiszard" will be appearred on the screen. (2) Select "Install the software automatically (Recommended)". (3) Then click "Next". 3. Finish - Click "Finish" to end the installation. H5350 Confidential...

  • Page 76: Firmware Upgrade Procedure

    Note: The system fan and the light will not operated. 2. Execute the "DLP Compose " file. 3. Click "edit" and "perferences". 4. Click “Library.” - Click the “browse” button and navigate to the directory where you put the library file H5350 Confidential...
  • Page 77 7. Selete the item "skip Boot Loader Area" (select 32KB). - Click "Reset Bus" to erase the flash memory. 8. If the firmware is ready, click "start download" to process the firmware upgrade. - Click "Yes" to erase the flash memory. H5350 Confidential...
  • Page 78 - Unplug USB cable and power cord and replug in power cable. 10. Restart the unit and enter the service mode to check the firmware version. (To enter service mode, please refer to Chapter 4 Function Test and Alignment Procedure.) H5350 Confidential...

  • Page 79: Edid Upgrade

    Note: If a display device has digital input ports, like DVI or HDMI, but without EDID in its main board, the display device will show no image while the input source is digital signal. H5350 Confidential...

  • Page 80: Equipment Needed

    - RS-232 9 Pin Cable (pin to pin, F-M) (42.83C07G001) - Monitor - PC - VGA cable (42.87305G102) - DVI Cable (42.83N06G001) - Power adapter (47.57803G001) and power cord (42.53506G002) for fixture - Adapter HDMI(M) to DVI-D(F) (42.82B13G001) H5350 Confidential...

  • Page 81: Setup Procedure (Vga)

    (1) Connect P1 of Fixture with COM Port of PC/Laptop by RS232 Cable. (2) Connect P2 of Fixture with VGA port of Projector by VGA Cable. (3) Plug Power Adapter to Power CNN. (4) Plug Power Cord to H5350 unit. Note: Confirm JP3 is "Close" status. VGA Port...

  • Page 82: Edid Key-In Procedure

    (1) Key in the serial number into the barcode blank space. (2) In "Write Source Select" item,select "Analog". (3) Click "Program" button. 4. Process (1) "Please change the cable to Analog" will be shown on the screen. (2) Please press "Ok" button. H5350 Confidential...
  • Page 83 5. Finish (1) "OK" will be shown on the screen. 6. Read EDID information (1) In the Read item,select "Analog" and "Trans". (2) Please press "Read" button. 7. Read EDID information (1) EDID Informations will show the result. H5350 Confidential...

  • Page 84: Setup Procedure (Hdmi)

    (2) Connect P2 of Fixture with P3 by DVI Power Port Cable. Power CNN (3) Plug P4 to HDMI Port of the Projector. (4) Plug Power Adapter to Power CNN. 5) Plug Power Cord to H5350 unit. " " Note: Confirm JP3 is Close status. H5350 Confidential...
  • Page 85 (1) Key in the serial number into the barcode blank space. (2) In "Write Source Select" item,select "Digital". (3) Click "Program" button. 4. Process (1) "Please change the cable to Digital" will be shown on the screen. (2) Please press "Ok" button. H5350 Confidential...
  • Page 86 5. Finish (1) "OK" will be shown on the screen. 6. Read EDID information (1) In the Read item,select "Digital" and "Trans". (2) Please press "Read" button. 7. Read EDID information (1) EDID Informations will show the result. H5350 Confidential...
  • Page 87 Appendix A ASSY FAN SHIELDING MODULE WHITE H5350 Item Description Parts Supply 70.89T13GR01 ASSY AXIAL FAN MODULE P5270(RMA) 85.1F123G260 SCREW PAN MECH E/SF M3*26 Ni 49.88T01G001 SUNON, KDE1207PKV1-A 70*70*20mm AXIAL FAN 43.88N01G001 THERMAL SWITCH WITH BRACKET (KLIXON YS11) 100 DEG. C...
  • Page 88 ASSY LAMP DRIVER MODULE H5350 H5350 Confidential...
  • Page 89 42.00443G001 CABLE W.A, 2P #20 160mm LVPS TO BALLAST 42.00436G001 CABLE W.A. 2P #22 100mm LAMP DRIVER TO LAMP X1160 51.88T11G003 HOLDER LAMP DRIVER FOR H5350 51.88T18G001 KAPTON 10*10 0.05t X1160 51.89T04G001 MYLAR LAMP DRIVER H5350 51.8AQ02G001 INTERLOCK SWITCH HOLDR FOR NEC 70.89T15GR01 ASSY LAMP DRIVER MODULE H5350(SERVICE)
  • Page 90 ASSY MAIN BD MODULE H5350 H5350 Confidential...
  • Page 91 Item Description Parts Supply 70.89T11GR01 PCBA MAIN BD MODULE FOR H5350(SERVICE) 41.82G03G001 EMI GASKET USB CONNECTOR EP719 70.89T12GR01 ASSY I/O COVER MODULE H5350(SERVICE) 41.82K11G001 EMI GASKET W6*H1*L190mm 41.83F21G001 GASKET h?/W*5, H*1.5, L*15 41.88T02G001 EMI GASKET L180*W4*H1 41.89B01G001 EMI TAPE L*190/W*13 51.88T04G011 IO COVER H5350...
  • Page 92 ASSY COLOR WHEEL MODULE H5350 Item Description Parts Supply 70.89T09GR01 ASSY COLOR WHEEL MODULE H5350(SERVICE) 23.89T19G001 YO R90Y35G90C35W28B82 6 SEGMENT CW 51.82Y29G001 TAPE 3M J350 10*5mm FOR COLOR WHEEL 52.83615G001 COLOR WHEEL DISC RUBBER , EzPro755 61.83628G001 COLOR WHEEL SHOULDER SCREW NICKEL M2*4.8 61.88N10G001 COLOR WHEEL HOLDER SECC,X15...
  • Page 93 ASSY HOUSING MODULE H5350 H5350 Confidential...
  • Page 94 51.89T03G001 LVPS MYLAR H5350 52.86801G011 RUBBER FOOT REAR GRAY H5350 52.88T04G001 BOTTOM SHELDING AIR TIGHT X1160 61.88T03G011 SHIELDING BOTTOM COVER FOR X1260 70.89T06G001 ASSY ADJUST FOOT MODULE WHITE H5350 85.1A123G060 SCREW PAN MECH M3*6 NI 86.00122G015 NUT HEX M2.0*0.4P L15 Ni H5350...
  • Page 95 BUY ASSY TOP COVER ADD PAINT H5350 H5350 Confidential...
  • Page 96 Item Description Parts Supply 70.89T16GR01 ASSY TOP COVER MODULE H5350(SERVICE) 51.88T01G012 TOP COVER,PC-MN3600H,WHITE H5350 51.88T07G001 LENS POWER X1160 51.88T08G002 IR CAP,WHITE H5350 51.88T16G011 TRACK REMOTE CONTROLLER,WHITE 51.88T16G031 TRACK REMOTE CONTROLLER-2,WHITE 85.1A526G060 Screw Pan M2.6x6 Ni 51.88T06G011 KEYPAD POWER H5350 H5350...
  • Page 97 ASSY ENGINE MODULE H5350 17 20 H5350 Confidential...
  • Page 98 Item Description Parts Supply 11.009F0G007 CNNT F 203P FOR 720P LGA DMD SOCKET 70.89T10GR01 ASSY ENGINE MODULE H5350(SERVICE) 23.88N06G001 YO PLASTIC RELAY FOR X15 23.88N20G001 YO CONDENSER1 FOR X15 23.88N20G011 YO CONDENSER2 FOR X15 23.89L01G001 PROJECTION LENS YM09W 41.82B01G001 EMI GASKET W13*H10.5*L30mm 41.85W05G001 EMI GASKET W8*H8*L45...
  • Page 99 ASSY BOTTOM HOUSING MODULE H5350 H5350 Confidential XIII...
  • Page 100 85.1C123G060 SCREW PAN MECH W/T M3*6 NI 85.1C224G051 SCREW PAN MECH M4*5 COLOR W/TOOTH 85.3A113G050 STEP SCREW ψ3.5xH2.5 M3x5.0mm Ni 85.ZA123G040 SCREW WCH/W MECH M3*4 Ni GREEN 42.00455G002 W.A. 8P TO 16P 120mm MB TO LVPS H5350 49.86E02G001 SUNON, GB1245PKV1-8 45*20mm BLOWER H5350 Confidential...
  • Page 101 A.K. H5350 Confidential H5350...
  • Page 102 Item Description Parts Supply 35.82001G111 AK LABEL 3”*3” BLANK 36.00006G031 WARRANTY CARD ,EUROPE FOR ACER 36.00027G001 SERVICE STATION CARD 36.00029G001 SECURITY CARD FOR ACER 36.88T02G001 QUICK START CARD MULTILINGUAL ACER X1160/X1260 SERIES 36.89T01G001 USER’S GUIDE MULTILINGUAL (CD) ACER H5350 42.00232G001 CABLE COMPOSITE VIDEO 2M YELLOW 42.83M08G001 CABLE VGA 1.8M 15P BLUE 2400MP...
  • Page 103 D.C. H5350 H5350 Confidential XVII...
  • Page 104 AL FOIL FOR LAMP COVER X1160 SP.88T01GC01 LAMP MODULE FOR PROJECTOR X1160/1260 70.88T02G001 ASSY LAMP MODULE X1160 70.89T02G001 ASSY BOTTOM HOUSING MODULE H5350 75.88T03G022 BUY ASSY TOP COVER ADD PAINT H5350 85.1A323G080 SCREW PAN MECH M3*8 BLACK “GREEN” H5350 Confidential XVIII...
  • Page 105 D.P. H5350 H5350 Confidential...
  • Page 106 Item Description Parts Supply 35.00029G001 ACER TAPE 45M FOR CARTON 35.52302G091 LABEL CARTON 108*92 BLANK 35.82V02G001 LABEL CARTON(SEAL) 110*50mm PD120 35.86301G001 SPEC LABEL BLANK PD120 51.00200G001 HANDLE BAR 2. PE HD70 51.00201G001 HANDLE BAR 1.PE HD70 51.52109G003 PE BAG 450*350*0.07 FOR OPTOMA 53.88T01G001 SOFT CARRY BAG X1160...

  • Page 107: Serial Number System Definition

    Serial Number Format for Projector 00J6601000 751 00001 59 00J6601000 = Part Number excluded “dot” 751 = Week Code(ex:2007 = 7,the fifty-one weeks of the year = 51) 00001 = Serial Numbers 59 = Manufacturing Code 10 = Eng. Version Code H5350 Confidential...

  • Page 108: Pcba Code Definition

    PCBA Code Definition PCBA Code for Projector XXXXXXXXXXX CC XXX EEEE Vendor Code Revision Date Code H5350 Confidential XXII...
