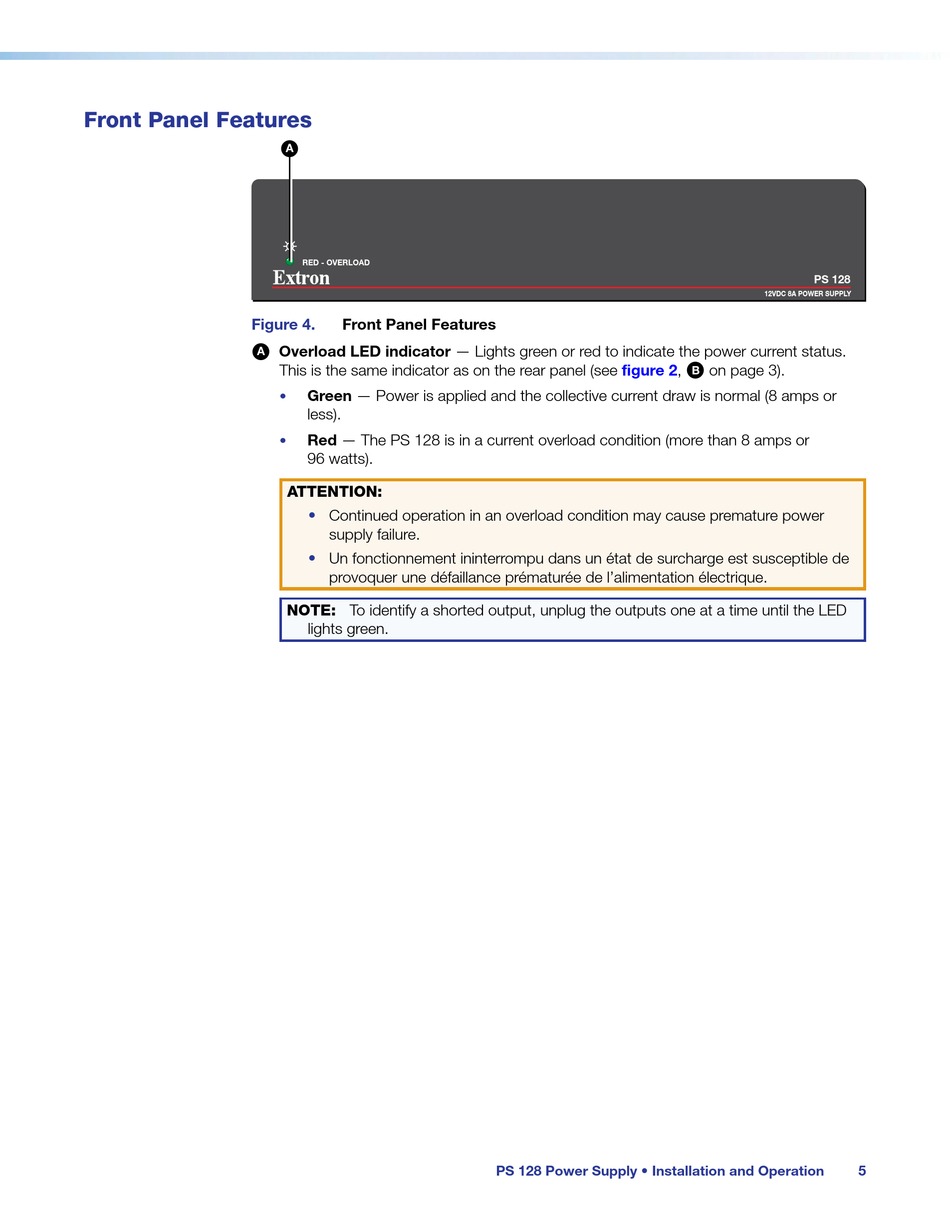

Front Panel Features

Figure 4.
A
A
RED - OVERLOAD
Front Panel Features
Overload LED indicator — Lights green or red to indicate the power current status.
This is the same indicator as on the rear panel (see
Green — Power is applied and the collective current draw is normal (8 amps or
•
less).
Red — The PS 128 is in a current overload condition (more than 8 amps or
•
96 watts).
ATTENTION:
• Continued operation in an overload condition may cause premature power
supply failure.
• Un fonctionnement ininterrompu dans un état de surcharge est susceptible de
provoquer une défaillance prématurée de l'alimentation électrique.
NOTE: To identify a shorted output, unplug the outputs one at a time until the LED
lights green.
figure 2,
PS 128 Power Supply • Installation and Operation
PS 128
12VDC 8A POWER SUPPLY
on page 3).
