GSM internal antenna
970.186 | V1 | 2015.04
en
Installation addendum

Advertisement

Table of Contents

   Also See for Bosch Carephone 61

   Summary of Contents for Bosch Carephone 61

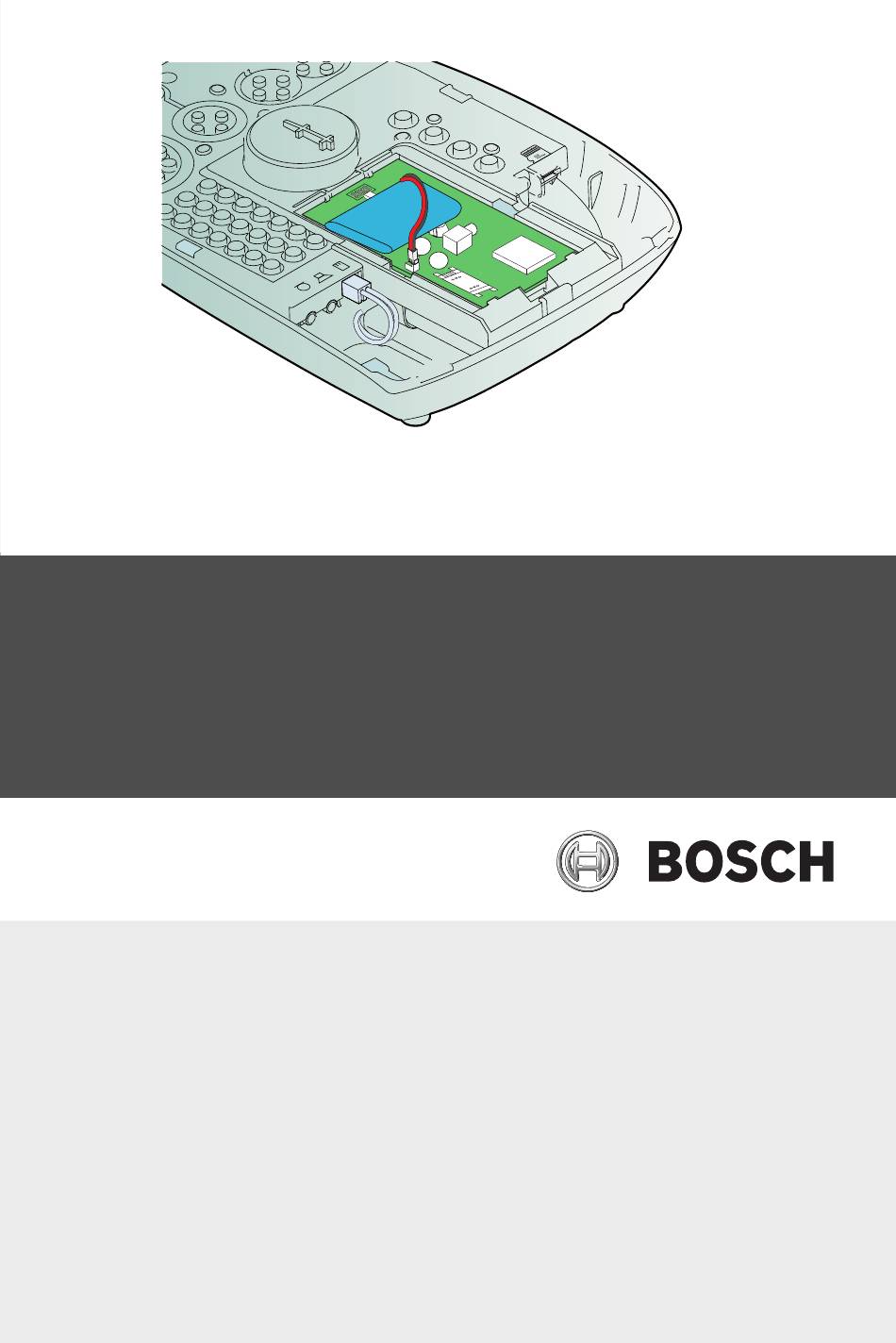

  • Page 1 GSM internal antenna 970.186 | V1 | 2015.04 Installation addendum...
  • Page 3: Safety Instructions

    GSM internal antenna Safety Instructions | en Safety Instructions CAUTION! Read through these safety instructions carefully before installing the internal antenna in the GSM Module. They contain important information about the connection, use and safety. – Do not install the unit near a heating appliance. –...
  • Page 4 en | Installation GSM internal antenna Installation Check the compatibility with your Carephone NOTICE! The GSM internal antenna is only compatible with Carephones 61 & 62 with hardware version 2.00 or higher. To know if your Carephone is compatible, check on the product label on the backside of your Carephone: ...
  • Page 5: Scope Of Delivery

    GSM internal antenna Installation | en Scope of delivery  Open the bag of the internal antenna. Check that you have: the internal antenna, with its cable the 15 x 10 mm adhesive tape, to fasten the cable the leaflet indicating where to find the documentation Installation procedure CAUTION! Before opening the cover, remove the power plug from the...
  • Page 6 en | Installation GSM internal antenna Present and align the internal antenna board along the side of the GSM Module location. Locate the bottom guide (red circle) and the double-sided adhesive tape (yellow frame). Remove the protective film on the adhesive tape. Insert the internal antenna carefully into the channel.
  • Page 7 GSM internal antenna Installation | en of the antenna must be at the same level as the edge of the housing. Press firmly on the side of the antenna to make the tape adhere to the housing. Guide the antenna cable into the slot (red circle). TeleAlarm Installation Addendum 970.186 | V1 | 2015.04...
  • Page 8 en | Installation GSM internal antenna Connect the internal antenna carefully by plugging the small connector into the socket. Use the central plastic slit (red circle) to secure the cable. 970.186 | V1 | 2015.04 Installation Addendum TeleAlarm...
  • Page 9 GSM internal antenna Installation | en Stick the small adhesive tape (red circle) on the internal antenna cable. Do not cover the GSM Module LED. Close the top cover and insert the power plug into the Carephone. CAUTION! Perform a GSM signal strength test. Refer to the user manual of the Carephone.
  • Page 10 en | Installation GSM internal antenna 970.186 | V1 | 2015.04 Installation Addendum TeleAlarm...
  • Page 12 TeleAlarm SA rue du Pont 23 2300 La Chaux-de-Fonds Switzerland www.telealarm.com © TeleAlarm, 2015...

This manual is also suitable for:

Carephone 62
