General

This user guide is for the Interson ViewBladder 10 system. Prior to using the system, become
familiar with the operating instructions in this guide.
5.

ViewBladder 10 Display

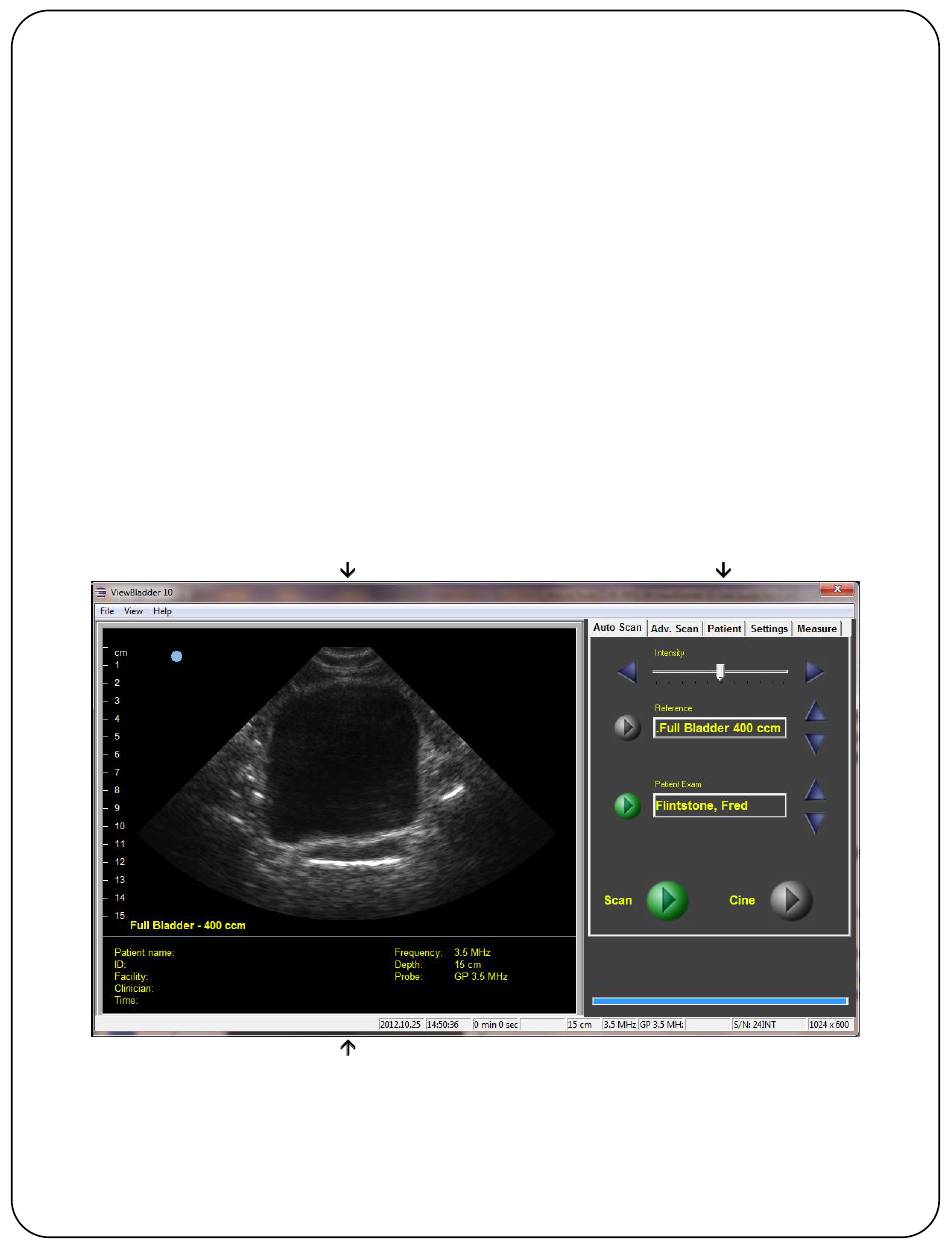

The ViewBladder 10 screen is divided into three major sections: Imaging Window, Status,
Window, and User Interface Section.
On the upper left side is the Imaging Window. The Imaging Window displays the ultrasound
scan, and includes measurements, calculations, and annotations. You can perform a bladder
volume measurement by simply swiping the height and width on any frozen bladder image.
Place your finger on the top edge of the bladder and swipe down to the bottom edge to measure the
height. Similarly, place your finger on the left edge and swipe to the right edge to measure the width.
The calculated volume is now displayed on the left of the screen.
Directly below the Imaging Window is the Status Window. If you have started a patient exam, the left
hand column shows all of the details about the patient. The right hand column shows information
about the probe and its settings.
On the right side of the screen is the User Interface Window. It contains a number of tabs to start
patient exams, adjust the image, input patient and exam information, set preferences, and
perform measurements and calculations. Each of these tabs and their functions are described in
detail in this User Guide.
Note the blue dot on the upper left side of the image. This blue dot corresponds to the scan /
freeze and image orientation button on the probe. The radiologist's convention is that the
orientation mark on the image identifies the patient's right side or the patient's head. The image
can be flipped and/or inverted in the Settings tab.
