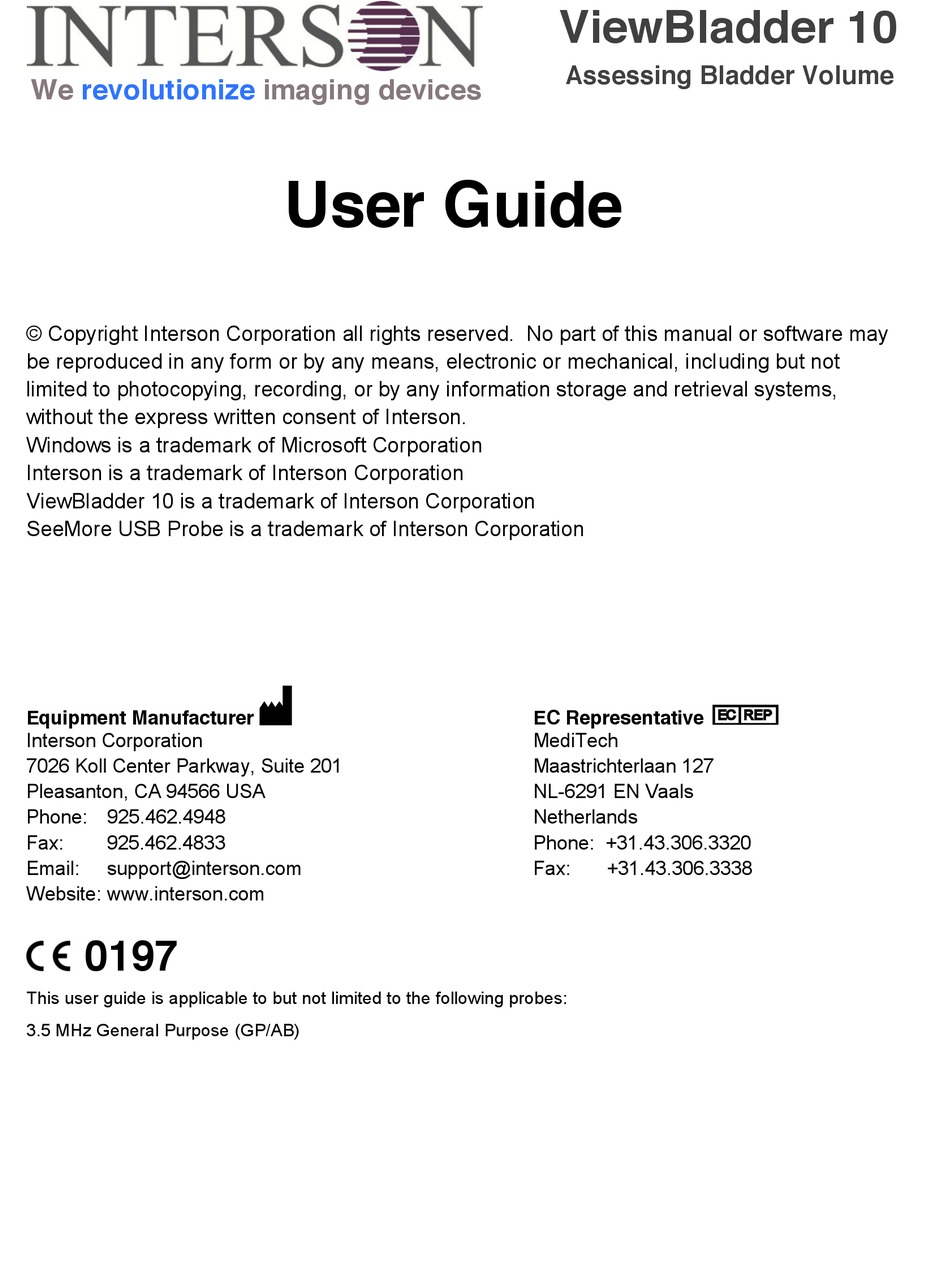

© Copyright Interson Corporation all rights reserved. No part of this manual or software may
be reproduced in any form or by any means, electronic or mechanical, including but not
limited to photocopying, recording, or by any information storage and retrieval systems,
without the express written consent of Interson.
Windows is a trademark of Microsoft Corporation
Interson is a trademark of Interson Corporation
ViewBladder 10 is a trademark of Interson Corporation
SeeMore USB Probe is a trademark of Interson Corporation
Equipment Manufacturer
Interson Corporation
7026 Koll Center Parkway, Suite 201
Pleasanton, CA 94566 USA
Phone: 925.462.4948
Fax:
925.462.4833
Email:
support@interson.com
Website: www.interson.com
0197
This user guide is applicable to but not limited to the following probes:
3.5 MHz General Purpose (GP/AB)
imaging devices
User Guide
M
ViewBladder 10
Assessing Bladder Volume
EC Representative
MediTech
Maastrichterlaan 127
NL-6291 EN Vaals
Netherlands
Phone: +31.43.306.3320
Fax:
+31.43.306.3338
P
Advertisement
Table of Contents
Related Manuals for INTERSON ViewBladder 10
Summary of Contents for INTERSON ViewBladder 10
- Page 1 User Guide © Copyright Interson Corporation all rights reserved. No part of this manual or software may be reproduced in any form or by any means, electronic or mechanical, including but not limited to photocopying, recording, or by any information storage and retrieval systems, without the express written consent of Interson.
-
Page 2: Table Of Contents
APPENDIX C - COMPUTER SYSTEM SPECIFICATIONS APPENDIX D - INTERSON PROBES AND THEIR APPLICATIONS APPENDIX E - SUMMARY OF THE ACOUSTIC QUANTITIES APPENDIX F - INTERSON USB PROBES - INDICATIONS FOR USE APPENDIX G - PATIENT PRIVACY AND CONFIDENTIALITY APPENDIX H - INTERSON CUSTOMER WARRANTY... -
Page 3: Introduction
Please review this user guide before you begin scanning. Contact Interson or your sales representative if you have any questions. Note: There is also an embedded Help Guide in the ViewBladder 10 software, as well as context- sensitive video help. -
Page 4: General Cautions And Warnings
Do not use in the presence of flammable anesthetics or other flammable materials. Interson probes use very low acoustic power output, and ultrasound imaging has been found, in many studies, to be safe when used correctly. However, as with all medical procedures, risks and benefits must be weighed. -
Page 5: Cleaning And Disinfection
WARNING Do not immerse probes longer than one hour. Probes may be damaged by longer immersion. 01-9932-00 ViewBladder 10 User Guide Revision 2... -
Page 6: Surface Cleaning
US Federal law restricts this device to sale by or on the order of a physician. 3.11. Training This ViewBladder 10 system is intended to be used by trained medical professionals only. The system’s functions are described in this manual and are also available through the ViewBladder 10 system software Help Menu. -
Page 7: General

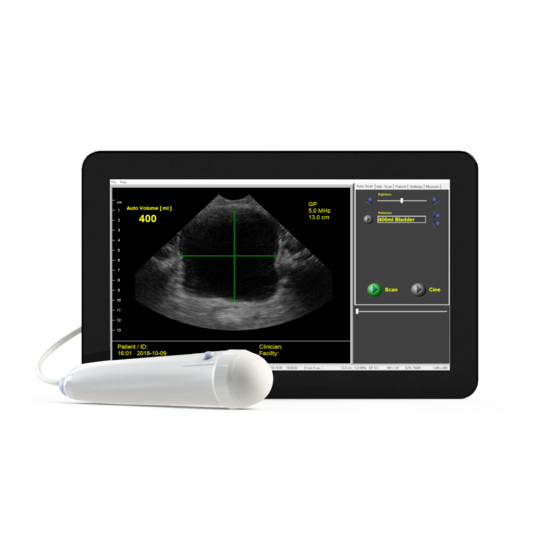

General This user guide is for the Interson ViewBladder 10 system. Prior to using the system, become familiar with the operating instructions in this guide. ViewBladder 10 Display The ViewBladder 10 screen is divided into three major sections: Imaging Window, Status, Window, and User Interface Section. -
Page 8: Viewbladder 10 User Controls
Make minor adjustments to probe position to obtain the largest, most optimal bladder image. Freeze the image by pressing the blue button on the probe or the yellow pause Scan button on the screen. 01-9932-00 ViewBladder 10 User Guide Revision 2... - Page 9 Therefore to make the most accurate measurement, always measure the thickness at the appropriate angle. ViewBladder 10 will calculate and display the bladder volume. If you find you did not optimally place your finger, double tap to remove the volume calculation and the distance measurement.
- Page 10 Scan starts and stops the scan. The scan button on the probe and the keyboard’s space bar will also start and stop the scan. ViewBladder 10 automatically saves the most recent frames. After stopping a scan the most recent frames can be replayed by pressing the Cine play button. The number of frames that are automatically saved in the Cine frames buffer can be set in the Settings tab.
-
Page 11: Patient Tab
Be careful to save to the comma separated value format. Open ViewBladder and be sure you can scroll through all patients. If you need to recall the original file, rename the copy that you made earlier to PatientDataFile.csv 01-9932-00 ViewBladder 10 User Guide Revision 2... -
Page 12: Settings Tab
Orientation flips the image right and left. Invert Image flips the image up and down. 01-9932-00 ViewBladder 10 User Guide Revision 2... -
Page 13: Measure Tab
To enable calculations, select the white box in the Calculations window. There are two calculations available in ViewBladder 10. Use the Calculate pull down to select either Bladder Volume or Bladder Volume 3D. Bladder Volume uses the height and width of a transverse bladder scan to estimate bladder volume. -
Page 14: Saving, Viewing, And Printing Images / Reports
Saving, Viewing, and Printing Images / Reports There are a variety of ways to save, view, and print images from the ViewBladder 10 application. As saved images are also stored in the jpeg format, they can be viewed and printed with a variety of Windows applications. -
Page 15: Electromagnetic Compatibility
Interson’s USB Ultrasound Probes are intended for use in the electromagnetic environment specified below. The customer or the user of the Interson USB Ultrasound Probe should ensure that it is used in such an environment. Field strength form fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, armature radio, AM and FM radio broadcast and TV broadcast, cannot be predicted theoretically with accuracy. -
Page 16: Storage
When the Probe is not being used, it should be stored in a clean, dry area. CAUTION Do not use cables or accessories other than those provided with the Interson USB Ultrasound Probe, as this may result in increased electromagnetic emissions or decrease immunity to such emissions. -
Page 17: Care Of The Usb Probe
(104°F). Do not use water at temperatures below 10°C (50°F). Dry with a sterile cloth. Maintenance Periodic testing and maintenance of the Interson USB ultrasound probe is NOT required. WARNING Do not use cables or accessories other than those provided with the Interson USB Ultrasound Probe, as this may result in increased electromagnetic emissions or decrease immunity to such emissions. -
Page 18: Appendix A - Software Installation
Appendix A - Software Installation ViewBladder 10 is delivered with the software already installed in the tablet. These software installation instructions only apply if you would like to load the software onto another Windows 7 computer. Email sales@Interson.com to get a copy of the ViewBladder 10 software. -
Page 19: Appendix B - Interson Probe System Specifications
Max operating temperature: 40 C (104 F) Min operating temperature: 10 C (50 F) Environmental Operating humidity range: 20-80% non-condensing Storage Temperature -10 C to 50 C (14 F to 122 F) *Probe Dependent 01-9932-00 ViewBladder 10 User Guide Revision 2... -
Page 20: Appendix C - Computer System Specifications
1 year for the ultrasound probe Special Options WARNING Do not use cables or accessories other than those provided with the Interson USB ultrasound probe, as this may result in increased electromagnetic emissions or decrease immunity to such emissions. The use of a “Non-Medical” grade AC Adapter could potentially cause harm to the system, the probe, the operator and/or the patient. -
Page 21: Appendix D - Interson Probes And Their Applications
Appendix D - Interson Probes and their Applications Description Product Design Product Targeted Use Human - Abdominal Focal Point - 7.5 mm USB PROBE Max depth – 20 cm GP 3.5 MHz Patient contact area - 35 mm Displayed depth – 10 cm, 15 cm, AB 3.5 MHz... -
Page 22: Appendix E - Summary Of The Acoustic Quantities
Depth for TIS Depth for TIB Depth at max. 5.43 5.43 5.43 attenuated pulse- intensity integral Supplementary information: B-Mode only with 90 degree scan angle, 15 Hz scan rate and 256 lines per scan 01-9932-00 ViewBladder 10 User Guide Revision 2... - Page 23 Depth for TIS Depth for TIB Depth at max. 3.93 3.93 3.93 attenuated pulse- intensity integral Supplementary information: B-Mode only with 90 degree scan angle, 15 Hz scan rate and 256 lines per scan 01-9932-00 ViewBladder 10 User Guide Revision 2...
- Page 24 Depth for TIB (cm) Depth at max. 1.33 1.33 1.33 attenuated pulse- intensity integral (cm) Supplementary information: B-Mode only with 90 degree scan angle, 15 Hz scan rate and 256 lines per scan 01-9932-00 ViewBladder 10 User Guide Revision 2...
- Page 25 Depth for TIB (cm) Depth at max. 1.30 1.30 1.30 attenuated pulse- intensity integral (cm) Supplementary information: B-Mode only with 60 degree scan angle, 18 Hz scan rate and 256 lines per scan 01-9932-00 ViewBladder 10 User Guide Revision 2...
- Page 26 Depth for TIS (cm) Depth for TIB (cm) Depth at max. attenuated pulse- intensity integral (cm) Supplementary information: B-Mode only with 90 degree scan angle, 15 Hz scan rate and 256 lines per scan 01-9932-00 ViewBladder 10 User Guide Revision 2...
- Page 27 Depth for TIB (cm) Depth at max. 0.10 0.10 0.10 attenuated pulse- intensity integral (cm) Supplementary information: B-Mode only with 60 degree scan angle, 15 Hz scan rate and 256 lines per scan 01-9932-00 ViewBladder 10 User Guide Revision 2...
-
Page 28: Appendix F - Interson Usb Probes - Indications For Use
PROBE SYSTEM. The nominal operating frequency is 3.5 MHz. In B-mode the transducer operates over a 35 mm area as an end-firing probe. This device is intended for use with the INTERSON USB ULTRASOUND PROBE SYSTEM for the transcutaneous imaging of neonatal, abdominal organs and structures including the gastrointestinal tract, kidney, bladder, etc., to aid in the detection and... - Page 29 This device is a hand-held, single element, mechanical sector probe intended for transcutaneous use with the INTERSON USB ULTRASOUND PROBE SYSTEM. The nominal operating frequency is 5.0 MHz. In B-mode, the transducer operates over a 32 mm area as an end-firing probe. This device is...
-
Page 30: Appendix G - Patient Privacy And Confidentiality
5) Regularly back up your data and store in a safe place. Note: Interson ViewBladder 10 software does not include electronic signature control and is not meant to substitute for an electronic medical record. -
Page 31: Appendix H - Interson Customer Warranty
Email: support@interson.com www.interson.com © Copyright Interson Corporation all rights reserved. No part of this manual or software may be reproduced in any form or by any means, electronic or mechanical, including but not limited to photocopying, recording, or by any information storage and retrieval systems, without the express written consent of Interson. -
Page 32: Appendix I - Warranty And Extended Warranty Registration
Appendix I - Warranty and Extended Warranty Registration Interson probes come with a standard one-year warranty. You can register your ViewBladder 10 system online at http://www.interson.com/registration or make a copy of this form, fill out your information, and mail to Interson.
