6.4.

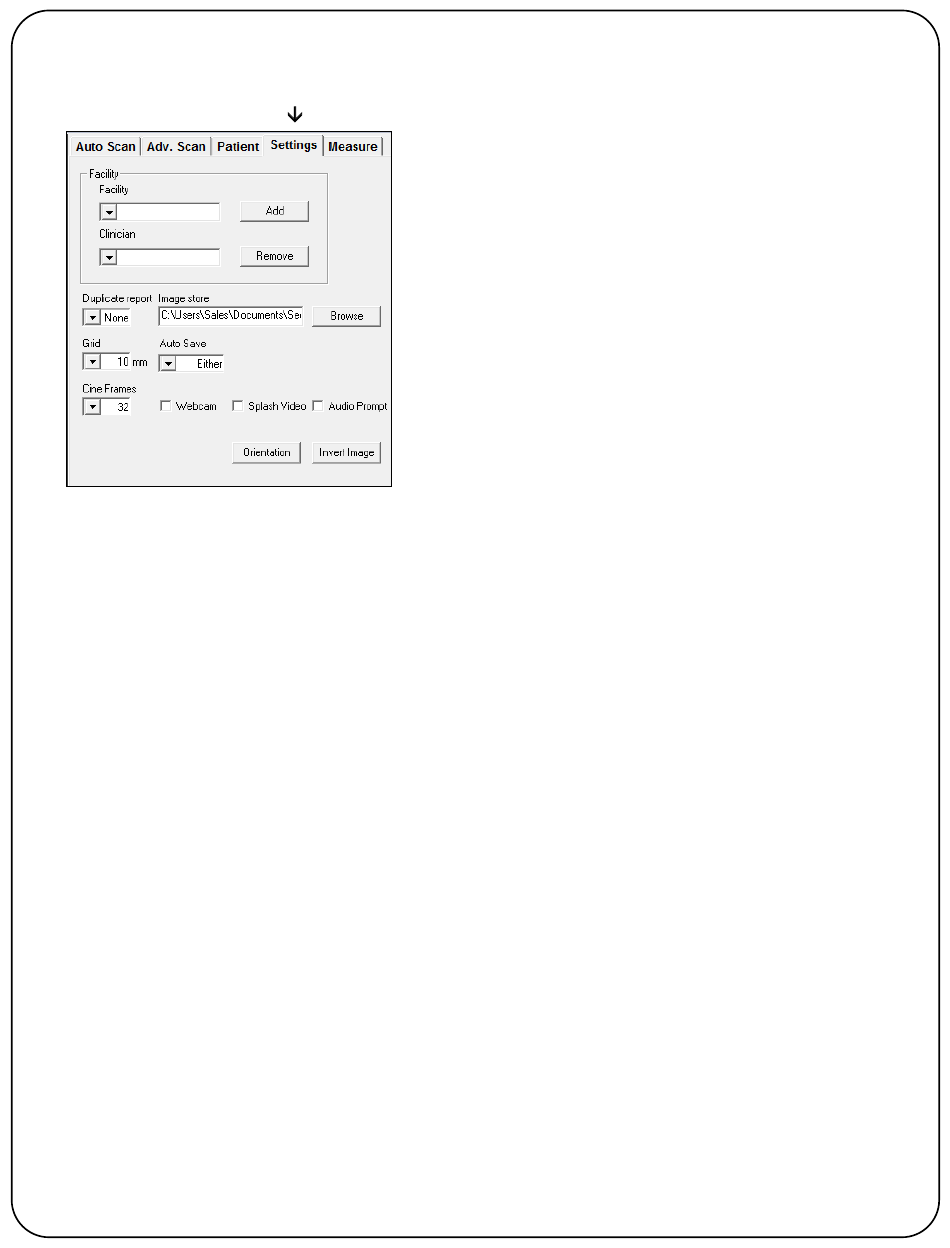

Settings Tab

The Settings tab is used to configure the functions of SeeMore.
Grid displays reference marks on the left side of the Image Window.
Auto Save specifies whether the space bar or the probe button automatically saves images to
the patient's folder during an exam.
Centerline displays a reference line in the center of the image.
A Biopsy Guide reference line can be displayed if an endocavity probe is the specified probe.
Cine Frames allows the user to specify the number of frames that are buffered for replay. 32,
64,128 or 256 may be selected. As the frame rate is approximately 15 frames per second, these
equate to approximately 2, 4, 8, and 16 seconds of buffered frames.
Webcam outputs a webcam to Windows. This feature outputs the SeeMore Image Window as a
webcam, allowing you to send a real-time image to a remote location. You can select this
webcam in Skype or another video transport.
Splash Video enables an included video to be played when SeeMore starts.
Audio Prompt enables included audio measurement prompts to be played during a bladder
volume calculation.
Display scaling controls the size of the SeeMore application window. Enter a value between the
displayed numbers and follow the prompts. As the image data set is 800 x 512, for any image
window that is larger than 800 x 512, extrapolated pixels are added in to develop the image.
Therefore the smallest image window will provide the clearest image. Always set Display
scaling to the smallest value that still allows you to see the image and adequately do your
procedure.
Orientation flips the image right and left.
Invert Image flips the image up and down.
01-9932-00 ViewBladder 10 User Guide Revision 2
In the Facility block you can Add and Remove either
Facility or Clinician names. To remove a name,
highlight the facility or clinician name and select
Remove.
To add a new name, type over an existing name and
select Add. The previous entry is not edited, the new
entry is added.
Duplicate report lists any connected storage drives and
allows you to select a duplicate location to store a copy
of the patient exams as they are taken.
Image Store specifies the default location to store
images that are not associated to a patient exam.
Image Save or Cine Save will save to this specified
location. There is typically no need to change this
default directory.
