Appendix D - Interson Probes and their Applications

Description
USB PROBE
GP 3.5 MHz
AB 3.5 MHz
USB PROBE
GP 5.0 MHz
AB 5.0 MHz
USB PROBE
SP 7.5 MHz
PI 7.5 MHz
USB PROBE
MV 12.0 MHz
USB PROBE
NV 12 MHz
USB PROBE
SR 7.5 MHz
VA 7.5 MHz
USB PROBE
EC 7.5 MHz
EB 7.5 MHz
01-9932-00 ViewBladder 10 User Guide Revision 2

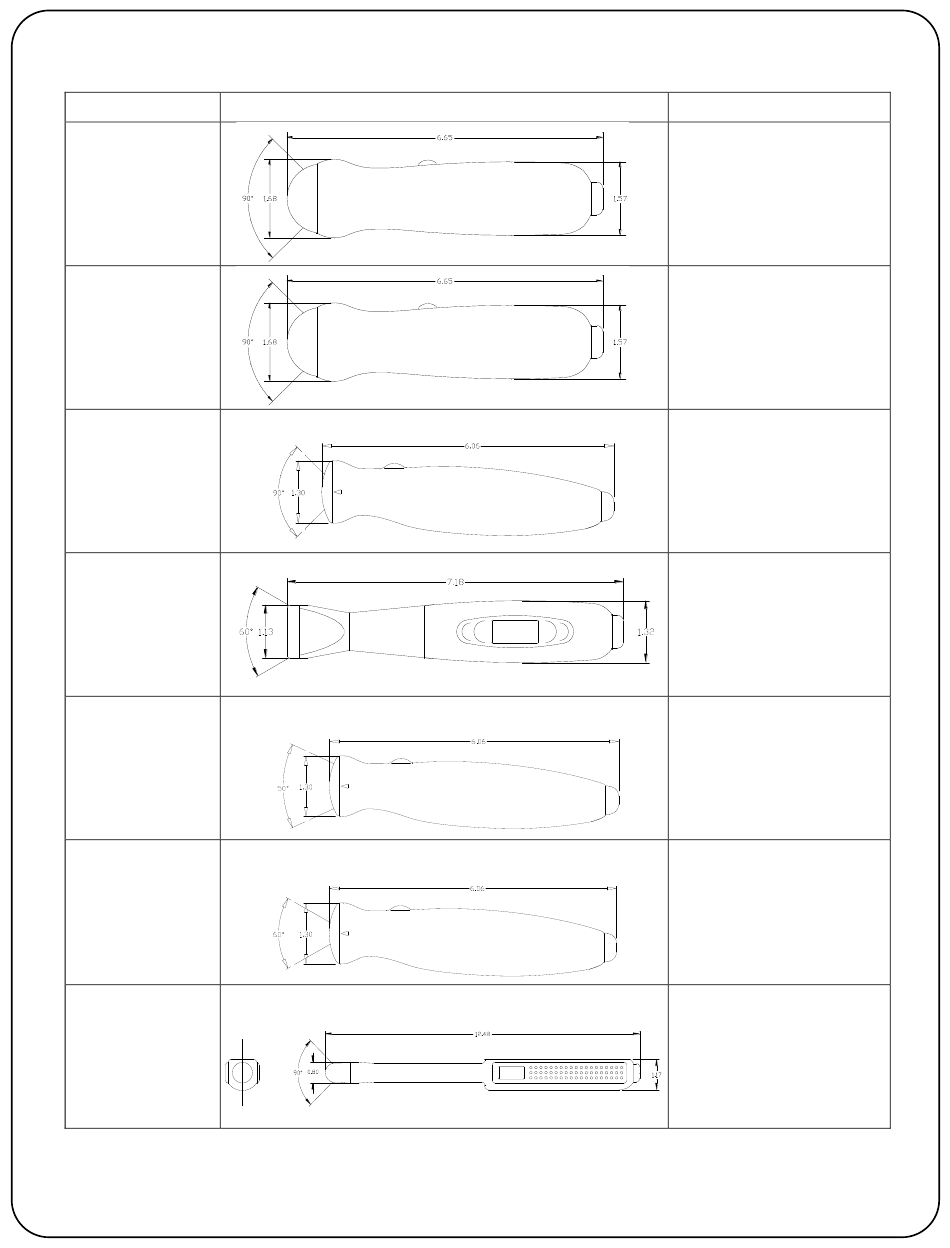

Product Design Product Targeted Use
Human - Abdominal
Focal Point - 7.5 mm
Max depth – 20 cm
Patient contact area - 35 mm
Displayed depth – 10 cm, 15 cm,
20 cm
Human - Abdominal
Focal Point – 6 mm
Max depth – 20 cm
Patient contact area - 32 mm
Displayed depth – 10 cm, 15 cm,
20 cm
Human
Superficial Anatomy
Focal Point - 2.0 cm
Max depth - 10.0 cm
Patient contact area - 20.0 mm
Displayed depth – 5 cm, 10 cm
Human
Vascular - Phlebotomy
Focal Point - 0.5 cm
Max depth - 3.0 cm
Patient contact area - 29.0 mm
Displayed depth - 3.0 cm
Human
Near Field Vascular
Focal Point - 0.5 cm
Max depth - 3.0 cm
Patient contact area - 29.0 mm
Displayed depth - 3.0 cm
Human
Superficial Anatomy
Focal Point - 2.0 cm
Max depth - 10.0 cm
Patient contact area – 20 mm
Displayed depth – 3 cm, 5 cm,
6 cm, 10 cm
Human Endocavity
Trans-Vaginal OB/GYN
Focal Point - 2.5 cm
Max depth - 10 cm
Patient contact area – 21 mm
Displayed depth – 5 cm, 10 cm
